Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#51854) — 67 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
◀

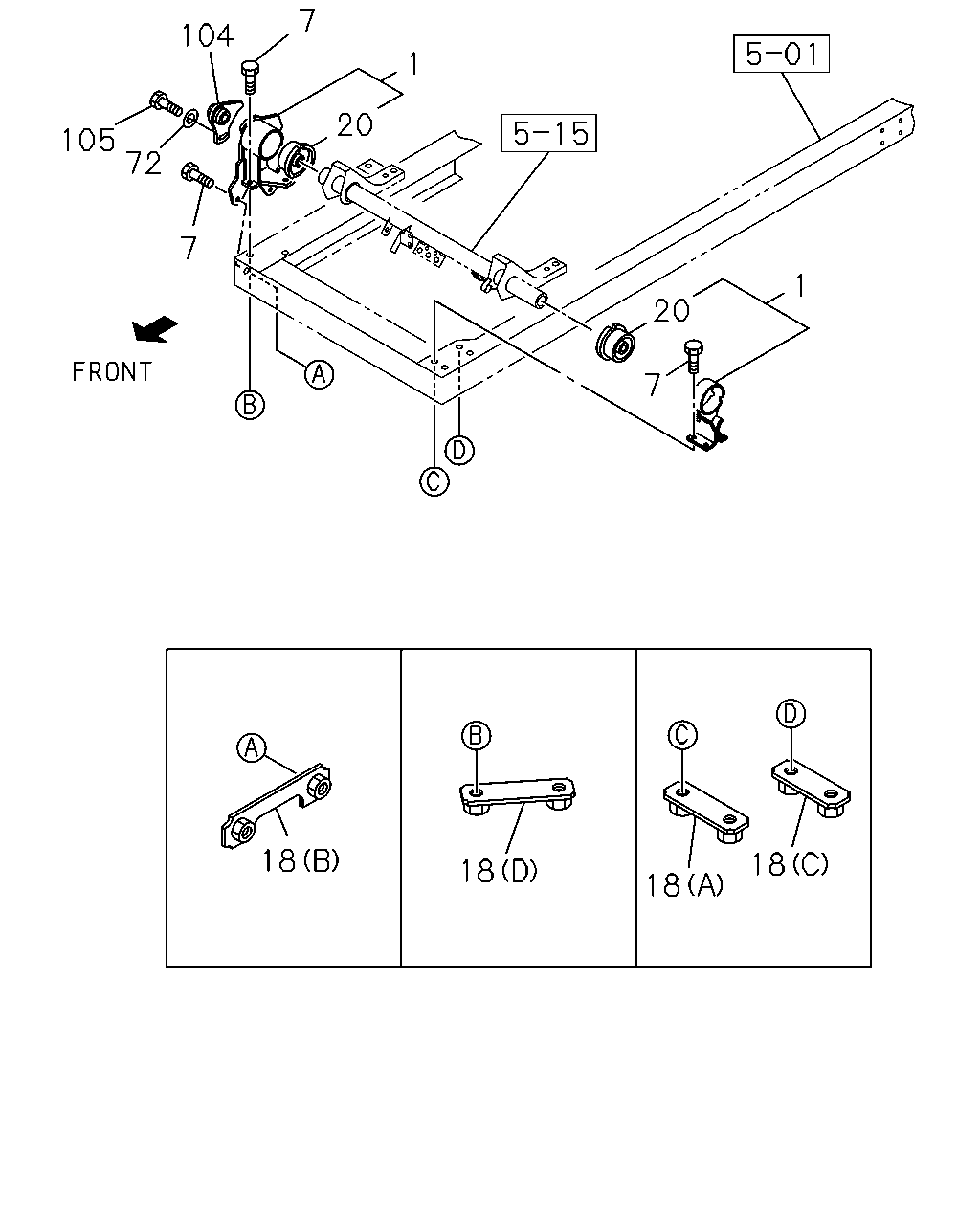

[510A] CAB MTG BRKT;FRONT (28 parça)

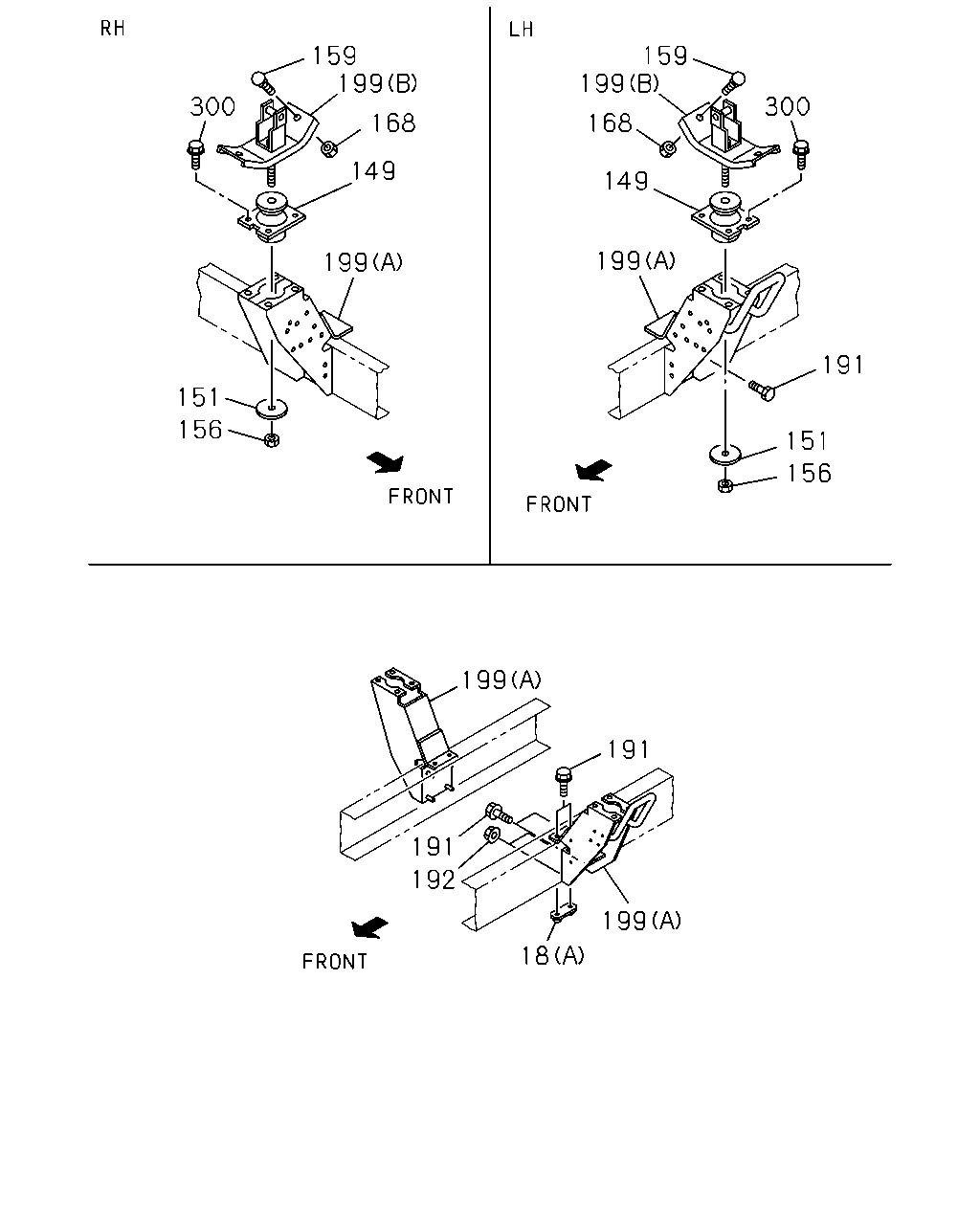

[510A] CAB MTG BRKT;REAR (39 parça)
▶
7
104
1
20
105
72
7
1
20
7
18
18
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
BRACKET; CAB MTG
8-97330-146-1
01
1
0507-0604
●
●
●
1
BRACKET; CAB MTG
8-97330-146-1
01
1
0605-
●
●
●
●
1
BRACKET; CAB MTG
8-97330-144-1
01
1
0507-0604
●
●
●
1
BRACKET; CAB MTG
8-97330-144-1
01
1
0605-
●
●
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28681-240-0
08
1
0507-0512
●
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28651-240-0
08
1
0601-0604
●
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28651-240-0
08
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
02
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
02
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(C) L=42
8-97034-140-2
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(C) L=42
8-97034-140-2
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(B) L=130
8-97130-348-1
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(B) L=130
8-97130-348-1
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(D) L=118
8-97330-150-1
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(D) L=118
8-97330-150-1
01
1
0605-
●
●
●
●
20
RUBBER; MTG,CAB BRKT
8-97095-148-1
02
1
0507-0604
●
●
●
20
RUBBER; MTG,CAB BRKT
8-97095-148-1
02
1
0605-
●
●
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
9-09164-714-0
01
1
0507-0604
●
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
9-09164-714-0
01
1
0605-0605
●
●
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
0606-
●
●
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-97330-162-2
01
1
0507-0604
●
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-97330-162-2
01
1
0605-1406
●
●
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98286-068-0
01
1
1407-
●
●
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28681-435-0
01
1
0507-0512
●
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28651-435-0
01
1
0601-0604
●
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28651-435-0
01
1
0605-
●
●
●
●
159
199
159
199
300
300
168
168
149
149
199
199
191
151
156
151
156
199
191
191
192
199
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
02
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(A) L=55
8-97034-139-2
02
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(C) L=42
8-97034-140-2
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(C) L=42
8-97034-140-2
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(B) L=130
8-97130-348-1
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(B) L=130
8-97130-348-1
01
1
0605-
●
●
●
●
18
PLATE; MTG BRKT FIX
(D) L=118
8-97330-150-1
01
1
0507-0604
●
●
●
18
PLATE; MTG BRKT FIX
(D) L=118
8-97330-150-1
01
1
0605-
●
●
●
●
149
RUBBER; MTG,CAB,UPR RR
8-97095-149-3
02
1
0507-0604
●
●
●
149
RUBBER; MTG,CAB,UPR RR
8-97095-149-3
02
1
0605-0804
●
●
●
●
149
RUBBER; MTG,CAB,UPR RR
8-98021-561-1
02
1
0805-
●
●
●
●
151
WASHER; CAB MTG,RR UPR
ID=16.4 OD=62
8-97034-382-0
02
1
0507-0604
●
●
●
151
WASHER; CAB MTG,RR UPR
ID=16.4 OD=62
8-97034-382-0
02
1
0605-0611
●
●
●
●
151
WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0612-
●
●
●
●
156
NUT; CAB MTG RR
M16
9-99111-416-0
02
1
0507-0512
●
●
●
156
NUT; CAB MTG RR
M16
0-91111-516-0
02
1
0601-0604
●
●
●
156
NUT; CAB MTG RR
M16
0-91111-516-0
02
1
0605-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
0507-0604
●
●
●
159
RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
0605-
●
●
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE
0-91150-108-0
04
1
0507-0602
●
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE
0-91180-108-0
04
1
0603-0604
●
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE
0-91180-108-0
04
1
0605-
●
●
●
●
191
BOLT; BRKT FIX
M12X40 FLANGE
0-28681-240-0
08
1
0507-0512
●
●
●
191
BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
0601-0604
●
●
●
191
BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
0605-
●
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91150-112-0
08
1
0507-0602
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
08
1
0603-0604
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
08
1
0605-
●
●
●
●
199
BRACKET; CAB RR MTG
(B)
8-97035-310-4
02
1
0507-0604
●
●
●
199
BRACKET; CAB RR MTG
(B)
8-97035-310-4
02
1
0605-
●
●
●
●
199
BRACKET; CAB RR MTG
(A)
8-97330-163-1
01
1
0507-0604
●
●
●
199
BRACKET; CAB RR MTG
(A)
8-97330-163-1
01
1
0605-
●
●
●
●
199
BRACKET; CAB RR MTG
(A)
8-97330-165-1
01
1
0507-0604
●
●
●
199
BRACKET; CAB RR MTG
(A)
8-97330-165-1
01
1
0605-
●
●
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28681-020-0
08
1
0507-0512
●
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
0601-0604
●
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
0605-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
