◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#51852) — 82 parça

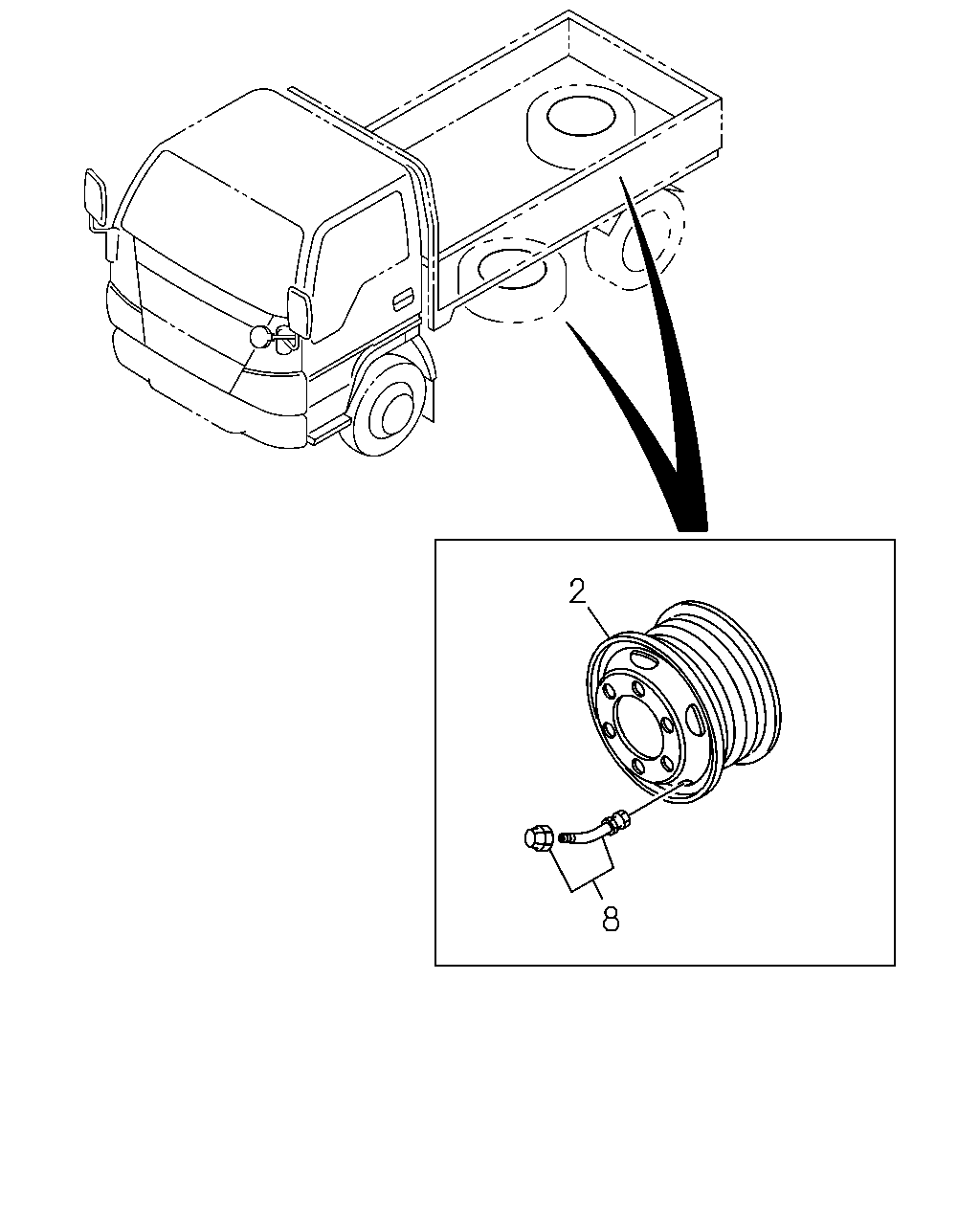

çizim 100784
2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703-1406 ● ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ● ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ●
2 WHEEL; DISC
FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0507- ●
2 WHEEL; DISC
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0507- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0507- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0507- ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0507-0604 ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0605-0702 ● ●
2 WHEEL; DISC
FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0605-0702 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703-1406 ● ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ● ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 01 1 0507-0604 ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0605-1406 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0605-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 		1-42370-010-1 06 1 0607-1406 ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-010-1 06 1 0607-1406 ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-112-0 06 1 1407- ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0607-1406 ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0607-1406 ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0507- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) SPARE 		8-98221-106-0 01 1 0507- ● ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 0507- ●
8 VALVE; TIRE
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) FRONT,REAR 		8-98221-106-0 06 1 0507- ● ●

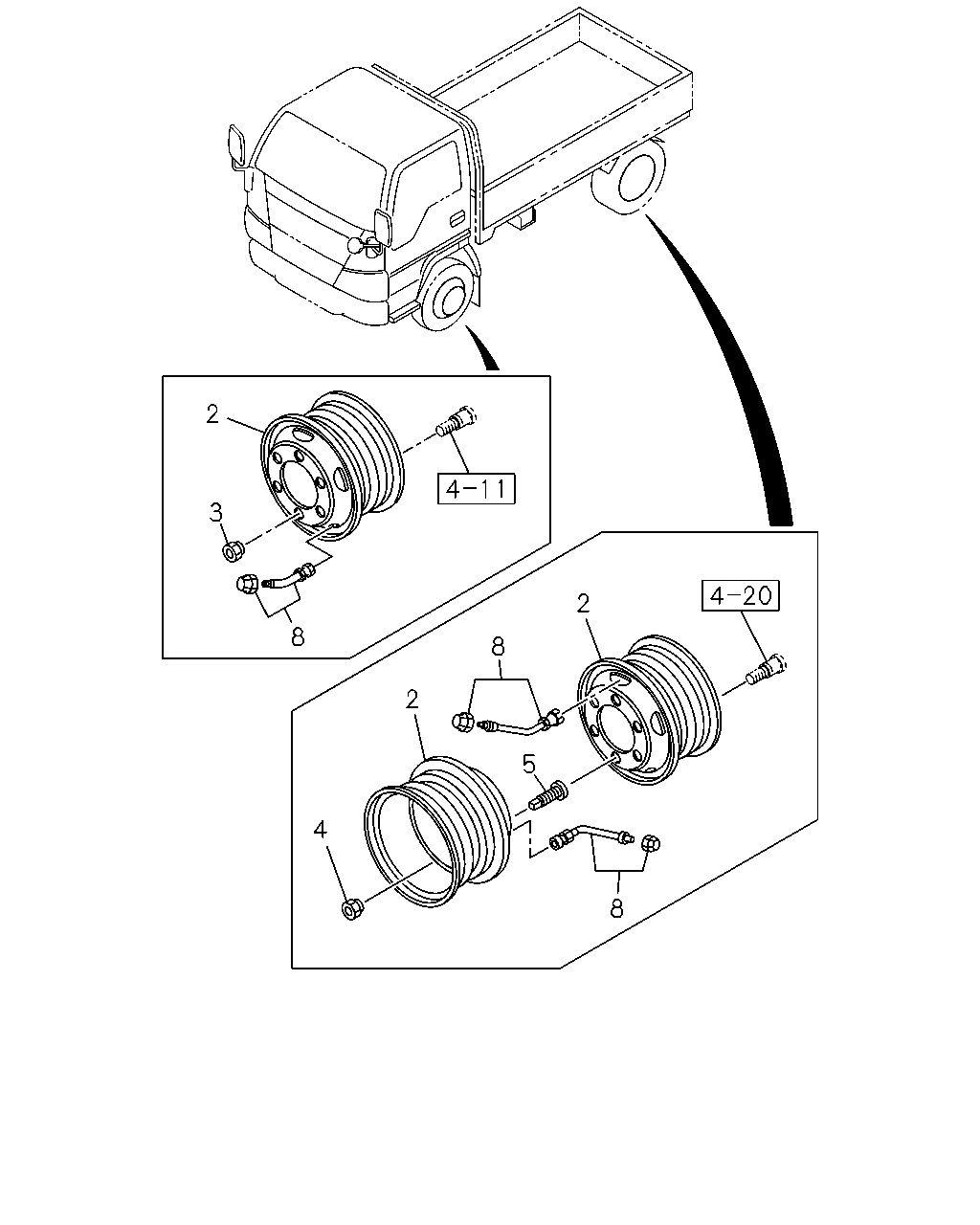

çizim 100811
2 8 2 4 5 8 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703-1406 ● ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ● ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ●
2 WHEEL; DISC
FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0507- ●
2 WHEEL; DISC
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0507- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0507- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0507- ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0507-0604 ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0605-0702 ● ●
2 WHEEL; DISC
FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0605-0702 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703-1406 ● ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ● ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 01 1 0507-0604 ● ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0605-1406 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0605-1406 ●
2 WHEEL; DISC
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0507-0604 ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0605-0610 ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0611- ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0507-0604 ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0605-0610 ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0611- ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0507-0604 ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0605-0610 ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0611- ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0507-0604 ● ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0605-0610 ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0611- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0507-0604 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0605-0610 ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0507-0604 ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0605-0610 ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611- ● ● ● ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 		1-42370-010-1 06 1 0607-1406 ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-010-1 06 1 0607-1406 ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-112-0 06 1 1407- ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0607-1406 ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0607-1406 ●
8 VALVE; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0507- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) SPARE 		8-98221-106-0 01 1 0507- ● ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 0507- ●
8 VALVE; TIRE
FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) FRONT,REAR 		8-98221-106-0 06 1 0507- ● ●
