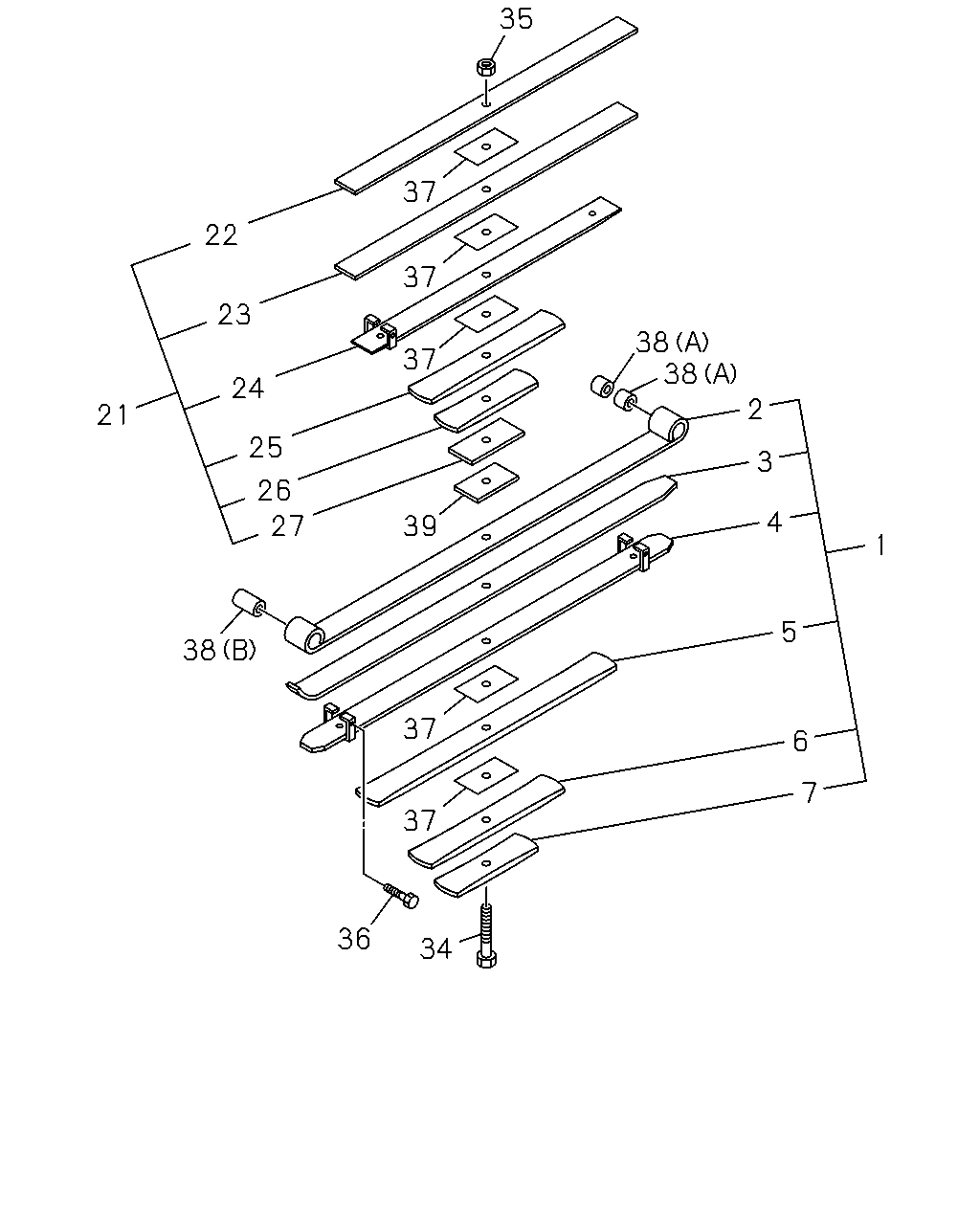

4-65B — REAR LEAF SPRING (#51851) — 22 parça

35 37 22 37 23 38 38 37 24 2 21 25 3 26 4 27 39 1 5 38 37 6 7 37 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-140-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-141-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-142-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-143-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-144-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-145-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-97182-747-1	8-97183-153-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97182-747-1	8-97183-146-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97182-747-1	8-97183-147-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97182-747-1	8-97183-148-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-97182-747-1	8-97183-149-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-97182-747-1	8-97183-150-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-97182-747-1	8-97183-151-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-97182-747-1	8-97183-152-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 8-97182-747-1	8-97183-155-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97182-747-1	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-97182-747-1	8-94407-133-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97182-747-1	8-97084-102-0	05	1	-
38	BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97182-747-1	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=40 L=43.7 ASM PART: A = 8-97182-747-1	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97182-747-1	8-97074-826-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=6 ASM PART: A = 8-97182-747-1	8-94367-965-1	01	1	-
