Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#5185) — 177 parça

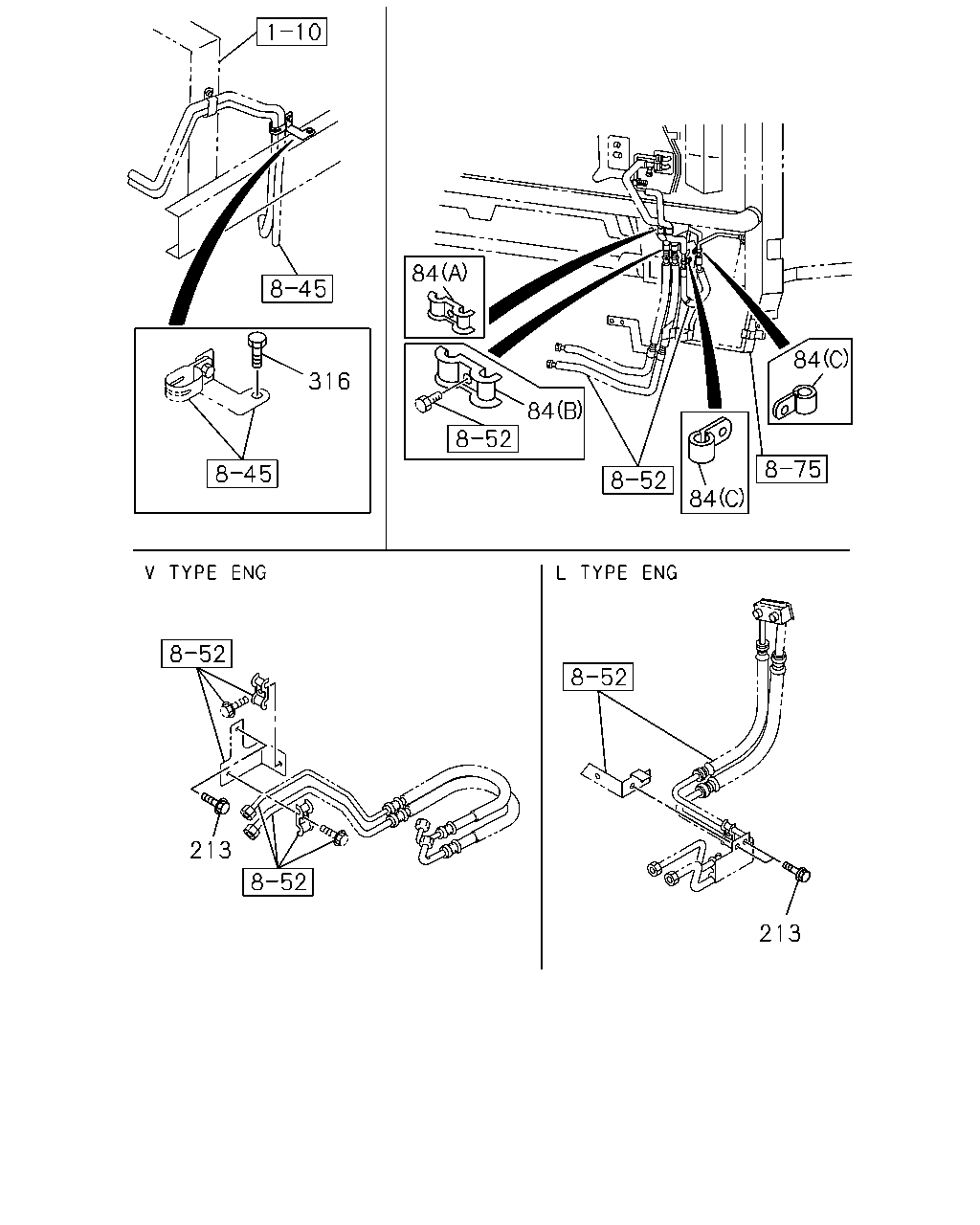

84 84 316 84 84 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9610-
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9610-
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	9610-
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9610-9706
213	BOLT; FLEX HOSE TO CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9707-9905
213	BOLT; FLEX HOSE TO CMPR L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9906-0007
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X16 FLANGE	0-28080-816-0	02	1	0008-
213	BOLT; FLEX HOSE TO CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9802-9905
213	BOLT; FLEX HOSE TO CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9906-
316	BOLT; BRKT FIX 6WA1 TC-S(56L) HEATER & DEFROSTER(C41) M8X30 FLANGE	0-28080-830-0	01	1	9606-9606
316	BOLT; BRKT FIX 6WA1 TC-S(56L) HEATER & DEFROSTER(C41) M8X30 FLANGE	0-28680-830-0	01	1	9607-9609
316	BOLT; BRKT FIX 6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9610-9706
316	BOLT; BRKT FIX 6WA1 TC-S(56L),6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9707-9905
316	BOLT; BRKT FIX L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9906-0007
316	BOLT; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	0008-

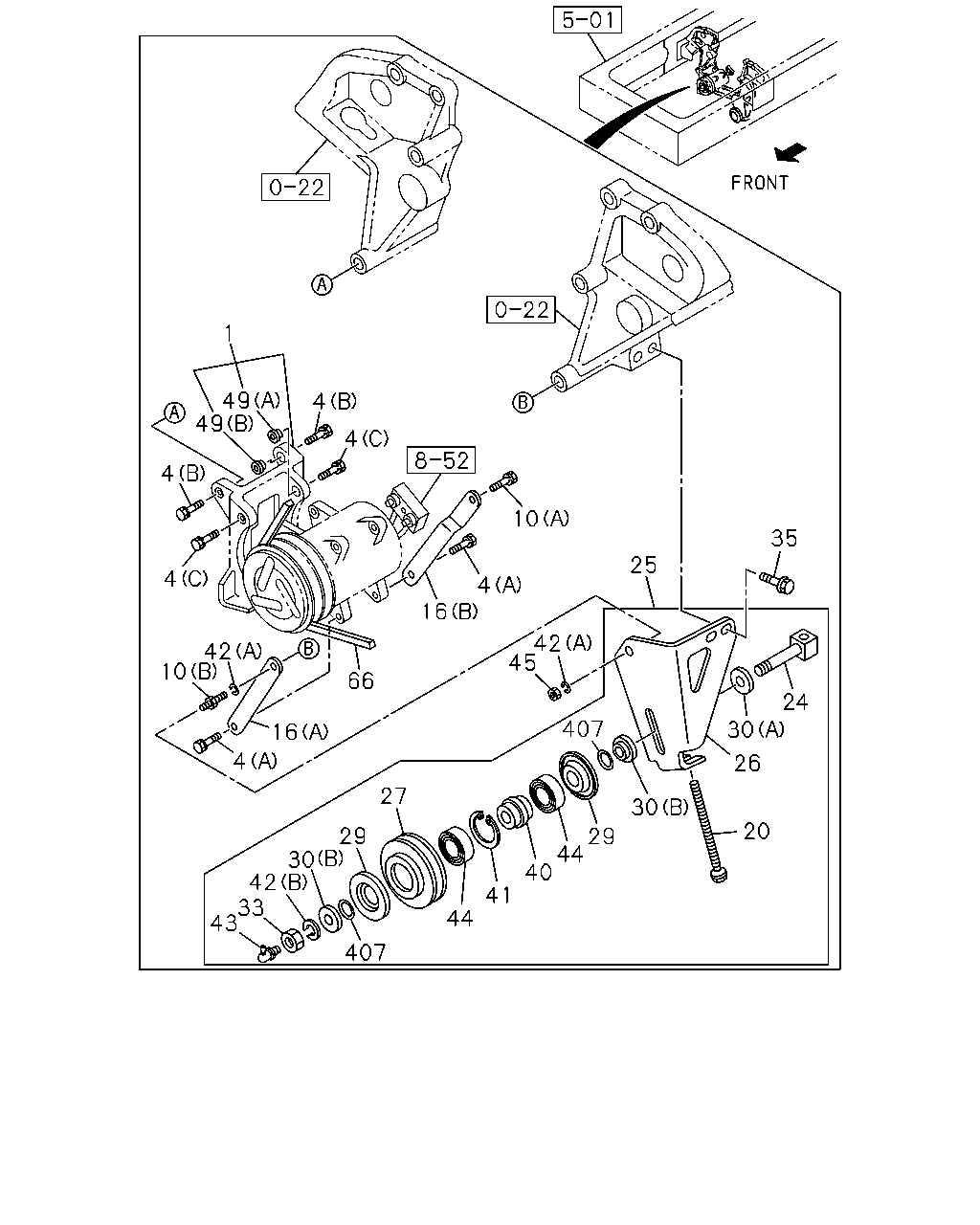

1 49 49 4 4 4 10 35 25 4 4 16 42 45 42 10 66 24 407 30 16 4 26 27 30 20 29 42 33 43 29 44 40 41 44 407 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9610-9801
1	BRACKET; A/C 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9802-9905
1	BRACKET; A/C 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9906-
1	BRACKET; A/C 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9802-9905
1	BRACKET; A/C 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9906-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9610-9801
10	BOLT; ADJ PLATE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9802-9905
10	BOLT; ADJ PLATE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9906-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9610-9801
10	BOLT; ADJ PLATE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9802-9905
10	BOLT; ADJ PLATE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9906-
10	BOLT; ADJ PLATE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9802-9905
10	BOLT; ADJ PLATE 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9906-
10	BOLT; ADJ PLATE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9802-9905
10	BOLT; ADJ PLATE 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9906-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9610-9801
16	PLATE; ADJ,CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9906-
16	PLATE; ADJ,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9906-
16	PLATE; ADJ,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9906-
20	BOLT; ADJ PLATE TO CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	9802-9905
20	BOLT; ADJ PLATE TO CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	9906-
24	PIECE; SLIDING AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9610-9801
24	PIECE; SLIDING 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9802-9905
24	PIECE; SLIDING 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9906-
24	PIECE; SLIDING 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9802-9905
24	PIECE; SLIDING 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9906-
25	PULLEY ASM; IDLER,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9802-9905
25	PULLEY ASM; IDLER,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9906-
26	BRACKET; IDLE PULLEY,A/C 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	9802-9905
26	BRACKET; IDLE PULLEY,A/C 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	9906-
27	PULLEY; IDLE,A/C 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9802-9905
27	PULLEY; IDLE,A/C 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9906-
29	COVER; DUST,IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	9802-9905
29	COVER; DUST,IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	9906-
30	COLLAR; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	9802-9905
30	COLLAR; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	9906-
30	COLLAR; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	9802-9905
30	COLLAR; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	9906-
33	NUT; IDLER PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9802-9905
33	NUT; IDLER PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9906-
35	BOLT; IDLER PULLEY TO C/BL 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	9802-9905
35	BOLT; IDLER PULLEY TO C/BL 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	9906-
40	BUSHING; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9802-9905
40	BUSHING; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9906-
41	RING; SNAP,IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9802-9905
41	RING; SNAP,IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9906-
42	WASHER; PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9802-9905
42	WASHER; PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9906-
42	WASHER; PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9802-9905
42	WASHER; PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9906-
43	NIPPLE; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9802-9905
43	NIPPLE; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9906-
44	BEARING; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9802-9905
44	BEARING; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9906-
45	NUT; BOLT,IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9802-9905
45	NUT; BOLT,IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9906-
49	COLLAR; BRKT,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	9802-9905
49	COLLAR; BRKT,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	9906-
49	COLLAR; BRKT,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	9802-9905
49	COLLAR; BRKT,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	9906-
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1130	1-13671-208-0	01	1	9610-9611
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9612-9801
66	BELT; A/C CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9802-9905
66	BELT; A/C CMPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9906-
66	BELT; A/C CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9802-9905
66	BELT; A/C CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9906-
407	RUBBER; IDLE PULLEY 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	9802-9905
407	RUBBER; IDLE PULLEY 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	9906-

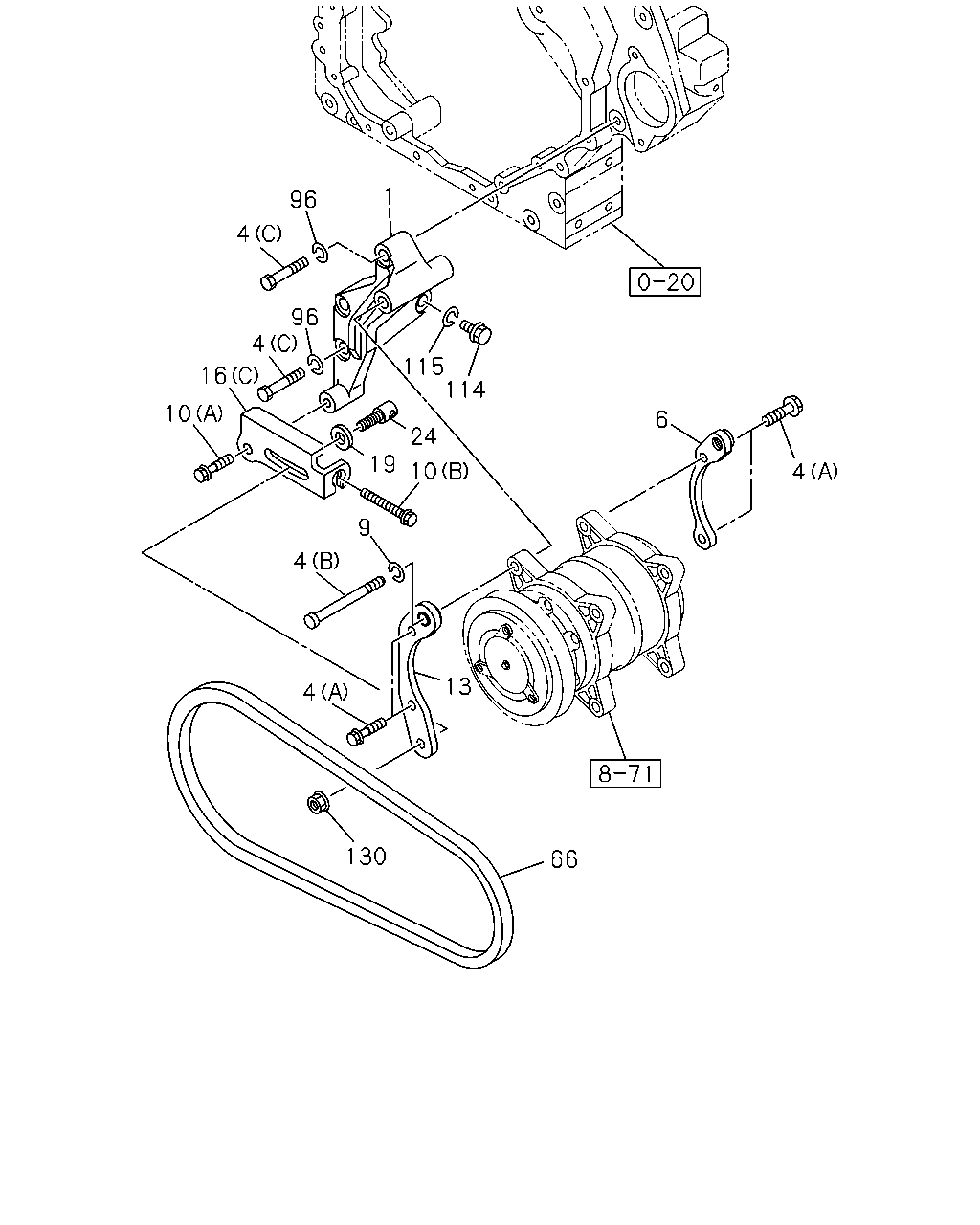

1 96 4 96 4 115 114 16 10 6 24 19 10 4 9 4 13 4 130 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9610-9801
1	BRACKET; A/C 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9802-9905
1	BRACKET; A/C 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9906-
1	BRACKET; A/C 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9802-9905
1	BRACKET; A/C 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9906-
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9610-9801
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9906-
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9802-9905
4	BOLT; A/C CMPR BRKT 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9906-
6	BRACKET; CMPR,RR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9610-9801
6	BRACKET; CMPR,RR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9802-9905
6	BRACKET; CMPR,RR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9906-
9	WASHER; LK,A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9610-9801
9	WASHER; LK,A/C CMPR BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9802-9905
9	WASHER; LK,A/C CMPR BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9906-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9610-9801
10	BOLT; ADJ PLATE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9802-9905
10	BOLT; ADJ PLATE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9906-
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9610-9801
10	BOLT; ADJ PLATE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9802-9905
10	BOLT; ADJ PLATE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9906-
10	BOLT; ADJ PLATE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9802-9905
10	BOLT; ADJ PLATE 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9906-
10	BOLT; ADJ PLATE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9802-9905
10	BOLT; ADJ PLATE 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9906-
13	BRACKET; CMPR,FRT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9610-9801
13	BRACKET; CMPR,FRT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9802-9905
13	BRACKET; CMPR,FRT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9906-
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9610-9801
16	PLATE; ADJ,CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9906-
16	PLATE; ADJ,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9906-
16	PLATE; ADJ,CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9802-9905
16	PLATE; ADJ,CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9906-
19	WASHER; PL,ADJ PLATE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9610-9801
19	WASHER; PL,ADJ PLATE TO CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9802-9905
19	WASHER; PL,ADJ PLATE TO CMPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9906-
24	PIECE; SLIDING AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9610-9801
24	PIECE; SLIDING 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9802-9905
24	PIECE; SLIDING 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9906-
24	PIECE; SLIDING 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9802-9905
24	PIECE; SLIDING 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9906-
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1130	1-13671-208-0	01	1	9610-9611
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9612-9801
66	BELT; A/C CMPR 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9802-9905
66	BELT; A/C CMPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9906-
66	BELT; A/C CMPR 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9802-9905
66	BELT; A/C CMPR 10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9906-
96	WASHER; LK AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9610-9801
96	WASHER; LK 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9802-9905
96	WASHER; LK 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9906-
114	BOLT; BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9610-9801
114	BOLT; BRKT TO GEAR CASE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9802-9905
114	BOLT; BRKT TO GEAR CASE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9906-
115	WASHER; LK,BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9610-9801
115	WASHER; LK,BRKT TO GEAR CASE 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9802-9905
115	WASHER; LK,BRKT TO GEAR CASE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9906-
130	NUT; ADJ BRKT AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9610-9801
130	NUT; ADJ BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9802-9905
130	NUT; ADJ BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
