◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶

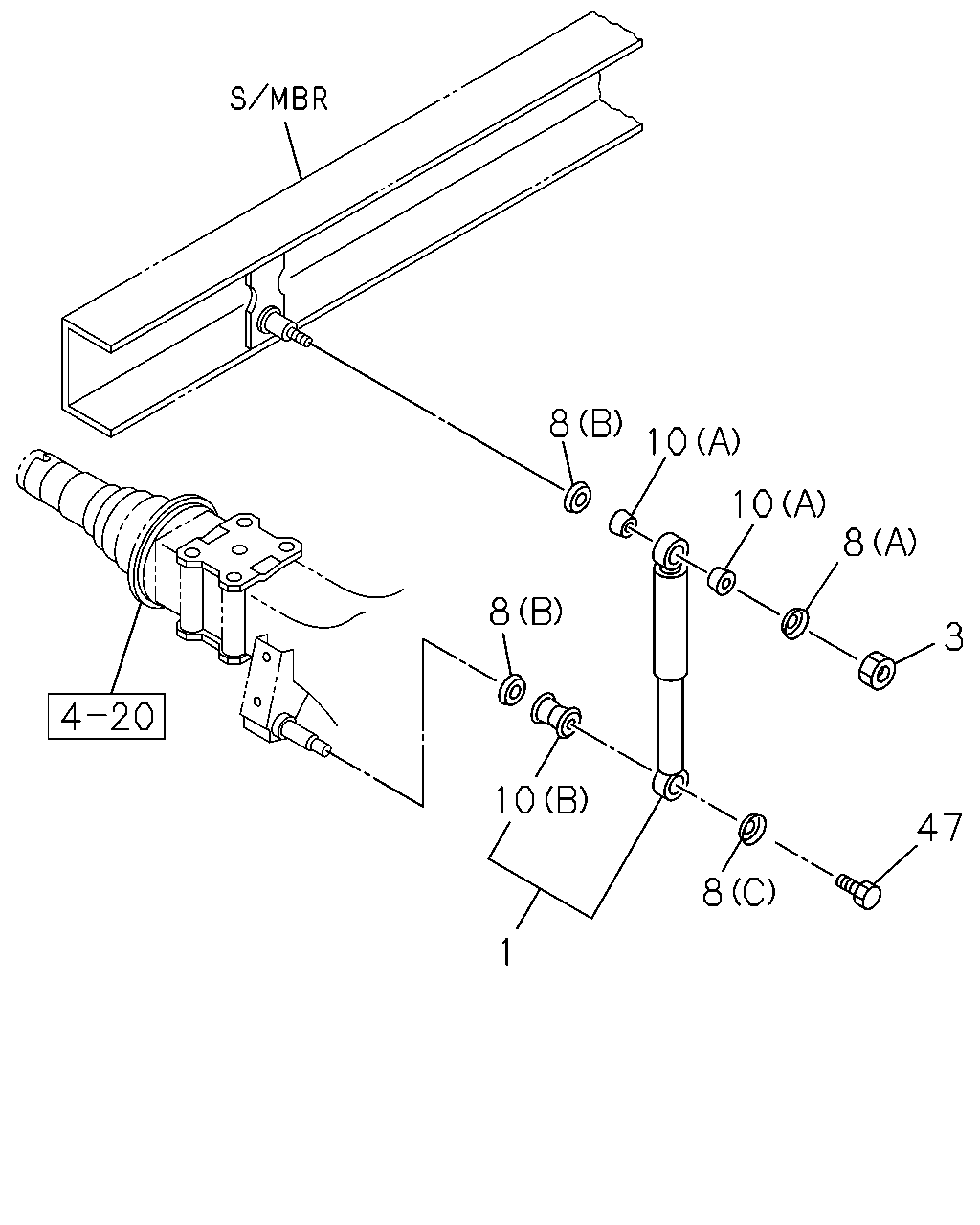

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#51849) — 27 parça
çizim 57572
8 10 10 8 8 3 10 47 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0507- ●
1 ABSORBER ASM; SHOCK,RR
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97253-651-2 02 1 0507- ● ●
1 ABSORBER ASM; SHOCK,RR
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97253-665-0 02 1 0507-0604 ● ●
1 ABSORBER ASM; SHOCK,RR
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97253-665-1 02 1 0605- ● ●
1 ABSORBER ASM; SHOCK,RR 8-97253-665-1 02 1 0605- ●
1 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 0507- ●
1 ABSORBER ASM; SHOCK,RR
GVWR CLASS-4 14001-16000LBS(RQG) BEST VALUE PARTS 		5-87610-132-0 02 1 0507- ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 02 1 0507-0512 ● ● ●
3 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601-0604 ● ● ●
3 NUT; S/ABS
M14 		0-91111-514-0 02 1 0605-0612 ● ● ● ●
3 NUT; S/ABS
M14 		0-91110-514-0 02 1 0701- ● ● ● ●
8 WASHER; S/ABS
(A) ID=15.0 		9-51679-012-0 02 1 0507-0604 ● ● ●
8 WASHER; S/ABS
(A) ID=15.0 		9-51679-012-0 02 1 0605-0611 ● ● ● ●
8 WASHER; S/ABS
(A) ID=15 		8-97360-056-0 02 1 0612- ● ● ● ●
8 WASHER; S/ABS
(B) ID=20.0 		9-51679-013-0 04 1 0507-0604 ● ● ●
8 WASHER; S/ABS
(B) ID=20.0 		9-51679-013-0 04 1 0605-0611 ● ● ● ●
8 WASHER; S/ABS
(B) ID=20.0 		8-97360-057-0 04 1 0612- ● ● ● ●
8 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0507-0604 ● ● ●
8 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0605-0611 ● ● ● ●
8 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0612- ● ● ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0507-0604 ● ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0605- ● ● ● ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0507-0604 ● ● ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0605- ● ● ● ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28081-016-0 02 1 0507-0512 ● ● ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28051-016-0 02 1 0601-0604 ● ● ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28051-016-0 02 1 0605- ● ● ● ●
