4-55 — FRONT LEAF SPRING (#51847) — 15 parça

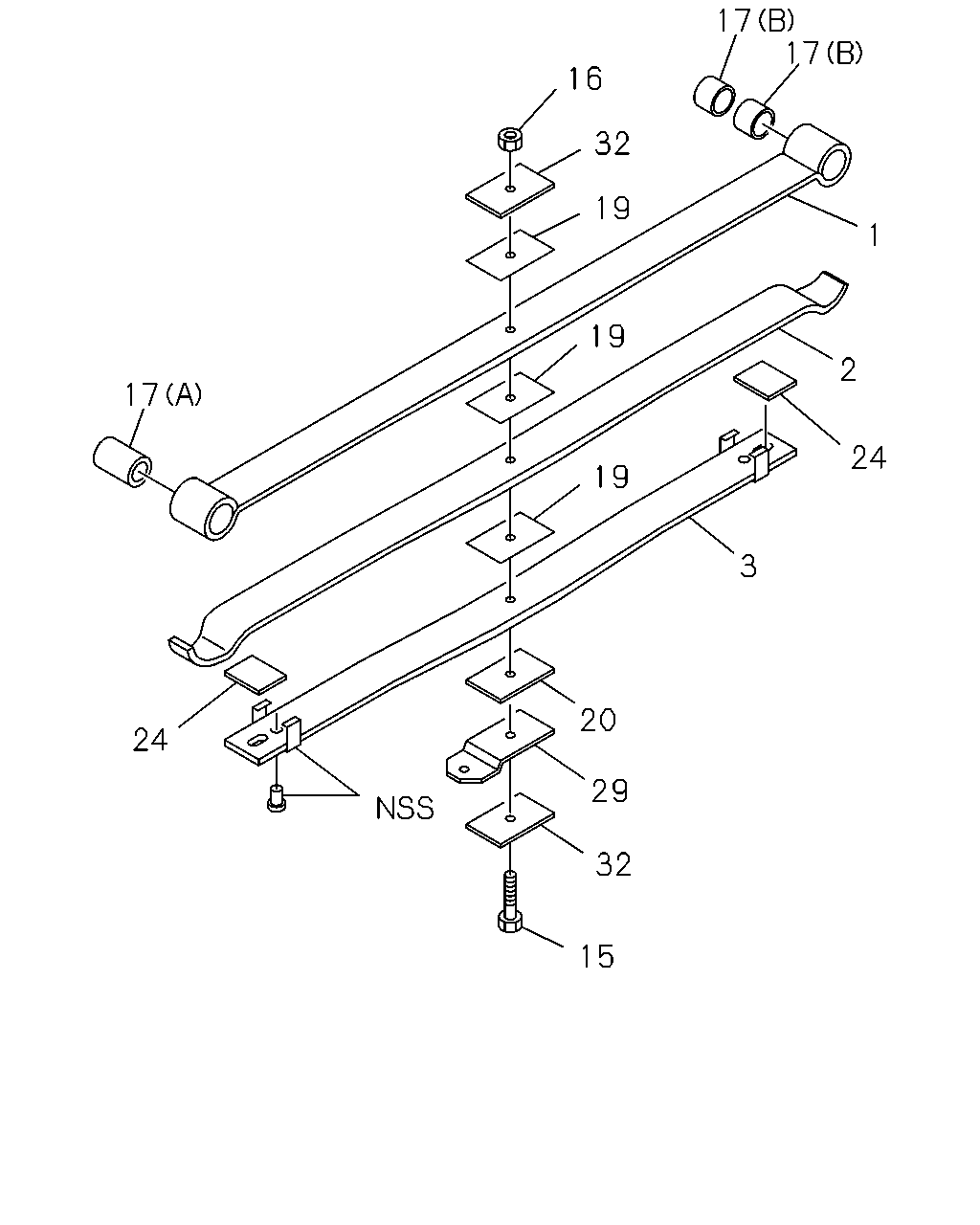

çizim 57383
17 17 16 32 19 1 19 2 17 24 19 3 20 24 29 32 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97188-764-0 		8-97189-497-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97188-765-0 		8-97189-500-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97188-764-0 		8-97189-498-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97188-765-0 		8-97189-501-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97188-764-0 		8-97189-499-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97188-765-0 		8-97189-502-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-94165-284-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=40 L=43.7 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 L=81 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-94130-354-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-97084-845-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-97353-793-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-97084-848-0 02 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-97141-927-1 01 1 -
32 PLATE; CASTER
ASM PART: A = 8-97188-764-0, B = 8-97188-765-0 		8-97164-386-2 02 1 -
