◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#51846) — 61 parça

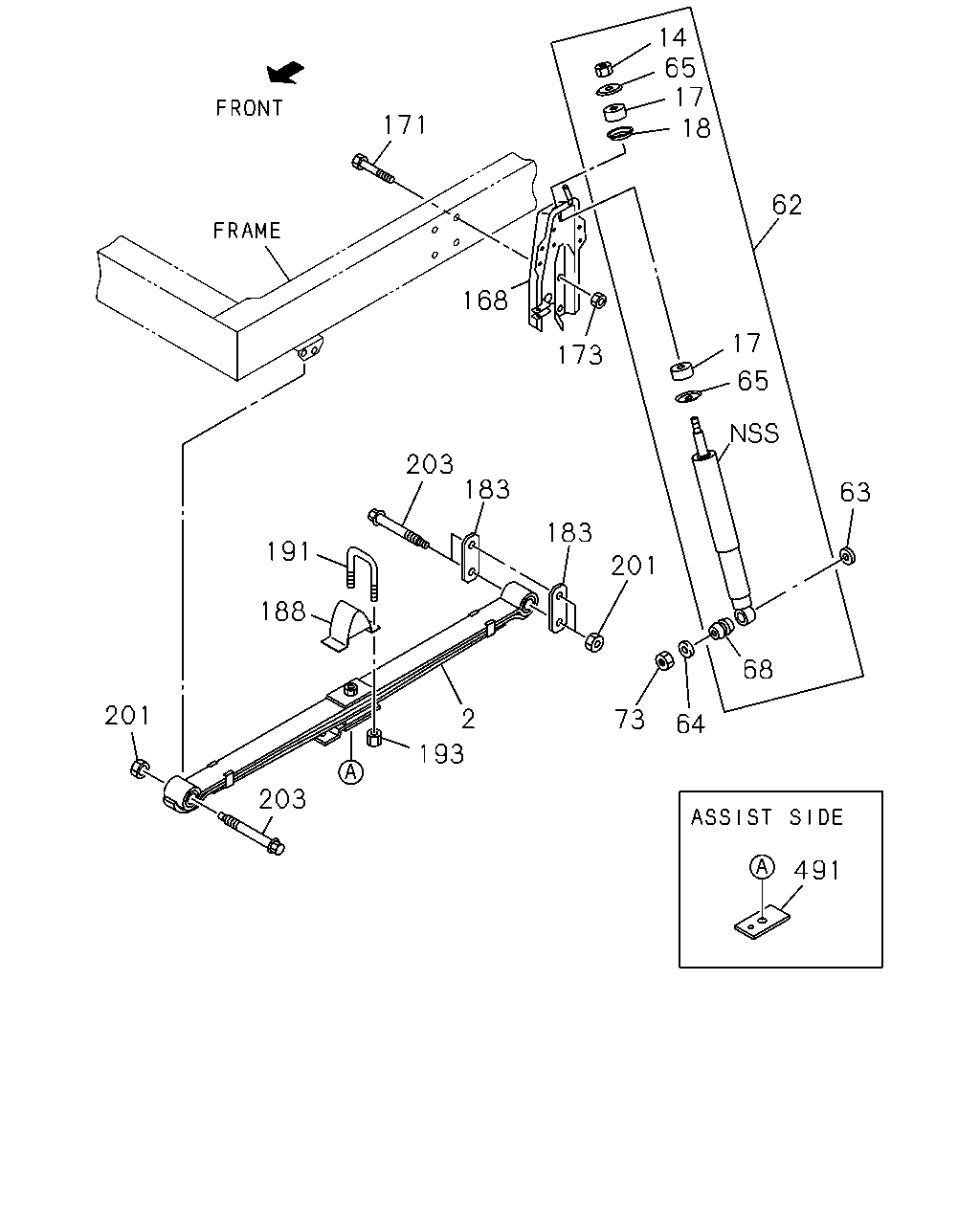

çizim 57293
14 65 17 18 171 62 168 17 173 65 203 183 63 183 191 201 188 68 201 2 73 64 193 203 491
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-97188-765-0 01 1 0507-0604 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-97188-765-0 01 1 0605- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-97188-764-0 01 1 0507-0604 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-97188-764-0 01 1 0605- ● ● ● ●
14 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 0507-0604 ● ● ●
14 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 0605- ● ● ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0507-0604 ● ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0605- ● ● ● ●
18 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0507-0604 ● ● ●
18 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0605- ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-620-0 02 1 0507-0604 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-620-1 02 1 0605- ● ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 0507-0604 ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 0605-0605 ● ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		0-91614-620-0 02 1 0606- ● ● ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0507-0604 ● ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0605-0611 ● ● ● ●
64 WASHER; S/ABS,LWR
ID=15 		8-97360-056-0 02 1 0612- ● ● ● ●
65 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0507-0604 ● ● ●
65 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0605- ● ● ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0507-0604 ● ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0605- ● ● ● ●
73 NUT; BRKT,SHOCK
M14 		9-99110-414-0 02 1 0507-0512 ● ● ●
73 NUT; BRKT,SHOCK
M14 		0-91110-514-0 02 1 0601-0604 ● ● ●
73 NUT; BRKT,SHOCK
M14 		0-91110-514-0 02 1 0605- ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97365-362-0 01 1 0507-0604 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97365-362-0 01 1 0605- ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97365-363-0 01 1 0507-0604 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97365-363-0 01 1 0605- ● ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 0507-0512 ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 0601-0604 ● ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 0605- ● ● ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 0507-0604 ● ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 0605-0610 ● ● ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 0611- ● ● ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0507-0604 ● ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0605- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-97039-571-1 02 1 0507-0604 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-97039-571-1 02 1 0605- ● ● ● ●
191 U-BOLT; FRT SPR
L=125 		8-94119-671-5 04 1 0507- ●
191 U-BOLT; FRT SPR
GVWR CLASS-4 14001-16000LBS(RQG) L=125 		8-94119-671-5 04 1 0507- ● ●
191 U-BOLT; FRT SPR
GVWR CLASS-5 16001-19500LBS(RQH) L=135 		9-51171-073-2 04 1 0507-0604 ● ●
191 U-BOLT; FRT SPR
GVWR CLASS-5 16001-19500LBS(RQH) L=135 		9-51171-073-2 04 1 0605- ● ●
191 U-BOLT; FRT SPR
L=135 		9-51171-073-2 04 1 0605- ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0507-0610 ●
193 NUT; U BOLT
GVWR CLASS-4 14001-16000LBS(RQG) M14 FLANGE 		8-94137-483-0 08 1 0507-0610 ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ●
193 NUT; U BOLT
GVWR CLASS-4 14001-16000LBS(RQG) M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
193 NUT; U BOLT
GVWR CLASS-5 16001-19500LBS(RQH) M16 		8-94107-767-0 08 1 0507-0604 ● ●
193 NUT; U BOLT
GVWR CLASS-5 16001-19500LBS(RQH) M16 		8-94107-767-0 08 1 0605-0611 ● ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0605-0611 ●
193 NUT; U BOLT
GVWR CLASS-5 16001-19500LBS(RQH) M16 		8-97360-121-0 08 1 0612- ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0612- ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 0507-0604 ● ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 0605-0610 ● ● ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 0611- ● ● ● ●
203 PIN; SPR TO SHACKLE
M16X122 FLANGE 		8-97076-850-2 06 1 0507-0604 ● ● ●
203 PIN; SPR TO SHACKLE
M16X122 FLANGE 		8-97076-850-2 06 1 0605-0610 ● ● ● ●
203 PIN; SPR TO SHACKLE
M16X122 FLANGE 		8-97360-110-0 06 1 0611- ● ● ● ●
491 PLATE; CASTER,FRT AXLE,ASST SIDE 8-97254-823-0 01 1 0507-0604 ● ● ●
491 PLATE; CASTER,FRT AXLE,ASST SIDE 8-97254-823-1 01 1 0605- ● ● ● ●
