◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#51844) — 26 parça

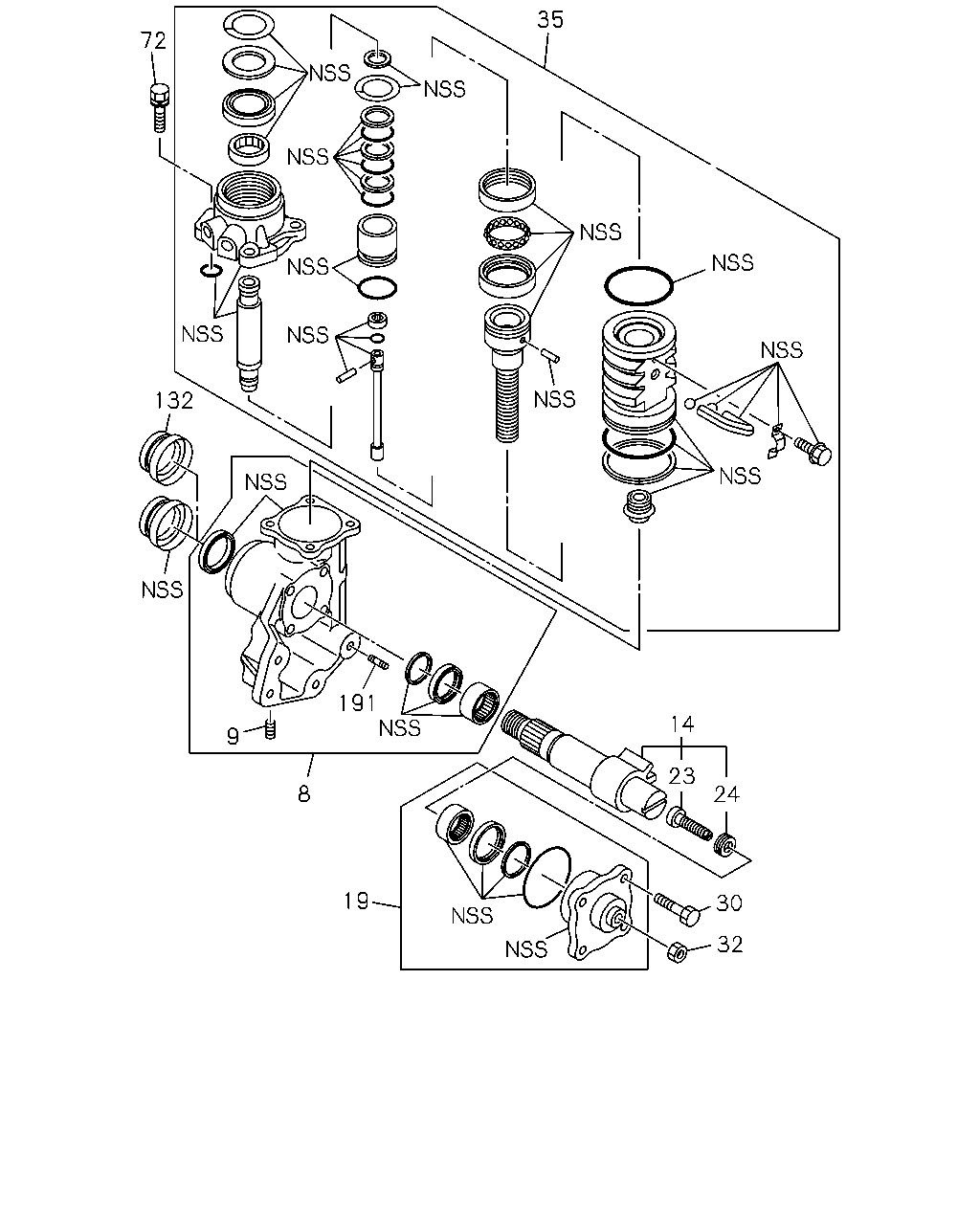

çizim 57317
35 72 132 191 9 8 19 14 24 23 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97173-514-2 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97287-203-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-933-1 01 1 -0606
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-333-0 01 1 0607-
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-836-0 04 1 -0606
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-336-0 04 1 0607-
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97014-834-0 01 1 -0606
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-337-0 01 1 0607-
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8 		8-97287-201-1 01 1 -0606
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98112-934-4 01 1 0607-
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98112-934-4 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8 		1-44519-110-0 04 1 -0606
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98251-948-0 		8-98036-335-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8 		8-98036-335-0 04 1 0607-
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98251-948-0 		8-97078-179-0 01 1 -
191 STUD; STRG UNIT
ASM PART: A = 8-97305-047-8, B = 8-98251-948-0 		8-97078-173-0 01 1 -

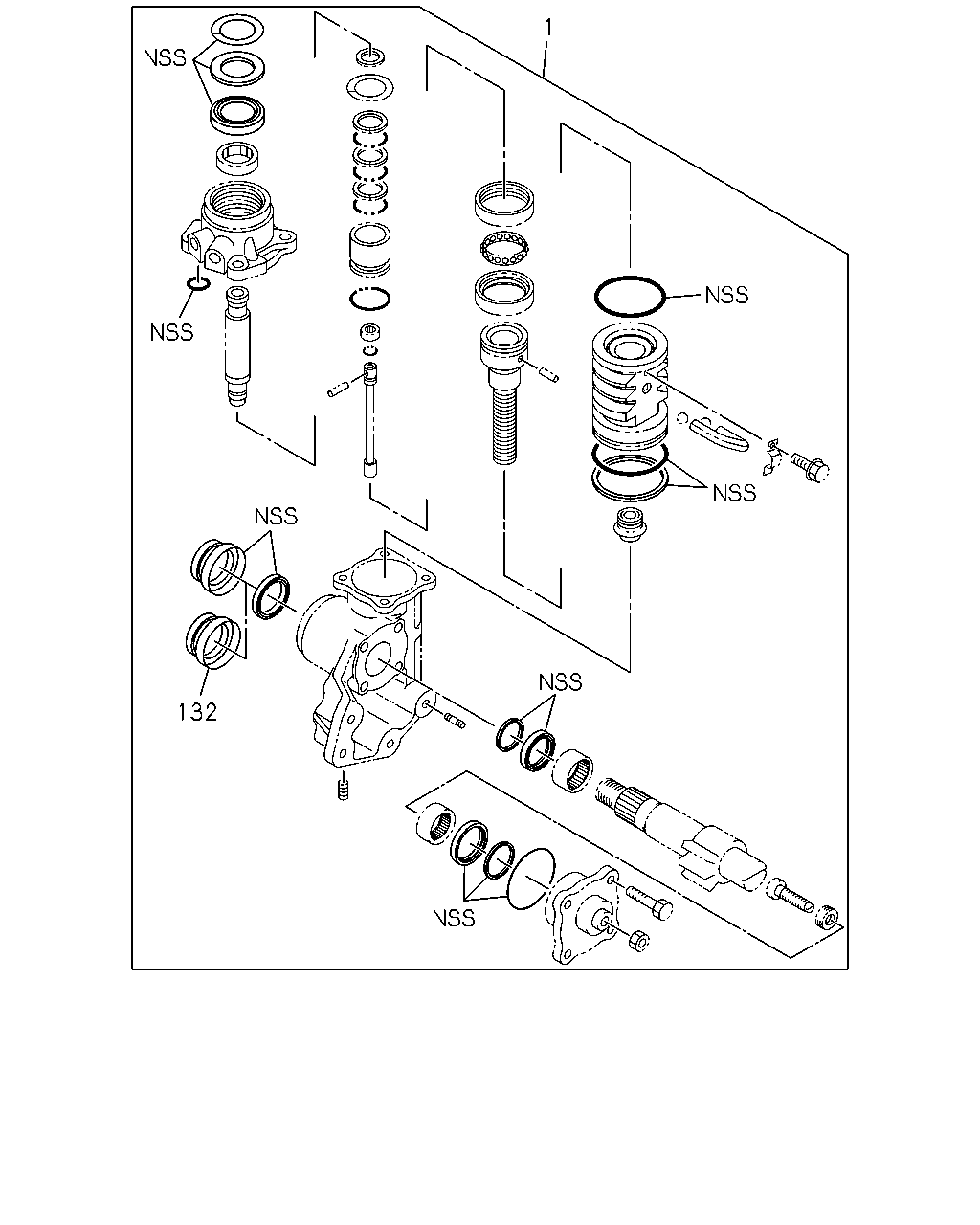

çizim 100786
132 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8 		8-97264-442-0 01 1 -0606
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8 		8-98172-286-0 01 1 0607-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98251-948-0 		8-98172-286-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98251-948-0 		8-97078-179-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
