4-36 — POWER STEERING CONTROL; ENGINE SIDE (#51843) — 28 parça

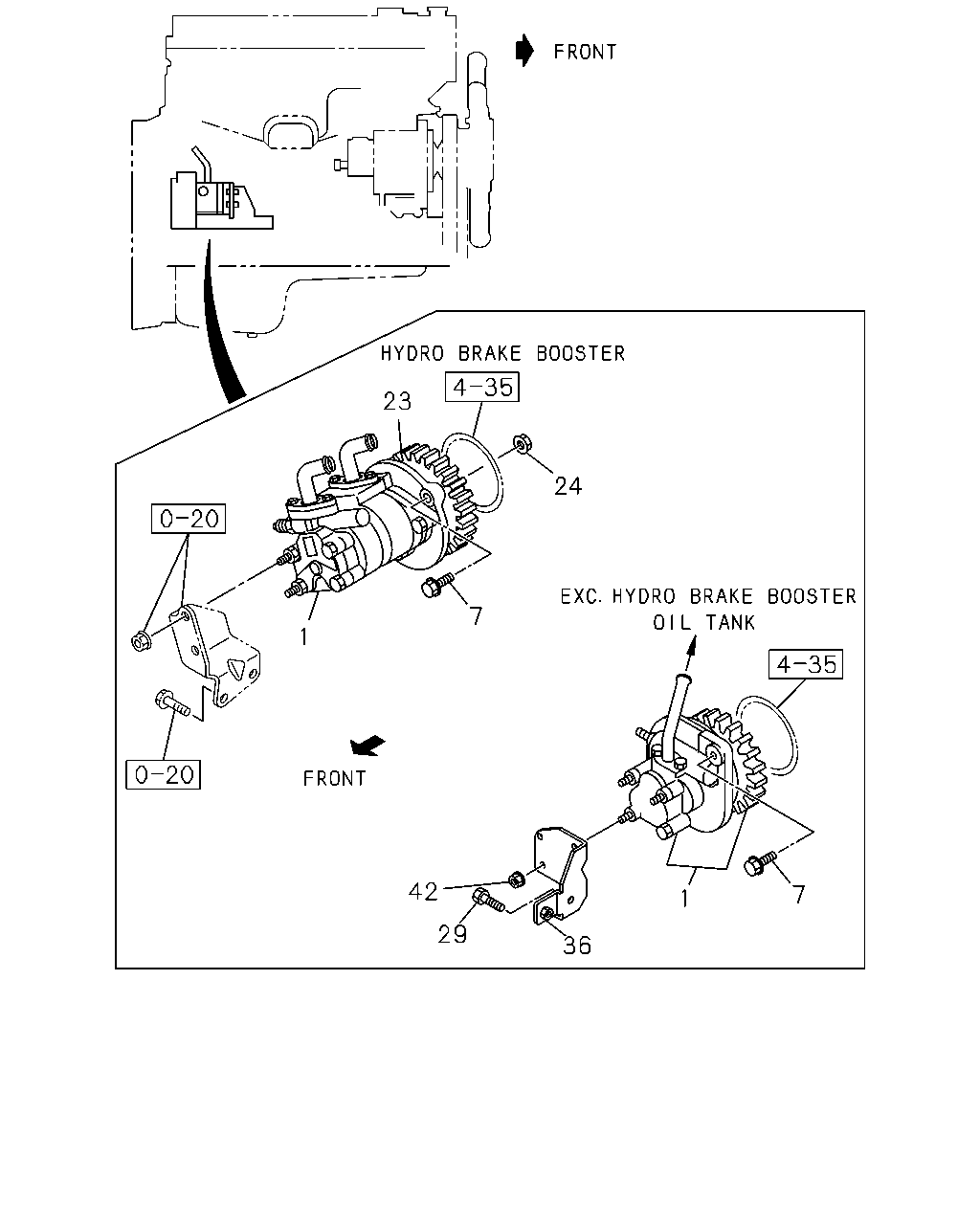

çizim 100780
23 24 7 1 42 7 1 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-1 01 1 0507-0812 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97388-651-1 01 1 0507-0812 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98138-131-2 01 1 0901- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98138-131-2 01 1 0901- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) 		8-97258-461-1 01 1 0507-0604 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) 		8-97258-461-3 01 1 0605- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0605- ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		0-28181-028-0 02 1 0507-0604 ● ● ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		0-28181-028-0 02 1 0605-0805 ● ● ● ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ● ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ● ●
23 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0507-0604 ● ●
23 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0605- ● ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0605- ●
24 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) M12 FLANGE 		0-91150-212-0 01 1 0507-0602 ● ●
24 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) M12 FLANGE 		0-91180-212-0 01 1 0603-0604 ● ●
24 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) M12 FLANGE 		0-91180-212-0 01 1 0605- ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-212-0 01 1 0605- ●
29 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28881-420-0 01 1 0507-0512 ●
29 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28881-420-0 01 1 0507-0512 ● ●
29 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
29 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ●
36 BRACKET; PLATE,P/S PUMP 8-97112-866-0 01 1 0507- ●
36 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97112-866-0 01 1 0507- ● ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
42 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
42 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
