Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

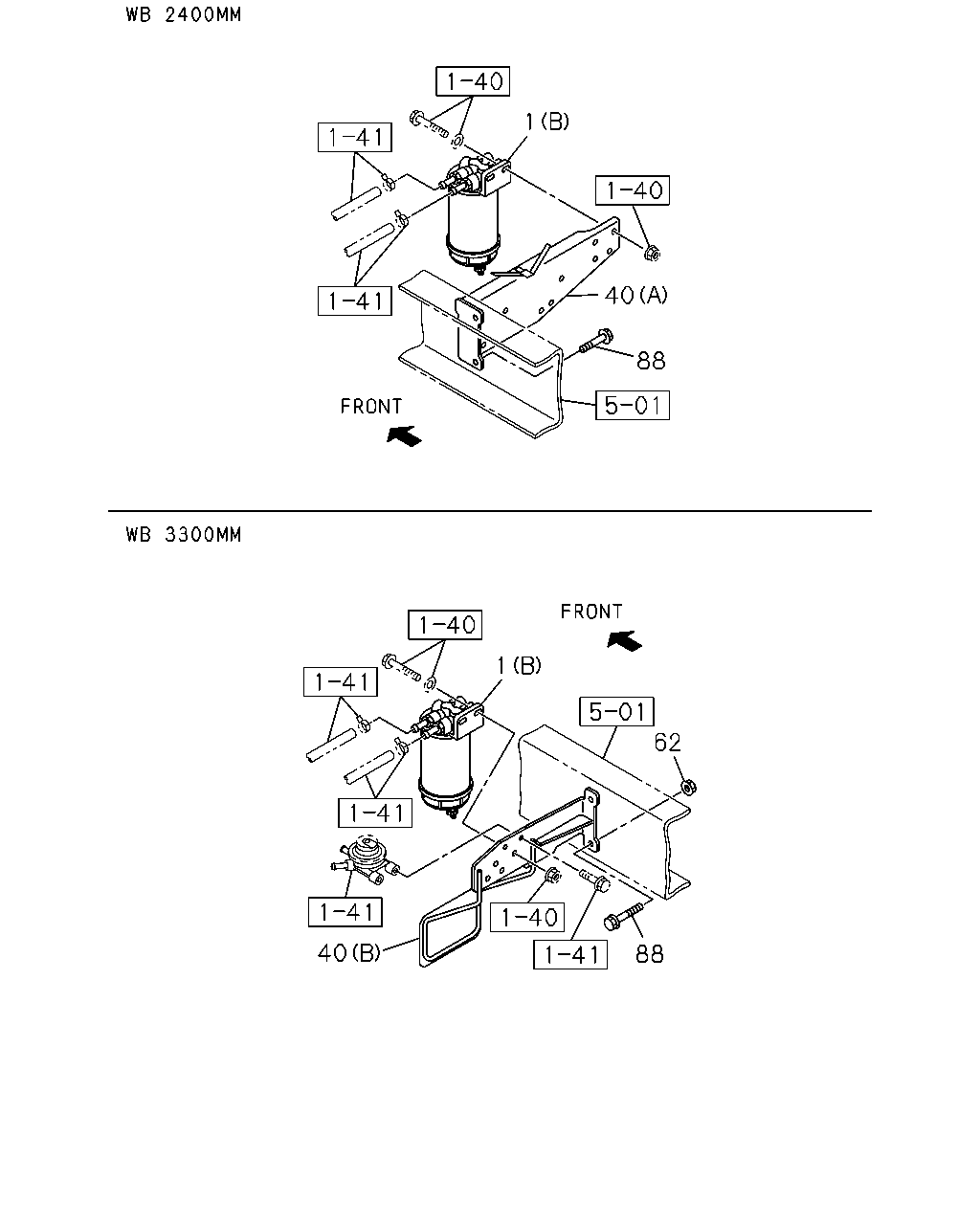

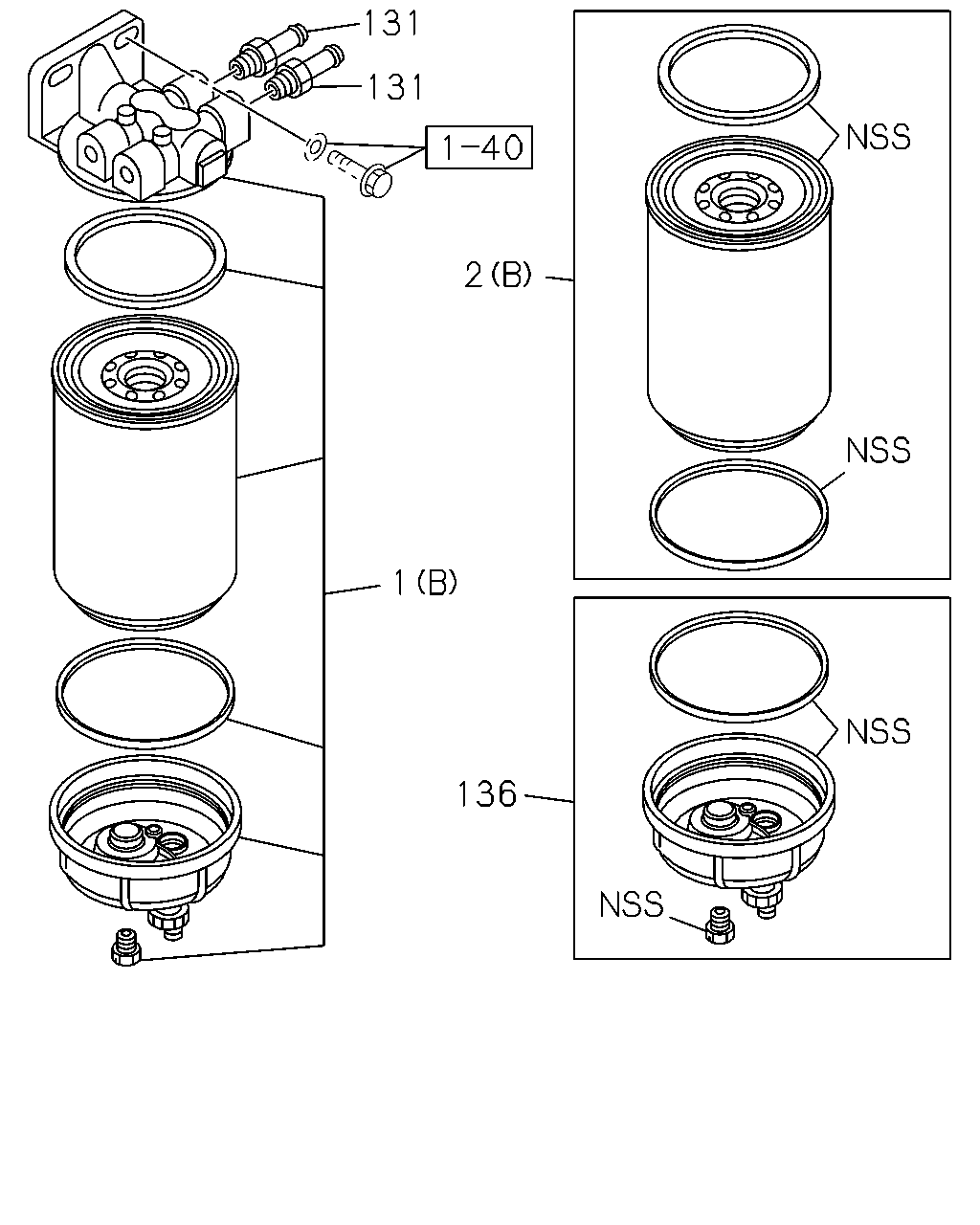

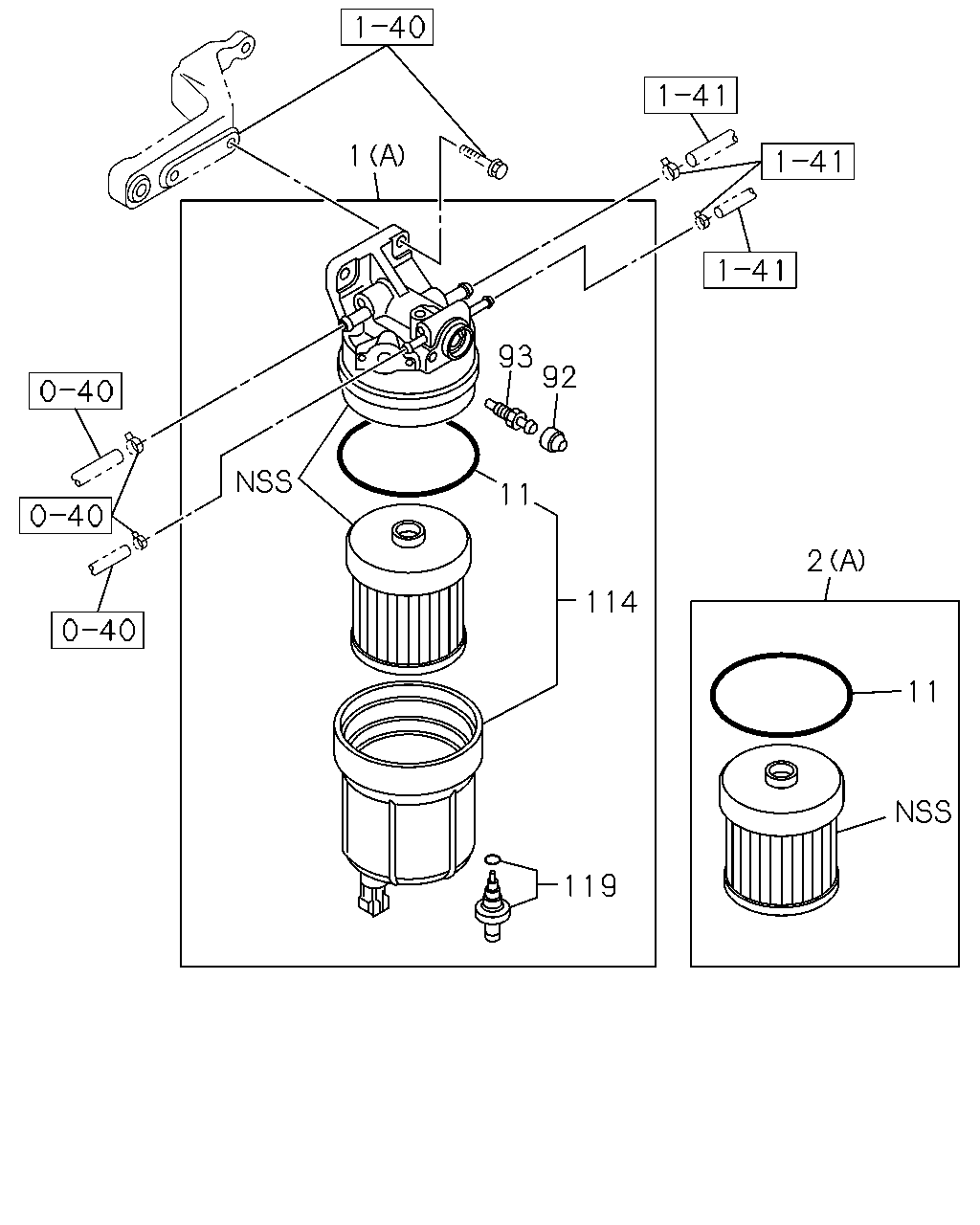

0-41 — FUEL FILTER AND BRACKET (#51833) — 55 parça

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0907-1002
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	0907-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0907-1002
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	0907-
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0907-1112
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0907-
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0907-
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	0907-
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0907-

131 131 2 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0907-1002
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	0907-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0907-1002
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-
2	03.890 ELEMENT KIT; FUEL FILTER (B)	8-98095-983-0	01	1	0907-
131	03.890 PIPE; FILTER 01.153	8-97358-699-0	02	1	0907-0908
131	03.890 PIPE; FILTER NPTF3/8-18 OD=10	8-98122-953-0	02	1	0909-
136	03.890 CAP KIT; FUEL FILTER	8-98096-004-0	01	1	0907-1408
136	03.890 CAP KIT; FUEL FILTER	8-98279-324-0	01	1	1409-

1 40 88 1 62 88 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0907-1002
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-
1	03.890 FILTER ASM; FUEL (B)	8-98095-980-1	01	1	0907-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98107-354-3	01	1	1205-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) (B)	8-98147-247-0	01	1	0907-0909
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (B)	8-98147-247-0	01	1	0910-0910
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (B)	8-98147-247-0	01	1	0911-1003
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (B)	8-98147-247-0	01	1	1004-1111
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (B)	8-98147-247-0	01	1	1112-1204
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98147-247-0	01	1	1205-
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) (A)	8-98107-351-2	01	1	0907-0909
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (A)	8-98107-351-2	01	1	0910-1204
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W) (A)	8-98107-351-2	01	1	1205-
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-0909
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 03.162 M10 FLANGE	0-91180-110-0	01	1	0910-0910
62	03.895 NUT; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1003
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1111
62	03.895 NUT; FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 03.162 M10 FLANGE	0-91180-110-0	01	1	1112-1204
62	03.895 NUT; FUEL FILTER WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 03.162 M10 FLANGE	0-91180-110-0	01	1	1205-1310
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1205-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-0909
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-0910
88	03.895 BOLT; BRKT,FUEL FILTER AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1003
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1004-1111
88	03.895 BOLT; BRKT,FUEL FILTER AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1112-1204
88	03.895 BOLT; BRKT,FUEL FILTER EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1205-
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1205-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
