Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#5182) — 450 parça

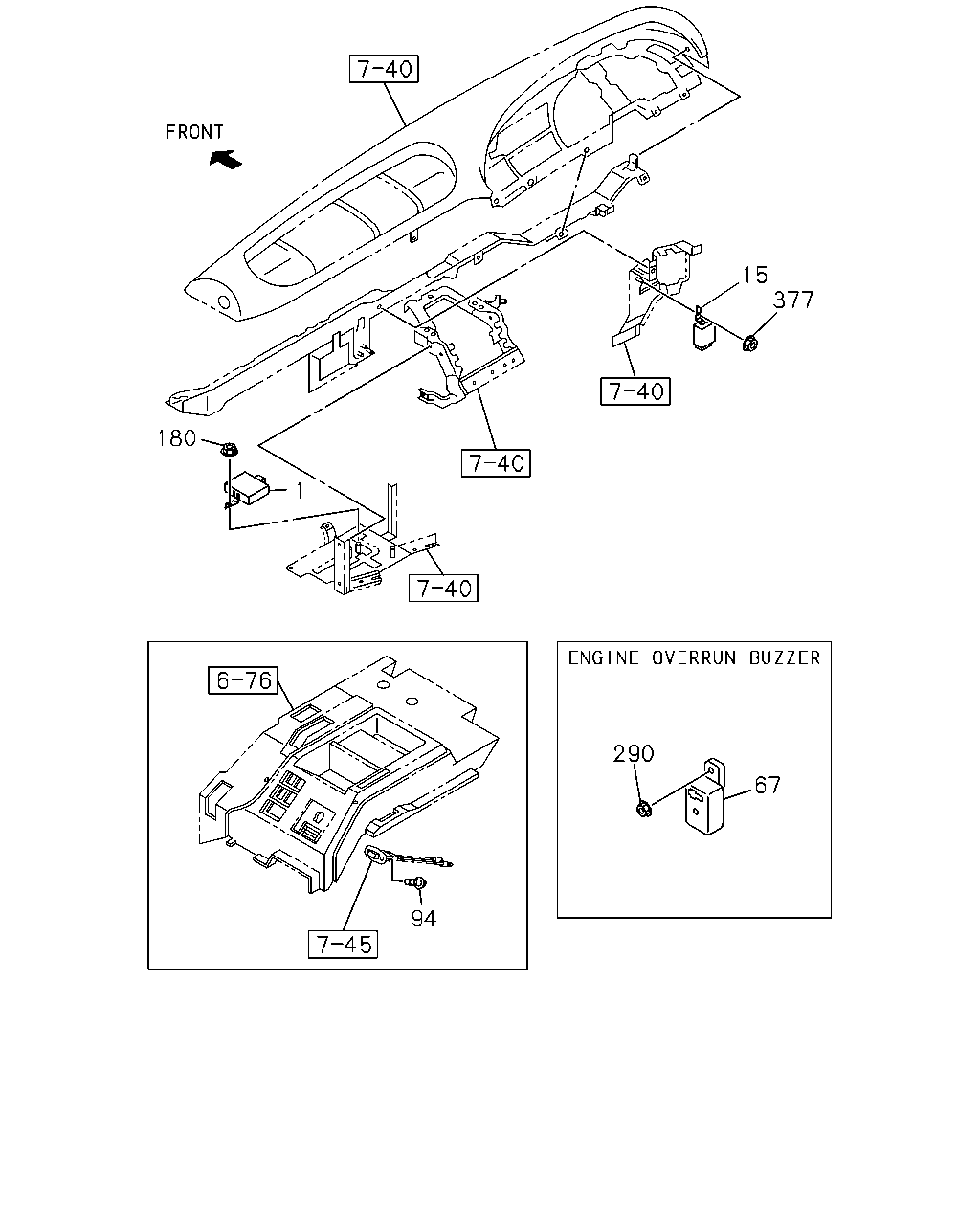

15 377 180 1 290 67 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-0	01	1	9606-
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-0	01	1	9606-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9606-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9606-0101
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
67	BUZZER; ENG OVERRUN L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9801-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9606-
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9606-9808
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9606-

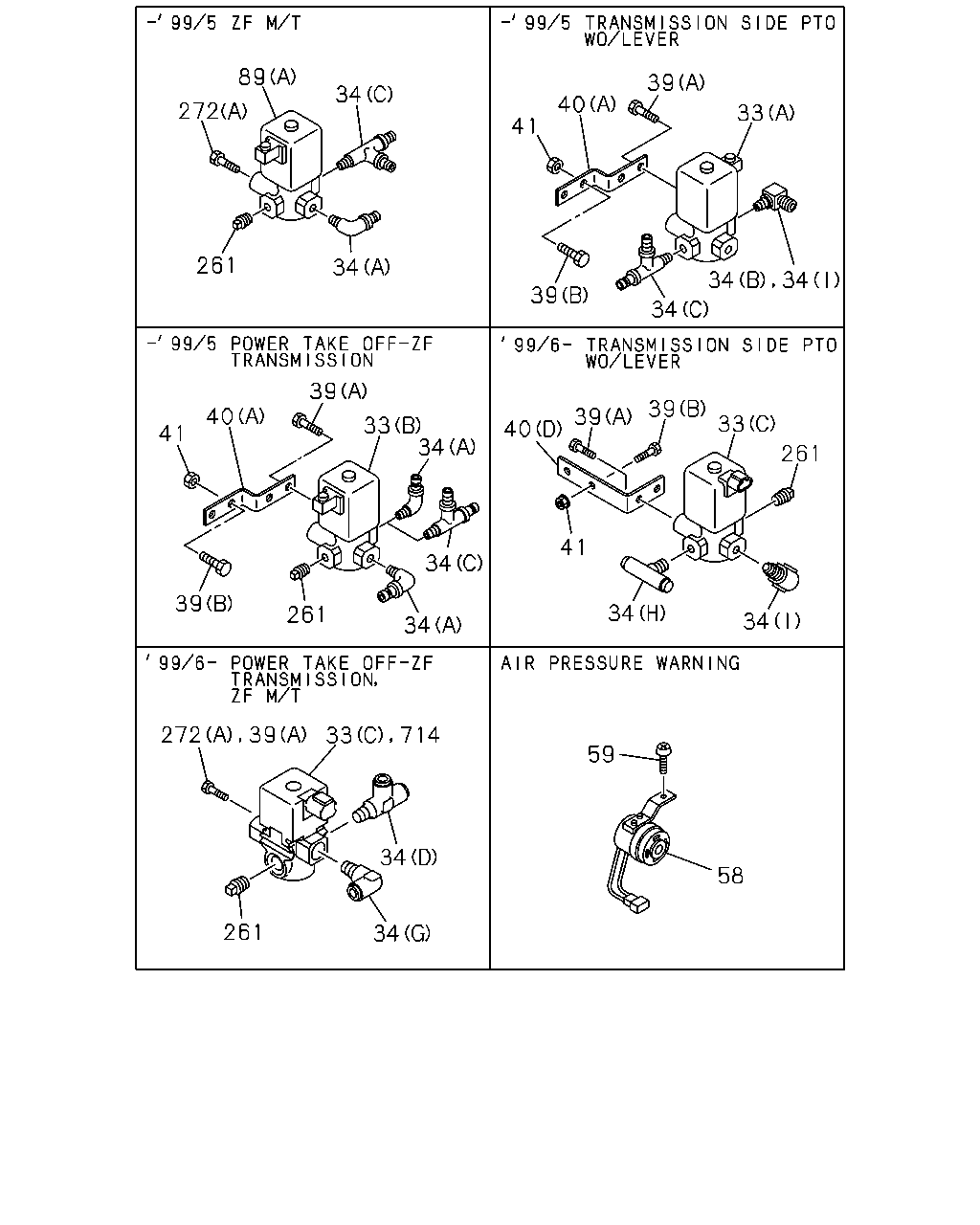

89 39 34 40 33 41 261 34 39 34 39 39 40 39 33 33 34 40 41 261 41 34 39 34 261 34 34 272 39 59 34 58 261 34 272 34 34 33 714

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT POWER TAKE OFF-ZF TRANSMISSION<BDM> (B)	1-82563-600-3	01	1	9606-9905
33	VALVE; MAG,PTO CONT POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-82563-871-2	01	1	9906-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-598-3	01	1	9606-9905
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9606-9905
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9606-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (I) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9906-
39	BOLT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
39	BOLT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-
39	BOLT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
39	BOLT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X30 FLANGE	0-28680-830-0	02	1	9906-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9606-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9606-
40	BRACKET; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82569-175-1	01	1	9606-9905
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> (D)	1-82569-279-0	01	1	9906-
41	NUT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8	9-09110-508-0	02	1	9606-9606
41	NUT; BRKT,MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE	0-91150-108-0	02	1	9607-9905
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE	0-91150-108-0	02	1	9906-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9606-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9606-

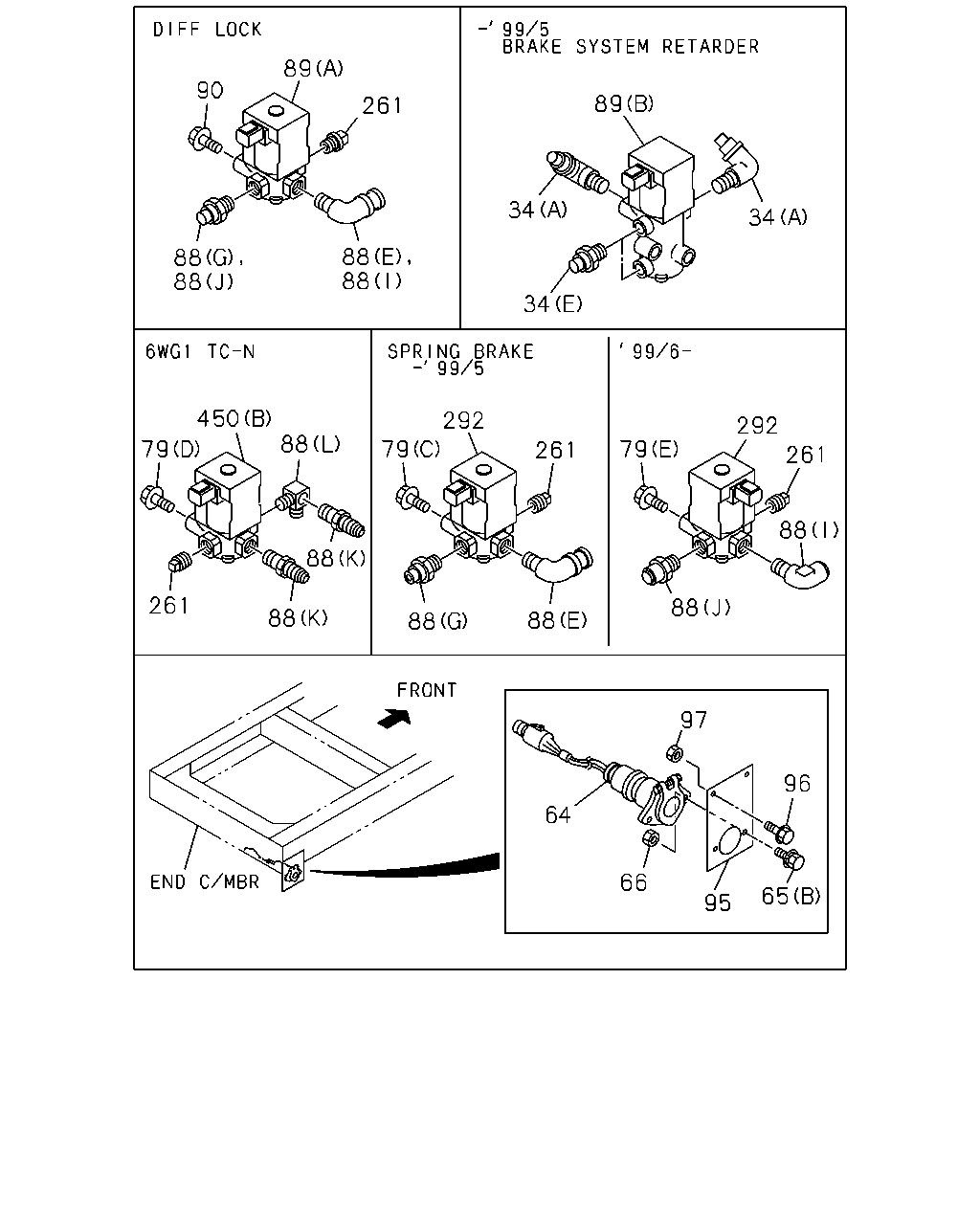

89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9606-9905
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9906-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4	9-99204-513-0	01	1	9906-
272	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> ZF M/T<X9E> (A) M8X35 FLANGE	0-28680-835-0	02	1	9609-9905
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) LIGHT DUTY PACKAGE TRUCK(Y21) (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0004-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9606-9606
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
272	BOLT; MAG VLV ZF M/T<X9E> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-9905
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0004-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9906-

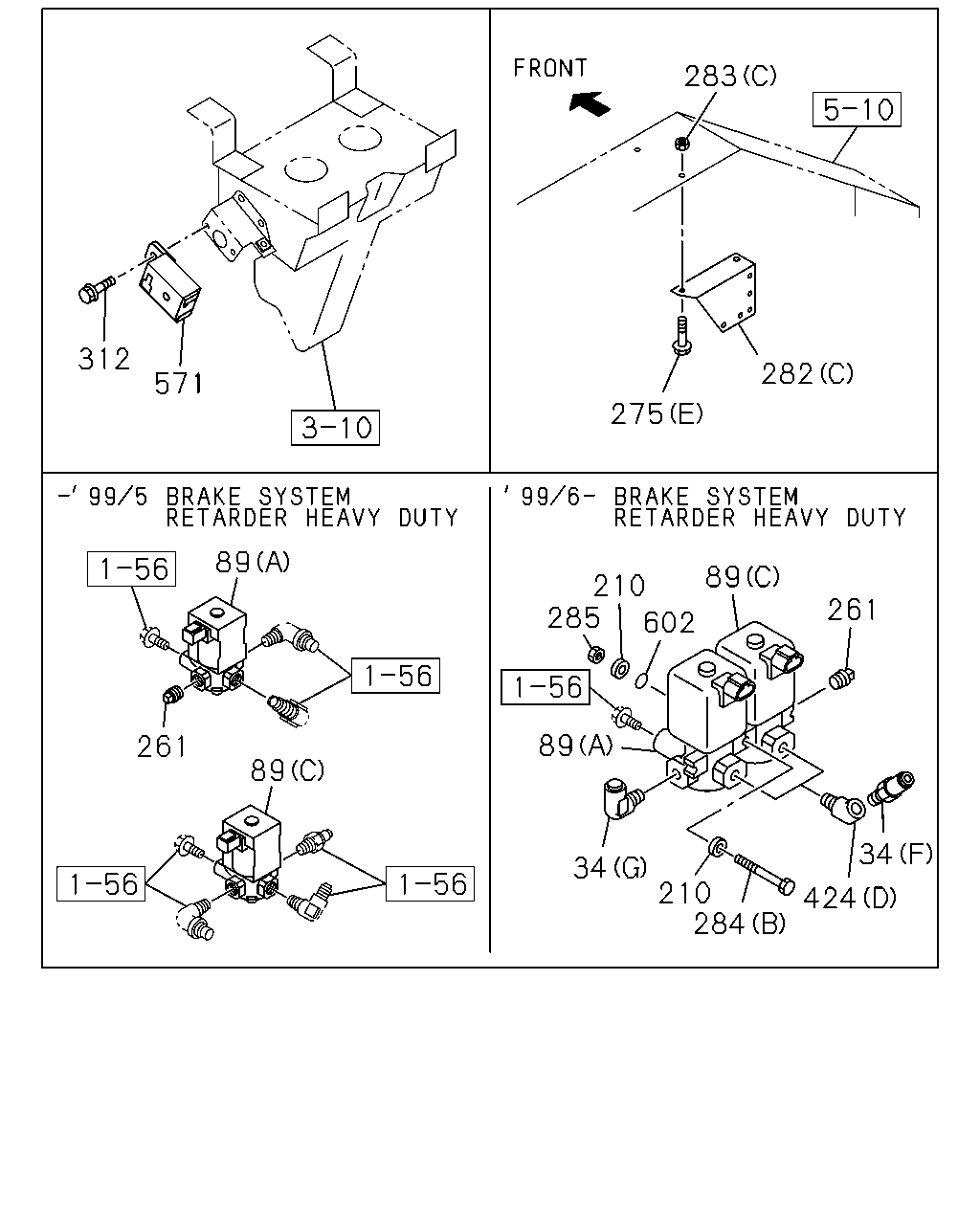

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9905
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 10PE1S(60L) (D) M8X20	0-28090-820-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9905
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9906-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9606-
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9905
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9906-
283	NUT; BRKT 10PE1S(60L) (A) M10	9-09110-510-0	01	1	9606-9606
283	NUT; BRKT 10PE1S(60L) (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	9906-
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28680-830-0	02	1	9610-9706
284	BOLT; MAG VLV ELECTRONIC GOV RED3(KG5) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-

275 386 275 174 283 52 52 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

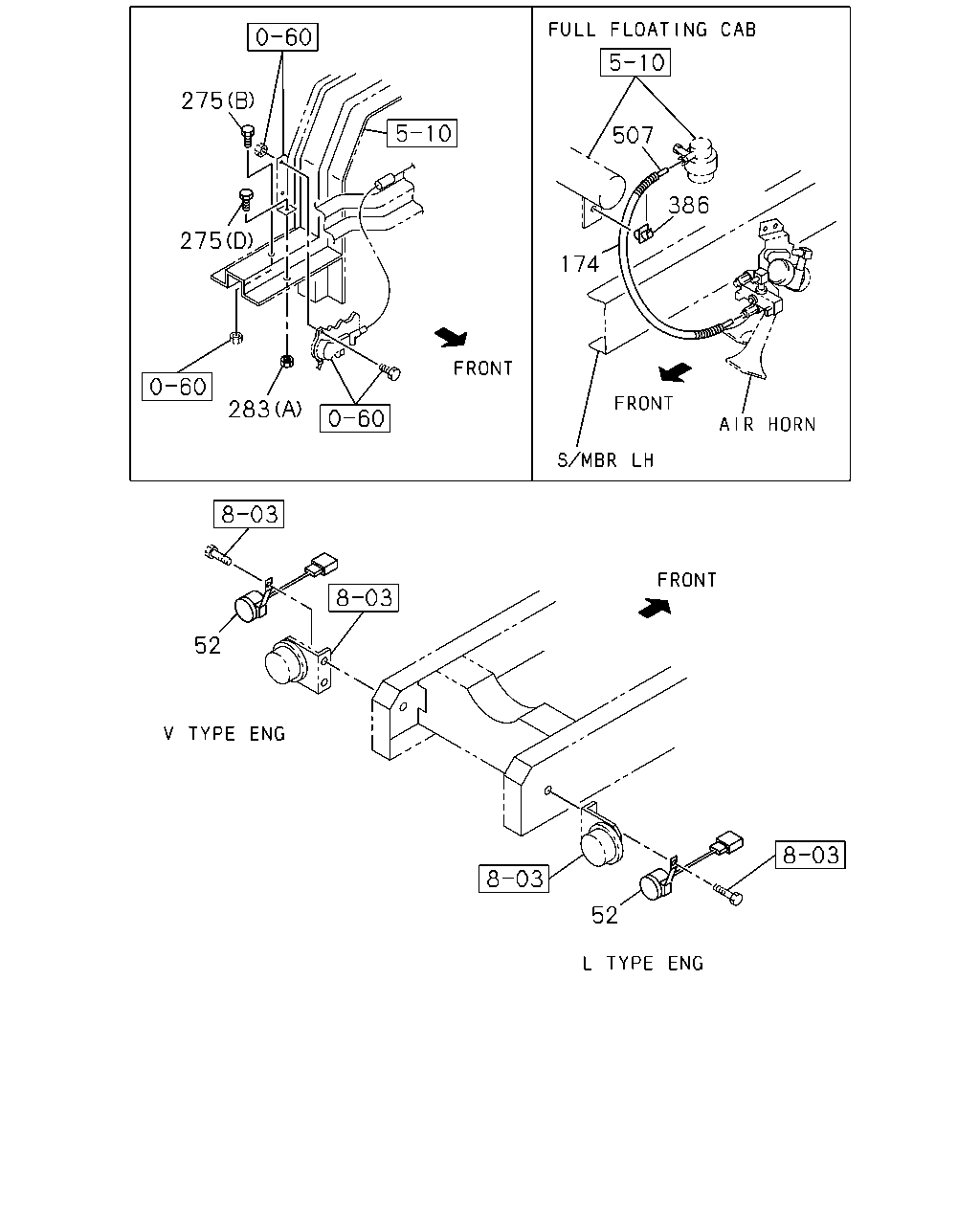

52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9606-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO DENSO	1-83460-088-1	01	1	9908-
174	COVER CAB UP +50MM<W60> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9707-9905
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
174	COVER FULL FLOATING CAB(W16) L=620 SERVICED BY L=800	1-83129-031-1	01	1	9606-9706
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> L=620 SERVICED BY L=800	1-83129-031-1	01	1	9707-9905
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=620 SERVICED BY L=800	1-83129-031-1	01	1	9906-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9905
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 10PE1S(60L) (D) M8X20	0-28090-820-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9905
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9906-
283	NUT; BRKT 10PE1S(60L) (A) M10	9-09110-510-0	01	1	9606-9606
283	NUT; BRKT 10PE1S(60L) (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	9606-
507	TUBE; NYLON CAB UP +50MM<W60> L=900 SERVICED BY L=1300	1-09368-930-0	01	1	9707-9905
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-0103
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=1300	1-09368-930-0	01	1	9606-9706
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> L=800 SERVICED BY L=1300	1-09368-930-0	01	1	9707-9905
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-0103
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-

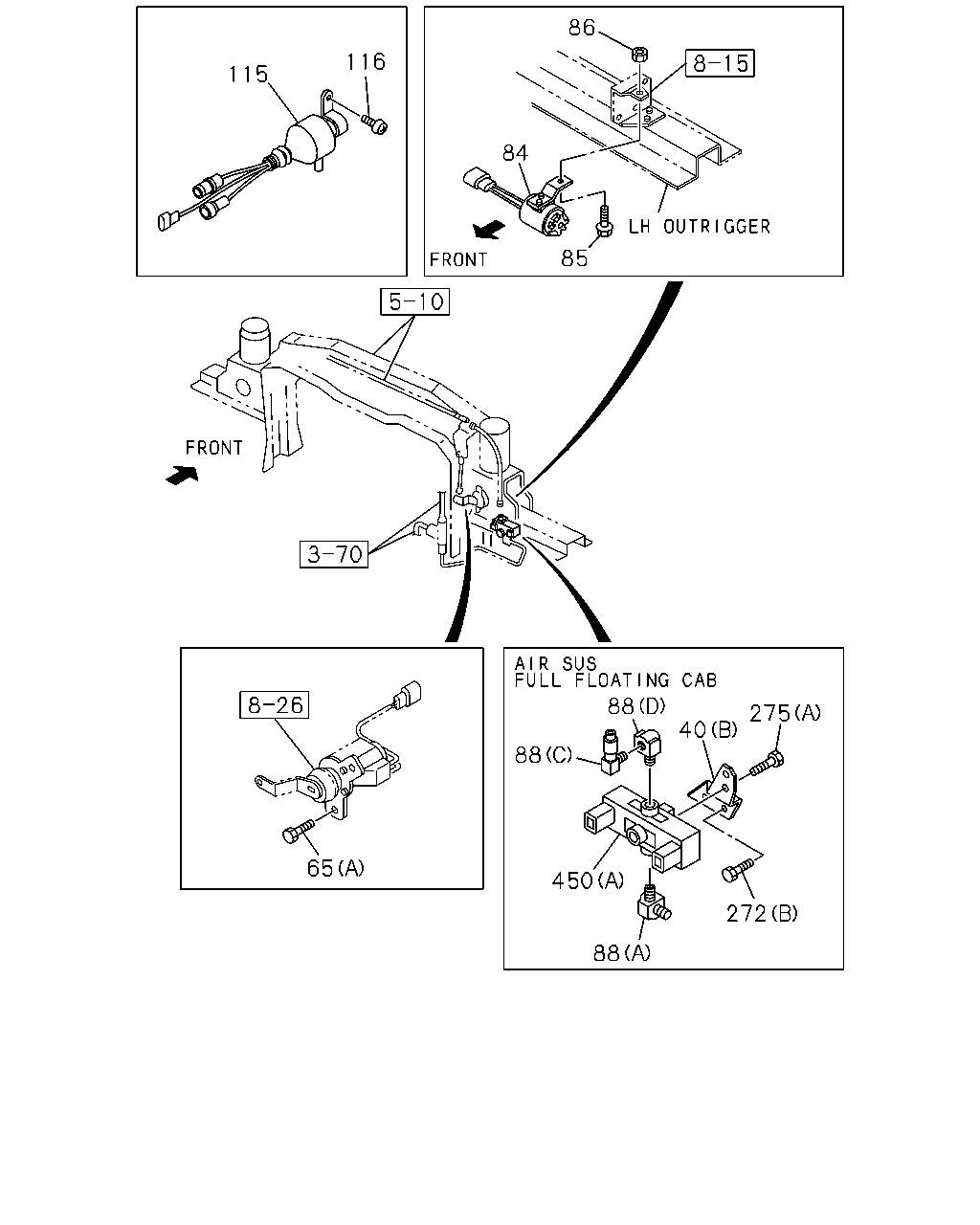

86 116 115 84 85 88 275 40 88 65 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

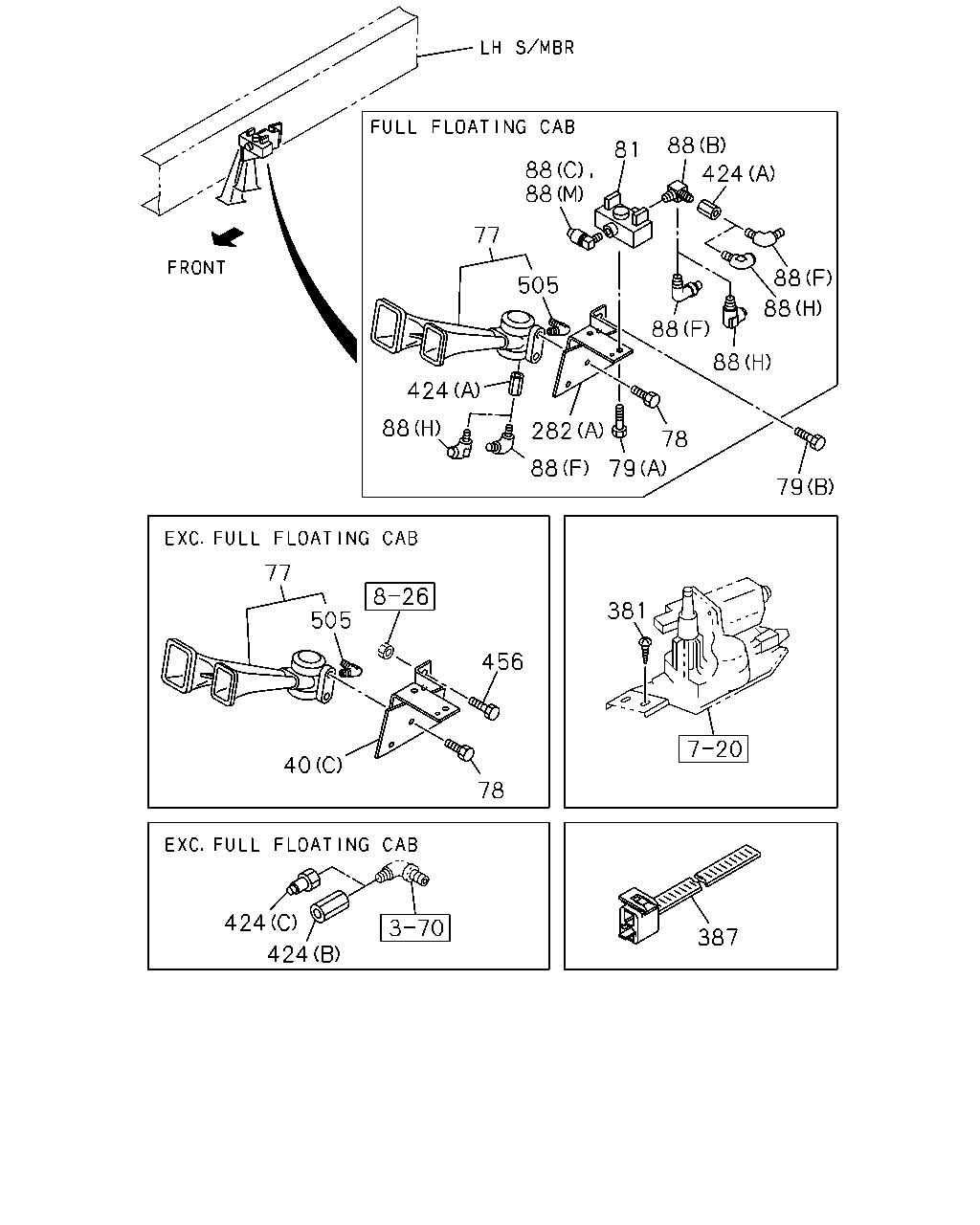

40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9606-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9606-
40	BRACKET; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82569-175-1	01	1	9606-9905
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> (D)	1-82569-279-0	01	1	9906-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	9606-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9606-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9606-9606
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-
86	NUT; BUZZER M8	9-09110-408-0	01	1	9606-9905
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9906-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9606-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9606-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (M) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9905
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9905
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9606-9606
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9606-
272	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> ZF M/T<X9E> (A) M8X35 FLANGE	0-28680-835-0	02	1	9609-9905
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) LIGHT DUTY PACKAGE TRUCK(Y21) (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0004-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9606-9606
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
272	BOLT; MAG VLV ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
272	BOLT; MAG VLV ZF M/T<X9E> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-9905
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-0003
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0004-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9905
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 10PE1S(60L) (D) M8X20	0-28090-820-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-
450	VALVE; MAG FULL FLOATING CAB(W16) (A)	1-53458-378-2	01	1	9606-
450	VALVE; MAG 6WG1 TC-N(71L) (B)	1-82563-600-3	01	1	9707-9905

89 90 89 261 34 34 88 88 88 88 34 450 88 292 292 79 79 79 261 261 88 88 261 88 88 88 88 97 96 64 66 65 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9606-9905
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9606-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (I) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9906-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> 7P	1-82523-014-0	01	1	9606-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	9606-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9606-9606
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9607-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28081-030-0	02	1	9606-9606
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9709
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9710-
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28080-835-0	02	1	9606-9606
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9609-9905
79	BOLT; MAG VLV 6WG1 TC-N(71L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9707-9905
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9906-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9606-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9606-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (M) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9905
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9606-9905
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9906-
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X40 FLANGE	0-28080-840-0	02	1	9606-9606
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	9607-9608
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9609-
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28080-835-0	02	1	9606-9606
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	02	1	9609-
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	9606-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X25 FLANGE	0-28680-825-0	02	1	9607-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9606-9606
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9607-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4	9-99204-513-0	01	1	9906-
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5)	1-82563-600-3	01	1	9606-9905
292	VALVE; MAG SPR BRK BRAKE REGULATION ECE<TDV>	1-82563-871-2	01	1	9906-
450	VALVE; MAG FULL FLOATING CAB(W16) (A)	1-53458-378-2	01	1	9606-
450	VALVE; MAG 6WG1 TC-N(71L) (B)	1-82563-600-3	01	1	9707-9905

283 312 282 571 275 89 89 210 285 261 602 89 261 89 34 34 210 284 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9606-9905
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9606-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (I) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-09660-718-1	01	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT POWER TAKE OFF-ZF TRANSMISSION<BDM> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT ZF M/T<X9E> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9704
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9705-9905
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9906-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-2	01	1	9606-9706
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK ZF M/T<X9E> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9905
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9606-9905
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9906-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	9906-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9606-9706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV ZF M/T<X9E> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9905
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4	9-99204-513-0	01	1	9906-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9905
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 10PE1S(60L) (D) M8X20	0-28090-820-0	01	1	9606-9606
275	BOLT; BRKT 10PE1S(60L) (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9905
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9906-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9606-
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9905
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9906-
283	NUT; BRKT 10PE1S(60L) (A) M10	9-09110-510-0	01	1	9606-9606
283	NUT; BRKT 10PE1S(60L) (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	9906-
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28680-830-0	02	1	9610-9706
284	BOLT; MAG VLV ELECTRONIC GOV RED3(KG5) (A) M8X30 FLANGE	0-28680-830-0	02	1	9707-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	9906-
312	BOLT; BUZZER NEW ZEALAND EQUIPMENT(PK5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9906-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9606-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
571	ALARM; EMERGENCY NEW ZEALAND EQUIPMENT(PK5)	1-83460-040-0	01	1	9706-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	01	1	9906-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	9911-

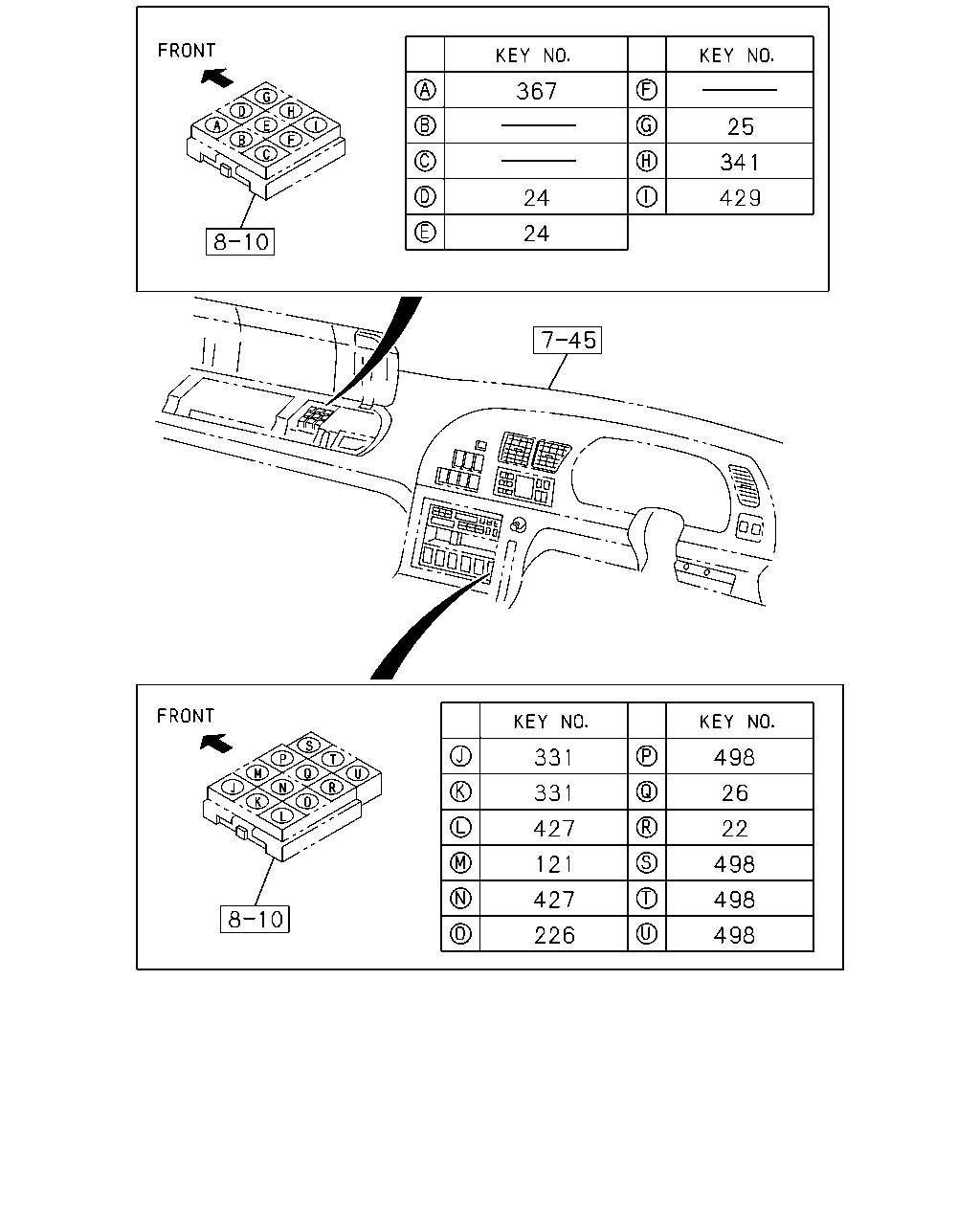

367 25 341 24 429 24 331 498 331 26 427 22 121 498 427 498 226 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9606-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9610-
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9606-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9606-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-0	02	1	9606-9706
427	RELAY; RETARDER ELECTRONIC GOV RED3(KG5) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-9905
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	02	1	9906-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-9905
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9610-9905
429	RELAY; POWER CUT 6WA1 TC-C(55L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9906-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9906-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9606-

88 81 88 88 424 77 88 505 88 88 88 424 88 282 78 88 79 79 77 381 505 456 40 78 424 387 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9606-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9606-
40	BRACKET; MAG VLV POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82569-175-1	01	1	9606-9905
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> (D)	1-82569-279-0	01	1	9906-
77	HORN ASM	1-83430-038-1	01	1	9606-9905
77	HORN ASM	1-83430-041-1	01	1	9906-
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9606-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28081-030-0	02	1	9606-9606
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9709
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9710-
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28080-835-0	02	1	9606-9606
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9609-9905
79	BOLT; MAG VLV 6WG1 TC-N(71L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9707-9905
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9906-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9606-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9905
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9606-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9606-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9606-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (M) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9905
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9905
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9905
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9906-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9606-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9606-
387	CLIP; BAND FULL FLOATING CAB(W16) CAB UP +50MM<W60> L=250	1-09707-126-0	01	1	9806-9905
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9906-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9606-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9606-9905
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9906-0005
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X35 FLANGE	0-28680-835-0	02	1	9607-9709
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9710-
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9905
505	JOINT; AIR HORN	1-83439-006-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
