Isuzu WW
▶
TRUCKS
▶
NLR
▶
51248 - NLR85(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

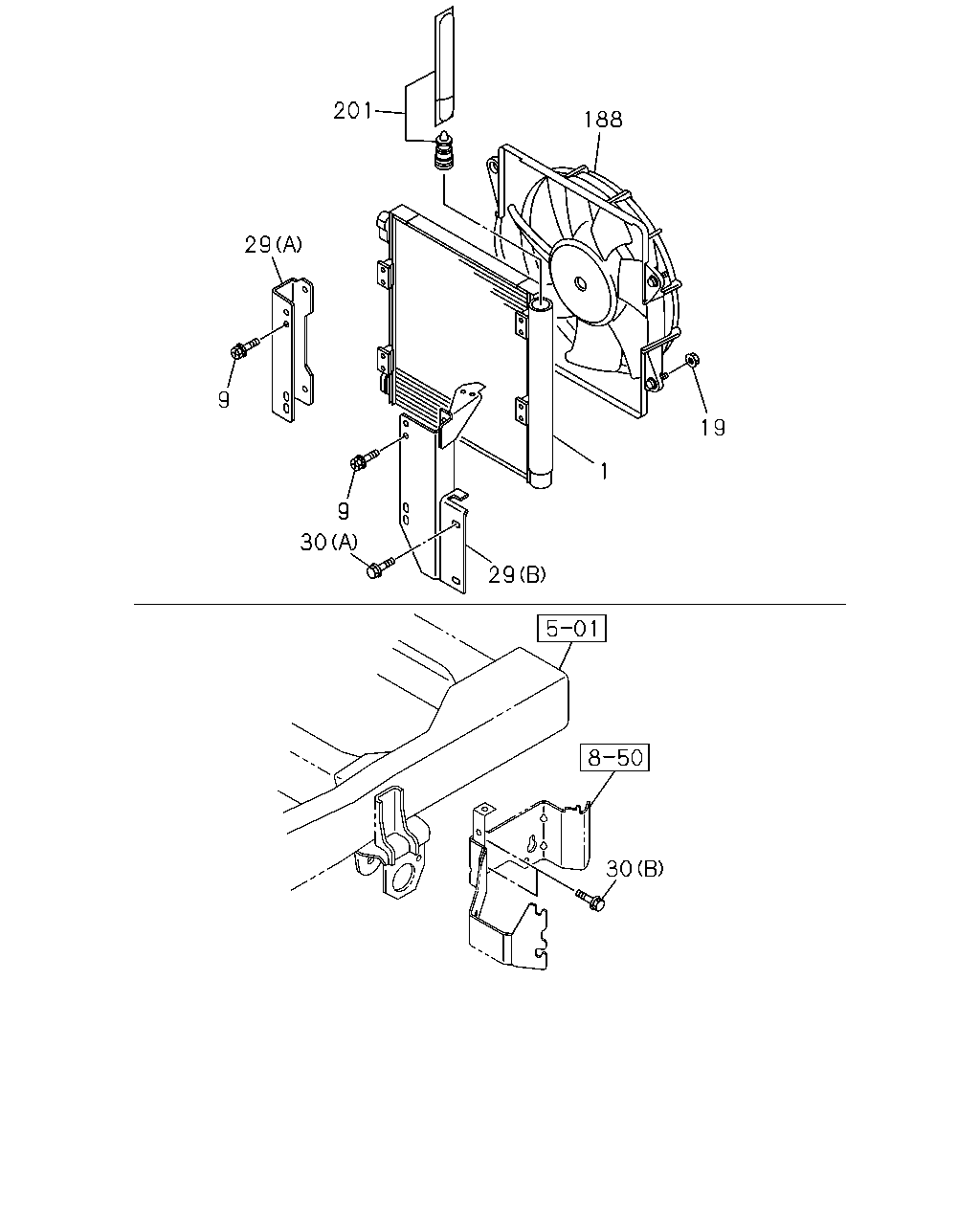

8-75 - CONDENSER
▶
8-75 — CONDENSER
(#51811) — 29 parça
Tümü
A - NMR6SE
B - NMR6SN
201
29
9
30
9
29
1
19
188
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98145-826-1
01
1
1109-1210
●
1
09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98145-826-1
01
1
1211-
●
1
09.190 CONDENSER; A/C
8-98145-826-1
01
1
1211-
●
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14
1-83539-382-0
08
1
1109-1210
●
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14
1-83539-382-0
08
1
1211-
●
9
09.190 BOLT; BRKT
M6X14
1-83539-382-0
08
1
1211-
●
19
09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6
1-83539-354-0
04
1
1109-1210
●
19
09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6
1-83539-354-0
04
1
1211-
●
19
09.190 NUT; BRKT
M6
1-83539-354-0
04
1
1211-
●
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98145-837-0
01
1
1109-1210
●
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98145-837-0
01
1
1211-
●
29
09.190 BRACKET; SIDE
(A)
8-98145-837-0
01
1
1211-
●
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98145-838-0
01
1
1109-1210
●
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98145-838-0
01
1
1211-
●
29
09.190 BRACKET; SIDE
(B)
8-98145-838-0
01
1
1211-
●
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1109-1210
●
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1211-
●
30
09.190 BOLT; CONDENSER,A/C
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1211-
●
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE
0-28651-030-0
03
1
1109-1210
●
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE
0-28651-030-0
03
1
1211-
●
30
09.190 BOLT; CONDENSER,A/C
00.029 (B) M10X30 FLANGE
0-28651-030-0
03
1
1211-
●
188
09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60)
8-98145-836-0
01
1
1109-1210
●
188
09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60)
8-98145-836-0
01
1
1211-
●
188
09.215 BLOWER ASM; SHROUD
8-98145-836-0
01
1
1211-
●
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
1-83535-097-0
01
1
1109-1210
●
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
1-83535-097-0
01
1
1211-1409
●
201
09.195 DRYER ASM; CONDENSER
1-83535-097-0
01
1
1211-1409
●
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-98282-482-0
01
1
1410-
●
201
09.195 DRYER ASM; CONDENSER
8-98282-482-0
01
1
1410-
●
