◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#51809) — 13 parça

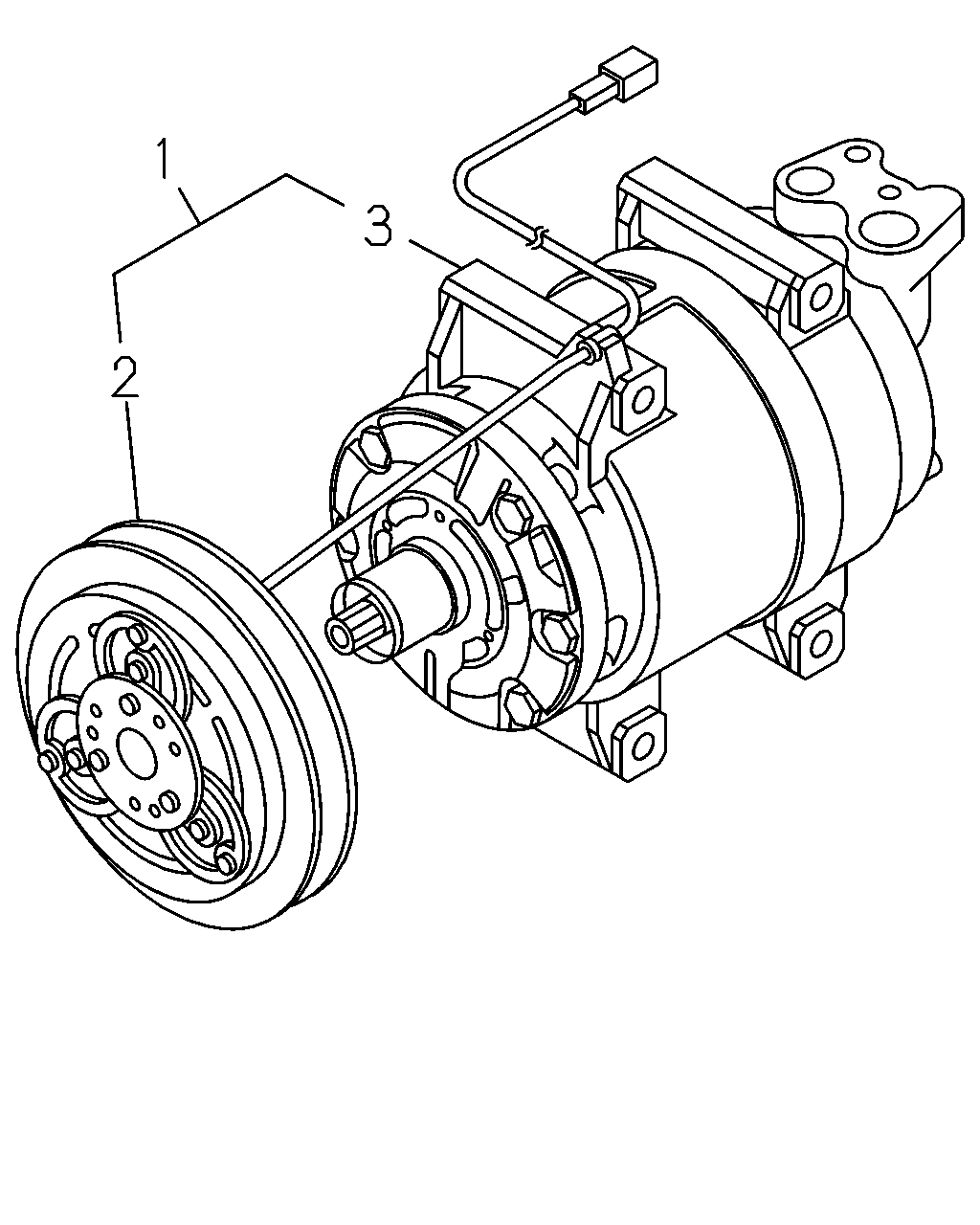

çizim 147879
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 1109-1210 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 1211-1211 ●
1 09.170 COMPRESSOR ASM; A/C
VALEO 		8-98000-988-2 01 1 1211-1211 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
VALEO 		8-98214-324-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-199-0 01 1 1411- ●
1 09.170 COMPRESSOR ASM; A/C
VALEO 		8-98286-199-0 01 1 1411- ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1109-1210 ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1211- ●
2 09.188 CLUTCH; MAGNET,A/C 8-98208-772-1 01 1 1211- ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1109-1210 ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1211- ●
3 09.170 COMPRESSOR ASM; A/C 8-98042-531-1 01 1 1211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
