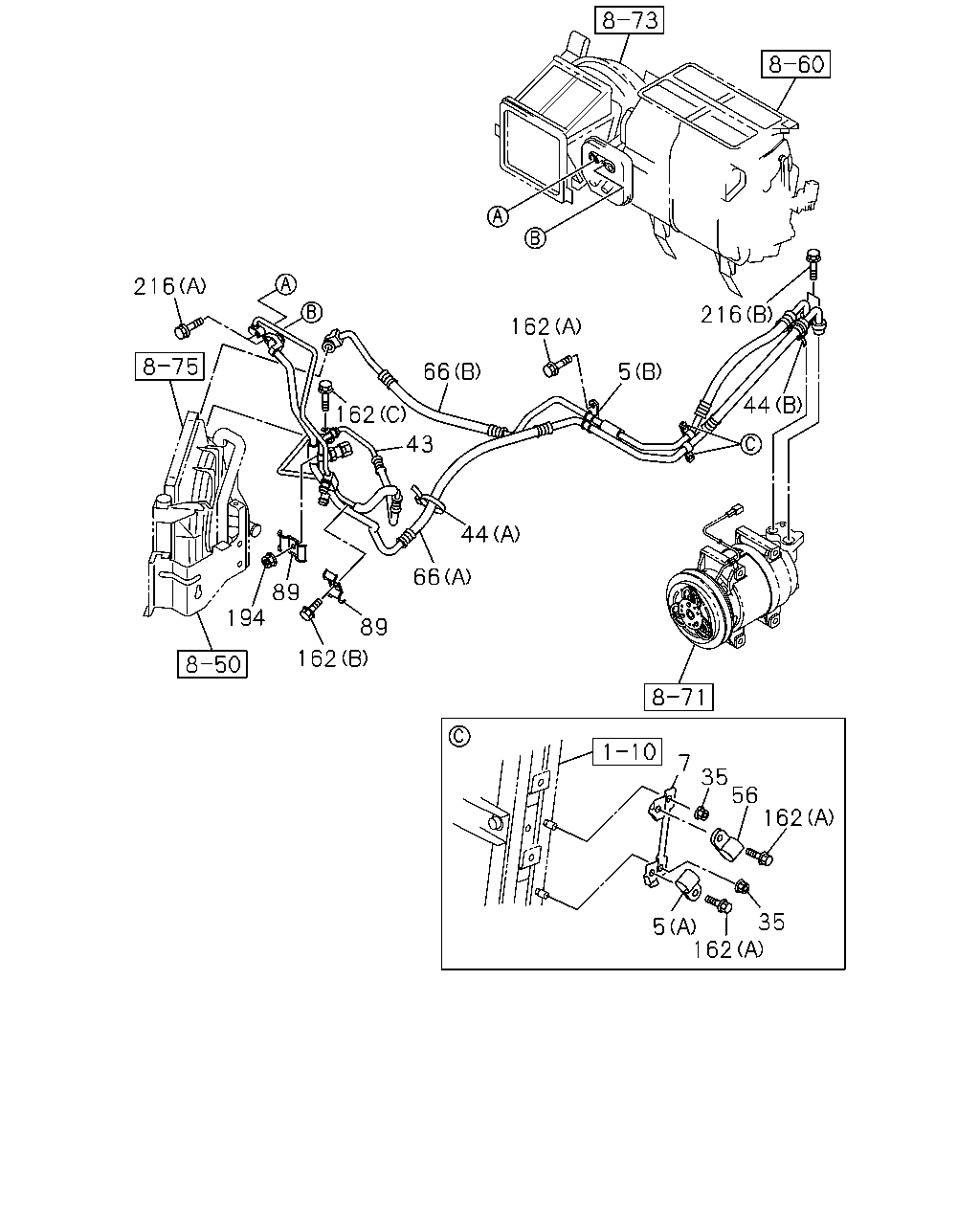

8-52 — PIPING; AIR CONDITIONING (#51806) — 102 parça

148 147 202 50 50 43 66 67 148 147 66 67 49 67 67 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98119-005-1	01	1	1109-1210	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98119-005-1	01	1	1211-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR	8-98119-005-1	01	1	1211-		●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1312-	●
49	09.242 CLAMP; FLEX HOSE (A)	8-98257-461-0	01	1	1312-		●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1312-	●
49	09.242 CLAMP; FLEX HOSE (B)	8-98257-462-0	01	1	1312-		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1109-1210	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1211-	●
50	09.222 GASKET; FLEX HOSE,A/C ID=7.5	1-83539-316-0	02	1	1211-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-998-0	01	1	1109-1210	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-998-0	01	1	1211-1311	●
66	09.225 HOSE; FLEX,A/C (B)	8-98159-998-0	01	1	1211-1311		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98248-641-0	01	1	1312-	●
66	09.225 HOSE; FLEX,A/C (B)	8-98248-641-0	01	1	1312-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98178-840-0	01	1	1109-1210	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98178-840-0	01	1	1211-1311	●
66	09.225 HOSE; FLEX,A/C (A)	8-98178-840-0	01	1	1211-1311		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98248-637-0	01	1	1312-	●
66	09.225 HOSE; FLEX,A/C (A)	8-98248-637-0	01	1	1312-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=11.7	8-97095-907-0	02	1	1109-1210	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=11.7	8-97095-907-0	02	1	1211-	●
67	09.260 GASKET; FLEX HOSE (C) ID=11.7	8-97095-907-0	02	1	1211-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1109-1210	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1211-	●
67	09.260 GASKET; FLEX HOSE 09.225 (A) ID=14.5	8-97095-908-0	01	1	1211-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=17.6	8-98036-895-0	01	1	1109-1210	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=17.6	8-98036-895-0	01	1	1211-	●
67	09.260 GASKET; FLEX HOSE (B) ID=17.6	8-98036-895-0	01	1	1211-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1109-1210	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1211-	●
147	09.242 CAP; FLEX HOSE (B) CAP MARK L	1-83539-331-0	01	1	1211-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1109-1210	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1211-	●
147	09.242 CAP; FLEX HOSE (A) CAP MARK H	8-97095-911-0	01	1	1211-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1109-1210	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1211-	●
148	09.262 VALVE; FLEX HOSE (B)	8-97095-909-0	01	1	1211-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1109-1210	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1211-	●
148	09.262 VALVE; FLEX HOSE (A)	8-98031-629-0	01	1	1211-		●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1109-1210	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1211-	●
202	09.275 SWITCH; PRESSURE	1-83564-392-1	01	1	1211-		●

216 44 5 162 66 162 43 44 66 89 162 194 89 216 7 35 56 162 35 162 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	1109-1210	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	1211-1311	●
5	09.242 CLIP; FLEX HOSE,A/C 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	1211-1311		●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1109-1210	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1211-	●
5	09.242 CLIP; FLEX HOSE,A/C (B)	8-98052-857-0	01	1	1211-		●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1109-1210	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1211-	●
7	09.242 BRACKET; FLEX HOSE,A/C	8-97388-130-1	01	1	1211-		●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-1210	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1211-	●
35	09.242 NUT; FLEX HOSE,A/C 01.062 M6 FLANGE	0-91180-106-0	02	1	1211-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98119-005-1	01	1	1109-1210	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98119-005-1	01	1	1211-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR	8-98119-005-1	01	1	1211-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1109-1210	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1211-	●
44	09.242 CLIP; FLEX HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1211-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1109-1210	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1109-1210	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1211-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1211-	●
44	09.242 CLIP; FLEX HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1211-		●
44	09.242 CLIP; FLEX HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1211-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=13 H=12 L=20	8-98038-485-0	01	1	1109-1210	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=13 H=12 L=20	8-98038-485-0	01	1	1211-1311	●
56	09.242 CLIP; PIPE,A/C ID=13 H=12 L=20	8-98038-485-0	01	1	1211-1311		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-998-0	01	1	1109-1210	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-998-0	01	1	1211-1311	●
66	09.225 HOSE; FLEX,A/C (B)	8-98159-998-0	01	1	1211-1311		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98248-641-0	01	1	1312-	●
66	09.225 HOSE; FLEX,A/C (B)	8-98248-641-0	01	1	1312-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98178-840-0	01	1	1109-1210	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98178-840-0	01	1	1211-1311	●
66	09.225 HOSE; FLEX,A/C (A)	8-98178-840-0	01	1	1211-1311		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98248-637-0	01	1	1312-	●
66	09.225 HOSE; FLEX,A/C (A)	8-98248-637-0	01	1	1312-		●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1109-1210	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1211-	●
89	09.242 BRACKET; A/C PIPE	8-98151-264-0	02	1	1211-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1109-1210	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1211-	●
162	09.173 BOLT; FLEX HOSE 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1211-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1109-1210	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1211-	●
162	09.173 BOLT; FLEX HOSE 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1211-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	03	1	1109-1210	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	03	1	1211-	●
162	09.173 BOLT; FLEX HOSE 00.685 (C) M6X25 FLANGE	0-28650-625-0	03	1	1211-		●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-	●
194	09.242 NUT; HOSE 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1109-1210	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1211-	●
216	09.173 BOLT; HOSE FIX 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1211-		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1211-	●
216	09.173 BOLT; HOSE FIX 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1211-		●
