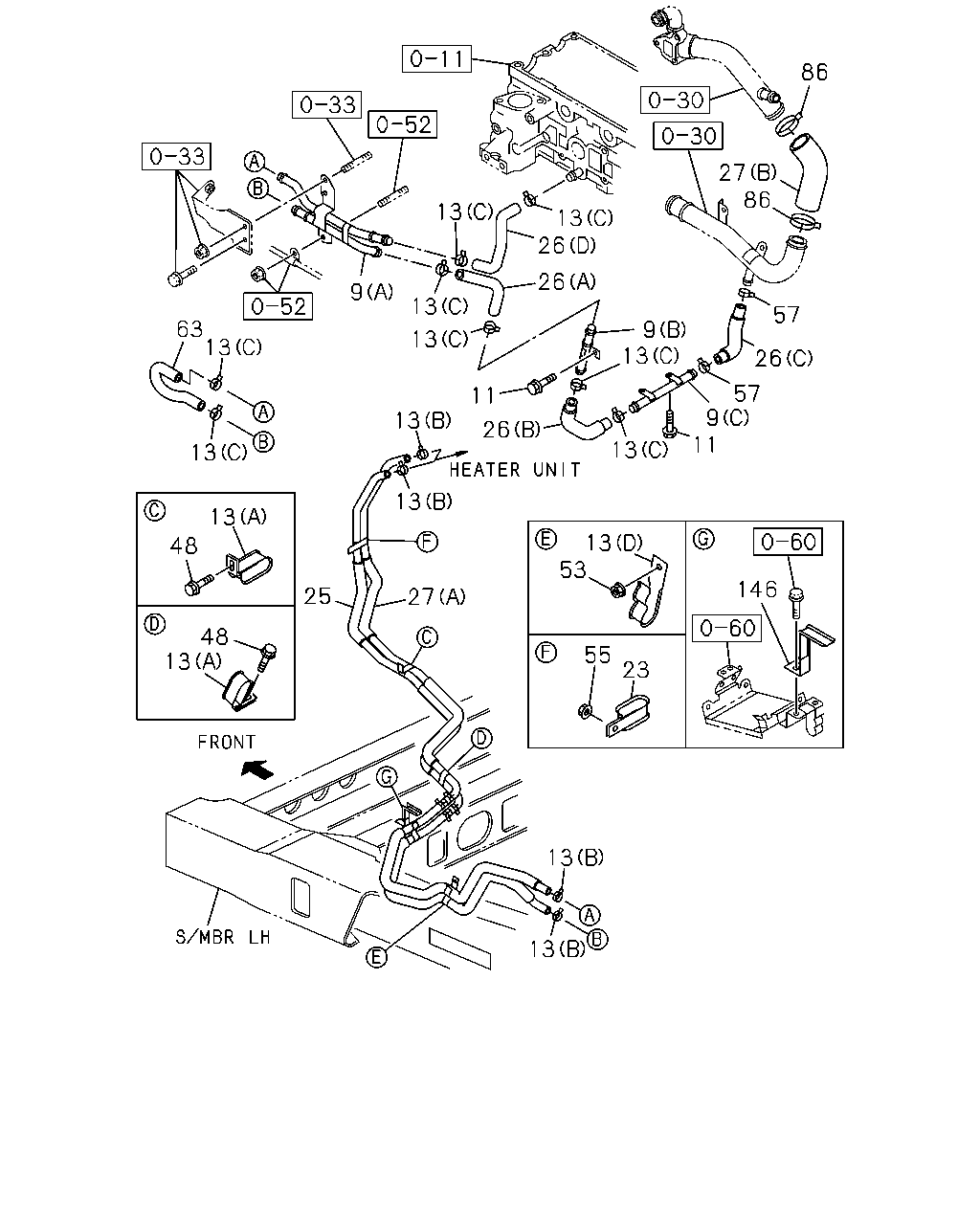

8-45 — HEATER PIPING (#51804) — 60 parça

13 26 26 9 13 26 57 86 27 86 57 9 11 13 13 53 146 55 23 13 13 13 48 48 13 25 27 13 13 11 26 13 13 13 9 13 63 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1109-1210	●
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1211-	●	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1109-1210	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1211-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1109-1210	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1211-	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1109-1210	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1211-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1109-1210	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1211-	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1211-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	1109-1210	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	1211-	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	02	1	1211-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98040-023-0	01	1	1109-1210	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98040-023-0	01	1	1211-	●
13	08.846 CLIP; HTR HOSE (D)	8-98040-023-0	01	1	1211-		●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1109-1210	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1211-	●	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1109-	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	1109-1205	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-1210	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1211-	●
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-98166-023-0	01	1	1211-		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-667-1	01	1	1109-1210	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-667-1	01	1	1211-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-98021-667-1	01	1	1211-		●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1109-1210	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1211-	●	●
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1109-1210	●
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1211-	●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1109-1210	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1211-	●	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1109-1210	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1211-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-668-3	01	1	1109-1210	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-668-3	01	1	1211-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (A)	8-98021-668-3	01	1	1211-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1109-1210	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1211-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1109-1210	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1109-1210	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1211-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1211-	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1211-		●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1211-		●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-	●
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-		●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1109-1210	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1211-	●	●
63	08.846 HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1109-	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1109-1210	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1211-	●	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	1109-1210	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	1211-	●
146	08.846 BRACKET; HTR HOSE	8-98060-001-0	01	1	1211-		●
