◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#51800) — 46 parça

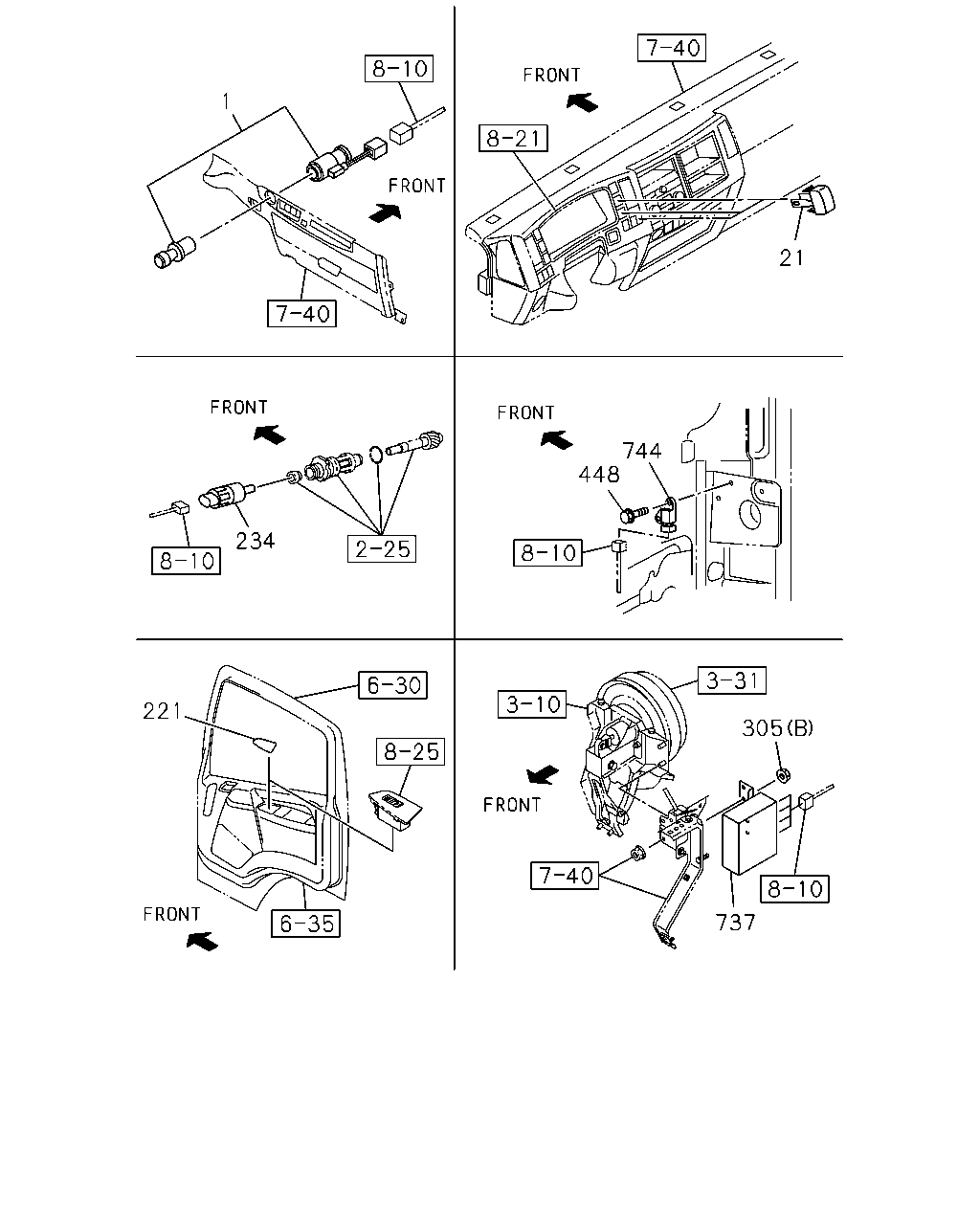

çizim 147840
1 234 221 305 737 448 21 744
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1109-1210 ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1211- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1109-1210 ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1211- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1109-1210 ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1211- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1211- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1211- ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109-1210 ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1211- ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1211- ● ●
305 08.915 NUT; CONT UNIT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1109-1210 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1211- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1109- ●
737 04.115 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98106-133-9 01 1 1211-1211 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-000-2 01 1 1212- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1109- ●

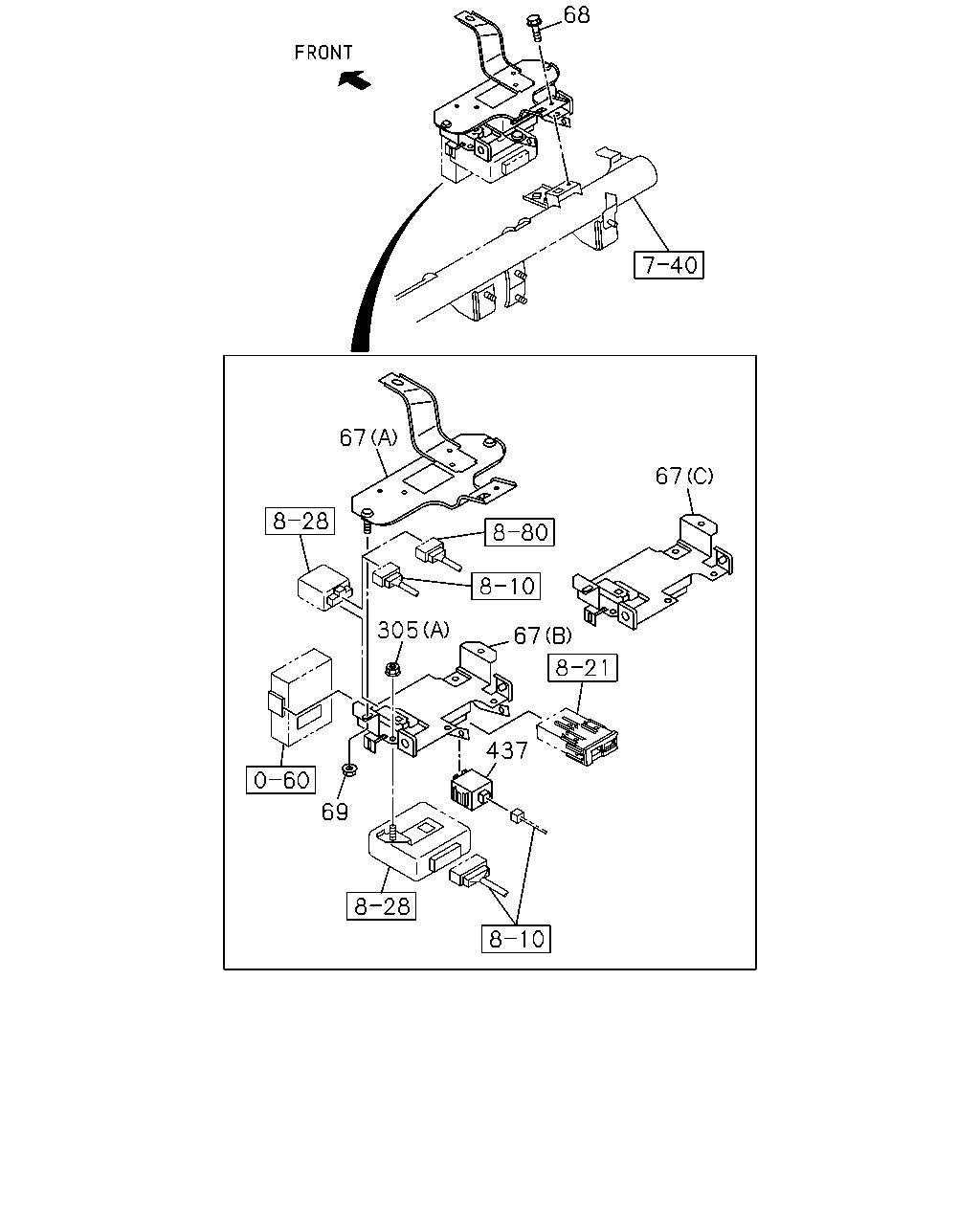

çizim 147864
68 67 67 67 305 437 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1109-1210 ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1211- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1109-1111 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98022-206-2 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98217-376-0 01 1 1208-1210 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1211-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98237-554-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-98217-377-0 01 1 1208-1210 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98217-377-0 01 1 1211-1212 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-98217-377-0 01 1 1211-1212 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1211-1212 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB> (C) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1109-1210 ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1211- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109-1210 ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1211- ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1211- ● ●
305 08.915 NUT; CONT UNIT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1109-1210 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1211- ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1109-1210 ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1211- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
