Sayfa 3-70 - Isuzu EPC

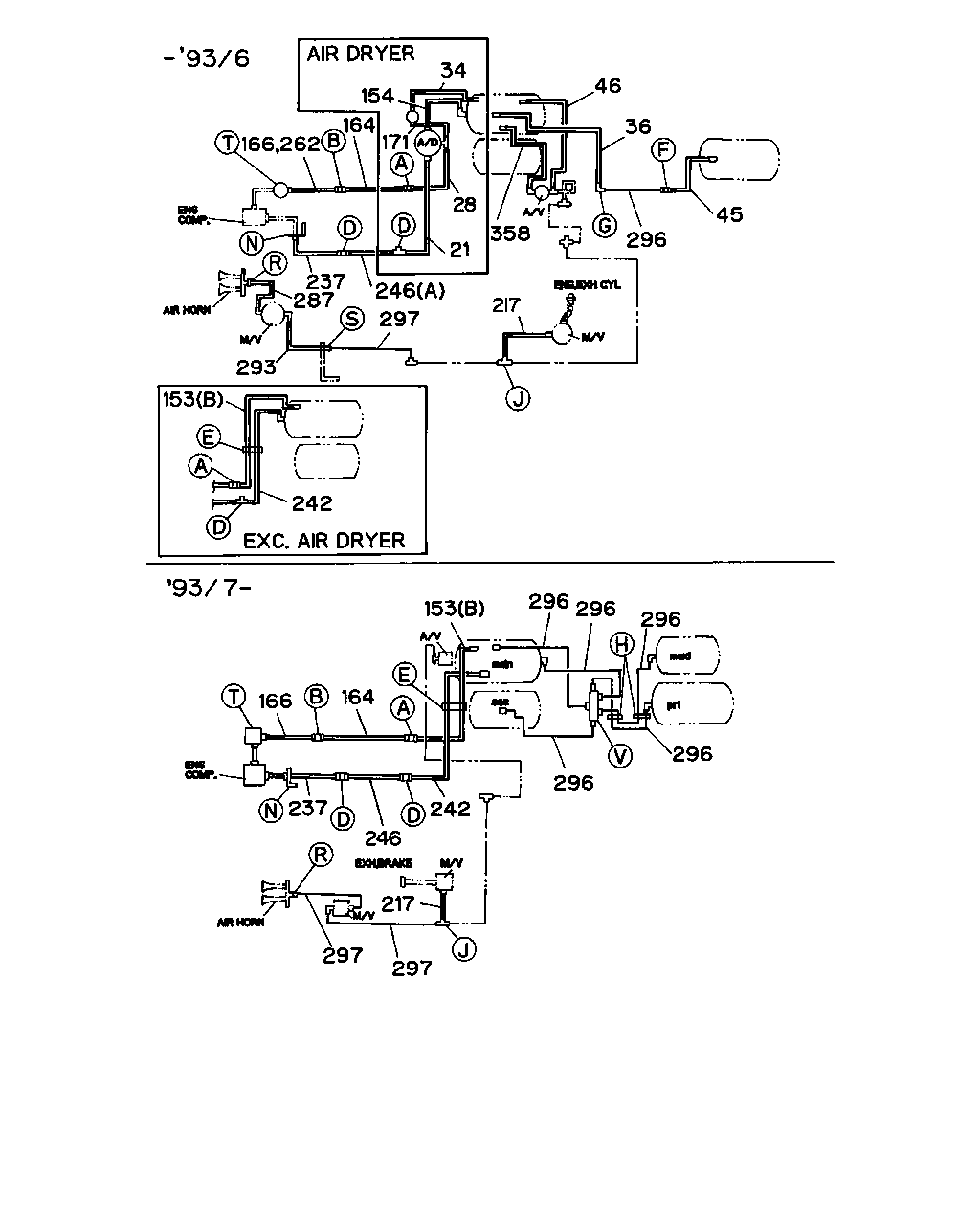

3-70 — BRAKE PIPING; AIR,AIR MASTER (#518) — 522 parça

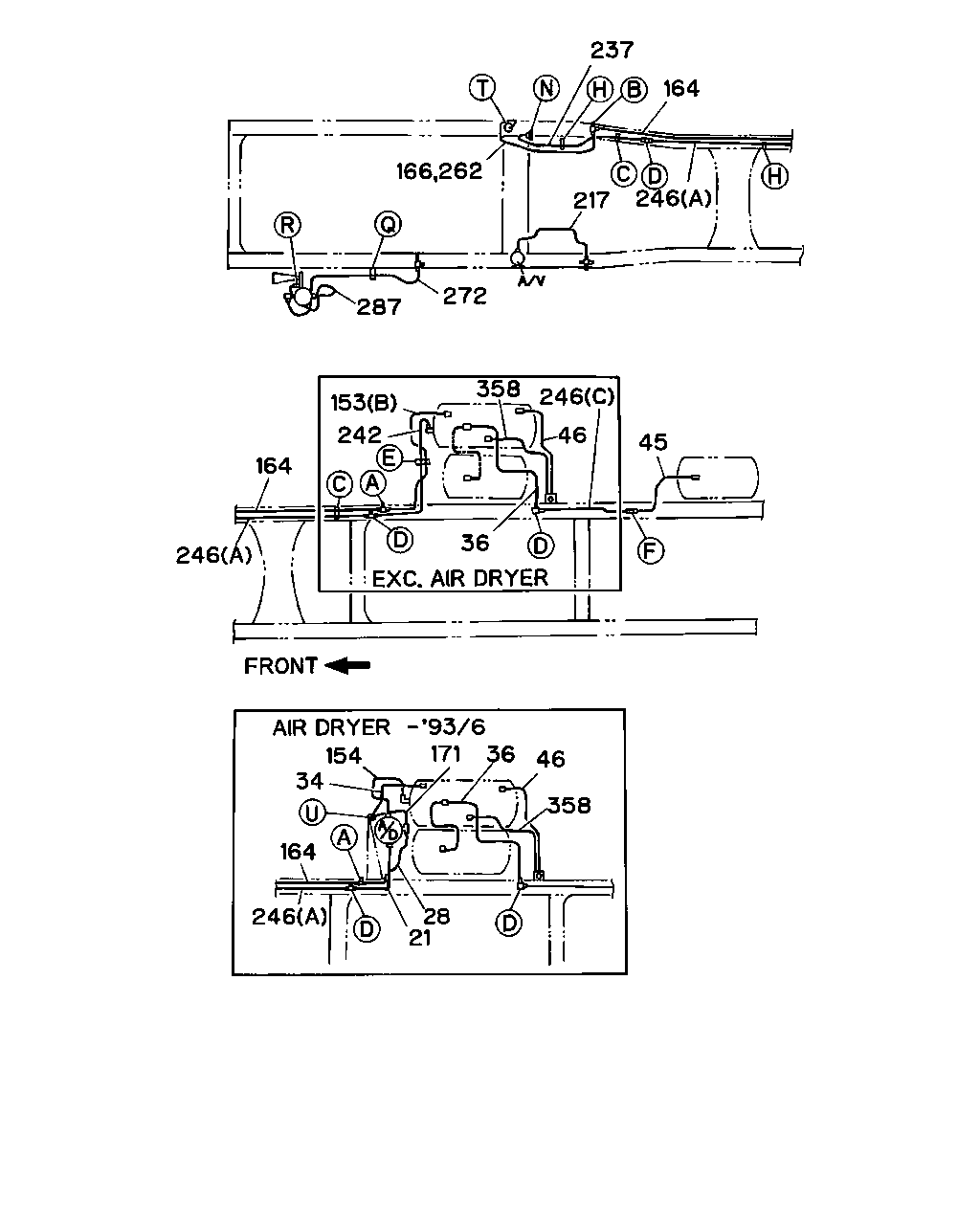

166 262 164 154 34 46 36 45 296 217 358 28 21 171 246 297 237 287 293 153 242 153 296 296 296 296 296 242 246 297 217 297 237 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-904-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-715-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-47486-715-0	01	1	9307-
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	8806-9001
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=722 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> L=443 SERVICED BY L=550	1-47437-976-0	01	1	8806-9001
34	PIPE; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=657 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
34	PIPE; AIR AIR DRYER<PS7> L=657 SERVICED BY L=660	1-49111-438-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=644 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
36	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=857 SERVICED BY L=900	1-47437-981-0	01	1	8712-9306
36	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=857 SERVICED BY L=900	1-49111-442-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8712-8801
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=400	1-49111-434-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=868 SERVICED BY L=900	1-47437-981-0	01	1	8712-9001
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8802-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=376 SERVICED BY L=550	1-47437-976-0	01	1	9002-9008
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=538 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=550	1-49111-436-0	01	1	9307-
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=1394 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9001
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=786 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=786 SERVICED BY L=800	1-49111-441-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=873 SERVICED BY L=800	1-47434-384-0	01	1	8712-8801
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8712-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=892 SERVICED BY L=900	1-47434-385-0	01	1	8802-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8806-9306
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (A) L=1101 SERVICED BY L=1200	1-47434-388-0	01	1	8806-
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=831 SERVICED BY L=900	1-47434-385-0	01	1	8712-9001
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> (B) L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	8806-9001
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-906-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-718-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1902 SERVICED BY L=2000	1-47434-395-0	01	1	8712-8805
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1806 SERVICED BY L=1820	1-47434-394-0	01	1	8806-9001
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1801 SERVICED BY L=1820	1-47434-394-0	01	1	9002-
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2026 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1838 SERVICED BY L=2000	1-47434-395-0	01	1	9002-9306
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1857 SERVICED BY L=2000	1-47426-359-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=2200 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=1884 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-47486-032-0	01	1	8712-
166	PIPE; AIR,UNION TO GOV EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>	1-47447-479-0	01	1	8712-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47486-719-0	01	1	8806-8907
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47488-647-0	01	1	8908-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1062 SERVICED BY L=1100	1-47434-387-0	01	1	8712-8801
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=995 SERVICED BY L=1000	1-47434-386-0	01	1	8802-8909
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1024 SERVICED BY L=1100	1-47434-387-0	01	1	8910-9008
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1017 SERVICED BY L=1100	1-47434-387-0	01	1	9009-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47434-388-0	01	1	8712-9306
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2258 SERVISCED BY L=2500	1-47434-494-0	01	1	8712-8805
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2104 SERVICED BY L=2250	1-47437-998-0	01	1	8806-9306
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2125	1-47495-847-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423 SERVICED BY L=1500	1-47434-492-0	01	1	8712-9306
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423	1-47448-344-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29>	1-47483-663-0	01	1	8712-
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8801
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8802-8802
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=778 SERVICED BY L=1000	1-47434-491-0	01	1	8803-8805
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=854 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	8806-9306
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9306
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=1224 SERVICED BY L=1250	1-49111-461-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=900 SERVICED BY L=900	1-47437-981-0	01	1	8712-9306
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=843	1-47499-299-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1700 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=792 SERVICED BY L=800	1-47437-980-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=965 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=984 SERVICED BY L=1000	1-49111-457-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=634 SERVICED BY L=660	1-47437-978-0	01	1	9002-9008
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=660	1-47437-978-0	01	1	9009-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=600	1-49111-437-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1085 SERVICED BY L=1100	1-47437-991-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002 SERVICED BY L=1050	1-47437-990-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002	1-47488-902-0	01	1	9307-
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=1288 SERVICED BY L=1370	1-47434-390-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=976 SERVICED BY L=1000	1-47434-386-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=976 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	8712-9212
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9306
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9307-
293	PIPE ASM; AIR,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29>	1-47485-128-1	01	1	8712-8904
293	PIPE ASM; AIR,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29>	1-47487-773-0	01	1	8905-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) L=1105 SERVICED BY L=1150	1-47437-992-0	01	1	8712-9001
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) L=745 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=745	1-43434-491-0	01	1	9307-

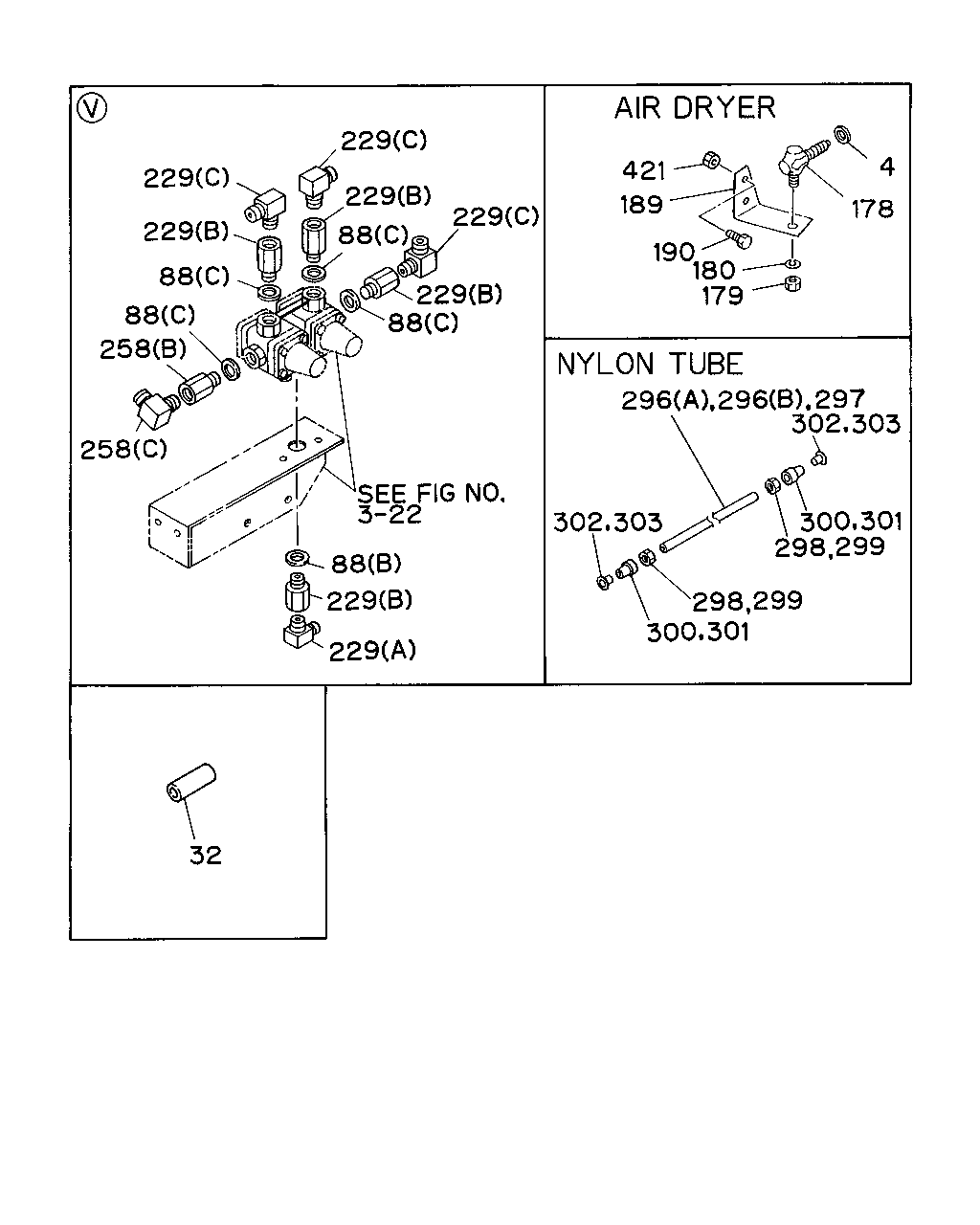

229 229 88 88 258 258 229 229 88 229 229 88 88 229 229 32 421 189 190 180 179 178 4 296 296 297 302 303 300 301 298 299 298 299 300 301 303 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	8712-9008
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9009-
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	03	1	9307-
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	8712-9306
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	9-09572-016-0	04	1	9307-
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	9-09572-022-0	01	1	9307-
178	UNION; AIR PIPE AIR DRYER<PS7> M12	1-09654-087-1	01	1	8712-
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	8712-
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	8712-
189	BRACKET; FLEX HOSE AIR DRYER<PS7> CAB UP +50MM<W60>	1-47476-163-1	01	1	8712-9306
189	BRACKET; FLEX HOSE AIR DRYER<PS7> EXC. CAB UP +50MM<W60>	1-47475-874-0	01	1	8712-9306
189	BRACKET; FLEX HOSE AIR DRYER<PS7>	1-47475-874-0	01	1	9307-
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	02	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-199-1	01	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	04	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	5-09650-016-1	03	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M14 & PT1/4	9-48319-149-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	8712-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	5-09650-016-1	01	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	8712-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M8	1-09660-213-0	AR	1	8712-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	8712-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	8712-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09666-061-0	AR	1	9307-
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	06	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	8712-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	06	1	9307-
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-

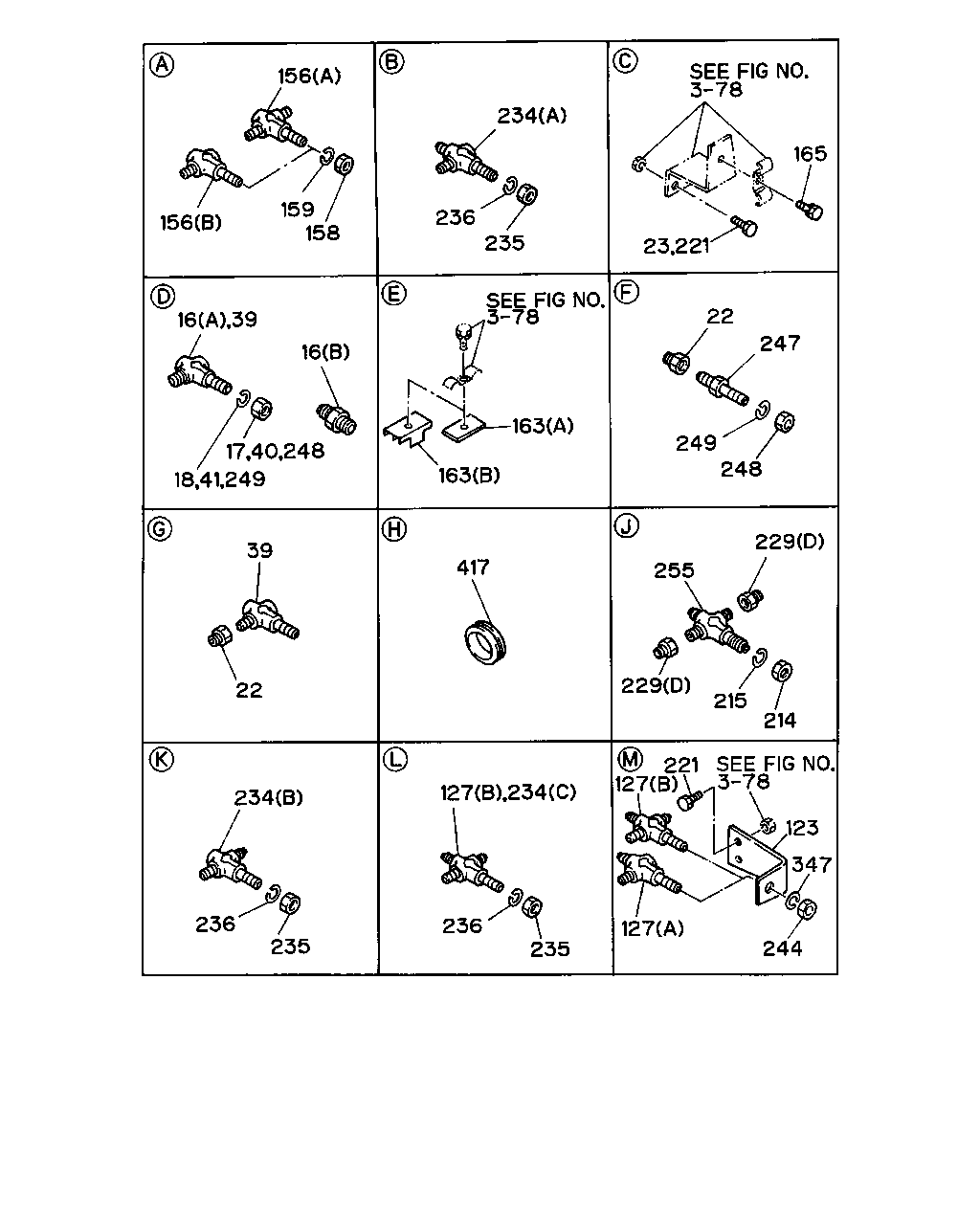

156 159 158 156 234 236 235 165 23 221 22 247 249 248 229 255 229 215 214 123 347 244 127 127 221 127 234 235 236 235 236 234 22 39 417 163 163 16 17 40 248 18 41 249 16 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	UNION; AIR PIPE (A) M22	9-09235-215-0	01	1	8712-8805
16	UNION; AIR PIPE (A) M22 2WAY	1-09654-212-1	01	1	8806-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) M22	9-09233-015-1	01	1	8712-
17	NUT; UNION HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	8712-8805
17	NUT; UNION HONG KONG EQUIPMENT(PQ1) M14	9-99110-414-0	01	1	8806-
18	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	8712-8805
18	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	8806-9312
22	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	02	1	8712-9306
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
39	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M20 & M20	9-09233-312-1	01	1	8712-
39	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M20 ELBOW	9-09235-112-1	01	1	8712-9306
39	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20 ELBOW	9-09235-112-1	01	1	9307-
40	NUT; PIPE UNION M20	9-99111-420-0	01	1	8712-9306
40	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9307-
41	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	8712-9306
41	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
123	BRACKET; UNION HONG KONG EQUIPMENT(PQ1)	1-47476-112-0	01	1	8712-9001
123	BRACKET; UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-47476-112-0	01	1	9002-9012
123	BRACKET; UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-47475-432-3	01	1	9101-
127	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09656-392-1	01	1	8712-9001
127	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M12	9-09228-306-1	01	1	8712-
127	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M12 3WAY	9-09228-906-1	01	1	9002-
156	UNION; AIR PIPE (A) M12 2WAY	1-09654-234-2	01	1	9004-
156	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M12 ELBOW	9-09225-206-0	01	1	8712-8805
156	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M12 3WAY	1-09654-137-0	01	1	8806-8807
156	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M12 2WAY	1-09654-234-0	01	1	8808-9003
156	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) M12 L=69	9-09225-106-0	01	1	8712-9003
158	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	8712-8805
158	NUT; UNION,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M12	9-09840-280-0	01	1	8806-9008
158	NUT; UNION,AIR PIPE M12	9-99110-412-0	01	1	9009-9304
158	NUT; UNION,AIR PIPE M12	9-99110-512-0	01	1	9305-
158	NUT; UNION,AIR PIPE HONG KONG EQUIPMENT(PQ1) M12	9-99110-412-0	01	1	8806-9008
159	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	8712-9312
163	BRACKET; AIR PIPE (A) L=50	1-47475-299-2	01	1	8712-8912
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9001-9008
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	9009-9306
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9009-9306
163	BRACKET; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47475-427-1	03	1	8712-9306
163	BRACKET; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	02	1	8712-9306
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9307-
165	BOLT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28010-830-0	01	1	8712-9204
165	BOLT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	01	1	9205-
165	BOLT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
165	BOLT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
165	BOLT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-
214	NUT; UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-
215	WASHER; LK,UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9001
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE	0-28080-830-0	02	1	9303-
221	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	8712-9204
221	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	8712-9204
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	02	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-199-1	01	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	04	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	5-09650-016-1	03	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M14 & PT1/4	9-48319-149-0	01	1	9307-
234	UNION; AIR PIPE (A)	1-09654-059-2	01	1	8712-
234	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-09656-539-1	01	1	8712-
234	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-09656-350-1	01	1	9307-
234	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) FULLER M/T<X9B> (C)	1-09656-283-0	01	1	8712-9001
234	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A> (C)	1-09656-350-1	01	1	8902-9306
235	NUT; PIPE UNION M12	9-99111-412-0	01	1	8712-
235	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	02	1	8712-
235	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M16	9-99111-416-0	01	1	8712-
236	WASHER; LK,UNION,PIPE ID=12.2	9-09150-512-0	01	1	8712-9312
236	WASHER; LK,UNION,PIPE HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	02	1	8712-
236	WASHER; LK,UNION,PIPE HONG KONG EQUIPMENT(PQ1) ID=16.2	9-09150-516-0	01	1	8712-
244	NUT; UNION,AIR PIPE HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M12	9-99111-412-0	01	1	8712-
247	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M20	9-09235-212-1	01	1	8712-
247	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M20 ELBOW	9-09235-112-0	01	1	8712-9008
247	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M20 STRAIGHT	9-09233-012-1	01	1	9009-9306
247	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20 STRAIGHT	9-09233-012-1	01	1	9307-
248	NUT; PIPE UNION M20	9-99111-420-0	01	1	8712-9008
248	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	01	1	9009-
248	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	8712-9001
248	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1) M14	9-99110-414-0	01	1	9002-
249	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	8712-9008
249	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	01	1	9009-
249	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	8712-9001
249	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-9312
255	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9307-
347	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2	9-09150-512-0	01	1	9307-
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9307-

237 164 217 166 262 272 287 153 242 358 246 46 45 36 164 246 246 154 34 164 246 21 28 358 46 36 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-904-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-715-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-47486-715-0	01	1	9307-
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	8806-9001
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=722 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> L=443 SERVICED BY L=550	1-47437-976-0	01	1	8806-9001
34	PIPE; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=657 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
34	PIPE; AIR AIR DRYER<PS7> L=657 SERVICED BY L=660	1-49111-438-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=644 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
36	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=857 SERVICED BY L=900	1-47437-981-0	01	1	8712-9306
36	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=857 SERVICED BY L=900	1-49111-442-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8712-8801
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=400	1-49111-434-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=868 SERVICED BY L=900	1-47437-981-0	01	1	8712-9001
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8802-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=376 SERVICED BY L=550	1-47437-976-0	01	1	9002-9008
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=538 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=550	1-49111-436-0	01	1	9307-
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=1394 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9001
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=786 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306
46	PIPE; AIR,AIR VLV TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=786 SERVICED BY L=800	1-49111-441-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=873 SERVICED BY L=800	1-47434-384-0	01	1	8712-8801
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8712-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=892 SERVICED BY L=900	1-47434-385-0	01	1	8802-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8806-9306
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (A) L=1101 SERVICED BY L=1200	1-47434-388-0	01	1	8806-
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=831 SERVICED BY L=900	1-47434-385-0	01	1	8712-9001
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> (B) L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	8806-9001
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-906-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-718-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1902 SERVICED BY L=2000	1-47434-395-0	01	1	8712-8805
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1806 SERVICED BY L=1820	1-47434-394-0	01	1	8806-9001
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1801 SERVICED BY L=1820	1-47434-394-0	01	1	9002-
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2026 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1838 SERVICED BY L=2000	1-47434-395-0	01	1	9002-9306
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1857 SERVICED BY L=2000	1-47426-359-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=2200 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=1884 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-47486-032-0	01	1	8712-
166	PIPE; AIR,UNION TO GOV EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>	1-47447-479-0	01	1	8712-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47486-719-0	01	1	8806-8907
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47488-647-0	01	1	8908-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1062 SERVICED BY L=1100	1-47434-387-0	01	1	8712-8801
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=995 SERVICED BY L=1000	1-47434-386-0	01	1	8802-8909
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1024 SERVICED BY L=1100	1-47434-387-0	01	1	8910-9008
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1017 SERVICED BY L=1100	1-47434-387-0	01	1	9009-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47434-388-0	01	1	8712-9306
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2258 SERVISCED BY L=2500	1-47434-494-0	01	1	8712-8805
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2104 SERVICED BY L=2250	1-47437-998-0	01	1	8806-9306
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2125	1-47495-847-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423 SERVICED BY L=1500	1-47434-492-0	01	1	8712-9306
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423	1-47448-344-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29>	1-47483-663-0	01	1	8712-
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8801
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8802-8802
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=778 SERVICED BY L=1000	1-47434-491-0	01	1	8803-8805
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=854 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	8806-9306
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9306
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=1224 SERVICED BY L=1250	1-49111-461-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=900 SERVICED BY L=900	1-47437-981-0	01	1	8712-9306
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=843	1-47499-299-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1700 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=792 SERVICED BY L=800	1-47437-980-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=965 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=984 SERVICED BY L=1000	1-49111-457-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=634 SERVICED BY L=660	1-47437-978-0	01	1	9002-9008
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=660	1-47437-978-0	01	1	9009-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=600	1-49111-437-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1085 SERVICED BY L=1100	1-47437-991-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002 SERVICED BY L=1050	1-47437-990-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002	1-47488-902-0	01	1	9307-
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=1288 SERVICED BY L=1370	1-47434-390-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=976 SERVICED BY L=1000	1-47434-386-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=976 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
272	PIPE; AIR,MAG VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1212 SERVICED BY L=1250	1-47434-389-0	01	1	8712-
272	PIPE; AIR,MAG VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1202 SERVICED BY L=1250	1-47434-389-0	01	1	8712-
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	8712-9212
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9306
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9307-
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) L=1105 SERVICED BY L=1150	1-47437-992-0	01	1	8712-9001
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1) L=745 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
358	PIPE; AIR,AIR TANK TO AIR VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=745	1-43434-491-0	01	1	9307-

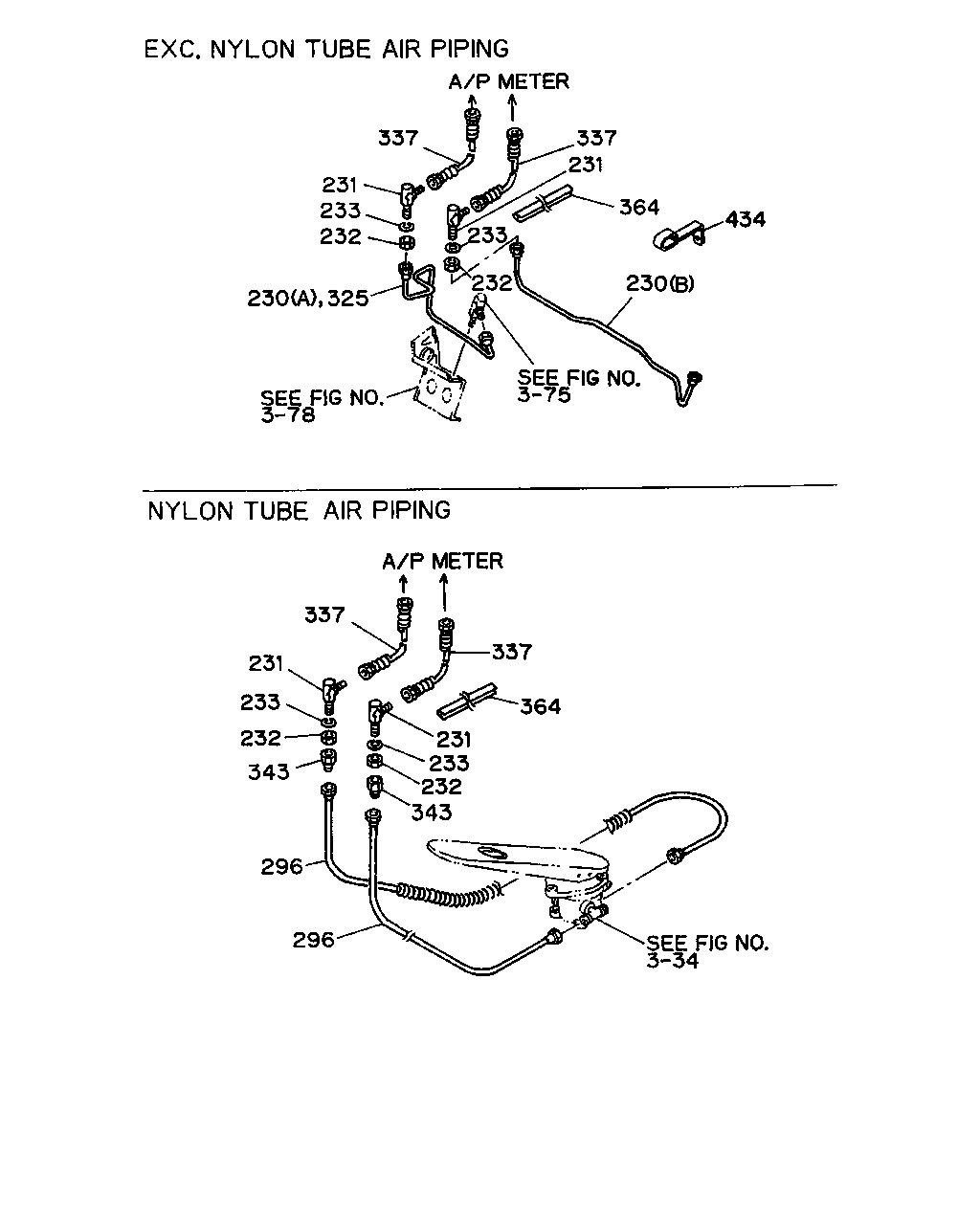

337 231 233 232 230 325 232 233 231 337 364 434 230 337 231 233 232 343 296 296 337 364 231 233 232 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
230	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=530	1-47445-586-1	01	1	8712-
230	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=667	1-47448-466-1	01	1	8712-
231	UNION; AIR PIPE	1-09654-180-3	02	1	8712-
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	8712-
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	8712-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
325	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=530	1-47445-586-1	01	1	8712-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	1-09363-431-1	02	1	8712-
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-217-1	02	1	8712-9306
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-603-0	02	1	9307-
364	PROTECTOR; AIR GAUGE HOSE L=240	1-71998-400-0	01	1	8712-
434	CLIP EXC. NYLON TUBE AIR PIPING<Z29> ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-

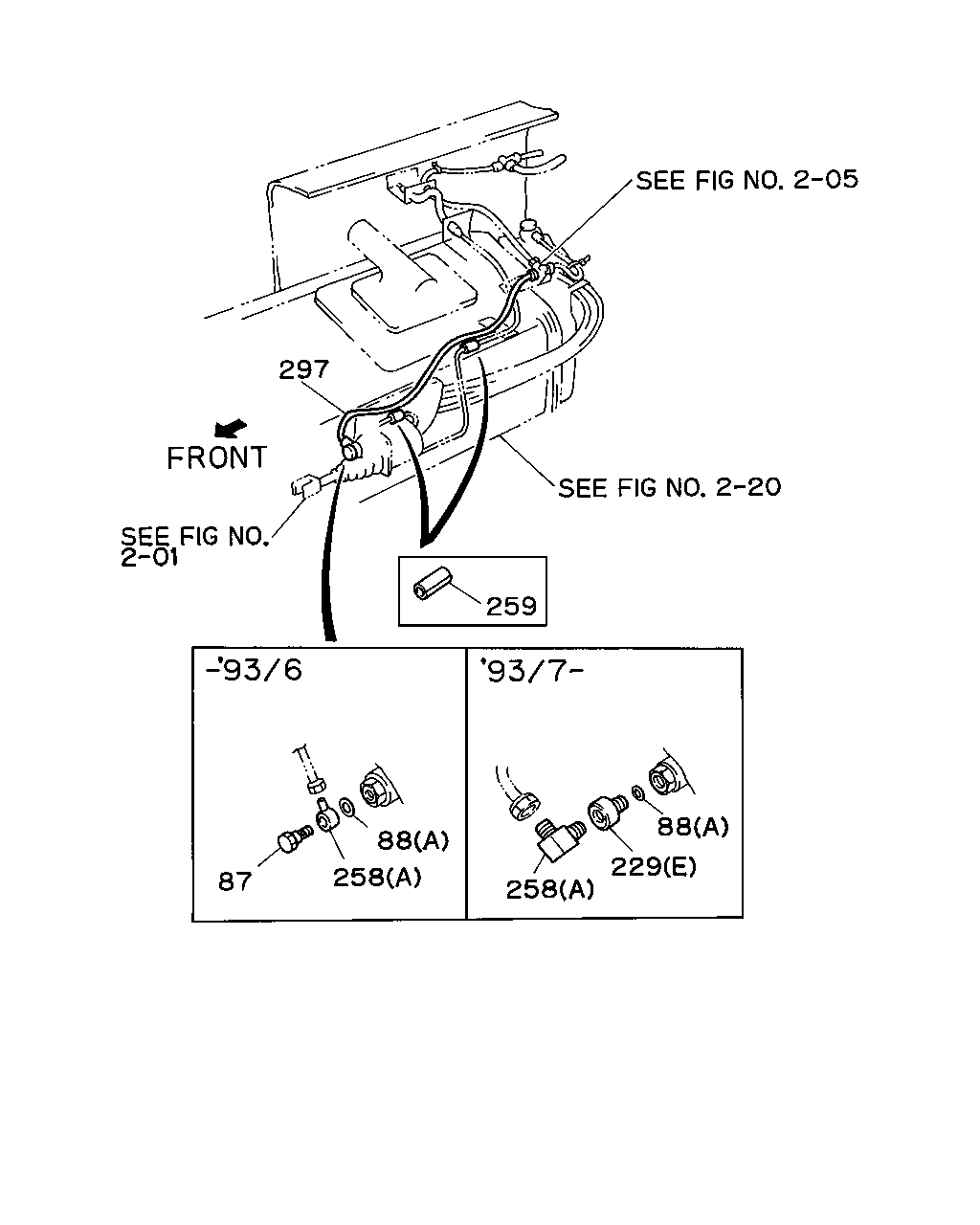

297 87 258 88 88 229 258 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	BOLT; EYE,NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09675-170-0	01	1	8712-9306
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	8712-9306
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	9-09572-016-0	04	1	9307-
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	9-09572-022-0	01	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	02	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-199-1	01	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	04	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	5-09650-016-1	03	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M14 & PT1/4	9-48319-149-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	8712-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	5-09650-016-1	01	1	9307-
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	01	1	8712-8909
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	8910-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	8712-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-

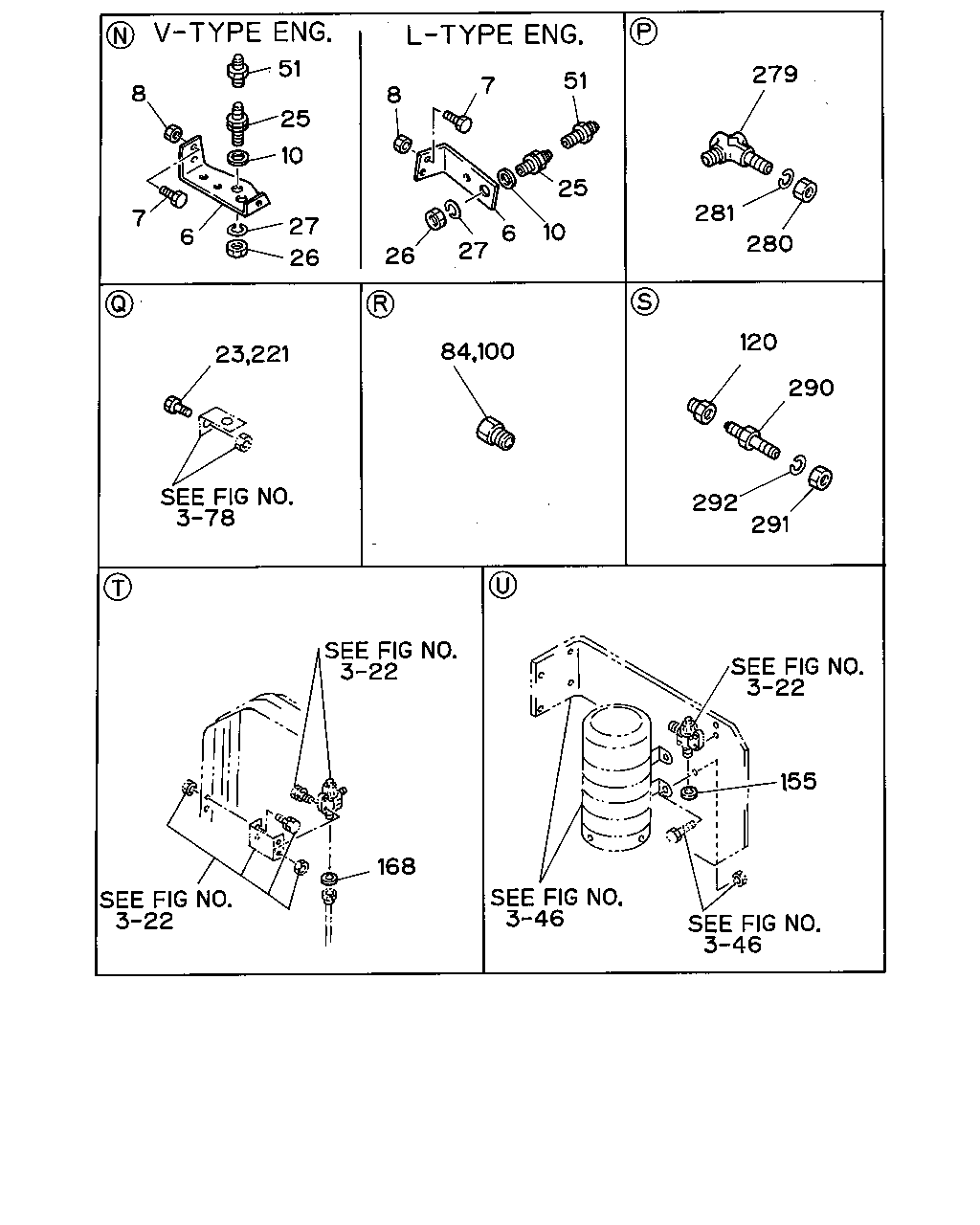

8 7 6 51 25 10 27 26 23 221 8 7 51 25 10 6 27 26 279 281 280 120 290 292 291 155 168 84 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L>	1-47475-330-1	01	1	8712-
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L>	1-47475-300-3	01	1	8712-8901
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L>	1-47476-363-1	01	1	8902-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	8712-
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	8712-
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	8712-
26	NUT; CHECK VLV M20	9-99111-420-0	01	1	8712-
27	WASHER; LK,CHECK VLV ID=20.2	9-09150-520-0	01	1	8712-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	8806-
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-274-0	01	1	9307-
100	CONNECTOR; AIR PIPE M14	1-09650-031-0	01	1	8712-9103
100	CONNECTOR; AIR PIPE M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306
100	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29>	1-09660-218-0	01	1	8712-9306
155	GASKET; AIR PIPE HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	8806-9008
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9009-
168	GASKET; AIR PIPE,GOV EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	8712-
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9001
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
221	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE	0-28080-830-0	02	1	9303-
221	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	8712-9204
221	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	8712-9204
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
279	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M12 ELBOW	9-09225-206-1	01	1	8712-
280	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	01	1	8712-
281	WASHER; LK UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	8712-
290	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	8712-9306
291	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	8712-9306
292	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9306

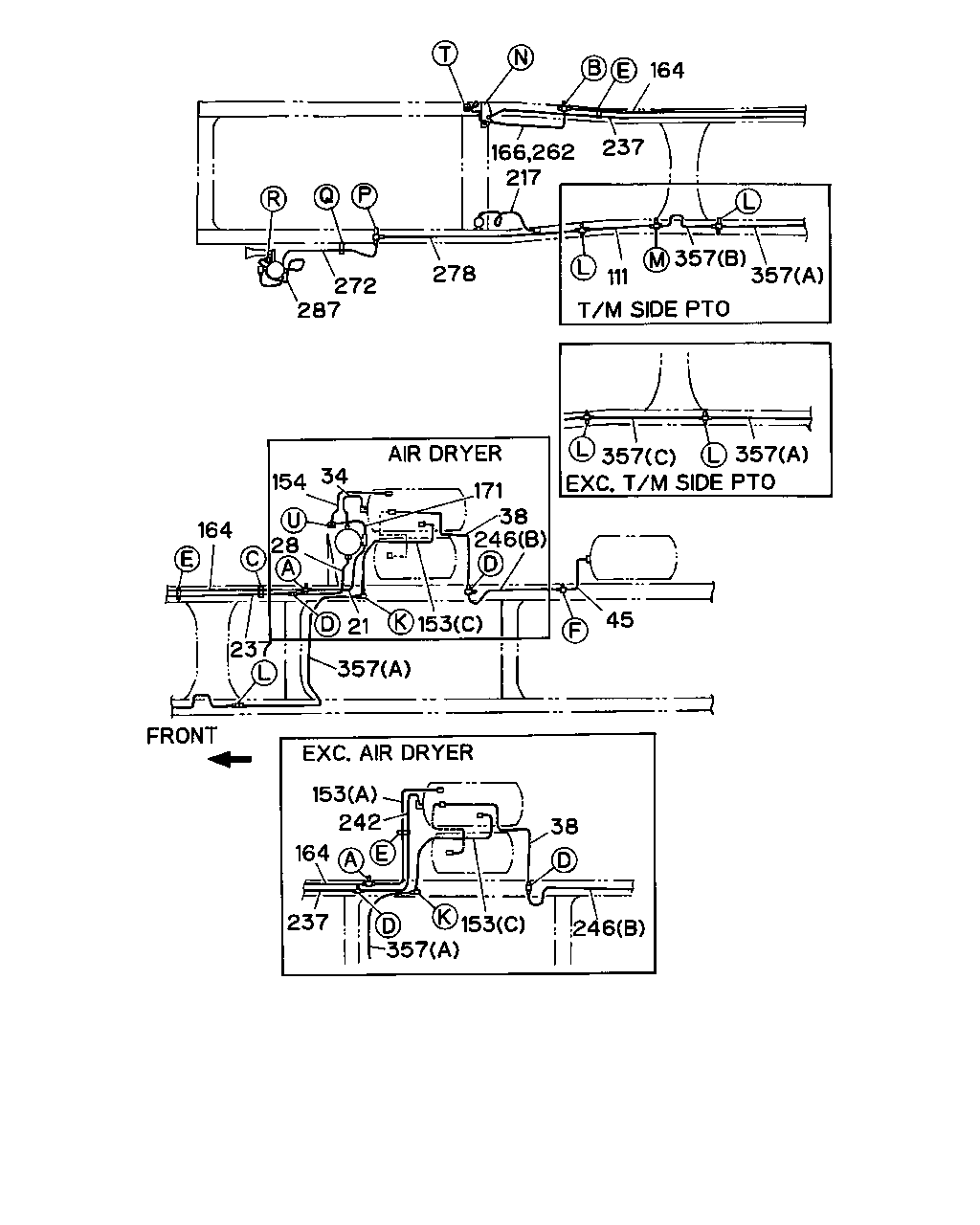

164 237 166 262 217 111 357 357 278 272 287 357 357 171 38 246 45 153 21 357 34 154 164 28 23 38 246 153 357 237 164 153 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-904-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-715-0	01	1	8712-9306
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-47486-715-0	01	1	9307-
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	8712-9204
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	8806-9001
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=722 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9002-9306
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> L=730 SERVICED BY L=800	1-47434-384-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> L=443 SERVICED BY L=550	1-47437-976-0	01	1	8806-9001
34	PIPE; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=657 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
34	PIPE; AIR AIR DRYER<PS7> L=657 SERVICED BY L=660	1-49111-438-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=644 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
38	PIPE; AIR,MAIN TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=1023 SERVICED BY L=1100	1-47437-982-0	01	1	8712-8801
38	PIPE; AIR,MAIN TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=1008 SERVICED BY L=1100	1-47437-982-0	01	1	8802-8807
38	PIPE; AIR,MAIN TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=1044 SERVICED BY L=1450	1-47437-984-0	01	1	8808-9306
38	PIPE; AIR,MAIN TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=1044 SERVICED BY L=1100	1-49111-444-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8712-8801
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=400	1-49111-434-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=868 SERVICED BY L=900	1-47437-981-0	01	1	8712-9001
45	PIPE; AIR,UNION TO AIR TANK HONG KONG EQUIPMENT(PQ1) L=382 SERVICED BY L=550	1-47437-976-0	01	1	8802-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=376 SERVICED BY L=550	1-47437-976-0	01	1	9002-9008
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) L=538 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
45	PIPE; AIR,UNION TO AIR TANK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=550	1-49111-436-0	01	1	9307-
111	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=401 SERVICED BY L=460	9-47415-349-0	01	1	8712-9001
111	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> L=390 SERVICED BY L=460	9-47415-349-0	01	1	9002-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=873 SERVICED BY L=800	1-47434-384-0	01	1	8712-8801
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8712-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=892 SERVICED BY L=900	1-47434-385-0	01	1	8802-8805
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	8806-9306
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (A) L=1101 SERVICED BY L=1200	1-47434-388-0	01	1	8806-
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=831 SERVICED BY L=900	1-47434-385-0	01	1	8712-9001
153	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> (B) L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	8806-9001
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1)	1-47488-906-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-47486-718-0	01	1	9002-9306
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47486-718-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1902 SERVICED BY L=2000	1-47434-395-0	01	1	8712-8805
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1806 SERVICED BY L=1820	1-47434-394-0	01	1	8806-9001
164	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1801 SERVICED BY L=1820	1-47434-394-0	01	1	9002-
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2026 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1838 SERVICED BY L=2000	1-47434-395-0	01	1	9002-9306
164	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1857 SERVICED BY L=2000	1-47426-359-0	01	1	9307-
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=2200 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
164	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=1884 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-47486-032-0	01	1	8712-
166	PIPE; AIR,UNION TO GOV EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>	1-47447-479-0	01	1	8712-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47486-719-0	01	1	8806-8907
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47488-647-0	01	1	8908-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1062 SERVICED BY L=1100	1-47434-387-0	01	1	8712-8801
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=995 SERVICED BY L=1000	1-47434-386-0	01	1	8802-8909
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1024 SERVICED BY L=1100	1-47434-387-0	01	1	8910-9008
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> L=1017 SERVICED BY L=1100	1-47434-387-0	01	1	9009-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47434-388-0	01	1	8712-9306
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1180 SERVICED BY L=1200	1-47426-352-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2258 SERVISCED BY L=2500	1-47434-494-0	01	1	8712-8805
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2104 SERVICED BY L=2250	1-47437-998-0	01	1	8806-9306
237	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2125	1-47495-847-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423 SERVICED BY L=1500	1-47434-492-0	01	1	8712-9306
237	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1423	1-47448-344-0	01	1	9307-
237	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29>	1-47483-663-0	01	1	8712-
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8801
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=806 SERVICED BY L=1000	1-47434-491-0	01	1	8802-8802
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=778 SERVICED BY L=1000	1-47434-491-0	01	1	8803-8805
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=854 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	8806-9306
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9306
242	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> L=1065 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> L=1058 SERVICED BY L=1100	1-47437-991-0	01	1	9307-
242	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=1224 SERVICED BY L=1250	1-49111-461-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=900 SERVICED BY L=900	1-47437-981-0	01	1	8712-9306
246	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=843	1-47499-299-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1700 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=792 SERVICED BY L=800	1-47437-980-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=965 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=984 SERVICED BY L=1000	1-49111-457-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=634 SERVICED BY L=660	1-47437-978-0	01	1	9002-9008
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=660	1-47437-978-0	01	1	9009-9306
246	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=582 SERVICED BY L=600	1-49111-437-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1085 SERVICED BY L=1100	1-47437-991-0	01	1	8712-9001
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002 SERVICED BY L=1050	1-47437-990-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1002	1-47488-902-0	01	1	9307-
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1) L=1288 SERVICED BY L=1370	1-47434-390-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=976 SERVICED BY L=1000	1-47434-386-0	01	1	8712-9306
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=976 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
272	PIPE; AIR,MAG VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1212 SERVICED BY L=1250	1-47434-389-0	01	1	8712-
272	PIPE; AIR,MAG VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1202 SERVICED BY L=1250	1-47434-389-0	01	1	8712-
278	PIPE ASM; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1116 SERVICED BY L=1200	1-47426-352-0	01	1	8712-9306
278	PIPE ASM; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1124 SERVICED BY L=1200	1-47426-352-0	01	1	9307-
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	8712-9212
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9306
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9307-
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1674 SERVICED BY L=1700	1-47434-478-0	01	1	8712-8802
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1664 SERVICED BY L=1700	1-47434-478-0	01	1	8803-9001
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1676 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1680 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) FULLER M/T<X9B> (C) L=333 SERVICED BY L=350	9-47415-348-0	01	1	8712-9001
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) MJA7U M/T(X6G) (C) L=833 SERVICED BY L=900	1-47434-385-0	01	1	8902-9001
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) L=456 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) L=456	1-47488-650-0	01	1	9307-
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=833 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306
357	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=833	1-47487-776-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
