◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#51799) — 205 parça

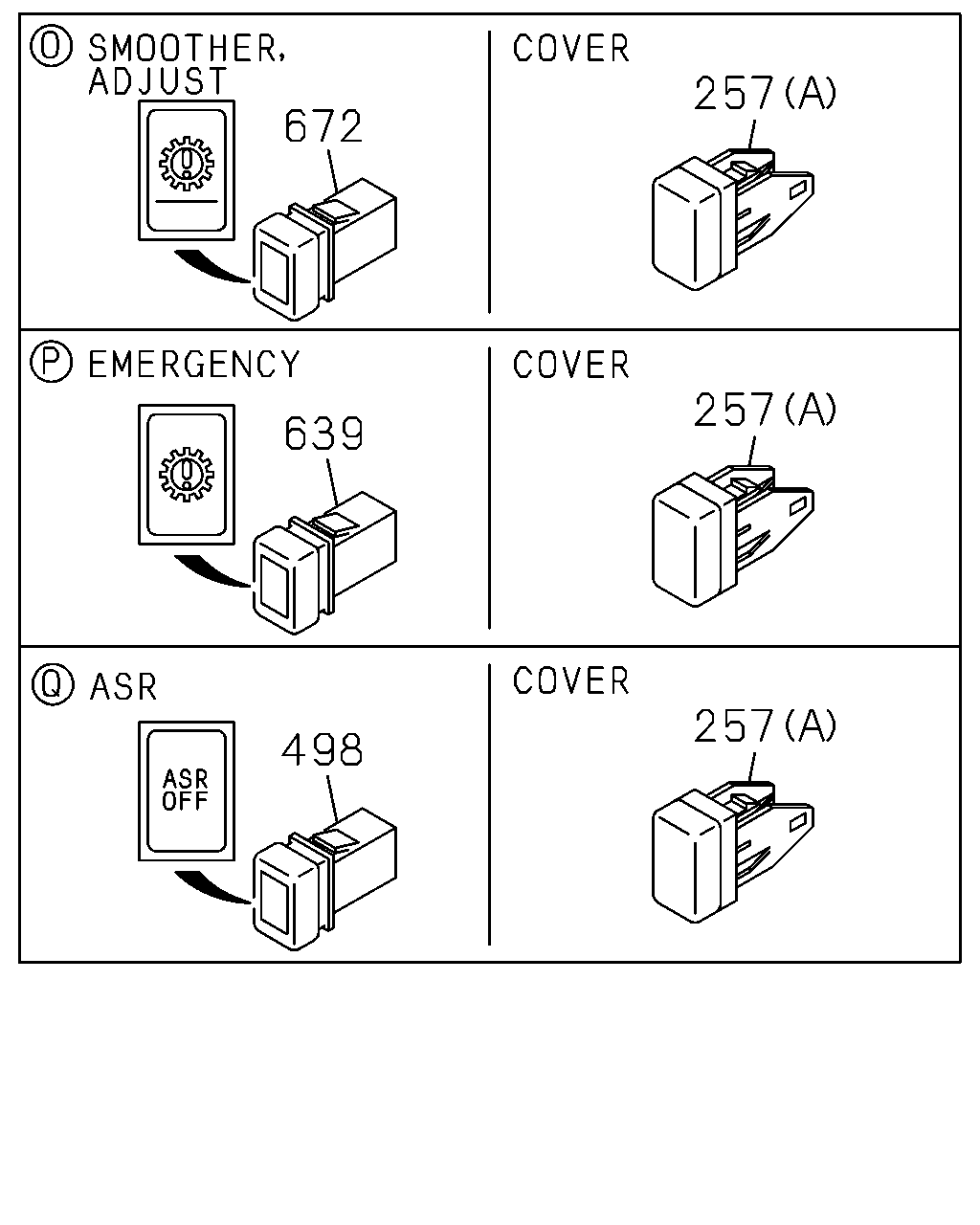

çizim 147842
672 639 498 257 257 257
BalonParca AdiParca NoAdetTipApplied Date A B
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1211- ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1211- ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1211- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1211- ● ●

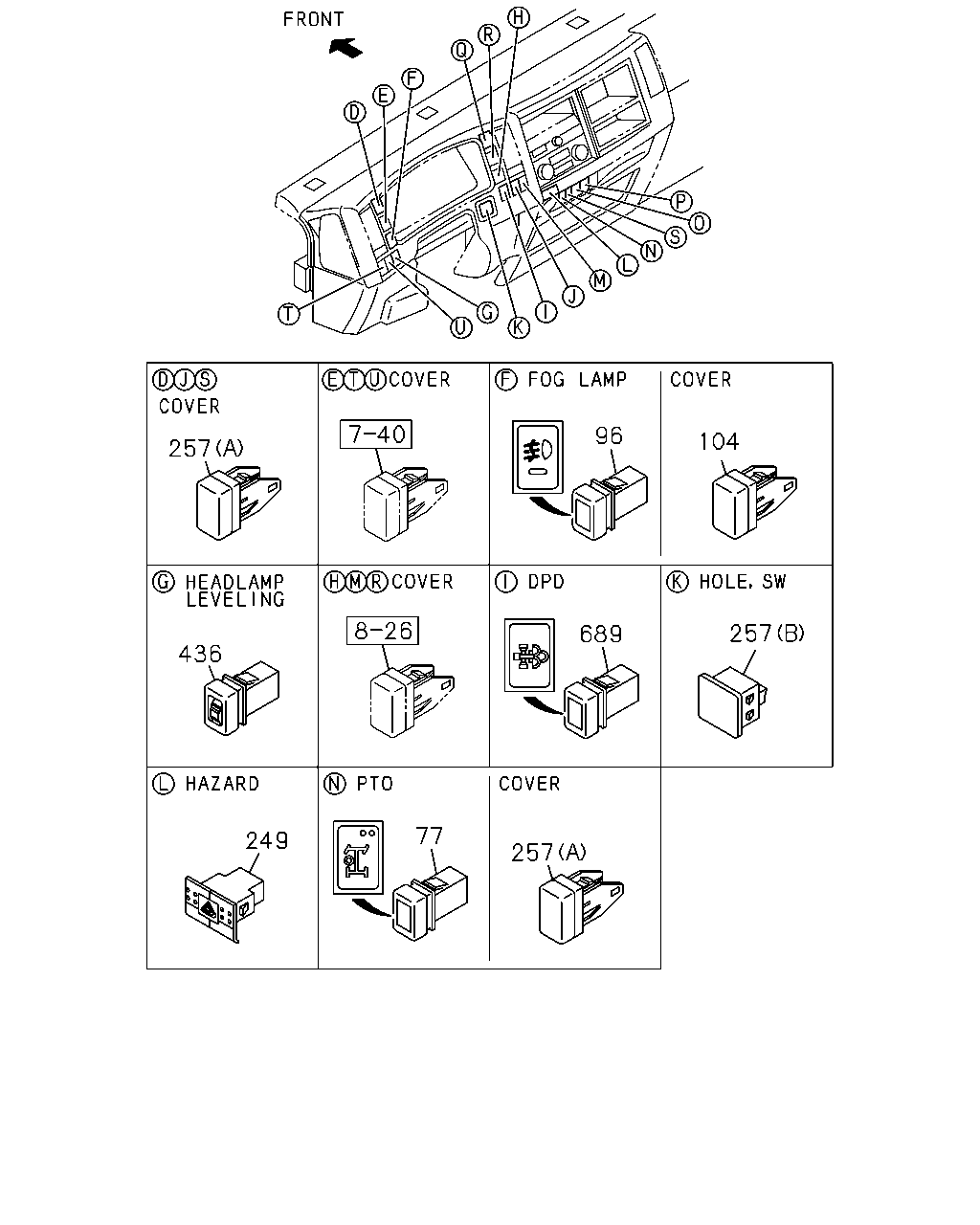

çizim 147843
257 96 104 436 689 257 249 77 257
BalonParca AdiParca NoAdetTipApplied Date A B
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 1211-1211 ● ●
77 04.439 SWITCH; PTO
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 1109-1111 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1112-1112 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-3 01 1 1112-1112 ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 1201-1210 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1211-1211 ● ●
96 02.485 SWITCH; FOG LAMP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FOG LAMP<T96> 		8-97387-031-4 01 1 1212- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1212- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1211-1211 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1212- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1212- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1112-1112 ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112-1112 ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1109-1210 ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1109-1210 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1211- ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1211- ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1109-1210 ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1211- ● ●
çizim 147844
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1211- ● ●

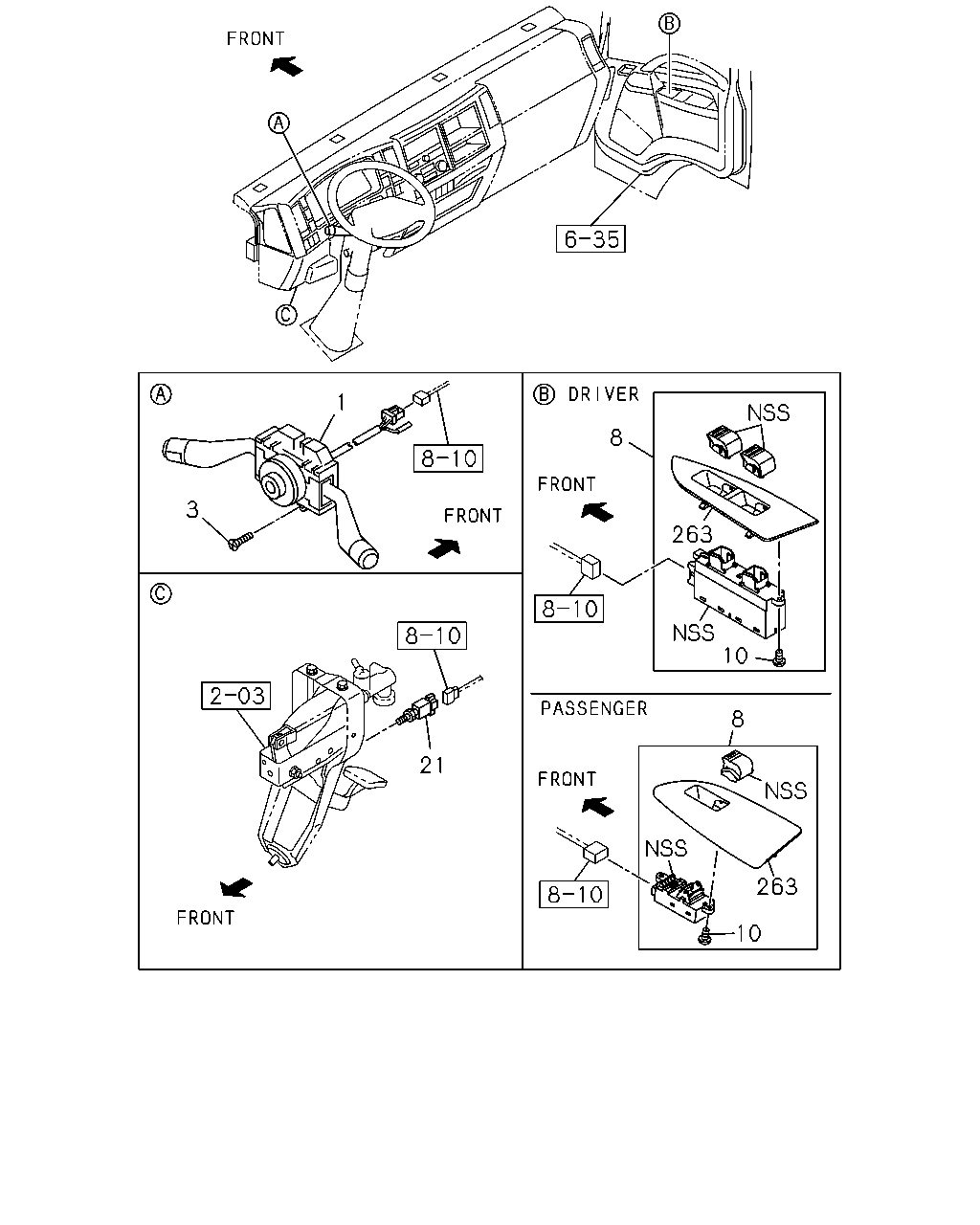

çizim 147847
1 3 21 8 263 10 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98070-010-1 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1311- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>,R R FOG LAMP<T79> 		8-98070-008-2 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>,R R FOG LAMP<T79> 		8-98243-748-0 01 1 1311- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-639-0 01 1 1109-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98217-812-0 01 1 1211-1211 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98217-812-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98243-740-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98073-850-1 01 1 1109-1210 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98073-850-1 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98073-850-1 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98243-757-0 01 1 1311- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-757-0 01 1 1311- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1109-1210 ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1211- ● ●
8 16.263 SWITCH; POWER WINDOW
06.609 DRIVER SIDE 		8-98159-544-0 01 1 1109-1210 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1211-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98001-737-2 01 1 1109-1210 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1211-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1109-1210 ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1211- ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1109-1210 ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1211- ● ●
263 16.081 COVER; SW
DRIVER SIDE 		8-98153-838-0 01 1 1109-1210 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98153-838-0 01 1 1211- ● ●
263 16.081 COVER; SW
PASSENGER SIDE 		8-98153-843-0 01 1 1109-1210 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-843-0 01 1 1211- ● ●

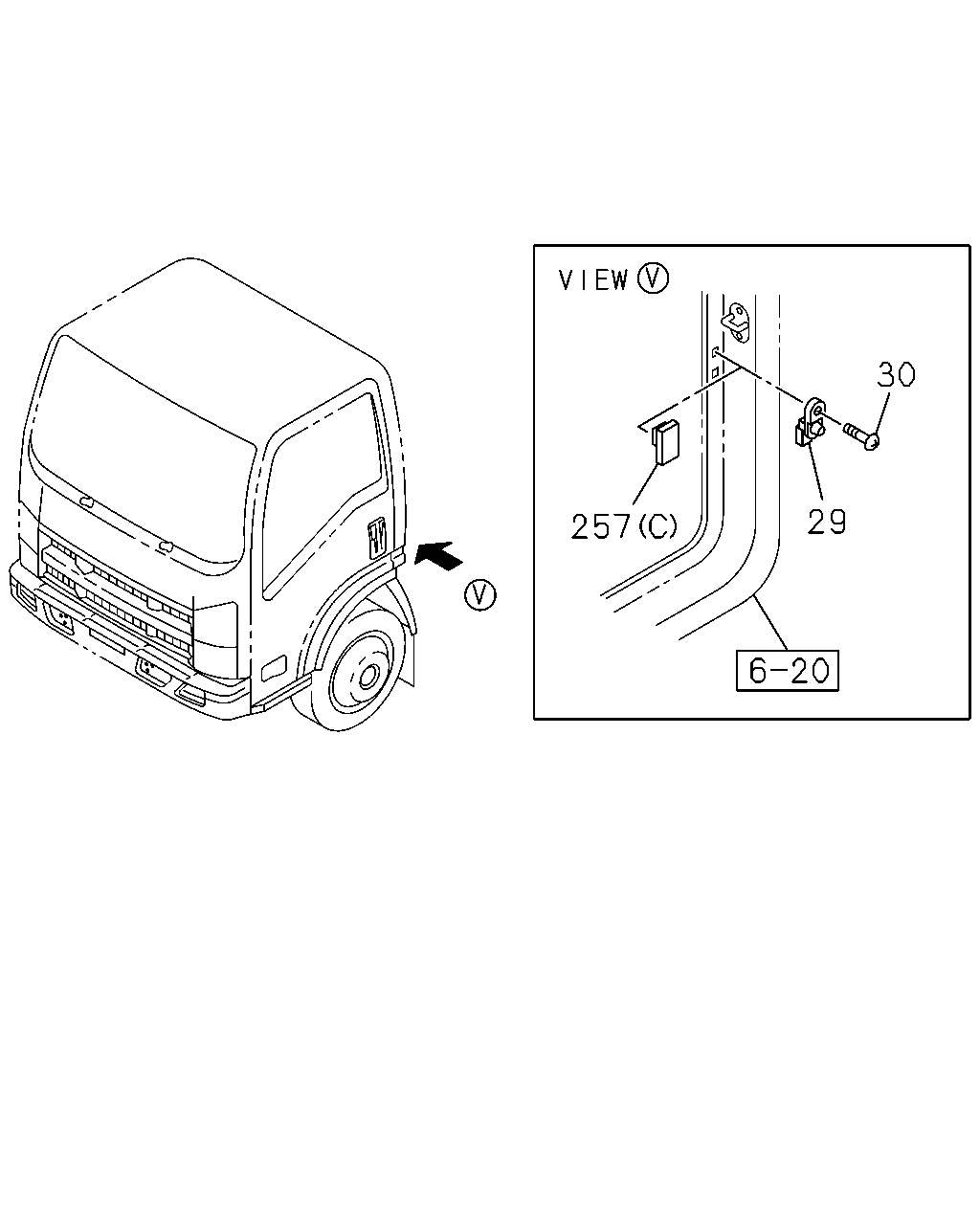

çizim 147863
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1109-1210 ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1109-1210 ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1211- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1211- ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1211- ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 1211- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 1211- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1109-1210 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 1211- ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 1211- ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 1211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1211- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109-1210 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1211-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1211-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
çizim 286534
151 154 608
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-1210 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
151 09.277 RELAY; HTR & A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1210 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
154 09.277 RELAY; CONDENSER FAN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1211-1402 ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

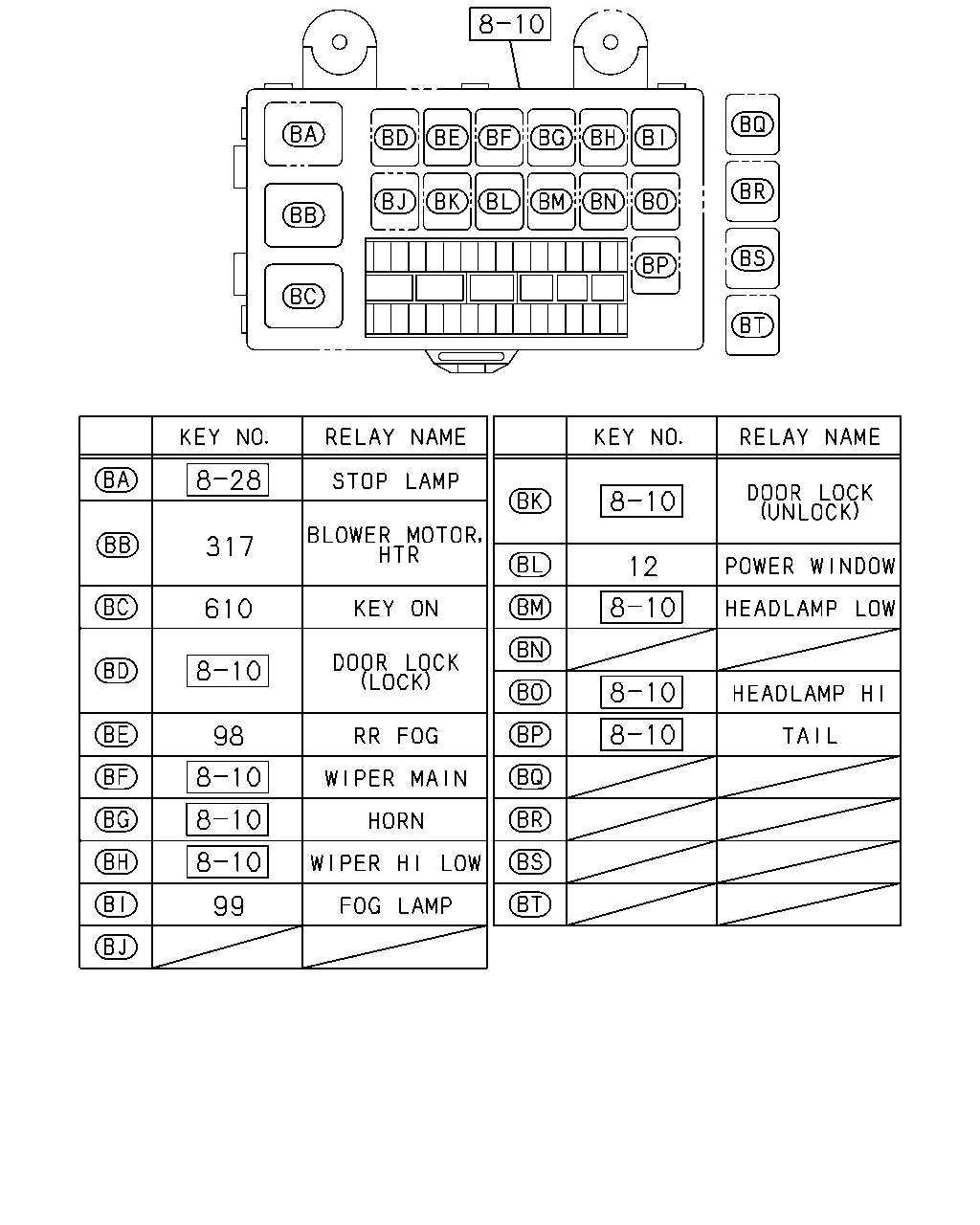

çizim 320087
317 610 98 99 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1210 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1210 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1210 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-1210 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1210 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1210 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ● ●

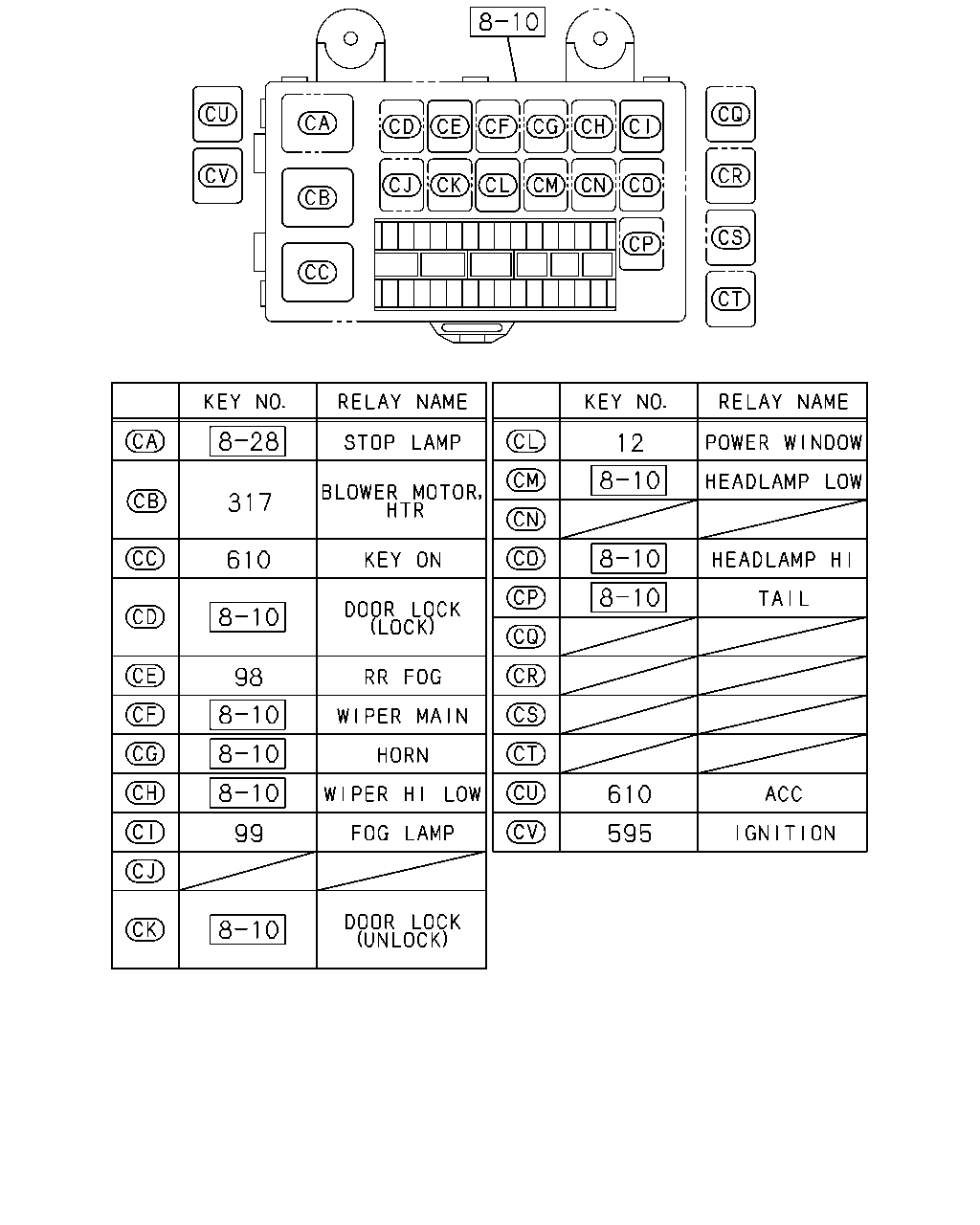

çizim 320088
317 610 98 99 12 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1210 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1210 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1210 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1211- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-1210 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1210 ●
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1210 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1210 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
