Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#51796) — 313 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

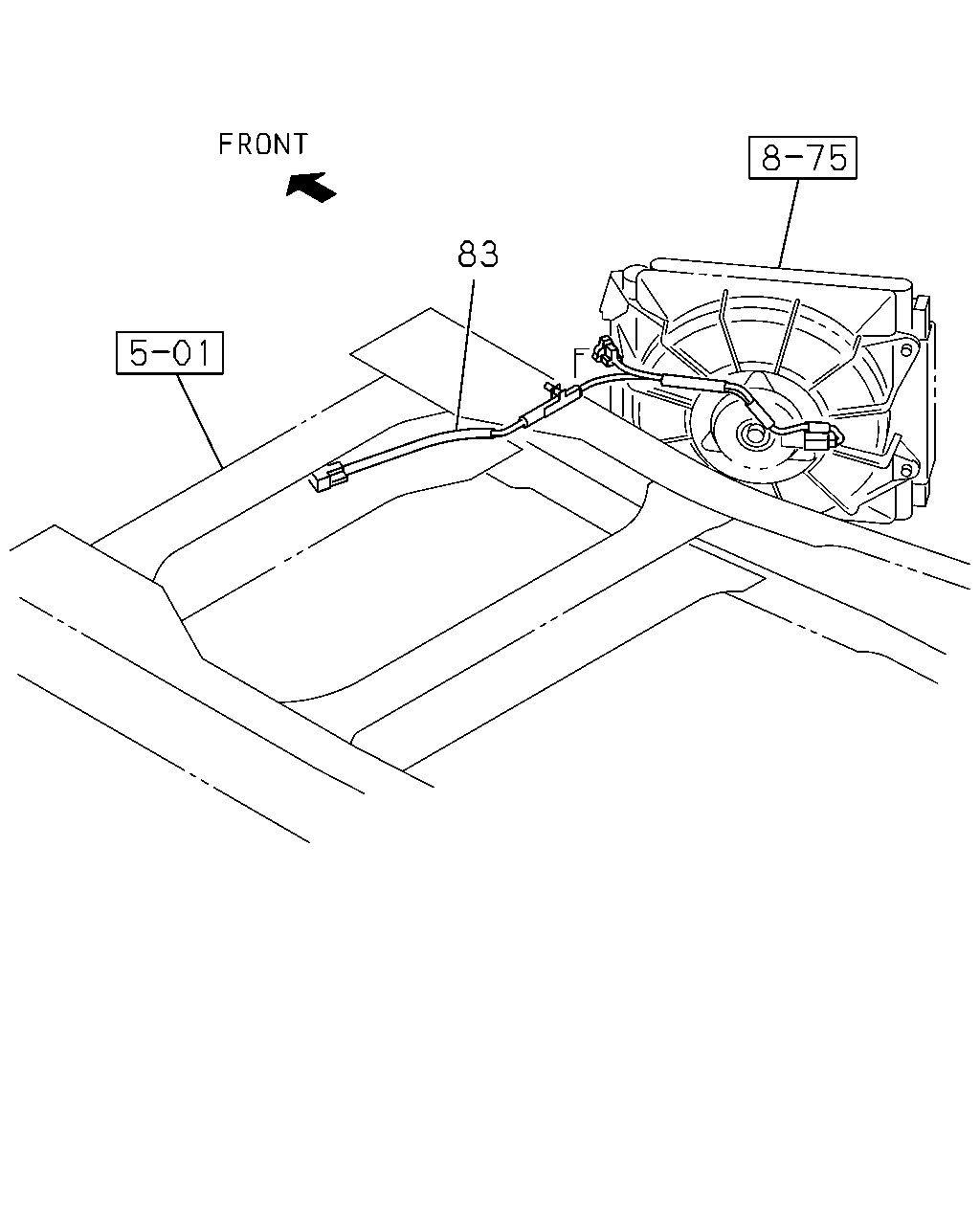

83	02.480 HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60)	8-98140-371-3	01	1	1109-1210	●
83	02.480 HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60)	8-98140-371-3	01	1	1211-	●
83	02.480 HARNESS; AIR CONDITIONER	8-98140-371-3	01	1	1211-		●

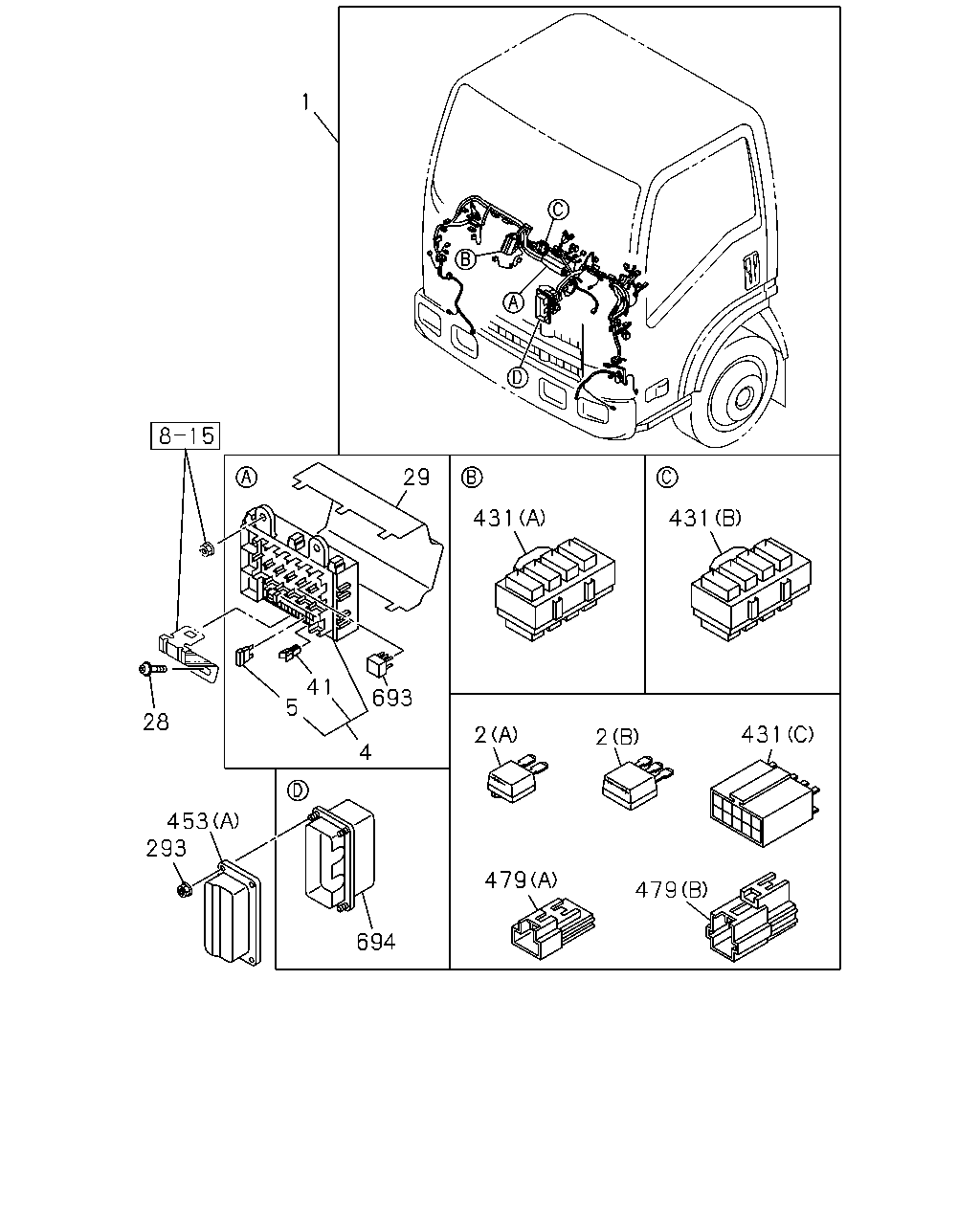

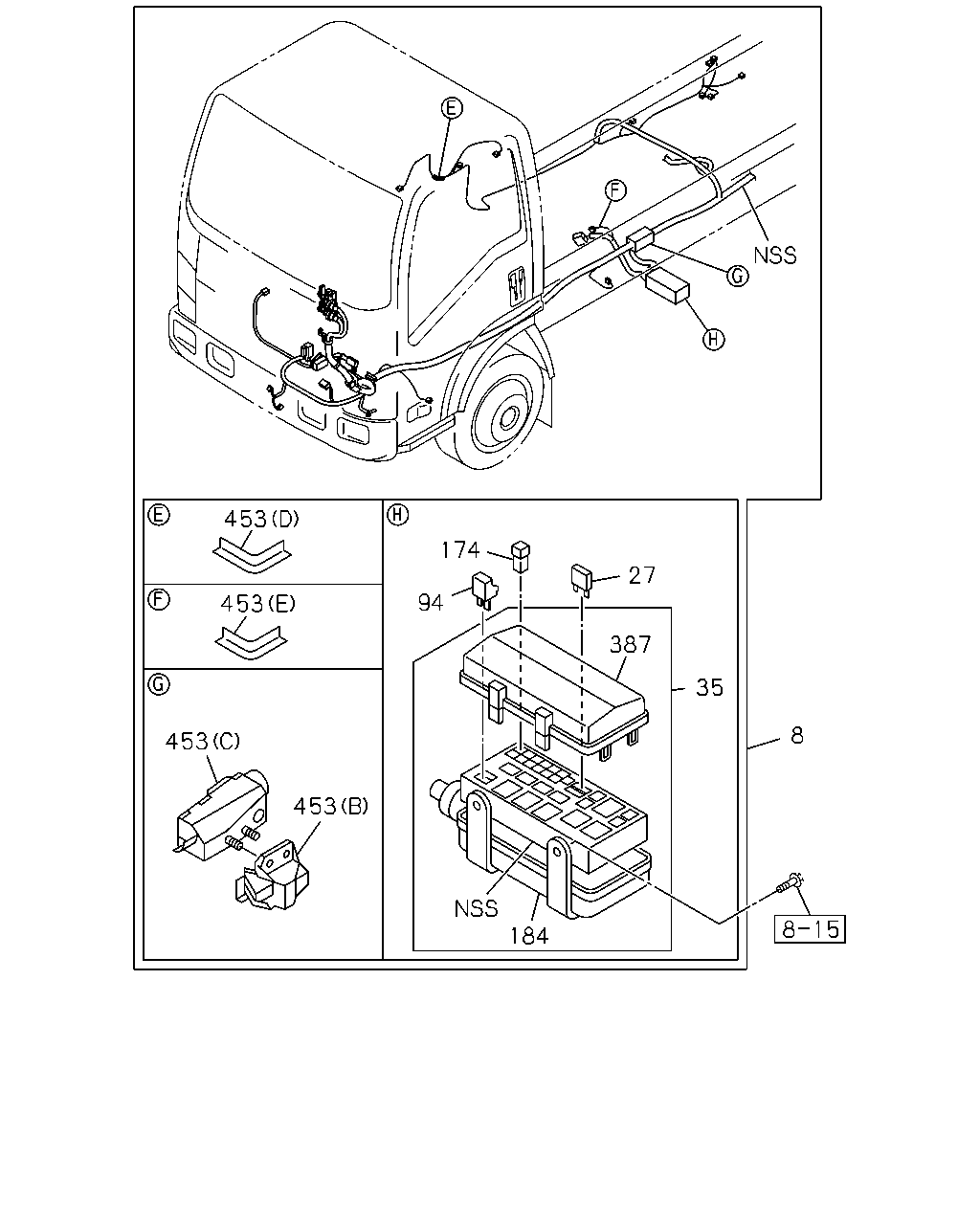

453 453 453 453 174 94 27 387 35 8 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-937-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-937-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98254-937-0	01	1	1310-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-048-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-048-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-048-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-840-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-840-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98254-840-0	01	1	1310-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-046-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-046-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-046-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-843-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98254-843-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-047-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-047-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-839-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98254-839-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-045-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-045-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-898-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-043-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-888-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-033-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-896-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-041-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-894-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-039-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-884-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-029-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-891-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-891-1	01	1	1211-1309		●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98139-891-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98294-036-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-881-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-881-1	01	1	1211-1309		●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98139-881-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98294-026-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-892-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-037-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM(7KC)	8-98139-890-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98139-890-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98294-035-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM(7KC)	8-98139-880-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98139-880-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98294-025-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-886-1	01	1	1109-1210	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-886-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98139-886-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-886-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98294-031-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-031-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-882-1	01	1	1109-1210	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-882-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98139-882-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98294-027-0	01	1	1410-	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1109-1210	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1211-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1109-1210	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1211-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1109-1210	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1211-1309	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1310-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1109-1210	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1211-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1109-1210	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1211-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1109-1210	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1211-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1109-1210	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1211-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1109-1210	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1211-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1109-1210	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1211-	●	●

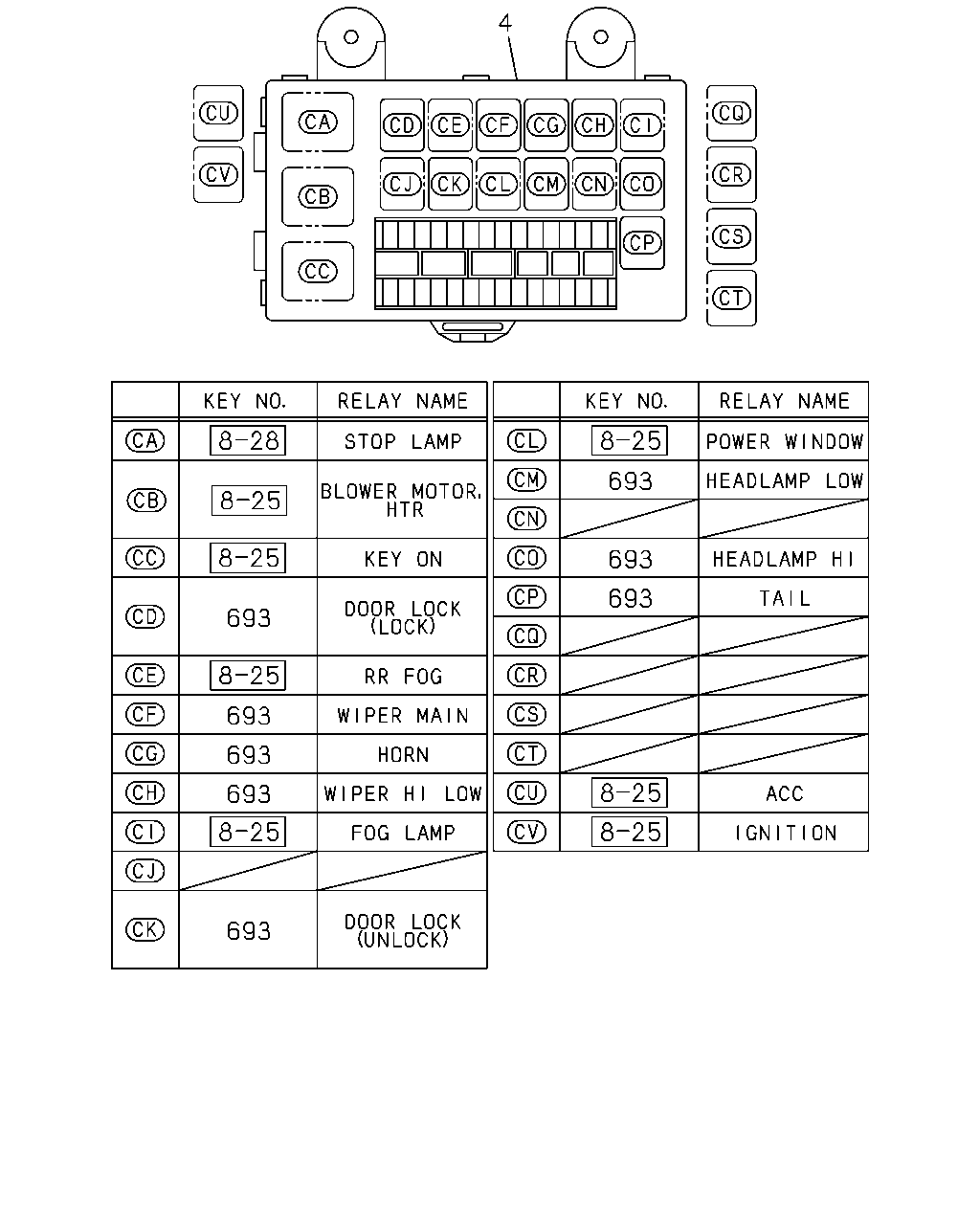

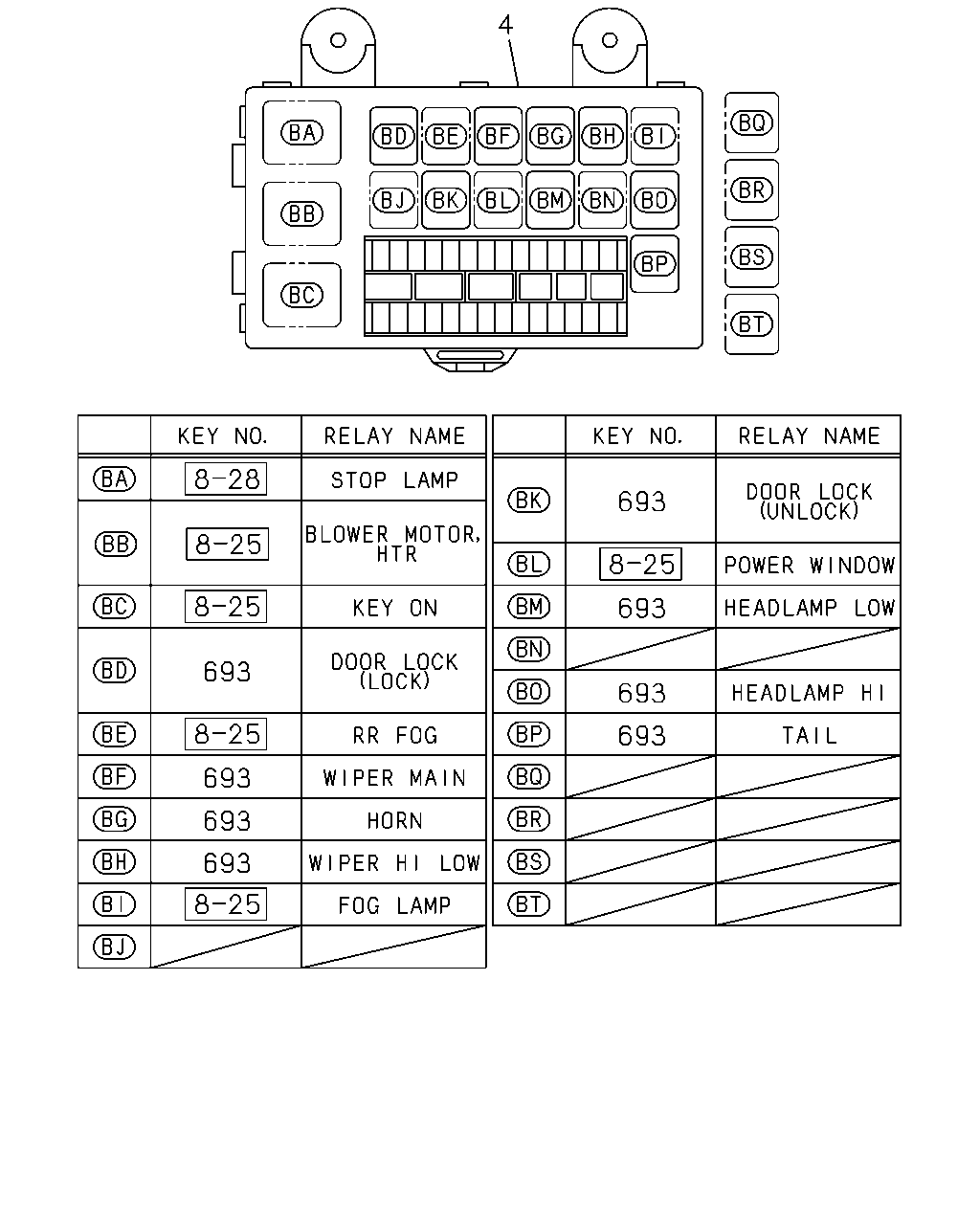

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-1210	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1211-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-1210	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1211-	●	●

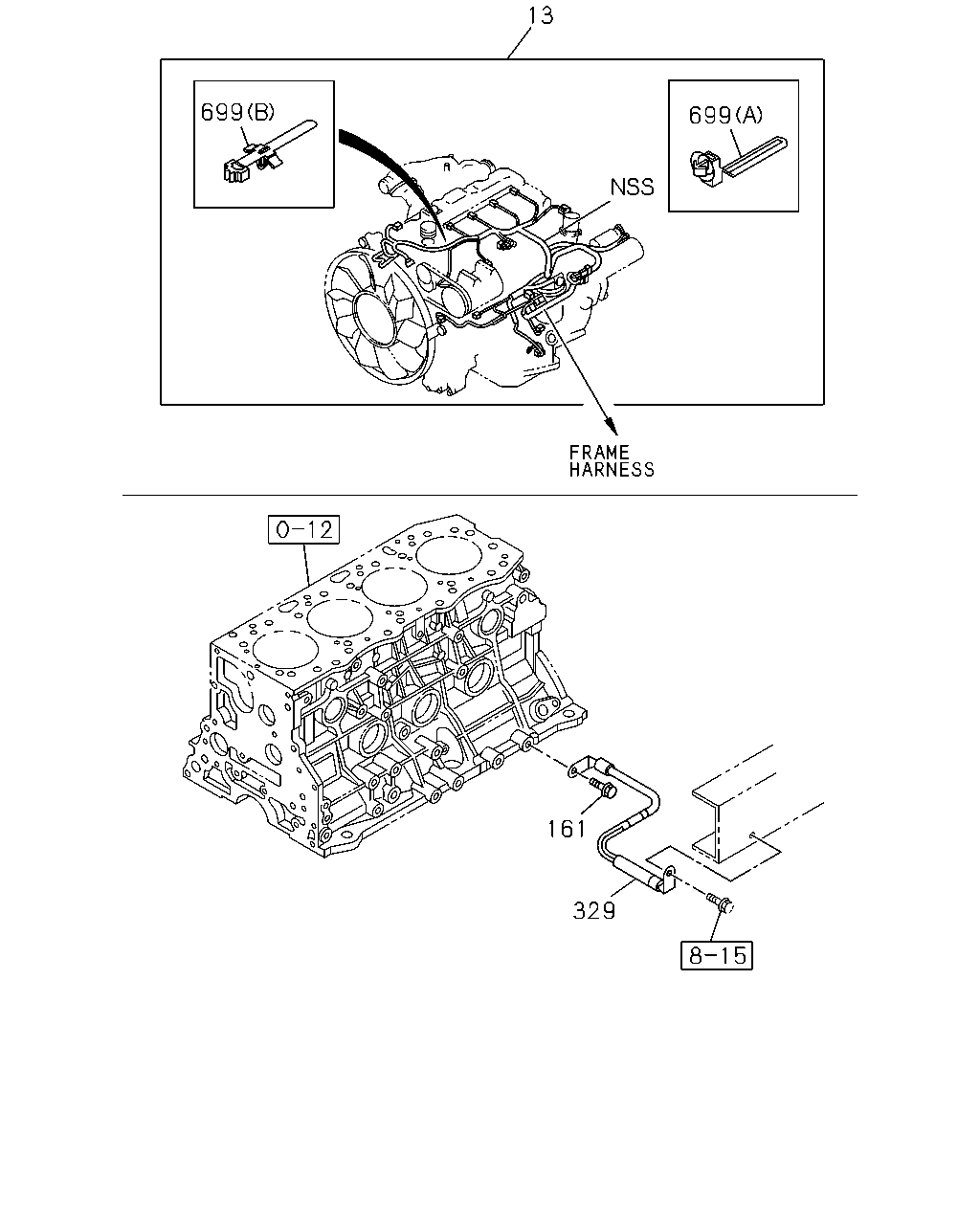

13 699 699 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1109-1210	●
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1211-1310	●	●
13	02.525 HARNESS; ENG	8-98244-735-0	01	1	1311-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1109-1210	●
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1211-	●	●
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	1109-1210	●
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	1211-	●	●
699	02.559 CLIP; ENG HARNESS 04.105 (A) L=140	8-97122-360-0	03	1	1109-1210	●
699	02.559 CLIP; ENG HARNESS 04.105 (A) L=140	8-97122-360-0	03	1	1211-1310	●	●
699	02.559 CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	1109-1210	●
699	02.559 CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	1211-1310	●	●

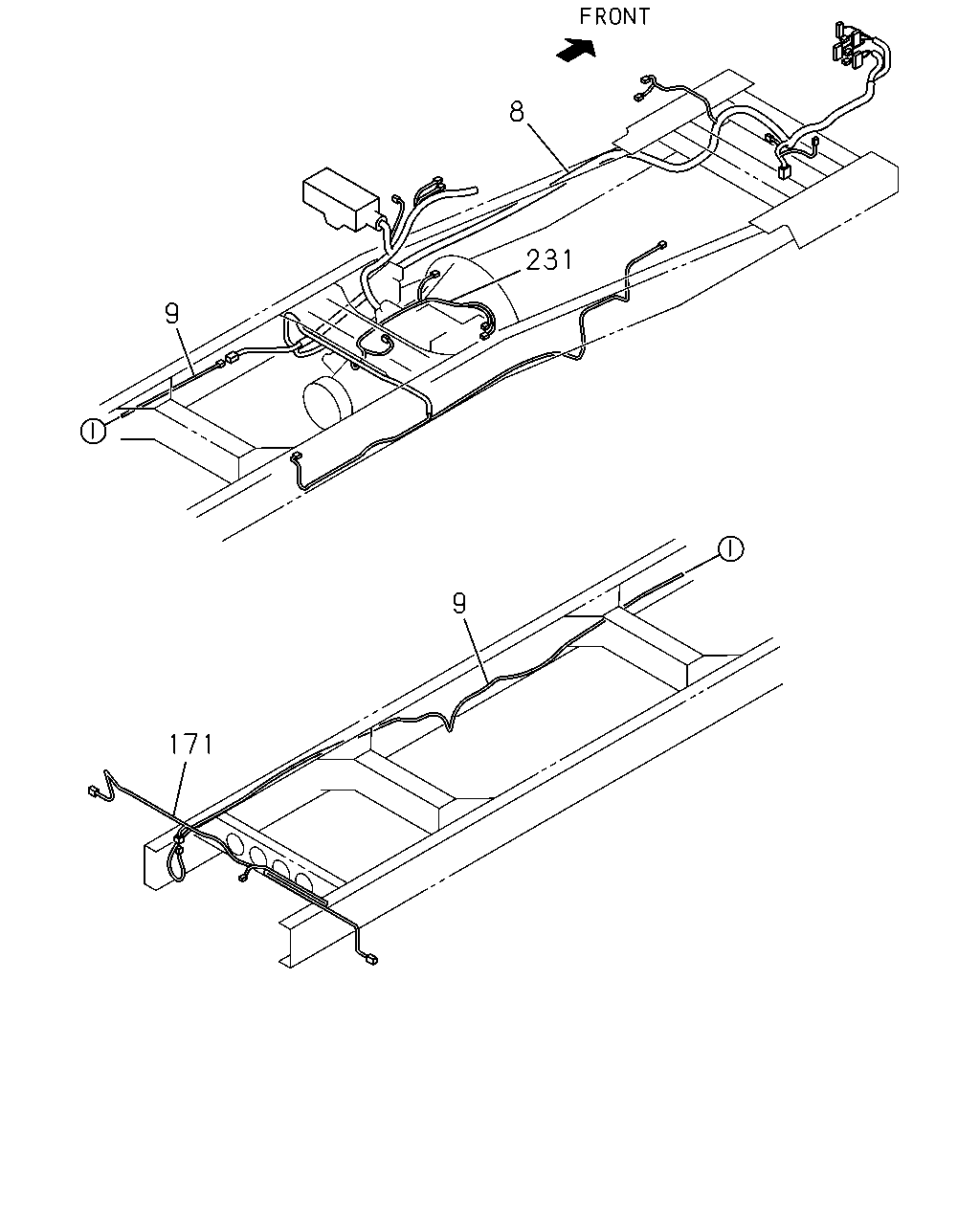

8 9 231 171 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-937-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-937-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98254-937-0	01	1	1310-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-048-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-048-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-048-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-840-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-840-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98254-840-0	01	1	1310-1409		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-046-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-046-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-046-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-843-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98254-843-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-047-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-047-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98254-839-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98254-839-0	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98294-045-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC)	8-98294-045-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-898-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-043-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-888-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-033-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-896-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-041-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-894-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-039-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-884-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98294-029-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-891-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-891-1	01	1	1211-1309		●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98139-891-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98294-036-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-881-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-881-1	01	1	1211-1309		●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98139-881-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>, IMMOBILIZER SYSTEM(7KC)	8-98294-026-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-892-1	01	1	1211-1409	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-037-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM(7KC)	8-98139-890-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98139-890-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98294-035-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM(7KC)	8-98139-880-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98139-880-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYS TEM(7KC)	8-98294-025-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-886-1	01	1	1109-1210	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-886-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98139-886-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-886-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98294-031-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-031-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98139-882-1	01	1	1109-1210	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-882-1	01	1	1211-1309	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98139-882-1	01	1	1310-1409	●
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>	8-98294-027-0	01	1	1410-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-98080-439-0	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-414-2	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	1211-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-413-4	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-419-1	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-418-2	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-424-1	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	1211-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-412-2	01	1	1109-1210	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-412-2	01	1	1211-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-422-2	01	1	1109-1210	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-422-2	01	1	1211-	●
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04) EXC. RR FOG LAMP<T79>	8-98156-027-0	01	1	1211-	●
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11)	8-98156-028-0	01	1	1211-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1109-1109	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1110-1210	●
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04) RR FOG LAMP<T79>	8-98156-025-0	01	1	1211-	●
171	02.596 HARNESS; CABLE,TAIL LAMP TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) RR FOG LAMP<T79>	8-98156-025-0	01	1	1211-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1211-		●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1211-		●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	1211-	●	●

1 29 693 4 41 5 28 453 293 694 479 2 479 431 2 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-654-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-653-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-653-0	01	1	1211-		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-652-0	01	1	1211-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-652-0	01	1	1211-		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-633-0	01	1	1211-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-633-0	01	1	1211-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-700-6	01	1	1109-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-636-0	01	1	1205-1210	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-636-0	01	1	1211-	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98089-699-6	01	1	1109-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-635-0	01	1	1205-1210	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-635-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-635-0	01	1	1211-		●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1109-1210	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1211-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1109-1210	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1211-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-1210	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1211-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1109-1210	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1211-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1109-1210	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1211-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1109-1210	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1211-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1109-1210	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1211-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1109-1210	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1211-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1109-1210	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1211-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1109-1210	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1211-	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1109-1204	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1109-1210	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1211-	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1109-1210	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1211-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1109-1210	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1211-	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1205-	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1205-	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-1210	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1211-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	1109-1204	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-1210	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1211-	●	●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1109-1210	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1211-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-1210	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1211-	●	●

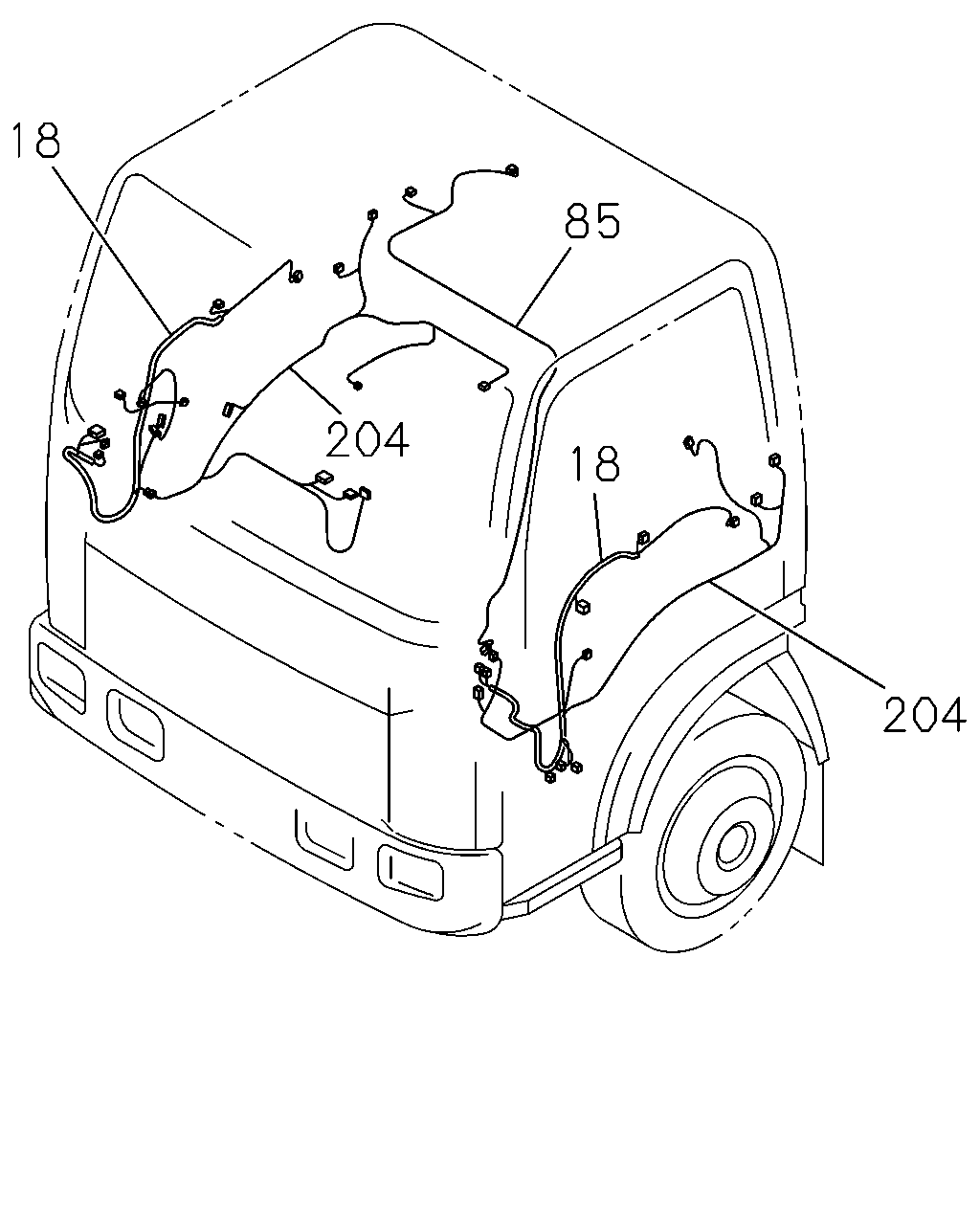

18 85 204 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-079-2	01	1	1211-	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-087-2	01	1	1211-	●	●
18	02.480 HARNESS; DOOR	8-98071-080-3	01	1	1109-1210	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-080-3	01	1	1211-	●	●
18	02.480 HARNESS; DOOR	8-98071-088-3	01	1	1109-1210	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-088-3	01	1	1211-	●	●
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	1109-1210	●
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	1211-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-802-5	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-071-3	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-801-5	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-801-5	01	1	1211-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	1109-1210	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-800-5	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	1109-1210	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	1109-1210	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-799-5	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-799-5	01	1	1211-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1109-1210	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTR OL-SMOOTHER(8GF)	8-98071-070-2	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1211-	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	1211-		●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	1211-		●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	1211-		●

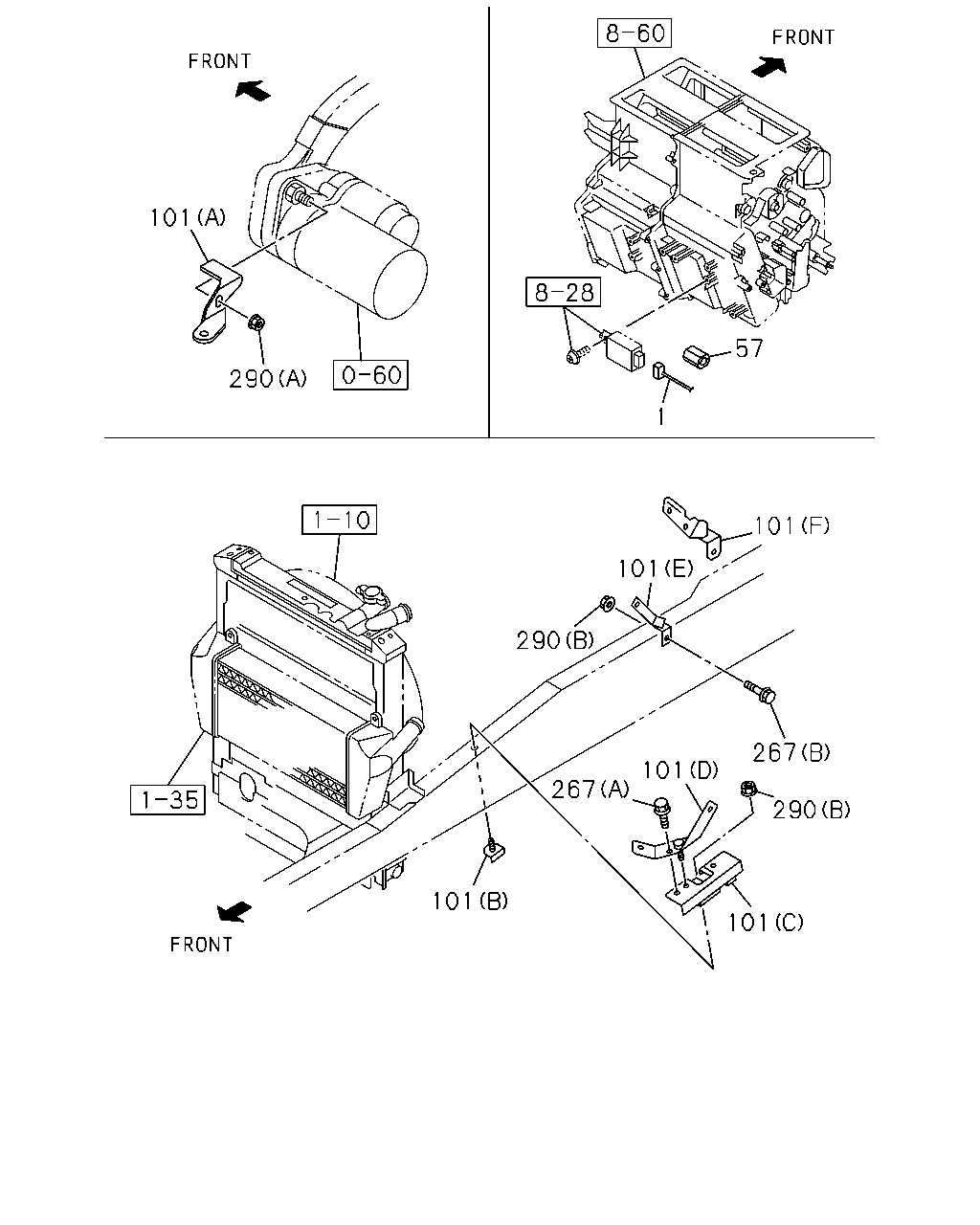

101 290 57 101 290 267 101 101 101 267 290 101 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-654-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-653-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-653-0	01	1	1211-		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-652-0	01	1	1211-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-652-0	01	1	1211-		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98204-633-0	01	1	1211-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98204-633-0	01	1	1211-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-700-6	01	1	1109-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-636-0	01	1	1205-1210	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-636-0	01	1	1211-	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98089-699-6	01	1	1109-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-635-0	01	1	1205-1210	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98204-635-0	01	1	1211-	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-635-0	01	1	1211-		●
57	02.483 FILTER; FUSE BOX	8-98211-338-0	01	1	1205-1210	●
57	02.483 FILTER; FUSE BOX TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98211-338-0	01	1	1211-	●
57	02.483 FILTER; FUSE BOX TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98211-338-0	01	1	1211-		●
101	02.483 BRACKET; HARNESS CONNECTOR 02.183 (A)	8-98030-725-1	01	1	1109-1210	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	1211-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1109-1210	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1211-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1109-1210	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1211-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98079-011-1	01	1	1109-1205	●
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1206-1210	●
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1211-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1109-1210	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1211-	●	●
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1109-1309	●
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●
267	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-		●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1109-1210	●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1211-	●	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1109-1210	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
290	02.483 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●	●

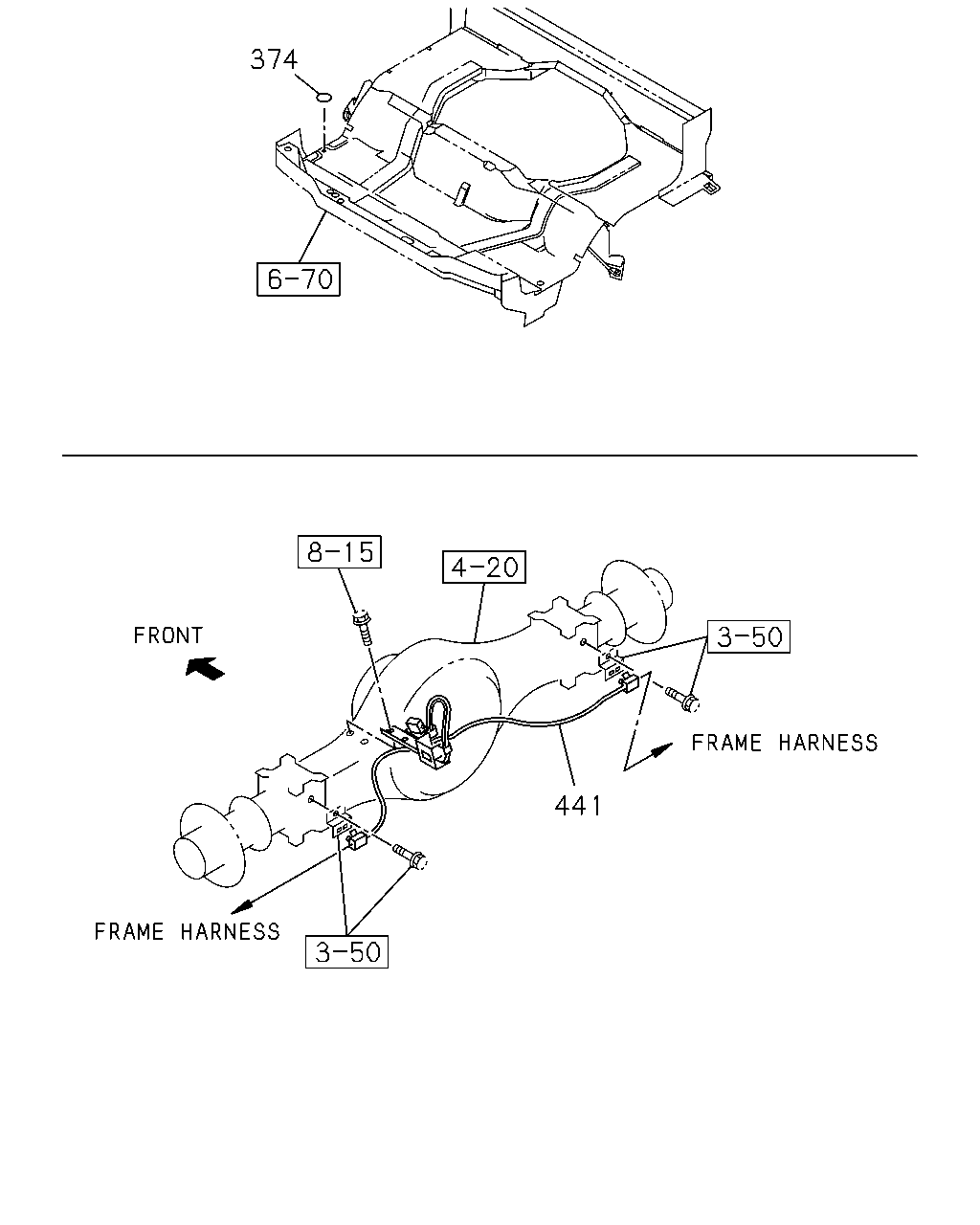

374 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOMLAMP W/ALL DOORS SW(SDF),REMOTE CONT DOO R LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1211-	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF>,TRANSMISSION CONTROL -SMOOTHER(8GF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1211-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97308-220-4	01	1	1211-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-97308-220-4	01	1	1211-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U>	8-97308-213-3	01	1	1211-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-97308-212-3	01	1	1211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
