Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#5179) — 226 parça

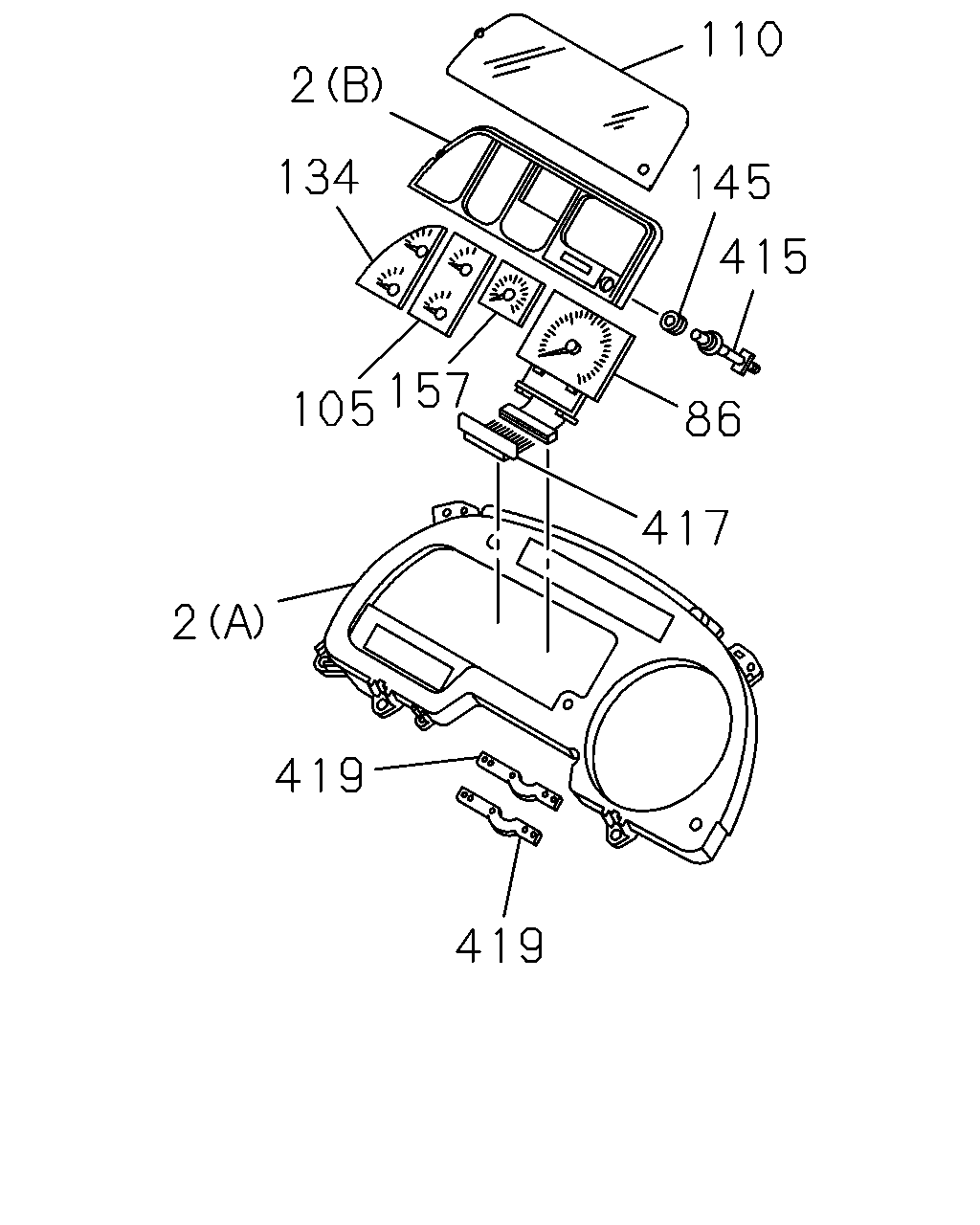

110 2 134 145 415 157 105 86 417 2 419 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PANEL; CLUSTER (C)	1-83119-499-0	01	1	9606-9905
2	PANEL; CLUSTER (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER (B)	1-83119-652-0	01	1	9906-
86	TACHOMETER; CLUSTER METER 10PE1S(60L)	1-83120-692-0	01	1	9606-9905
86	TACHOMETER; CLUSTER METER V TYPE ENG<91L>	1-83120-880-0	01	1	9906-
86	TACHOMETER; CLUSTER METER 6WA1 TC-S(56L)	1-83120-693-0	01	1	9606-9905
86	TACHOMETER; CLUSTER METER L TYPE ENG<90L>	1-83120-879-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-211-0	01	1	9606-9704
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-275-0	01	1	9705-9905
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-281-0	01	1	9906-
110	GLASS; CLUSTER METER	1-83119-646-0	01	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-224-0	01	1	9606-9905
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-283-0	01	1	9906-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER	1-83119-680-0	01	1	9906-
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-190-0	01	1	9606-9608
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-187-0	01	1	9609-9905
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-214-0	01	1	9906-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER EXC. DUAL AIR GAUGE<UG2>	1-83150-217-0	01	1	9906-
415	KNOB; TRIP,METER	1-83119-674-0	01	1	9906-
417	DISPLAY; ODO & TRIP,METER	1-83119-671-0	01	1	9906-
419	SPACER; CIRCUIT,METER	1-83119-678-0	02	1	9906-

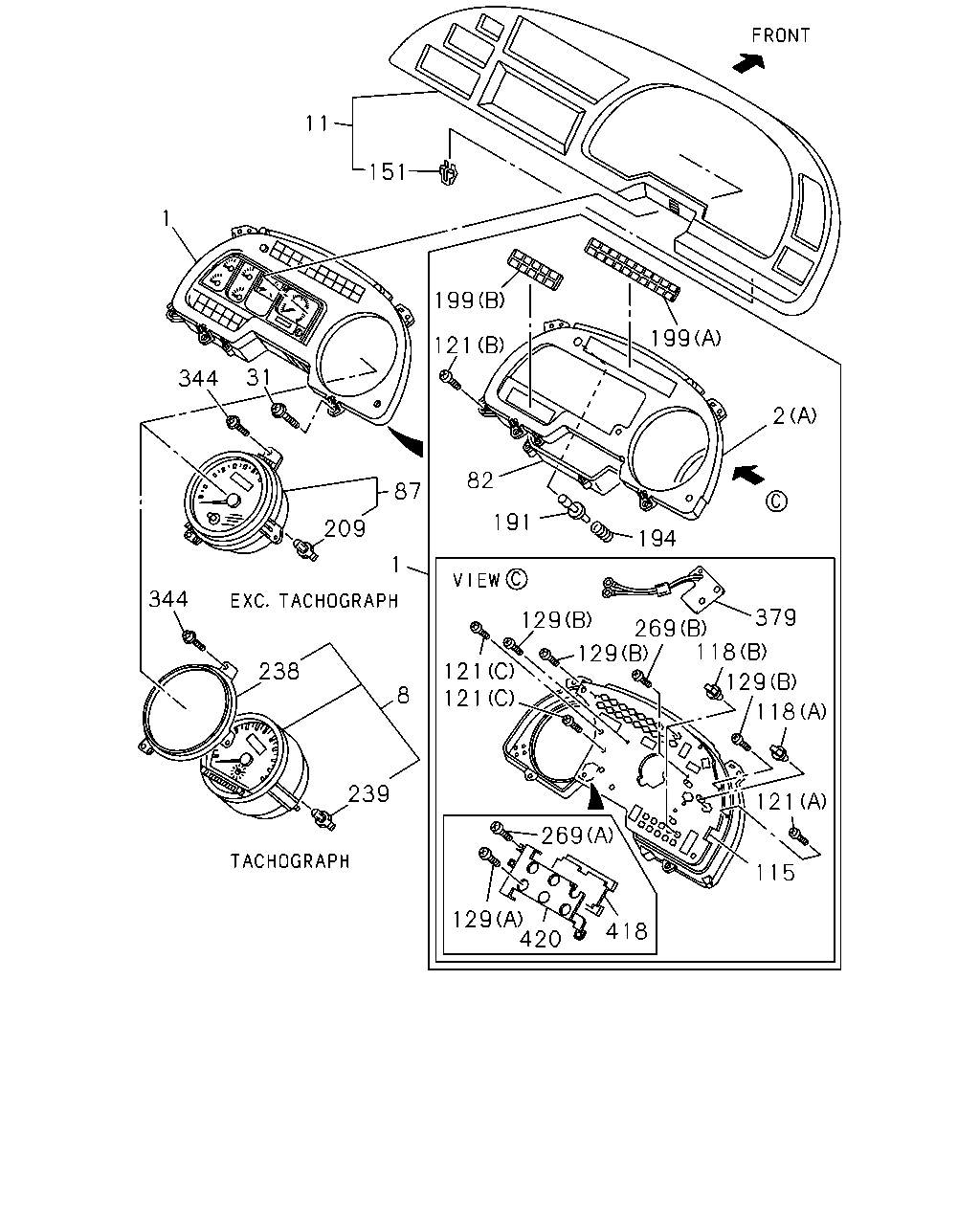

11 151 1 199 199 121 31 344 2 82 87 191 209 194 1 344 379 129 269 129 118 238 121 121 129 8 118 239 121 269 115 129 420 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER FULL TRACTOR TRUCK<RD6>	1-83114-797-3	01	1	9606-9704
1	METER COMPL; CLUSTER FULL TRACTOR TRUCK<RD6>	1-83115-042-2	01	1	9705-9905
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>	1-83115-167-2	01	1	9906-9910
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>	1-83115-684-0	01	1	9911-
1	METER COMPL; CLUSTER V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2>	1-83115-171-2	01	1	9906-9910
1	METER COMPL; CLUSTER V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2>	1-83115-688-0	01	1	9911-
1	METER COMPL; CLUSTER 10PE1S(60L)	1-83114-794-3	01	1	9606-9704
1	METER COMPL; CLUSTER 10PE1S(60L)	1-83115-039-1	01	1	9705-9905
1	METER COMPL; CLUSTER V TYPE ENG<91L> DUAL AIR GAUGE<UG2>	1-83115-172-2	01	1	9906-9910
1	METER COMPL; CLUSTER V TYPE ENG<91L> DUAL AIR GAUGE<UG2>	1-83115-689-1	01	1	9911-
1	METER COMPL; CLUSTER 6WA1 TC-S(56L) EXC. FULL TRACTOR TRUCK<RD6>	1-83114-792-3	01	1	9606-9704
1	METER COMPL; CLUSTER 6WA1 TC-S(56L) EXC. FULL TRACTOR TRUCK<RD6>	1-83115-037-1	01	1	9705-9905
1	METER COMPL; CLUSTER L TYPE ENG<90L> DUAL AIR GAUGE<UG2>	1-83115-168-2	01	1	9906-9910
1	METER COMPL; CLUSTER L TYPE ENG<90L> DUAL AIR GAUGE<UG2>	1-83115-685-1	01	1	9911-
2	PANEL; CLUSTER (C)	1-83119-499-0	01	1	9606-9905
2	PANEL; CLUSTER (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER (B)	1-83119-652-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-859-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>	1-83120-858-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-561-2	01	1	9606-9706
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-745-0	01	1	9707-9905
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-847-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	1-83120-849-0	01	1	9906-
11	CLUSTER ASM; METER	1-72418-012-7	01	1	9606-0001
11	CLUSTER ASM; METER EXC. METER PANEL GRAIN OF WOOD<NAY>	1-72418-012-9	01	1	0002-
11	CLUSTER ASM; METER METER PANEL GRAIN OF WOOD<NAY>	1-72418-014-9	01	1	0002-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9606-
82	CASE ASM; CLUSTER METER	1-83119-432-0	01	1	9606-9905
82	CASE ASM; CLUSTER METER	1-83119-653-0	01	1	9906-
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-490-1	01	1	9606-9905
87	SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-844-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-317-0	01	1	9606-9905
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-372-0	01	1	9906-
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9606-9905
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9906-
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9606-9608
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9609-9704
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	21	1	9705-9708
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	22	1	9709-9905
118	BULB; CLUSTER METER (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9906-
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9606-9608
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9905
121	SCREW; PANEL FIX,CLUSTER METER (D) M4 TAPPING	1-83119-442-0	08	1	9606-9905
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-83119-442-0	05	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER (C) M3 TAPPING	1-83119-084-0	01	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER (A) M3 TAPPING	1-83119-676-0	02	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (C) M3 TAPPING	1-83119-052-0	10	1	9606-9905
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (B) M3 TAPPING	1-83119-657-0	09	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (A) M3 TAPPING	1-83119-675-0	06	1	9906-
151	CLIP; METER CLUSTER	8-97853-939-4	10	1	9606-9812
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9901-
191	KNOB; BULB CHECK	1-83119-500-0	01	1	9606-9905
191	KNOB; BULB CHECK	1-83119-672-0	01	1	9906-
194	SPRING; BULB CHECK KNOB	1-83119-673-0	01	1	9906-
199	LENS; WARNING LAMP (A)	1-83119-538-0	01	1	9606-9905
199	LENS; WARNING LAMP (A)	1-83119-683-0	01	1	9906-
199	LENS; WARNING LAMP (B)	1-83119-539-1	01	1	9606-9905
199	LENS; WARNING LAMP (B)	1-83119-684-0	01	1	9906-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9606-9905
209	BULB; SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9906-
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-83129-311-0	01	1	9606-9905
238	PANEL; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83129-311-0	01	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.8W	1-82194-076-0	03	1	9606-9905
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W	5-82194-034-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	1-82194-101-0	03	1	9906-
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-439-0	04	1	9606-9905
269	SCREW; METER CLUSTER (A) M3	1-83119-273-0	02	1	9906-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-441-0	11	1	9606-9905
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-677-0	05	1	9906-
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9606-
379	CIRCUIT; DROP	1-83189-369-0	01	1	9906-
418	CIRCUIT; CONTROL,METER L TYPE ENG<90L>	1-83189-376-0	01	1	9906-
418	CIRCUIT; CONTROL,METER V TYPE ENG<91L>	1-83189-377-0	01	1	9906-
420	HEAT SINK; METER	1-83119-679-0	01	1	9906-

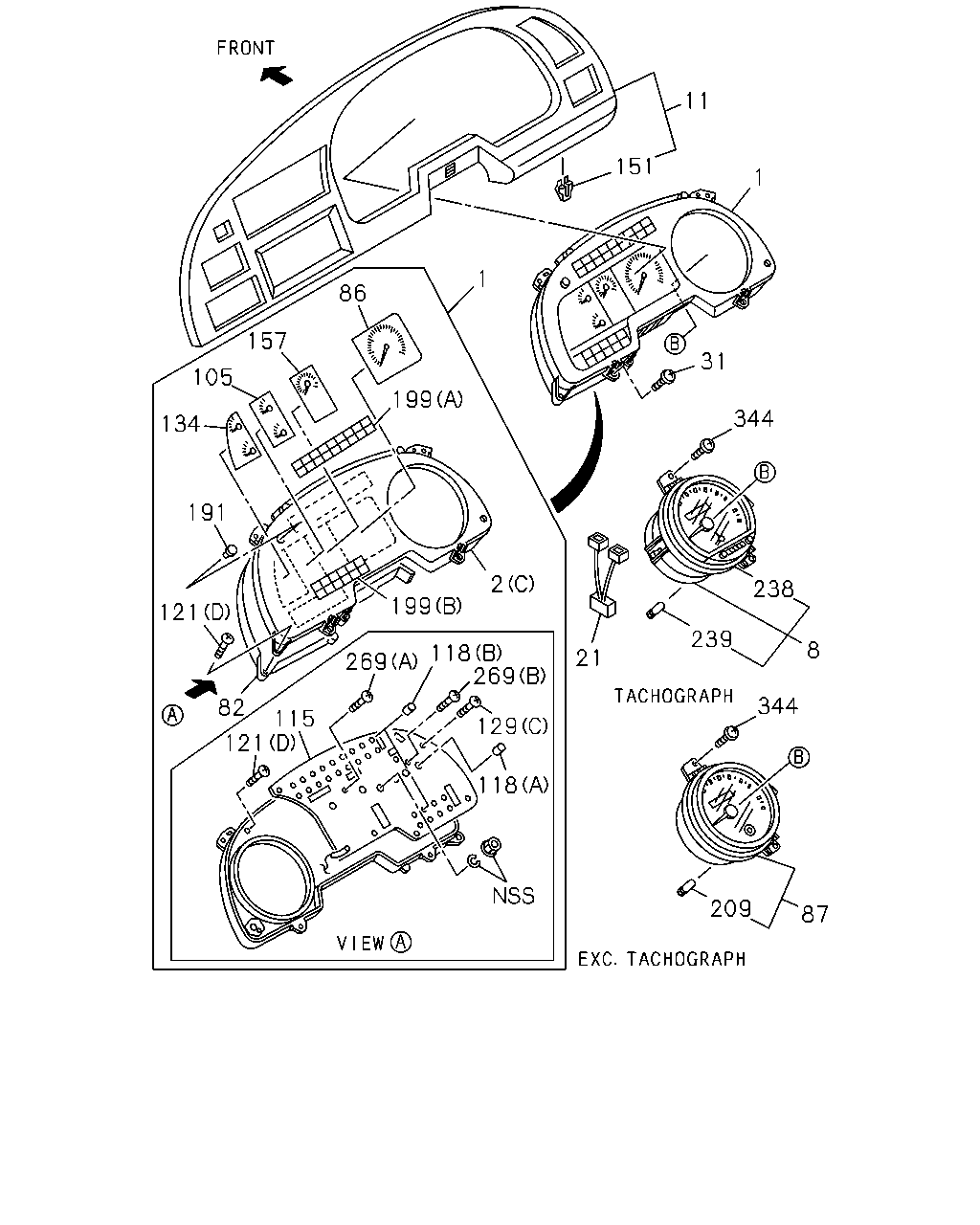

11 151 1 1 86 157 31 105 199 344 134 191 2 238 199 121 239 8 118 269 21 269 344 82 115 121 129 118 209 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER FULL TRACTOR TRUCK<RD6>	1-83114-797-3	01	1	9606-9704
1	METER COMPL; CLUSTER FULL TRACTOR TRUCK<RD6>	1-83115-042-2	01	1	9705-9905
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>	1-83115-167-2	01	1	9906-9910
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>	1-83115-684-0	01	1	9911-
1	METER COMPL; CLUSTER V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2>	1-83115-171-2	01	1	9906-9910
1	METER COMPL; CLUSTER V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2>	1-83115-688-0	01	1	9911-
1	METER COMPL; CLUSTER 10PE1S(60L)	1-83114-794-3	01	1	9606-9704
1	METER COMPL; CLUSTER 10PE1S(60L)	1-83115-039-1	01	1	9705-9905
1	METER COMPL; CLUSTER V TYPE ENG<91L> DUAL AIR GAUGE<UG2>	1-83115-172-2	01	1	9906-9910
1	METER COMPL; CLUSTER V TYPE ENG<91L> DUAL AIR GAUGE<UG2>	1-83115-689-1	01	1	9911-
1	METER COMPL; CLUSTER 6WA1 TC-S(56L) EXC. FULL TRACTOR TRUCK<RD6>	1-83114-792-3	01	1	9606-9704
1	METER COMPL; CLUSTER 6WA1 TC-S(56L) EXC. FULL TRACTOR TRUCK<RD6>	1-83115-037-1	01	1	9705-9905
1	METER COMPL; CLUSTER L TYPE ENG<90L> DUAL AIR GAUGE<UG2>	1-83115-168-2	01	1	9906-9910
1	METER COMPL; CLUSTER L TYPE ENG<90L> DUAL AIR GAUGE<UG2>	1-83115-685-1	01	1	9911-
2	PANEL; CLUSTER (C)	1-83119-499-0	01	1	9606-9905
2	PANEL; CLUSTER (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER (B)	1-83119-652-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-859-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>	1-83120-858-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-561-2	01	1	9606-9706
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-745-0	01	1	9707-9905
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-847-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	1-83120-849-0	01	1	9906-
11	CLUSTER ASM; METER	1-72418-012-7	01	1	9606-0001
11	CLUSTER ASM; METER EXC. METER PANEL GRAIN OF WOOD<NAY>	1-72418-012-9	01	1	0002-
11	CLUSTER ASM; METER METER PANEL GRAIN OF WOOD<NAY>	1-72418-014-9	01	1	0002-
21	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-82624-665-1	01	1	9606-9905
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9606-
82	CASE ASM; CLUSTER METER	1-83119-432-0	01	1	9606-9905
82	CASE ASM; CLUSTER METER	1-83119-653-0	01	1	9906-
86	TACHOMETER; CLUSTER METER 10PE1S(60L)	1-83120-692-0	01	1	9606-9905
86	TACHOMETER; CLUSTER METER V TYPE ENG<91L>	1-83120-880-0	01	1	9906-
86	TACHOMETER; CLUSTER METER 6WA1 TC-S(56L)	1-83120-693-0	01	1	9606-9905
86	TACHOMETER; CLUSTER METER L TYPE ENG<90L>	1-83120-879-0	01	1	9906-
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-490-1	01	1	9606-9905
87	SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-844-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-211-0	01	1	9606-9704
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-275-0	01	1	9705-9905
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-281-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-317-0	01	1	9606-9905
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-372-0	01	1	9906-
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9606-9905
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9906-
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9606-9608
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9609-9704
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	21	1	9705-9708
118	BULB; CLUSTER METER FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	22	1	9709-9905
118	BULB; CLUSTER METER (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9906-
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9606-9608
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER EXC. FULL TRACTOR TRUCK<RD6> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9905
121	SCREW; PANEL FIX,CLUSTER METER (D) M4 TAPPING	1-83119-442-0	08	1	9606-9905
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-83119-442-0	05	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER (C) M3 TAPPING	1-83119-084-0	01	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER (A) M3 TAPPING	1-83119-676-0	02	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (C) M3 TAPPING	1-83119-052-0	10	1	9606-9905
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (B) M3 TAPPING	1-83119-657-0	09	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (A) M3 TAPPING	1-83119-675-0	06	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-224-0	01	1	9606-9905
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-283-0	01	1	9906-
151	CLIP; METER CLUSTER	8-97853-939-4	10	1	9606-9812
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9901-
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-190-0	01	1	9606-9608
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-187-0	01	1	9609-9905
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-214-0	01	1	9906-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER EXC. DUAL AIR GAUGE<UG2>	1-83150-217-0	01	1	9906-
191	KNOB; BULB CHECK	1-83119-500-0	01	1	9606-9905
191	KNOB; BULB CHECK	1-83119-672-0	01	1	9906-
199	LENS; WARNING LAMP (A)	1-83119-538-0	01	1	9606-9905
199	LENS; WARNING LAMP (A)	1-83119-683-0	01	1	9906-
199	LENS; WARNING LAMP (B)	1-83119-539-1	01	1	9606-9905
199	LENS; WARNING LAMP (B)	1-83119-684-0	01	1	9906-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9606-9905
209	BULB; SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9906-
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-83129-311-0	01	1	9606-9905
238	PANEL; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83129-311-0	01	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.8W	1-82194-076-0	03	1	9606-9905
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W	5-82194-034-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	1-82194-101-0	03	1	9906-
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-439-0	04	1	9606-9905
269	SCREW; METER CLUSTER (A) M3	1-83119-273-0	02	1	9906-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-441-0	11	1	9606-9905
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-677-0	05	1	9906-
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9606-

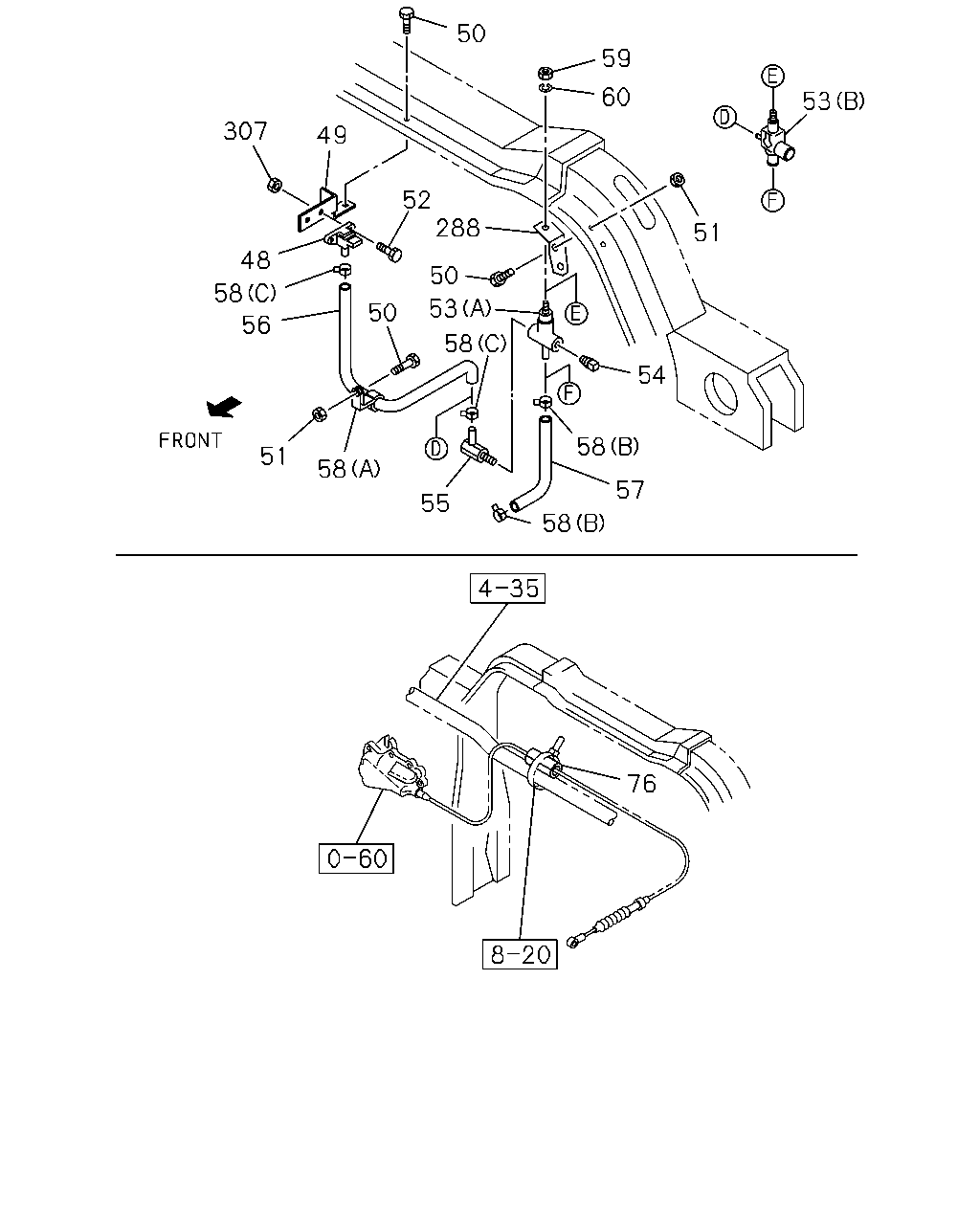

50 59 60 53 307 49 52 288 51 48 50 58 53 50 56 58 54 58 51 58 57 55 58 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SENSOR; BOOST EURO2 SPECIFICATION<THN>	1-81531-011-0	01	1	9610-9706
48	SENSOR; BOOST ELECTRONIC GOV RED3(KG5)	1-81531-011-0	01	1	9707-
49	BRACKET; SENSOR EURO2 SPECIFICATION<THN>	1-83129-307-1	01	1	9610-9706
49	BRACKET; SENSOR ELECTRONIC GOV RED3(KG5)	1-83129-307-1	01	1	9707-9905
50	BOLT; FIX EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	05	1	9610-9706
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	05	1	9707-9905
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-9909
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	03	1	9910-
51	NUT; FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	05	1	9610-9706
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	05	1	9707-9905
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-9909
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	03	1	9910-
52	BOLT; SENSOR EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28680-616-0	02	1	9610-9706
52	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28680-616-0	02	1	9707-
53	UNION; BOOST UNIT EURO2 SPECIFICATION<THN> (A)	1-09660-152-1	01	1	9610-9705
53	UNION; BOOST UNIT EURO2 SPECIFICATION<THN> (B)	1-09661-017-0	01	1	9706-9706
53	UNION; BOOST UNIT ELECTRONIC GOV RED3(KG5) (B)	1-09661-017-0	01	1	9707-
54	PLUG; UNION EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	9610-9705
55	NIPPLE; UNION TO HOSE EURO2 SPECIFICATION<THN>	1-09660-268-0	01	1	9610-9705
56	HOSE; NIPPLE TO SENSOR EURO2 SPECIFICATION<THN> L=580 SERVICED BY L=3000	0-04740-300-0	01	1	9610-9705
56	HOSE; NIPPLE TO SENSOR EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000	0-04740-300-0	01	1	9706-9706
56	HOSE; NIPPLE TO SENSOR ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000	0-04740-300-0	01	1	9707-
57	HOSE; BOOST EURO2 SPECIFICATION<THN>	1-83159-017-0	01	1	9610-9706
57	HOSE; BOOST ELECTRONIC GOV RED3(KG5)	1-83159-017-0	01	1	9707-
58	CLIP; HOSE EURO2 SPECIFICATION<THN> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9610-9706
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9707-9909
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9910-
58	CLIP; HOSE EURO2 SPECIFICATION<THN> (B) ID=20.8	8-94125-862-0	02	1	9610-9706
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (B) ID=20.8	8-94125-862-1	02	1	9707-
58	CLIP; HOSE EURO2 SPECIFICATION<THN> (C) ID=7.8	8-94246-958-0	02	1	9610-9706
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (C) ID=7.8	8-94246-958-0	02	1	9707-
59	NUT; UNION EURO2 SPECIFICATION<THN> M10	9-09111-410-0	01	1	9610-9706
59	NUT; UNION ELECTRONIC GOV RED3(KG5) M10	9-09111-410-0	01	1	9707-
60	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=10.2	9-09150-510-0	01	1	9610-9706
60	WASHER; LK,UNION ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	9707-
76	SLEEVE; RUBBER,FLEX SHAFT,METER V TYPE ENG<91L> ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-
76	SLEEVE; RUBBER,FLEX SHAFT,METER V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30	5-09360-352-0	02	1	9606-9910
76	SLEEVE; RUBBER,FLEX SHAFT,METER V TYPE ENG<91L> ID=6 L=30	5-09360-352-0	01	1	9911-
288	BRACKET ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG>	1-47477-469-0	01	1	9910-
288	BRACKET EURO2 SPECIFICATION<THN>	1-47477-379-0	01	1	9610-9706
288	BRACKET ELECTRONIC GOV RED3(KG5)	1-47477-379-0	01	1	9707-9909
288	BRACKET ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-47477-379-0	01	1	9910-
307	NUT EURO2 SPECIFICATION<THN> M6	9-09110-406-0	02	1	9610-9706
307	NUT ELECTRONIC GOV RED3(KG5) M6	9-09110-406-0	02	1	9707-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
