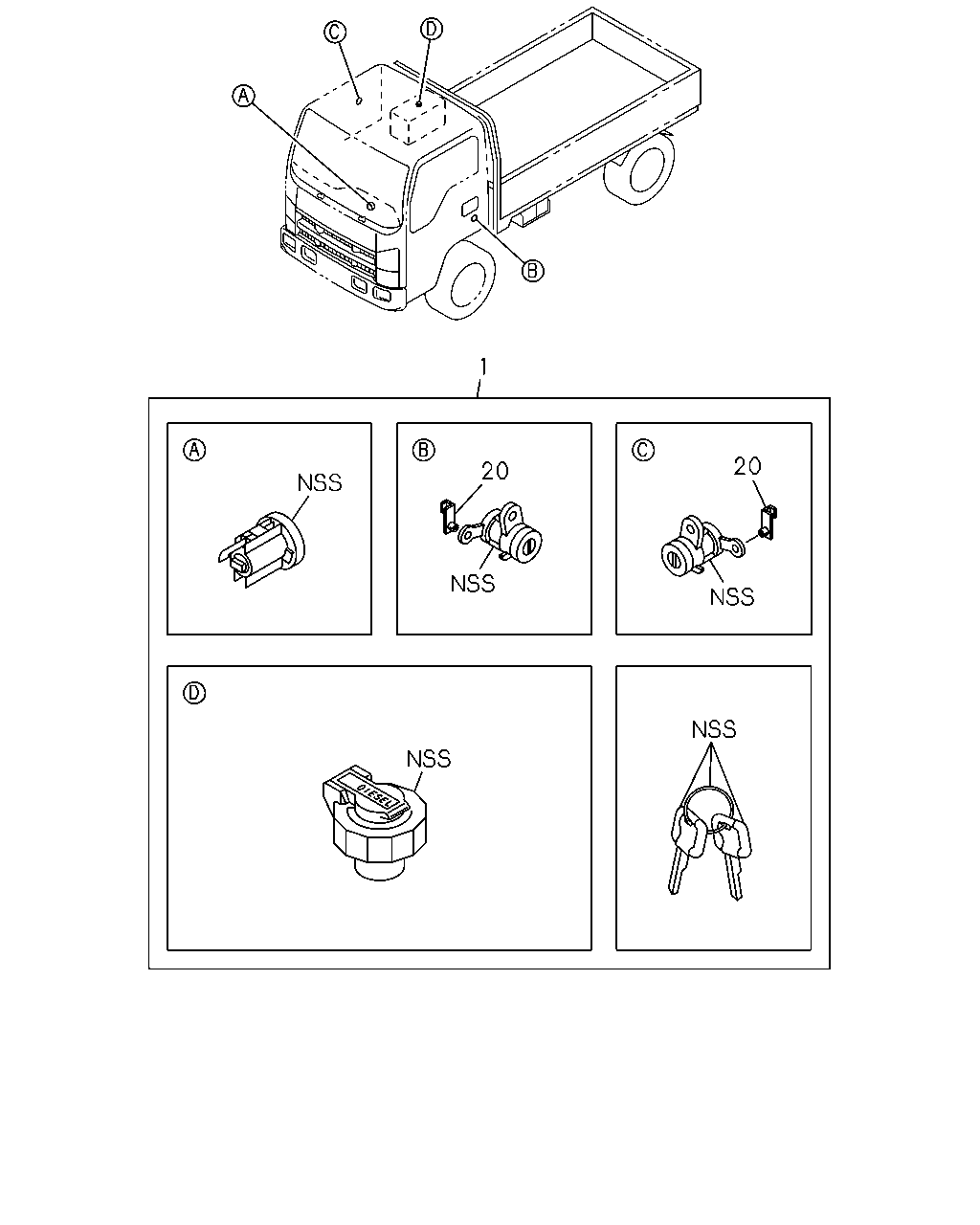

7-30 — LOCK CYLINDER SET (#51787) — 69 parça

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-216-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98201-216-0	01	1	1211-1409		●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-216-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98201-216-0	01	1	1410-1510		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-216-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK	8-98201-216-0	01	1	1511-		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-230-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-230-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-230-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-160-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-160-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-160-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98201-161-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98201-161-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98201-161-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-158-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-158-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-158-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98145-977-0	01	1	1109-1203	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98201-214-0	01	1	1204-1210	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98201-214-0	01	1	1211-1409	●
1	02.188 CYLINDER SET; CAR LOCK TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98201-214-0	01	1	1410-1510	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98201-214-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-181-0	01	1	1109-1210	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-181-0	01	1	1211-	●	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-182-0	01	1	1109-1210	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-182-0	01	1	1211-	●	●

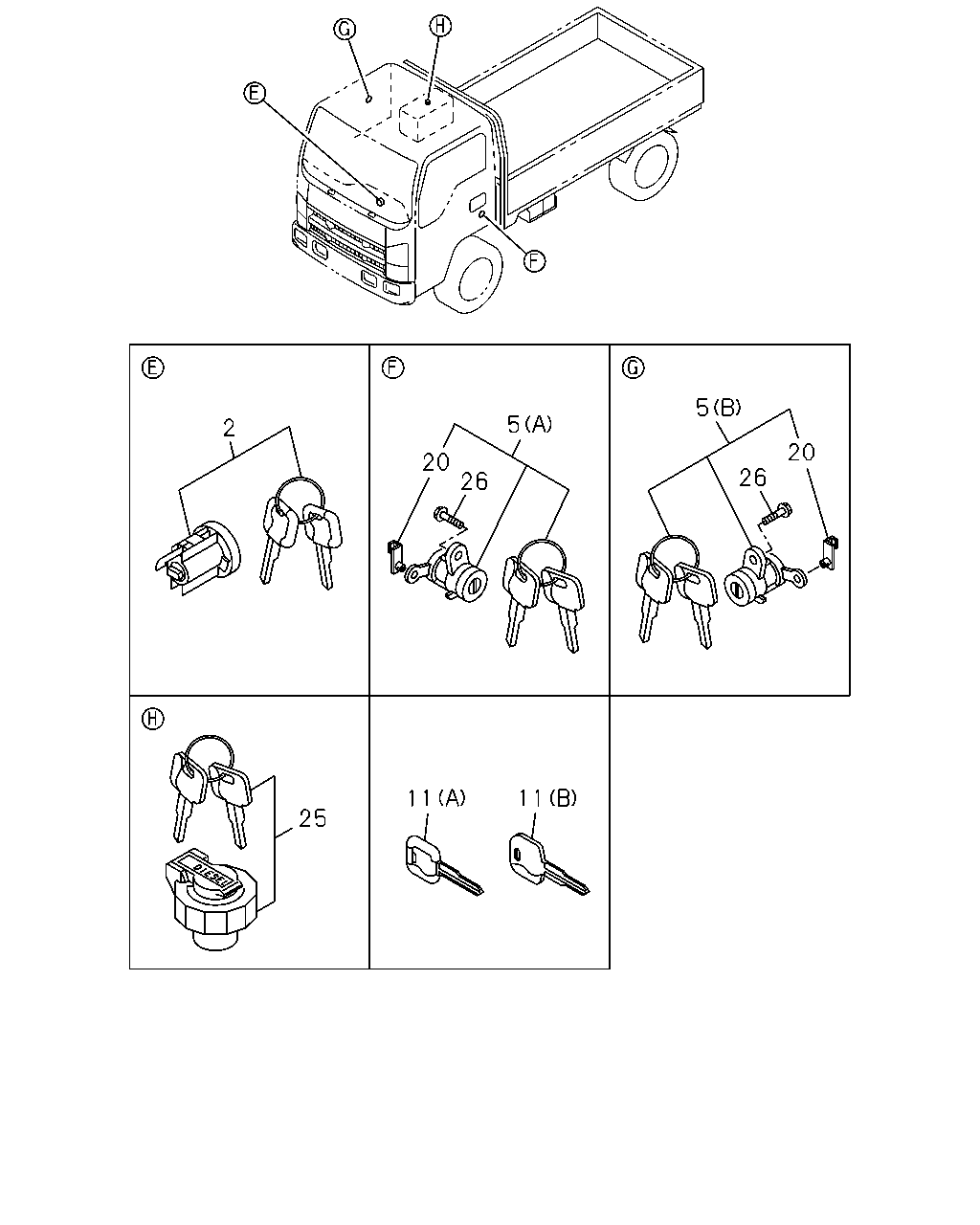

2 20 26 5 5 20 26 11 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.188 BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-342-0	01	1	1211-	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1211-		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-352-0	01	1	1211-	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-147-0	01	1	1109-1203	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98201-341-0	01	1	1204-1210	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM(7KC)	8-98201-341-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A)	8-98055-150-0	01	1	1109-1210	●
5	16.328 CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM(7KC) (A)	8-98055-150-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A)	8-98055-150-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1211-		●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A)	8-98055-162-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (B)	8-98055-149-0	01	1	1109-1210	●
5	16.328 CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM(7KC) (B)	8-98055-149-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B)	8-98055-149-0	01	1	1211-	●
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1211-		●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B)	8-98055-161-0	01	1	1211-	●
11	02.187 KEY; BLANK EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B)	8-98055-171-0	AR	1	1211-	●
11	02.187 KEY; BLANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (A) IMMOBILIZER	8-98055-168-0	AR	1	1109-1210	●
11	02.187 KEY; BLANK IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER	8-98055-168-0	AR	1	1211-	●
11	02.187 KEY; BLANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> (B)	8-98055-170-0	AR	1	1109-1210	●
11	02.187 KEY; BLANK IMMOBILIZER SYSTEM(7KC) (B)	8-98055-170-0	AR	1	1211-	●
11	02.187 KEY; BLANK ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B)	8-98055-170-0	AR	1	1211-	●
11	02.187 KEY; BLANK (B)	8-98055-170-0	AR	1	1211-		●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-181-0	01	1	1109-1210	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-181-0	01	1	1211-	●	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-182-0	01	1	1109-1210	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98055-182-0	01	1	1211-	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98146-014-0	01	1	1211-1409	●
25	03.028 CAP; FUEL TANK,W/KEY TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98146-014-0	01	1	1410-1510	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98146-014-0	01	1	1511-	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98146-010-0	01	1	1109-1210	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1211-1409	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1211-1409	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98146-010-0	01	1	1211-1409		●
25	03.028 CAP; FUEL TANK,W/KEY TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1410-1510	●
25	03.028 CAP; FUEL TANK,W/KEY TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1410-1510	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98146-010-0	01	1	1410-1510		●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1511-	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98146-010-0	01	1	1511-	●
25	03.028 CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1511-		●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1109-1210	●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1211-	●	●
