Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#51786) — 195 parça

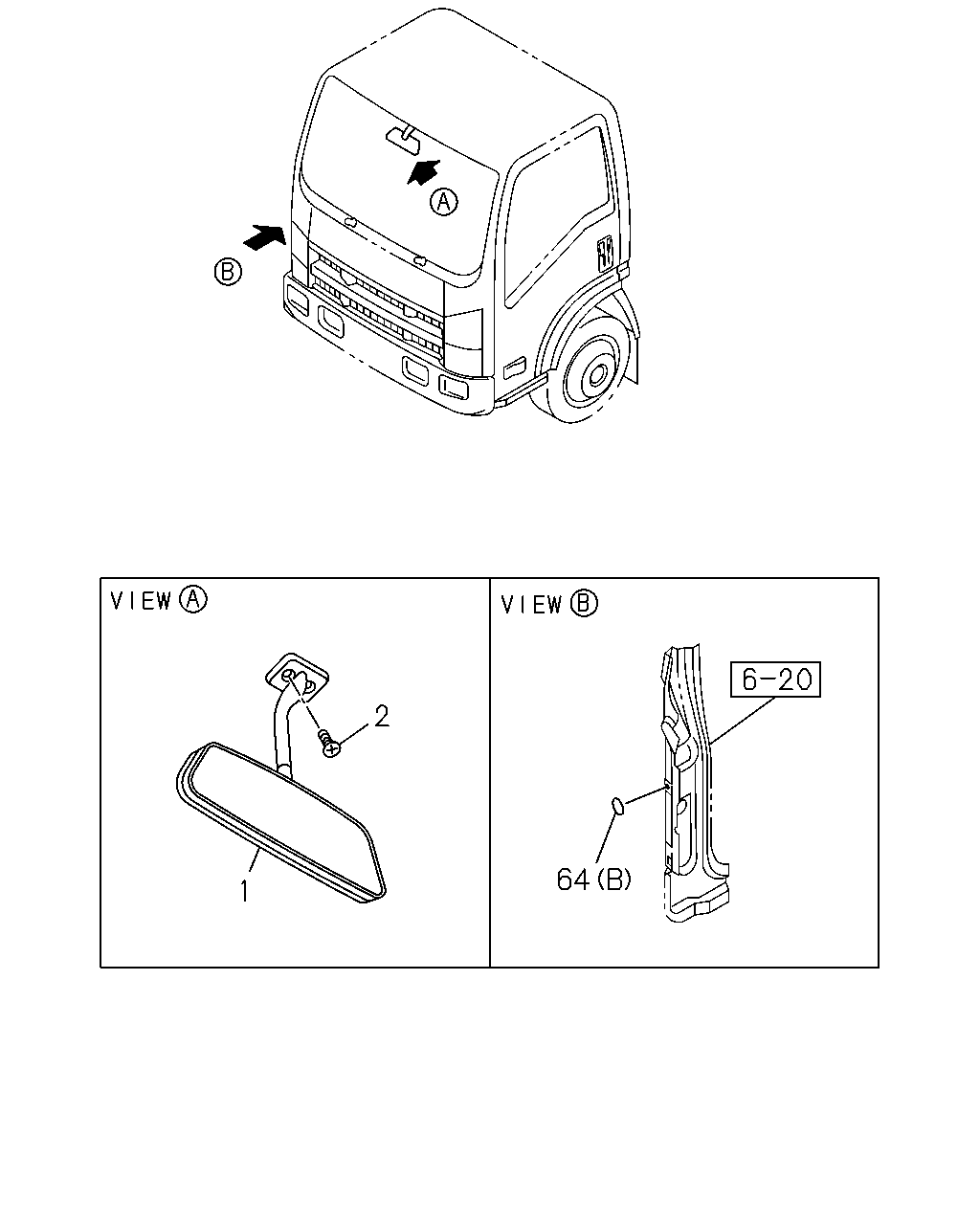

2 1 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1109-1210	●
1	16.068 MIRROR; ROOM WINDOW RR<8LF> DARK GRAY	8-98097-534-1	01	1	1211-	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1109-1210	●
2	16.069 SCREW; MIRROR TO BODY WINDOW RR<8LF> 16.070 M6X26	8-98033-674-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR S UNBELT GREEN(989),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (C) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-		●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1211-	●	●

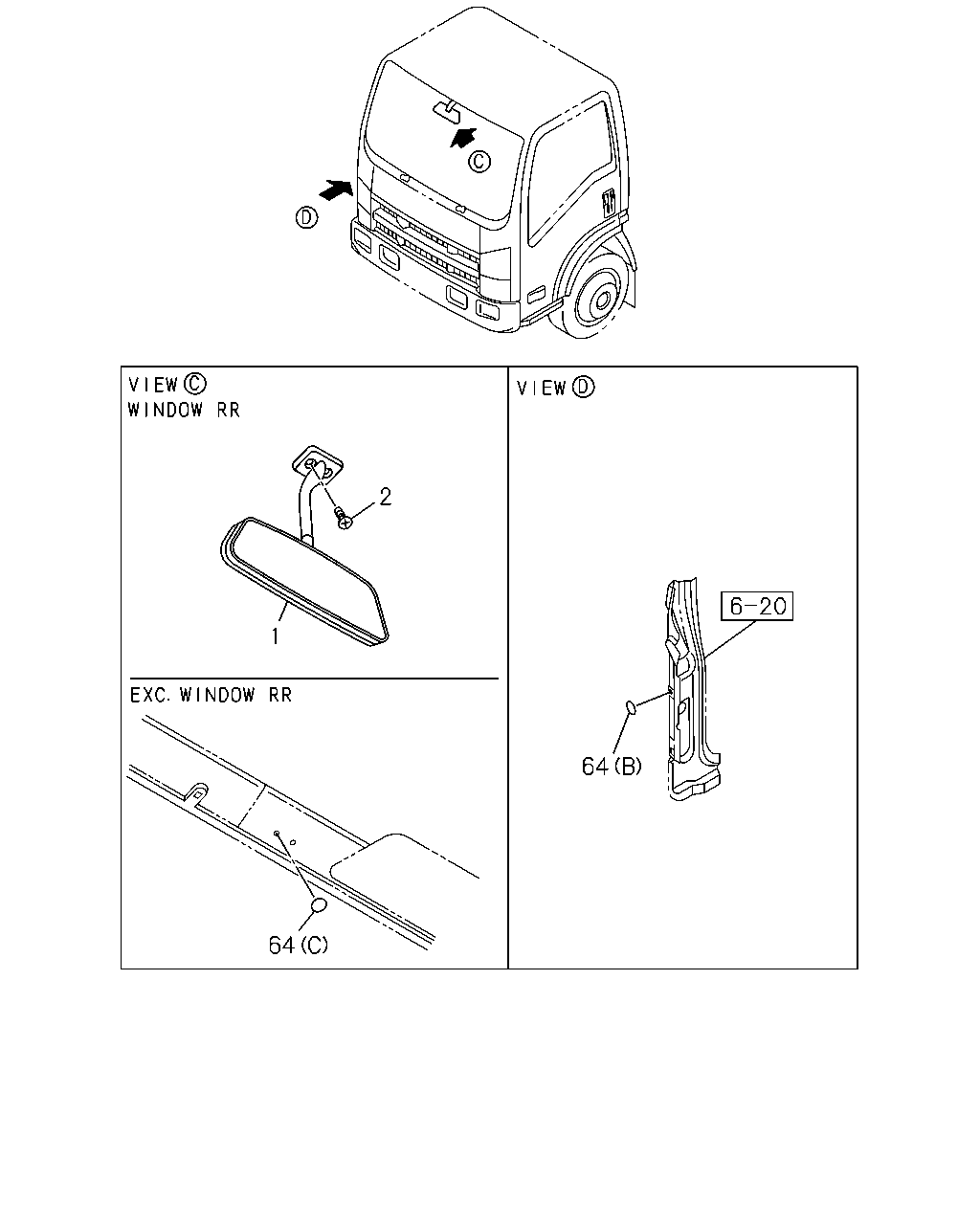

64 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1109-1210	●
1	16.068 MIRROR; ROOM WINDOW RR<8LF> DARK GRAY	8-98097-534-1	01	1	1211-	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1109-1210	●
2	16.069 SCREW; MIRROR TO BODY WINDOW RR<8LF> 16.070 M6X26	8-98033-674-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR S UNBELT GREEN(989),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (C) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-		●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1211-	●	●

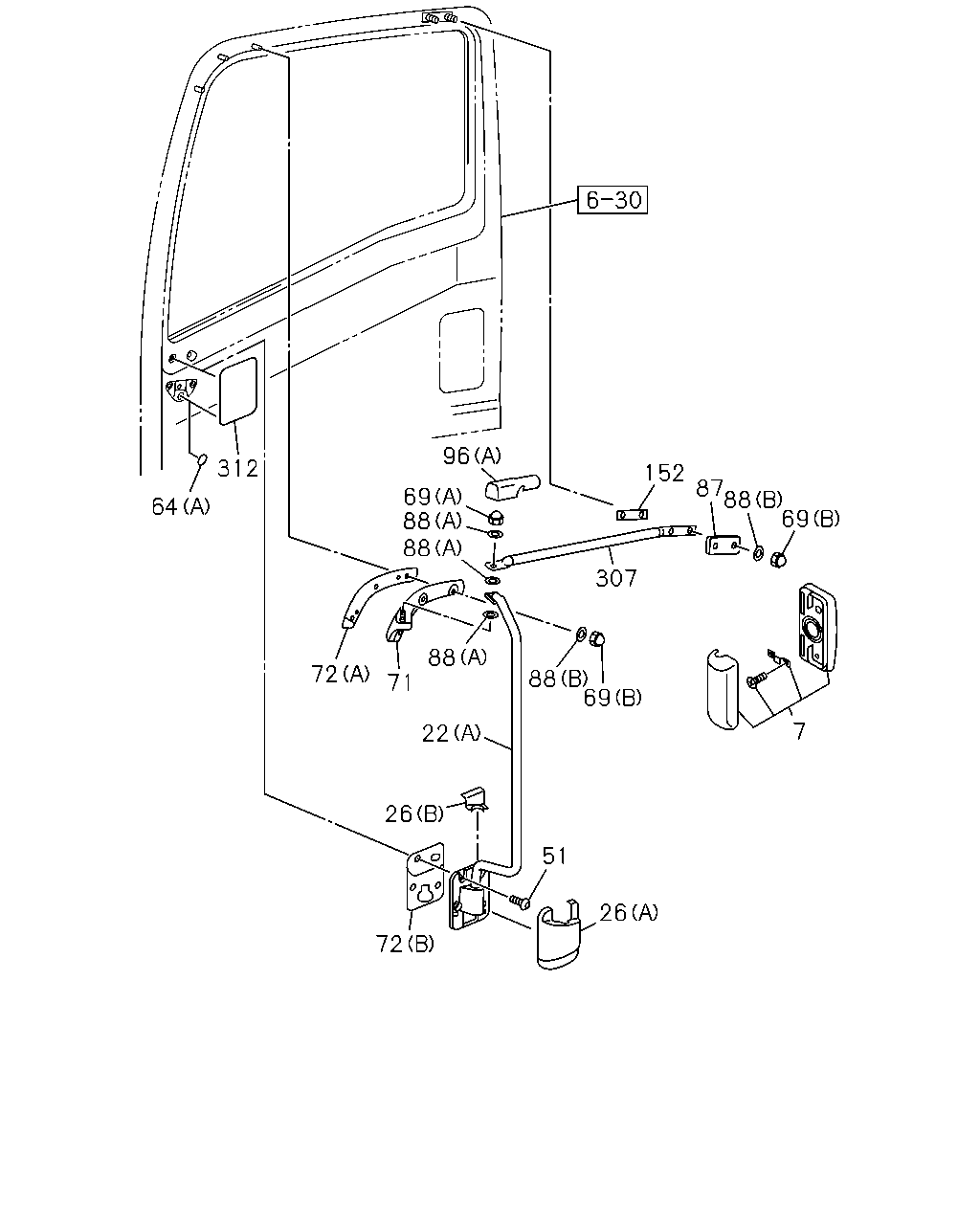

312 64 69 88 88 72 71 88 22 26 72 26 51 69 88 307 96 152 87 88 69 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-991-1	01	1	1109-1210	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-991-1	01	1	1211-	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-992-1	01	1	1109-1210	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98055-992-1	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (B)	8-98070-506-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (B)	8-98070-504-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98070-503-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98070-510-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (B)	8-98070-508-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1211-		●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-510-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-511-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-512-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-513-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1211-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1211-	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1211-	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1109-1210	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR S UNBELT GREEN(989),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (C) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1211-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK	1-76798-019-0	01	1	1211-		●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1109-1210	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (A) OD=52 BLACK	1-76798-041-0	02	1	1211-	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	8-98059-913-0	02	1	1109-1210	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	8-98059-913-0	02	1	1211-1404	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	1-09984-134-0	02	1	1405-	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1109-1210	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1211-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-793-2	01	1	1109-1210	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-793-2	01	1	1211-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-794-2	01	1	1109-1210	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-794-2	01	1	1211-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1109-1210	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1211-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1109-1210	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1211-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1109-1210	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1211-	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-789-0	02	1	1109-1210	●
87	16.069 SPACER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-789-0	02	1	1211-	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1109-1210	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1211-	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1109-1210	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1211-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98027-552-2	01	1	1211-		●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-1210	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1211-	●	●
152	16.069 SHEET; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-786-0	02	1	1109-1210	●
152	16.069 SHEET; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-786-0	02	1	1211-	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-784-2	01	1	1109-1210	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-784-2	01	1	1211-	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-785-2	01	1	1109-1210	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-785-2	01	1	1211-	●	●
312	16.081 TAPE DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98164-812-0	02	1	1109-1210	●
312	16.081 TAPE DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98164-812-0	02	1	1211-	●	●

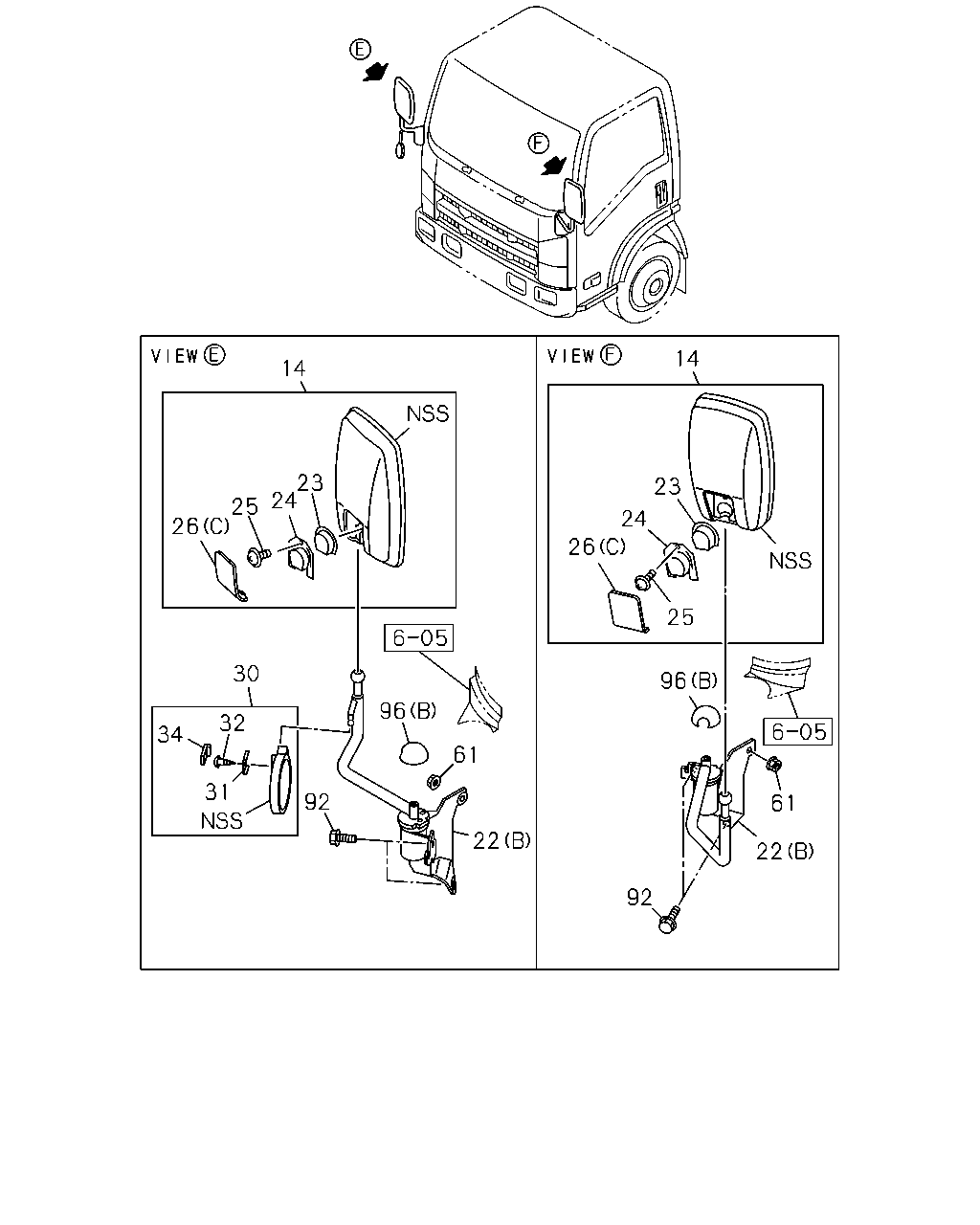

14 23 24 25 26 30 32 34 31 92 96 61 22 92 22 61 96 25 26 24 23 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1211-	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (B)	8-98070-506-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (B)	8-98070-504-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98070-503-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98070-510-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (B)	8-98070-508-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1211-		●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-510-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-511-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-512-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-513-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1211-	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1211-	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1211-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1211-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1211-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1211-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1211-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1211-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1211-	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1211-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1109-1210	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1211-	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1211-	●
30	16.068 MIRROR; UNDER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-625-2	01	1	1211-		●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1211-	●
31	16.069 PLATE; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-631-0	01	1	1211-		●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1211-	●
32	16.069 SCREW; UNDER MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M5X18	8-94279-372-0	02	1	1211-		●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1211-	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-629-0	01	1	1211-		●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-		●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1211-	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-		●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98027-552-2	01	1	1211-		●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-1210	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1211-	●	●

34 32 31 30 96 61 22 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (B)	8-98070-506-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (B)	8-98070-504-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98070-503-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98070-510-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (B)	8-98070-508-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1211-	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1211-		●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-510-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-846-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98067-511-0	01	1	1109-1204	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1205-1210	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> (A)	8-98158-847-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-512-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-848-0	01	1	1211-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98067-513-0	01	1	1109-1202	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1203-1210	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98158-849-0	01	1	1211-	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1211-	●
30	16.068 MIRROR; UNDER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-625-2	01	1	1211-		●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1211-	●
31	16.069 PLATE; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-631-0	01	1	1211-		●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1211-	●
32	16.069 SCREW; UNDER MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M5X18	8-94279-372-0	02	1	1211-		●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1211-	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-629-0	01	1	1211-		●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-		●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1211-	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-		●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1211-	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98027-552-2	01	1	1211-		●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-1210	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
