◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#51783) — 136 parça

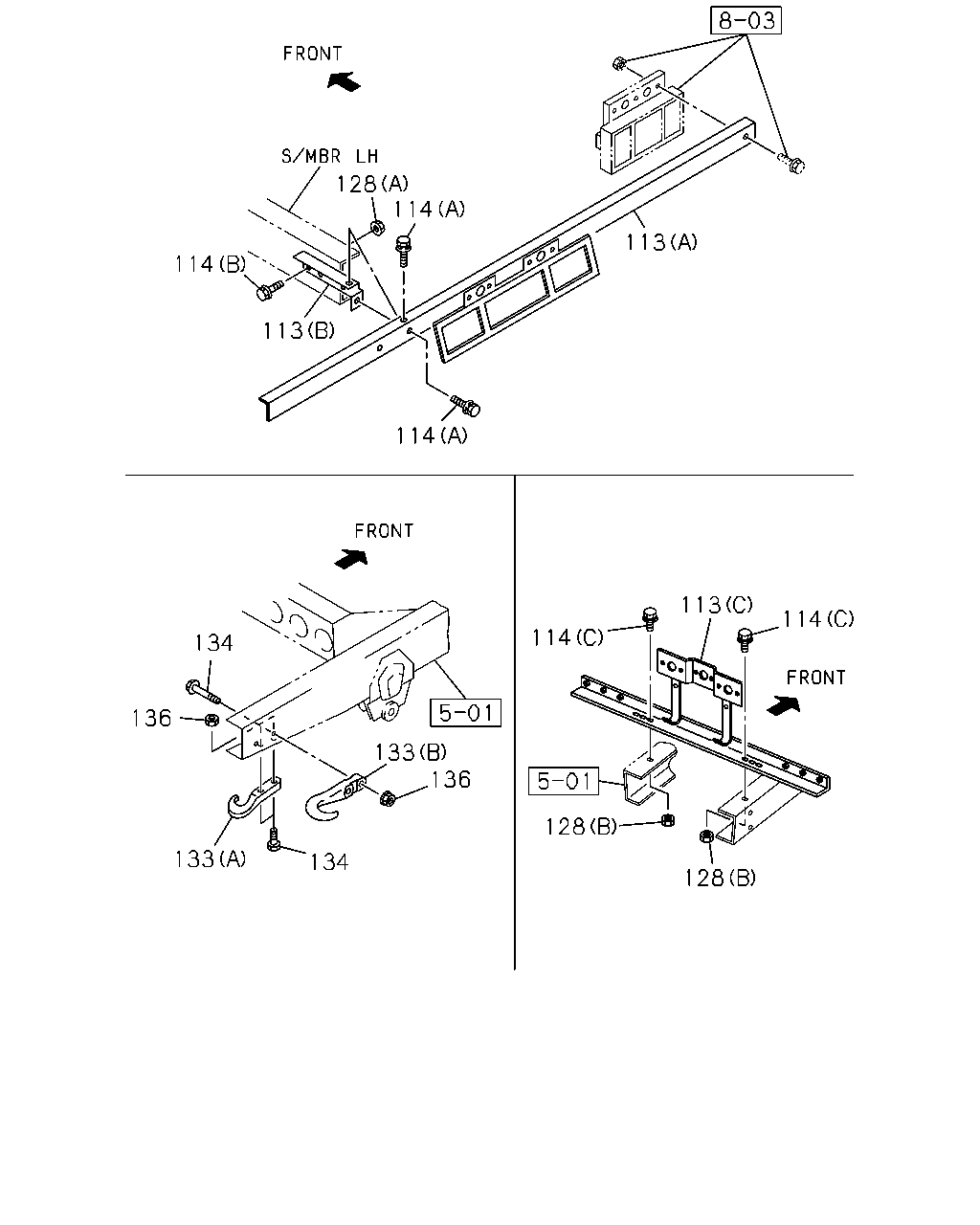

çizim 147811
128 128 114 113 114 133 136 134 133 136 134 114 113 114 128 114 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-019-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) BUMPER REAR<7HZ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 02.664 (A) 		8-97206-019-0 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6) 02.664 (A) 		8-97206-019-0 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6) 02.664 (A) 		8-97206-019-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-017-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),DOOR MIRROR<6VE>,O/SIDE MIRROR RR V IEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-017-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6),DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-017-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) DOOR MIRROR<6VE> (A) 		8-98079-145-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A) 		8-98079-145-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-146-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A) 		8-98079-146-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-147-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),DOOR MIRROR<6VE>,O/SIDE MIRROR RR V IEW MIDDLE ARM<8ML> (A) 		8-98079-147-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-014-0 01 1 1109-1210 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) (B) 		8-98100-014-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) (B) 		8-98089-089-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-015-0 01 1 1109-1210 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) (B) 		8-98100-015-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) (B) 		8-98089-090-0 01 1 1211- ●
113 07.800 BRACKET; LICENSE PLATE
(C) 		8-98029-390-3 01 1 1109-1111 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) DOOR MIRROR<6VE> 02.664 (A) 		8-98030-832-0 01 1 1112-1210 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> BUMPER REAR<7HZ> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 02.664 (A) 		8-98030-832-0 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) DOOR MIRROR<6VE> EXC. RR BODY FLAT BED(RS6) 02.664 (A) 		8-98030-832-0 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> EXC. RR BODY FLAT BED(RS6) 02.664 (A) 		8-98030-832-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. TURKEY EQUIPMENT(B11),RR BODY FLAT BED(RS6) (C) 		8-98029-390-3 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
(C) 		8-98029-390-3 01 1 1211-1402 ●
113 07.800 BRACKET; LICENSE PLATE
TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) (C) 		8-98029-390-3 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
(C) 		8-98029-390-3 01 1 1403- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30 		0-20851-430-0 04 1 1109-1210 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) 07.874 (B) M14X30 		0-20851-430-0 04 1 1211- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 04 1 1211- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1109-1111 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1112-1210 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. RR BODY FLAT BED(RS6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1211-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1403- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1403- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. TURKEY EQUIPMENT(B11),RR BODY FLAT BED(RS6) 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1211-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1211-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1403-1510 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1403-1510 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. TURKEY EQUIPMENT(B11),RR BODY FLAT BED(RS6) 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1511- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1511- ●
128 02.662 NUT; CROSS PLATE
00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 1109-1210 ●
128 02.662 NUT; CROSS PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) 00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 1211- ●
128 02.662 NUT; CROSS PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 1211- ●
128 02.662 NUT; CROSS PLATE
EXC. TURKEY EQUIPMENT(B11),RR BODY FLAT BED(RS6) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1211-1402 ●
128 02.662 NUT; CROSS PLATE
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1211-1402 ●
128 02.662 NUT; CROSS PLATE
TAIWAN EQUIPMENT(B04) EXC. RR BODY FLAT BED(RS6) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1403-1510 ●
128 02.662 NUT; CROSS PLATE
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1403-1510 ●
128 02.662 NUT; CROSS PLATE
EXC. TURKEY EQUIPMENT(B11),RR BODY FLAT BED(RS6) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
128 02.662 NUT; CROSS PLATE
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
128 02.662 NUT; CROSS PLATE
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109-1111 ●
133 07.112 HOOK
FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 07.330 (A) 		8-94183-262-0 01 1 1211-1212 ●
133 07.112 HOOK
EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 07.330 (A) 		8-94183-262-0 01 1 1211-1212 ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 07.330 (A) 		8-94183-262-0 01 1 1301- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 07.330 (A) 		8-94183-262-0 01 1 1301- ●
133 07.112 HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 07.330 (A) 		8-94183-262-0 01 1 1301- ●
133 07.112 HOOK
07.330 (A) 		8-94183-262-0 01 1 1109-1109 ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 07.068 (B) 		8-97387-665-0 01 1 1211-1212 ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 1211-1212 ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 07.068 (B) 		8-97387-665-0 01 1 1301- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 07.068 (B) 		8-97387-665-0 01 1 1301- ●
133 07.112 HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 07.068 (B) 		8-94249-270-2 01 1 1301- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1301-1301 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1301-1301 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> IDENTIFICATION LABEL FOR KD<6UT> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) M14X60 		0-10861-460-0 02 1 1301-1301 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) M14X60 		0-10861-460-0 02 1 1301-1301 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) M14X60 		0-10861-460-0 02 1 1301-1301 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1211-1212 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1301-1308 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1301-1308 ●
134 07.068 BOLT; HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1301-1308 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1309- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1309- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1309- ●
134 07.068 BOLT; HOOK
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1109-1109 ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1211-1212 ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 1211-1212 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1301- ●
136 07.068 NUT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1301- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1301- ●
136 07.068 NUT; HOOK
FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 02 1 1211-1212 ●
136 07.068 NUT; HOOK
EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.833 M10 		0-91110-510-0 02 1 1211-1212 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 02 1 1301-1308 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.833 M10 		0-91110-510-0 02 1 1301-1308 ●
136 07.068 NUT; HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 02 1 1301-1308 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 02 1 1309- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.833 M10 		0-91110-510-0 02 1 1309- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.833 M10 		0-91110-510-0 02 1 1309- ●
136 07.068 NUT; HOOK
00.833 M10 		0-91110-510-0 02 1 1109-1109 ●

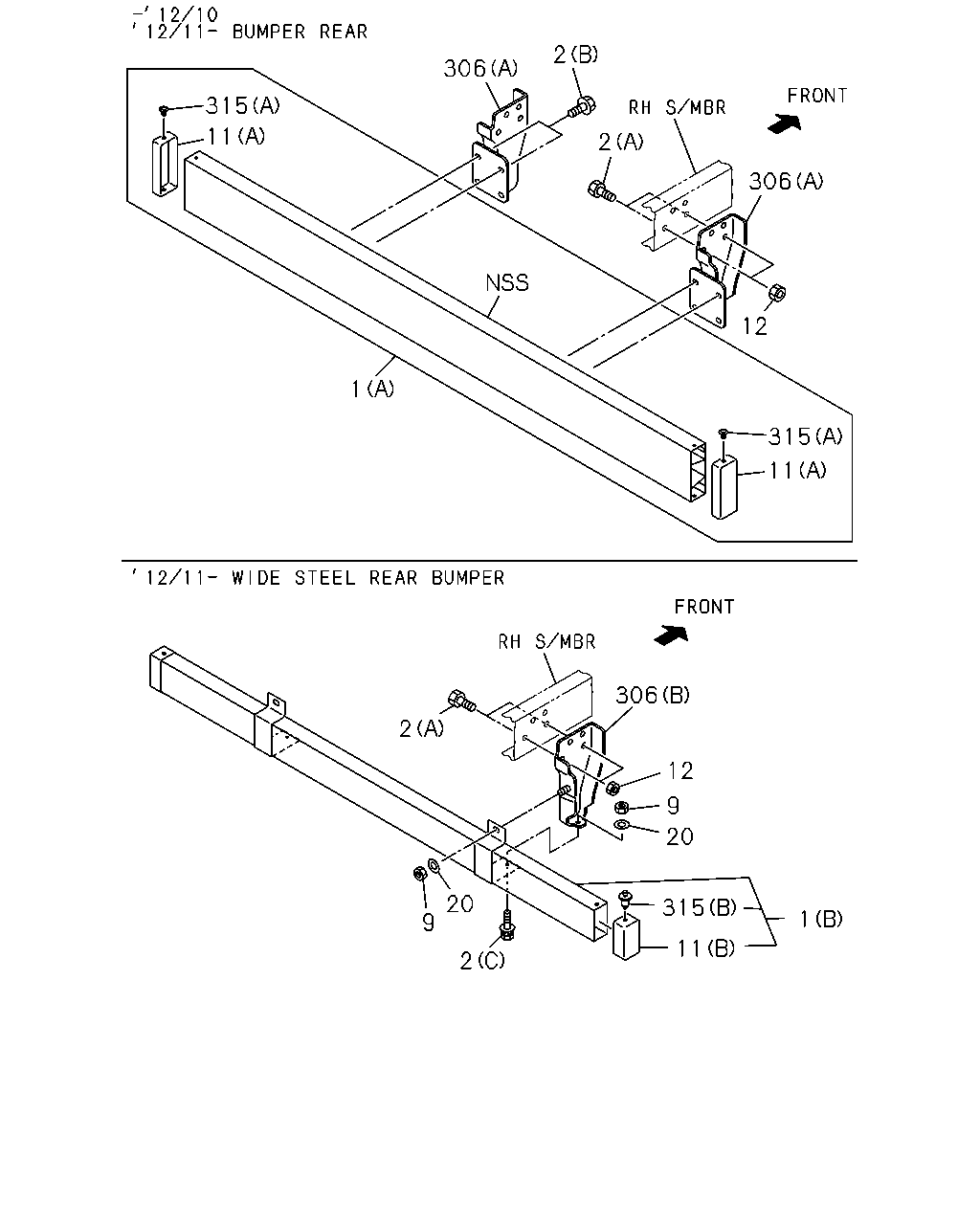

çizim 147812
315 11 306 2 2 306 12 315 11 1 306 12 9 20 315 11 1 2 20 9 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.070 BUMPER; RR
REAR WIDE TREAD(V4T) (A) ALUMINUM BUMPER STAMP IH2J 		8-98088-673-0 01 1 1109-1210 ●
1 07.070 BUMPER; RR
REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> (A) ALUMINUM BUMPER STAMP IH2J 		8-98088-673-0 01 1 1211- ●
1 07.070 BUMPER; RR
EXC. REAR WIDE TREAD(V4T) (A) ALUMINUM BUMPER STAMP IH2G 		8-98088-672-0 01 1 1109-1210 ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> EXC. REAR WIDE TREAD(V4T) (A) ALUMINUM BUMPER STAMP IH2G 		8-98088-672-0 01 1 1211- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) (B) STEEL BUMPER STAMP IJ2H 		8-98000-145-1 01 1 1211- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. REAR WIDE TREAD(V4T) (B) STEEL BUMPER STAMP IJ2G 		8-98000-144-1 01 1 1211- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W) (A) M14X30 		0-20851-430-0 04 1 1109-1210 ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> EXC. SINGLE RR TIRE(6TD) (A) M14X30 		0-20851-430-0 04 1 1211- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3300MM(33W) (A) M14X30 		0-20851-430-0 08 1 1109-1210 ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> SINGLE RR TIRE(6TD) (A) M14X30 		0-20851-430-0 08 1 1211- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (A) M14X30 		0-20851-430-0 08 1 1211- ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1109-1210 ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1211- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 02 1 1211- ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1211- ●
11 07.829 CAP; RR BUMPER
(A) 		1-71290-064-0 02 1 1109-1210 ●
11 07.829 CAP; RR BUMPER
BUMPER REAR<7HZ> (A) 		1-71290-064-0 02 1 1211- ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (B) 		8-97174-008-0 02 1 1211- ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W) 00.429 M14 FLANGE 		0-91180-214-0 04 1 1109-1210 ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 04 1 1211- ●
12 07.833 NUT; BRKT
WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE 		0-91180-214-0 08 1 1109-1210 ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 08 1 1211- ●
12 07.833 NUT; BRKT
WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1211- ●
20 07.070 WASHER; PL,BUMPER
WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1211- ●
306 07.836 BAR; BACK,RR
(A) STAMP IA3 		8-98039-408-0 01 1 1109-1210 ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> (A) STAMP IA3 		8-98039-408-0 01 1 1211- ●
306 07.836 BAR; BACK,RR
(A) STAMP IA3 		8-98039-409-0 01 1 1109-1210 ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> (A) STAMP IA3 		8-98039-409-0 01 1 1211- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) EXC. FULL FLATLOW<6GL> (B) STAMP IC 		8-98211-480-0 01 1 1211- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) EXC. FULL FLATLOW<6GL> (B) STAMP IC 		8-98211-481-0 01 1 1211- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) (B) STAMP IA1 		8-98208-979-0 01 1 1211- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) (B) STAMP IA1 		8-98208-980-0 01 1 1211- ●
315 07.829 RIVET; CAP
(A) 		1-71290-062-0 04 1 1109-1210 ●
315 07.829 RIVET; CAP
BUMPER REAR<7HZ> (A) 		1-71290-062-0 04 1 1211- ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (B) D8X13.5 		1-09987-248-1 04 1 1211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
