◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#51782) — 12 parça

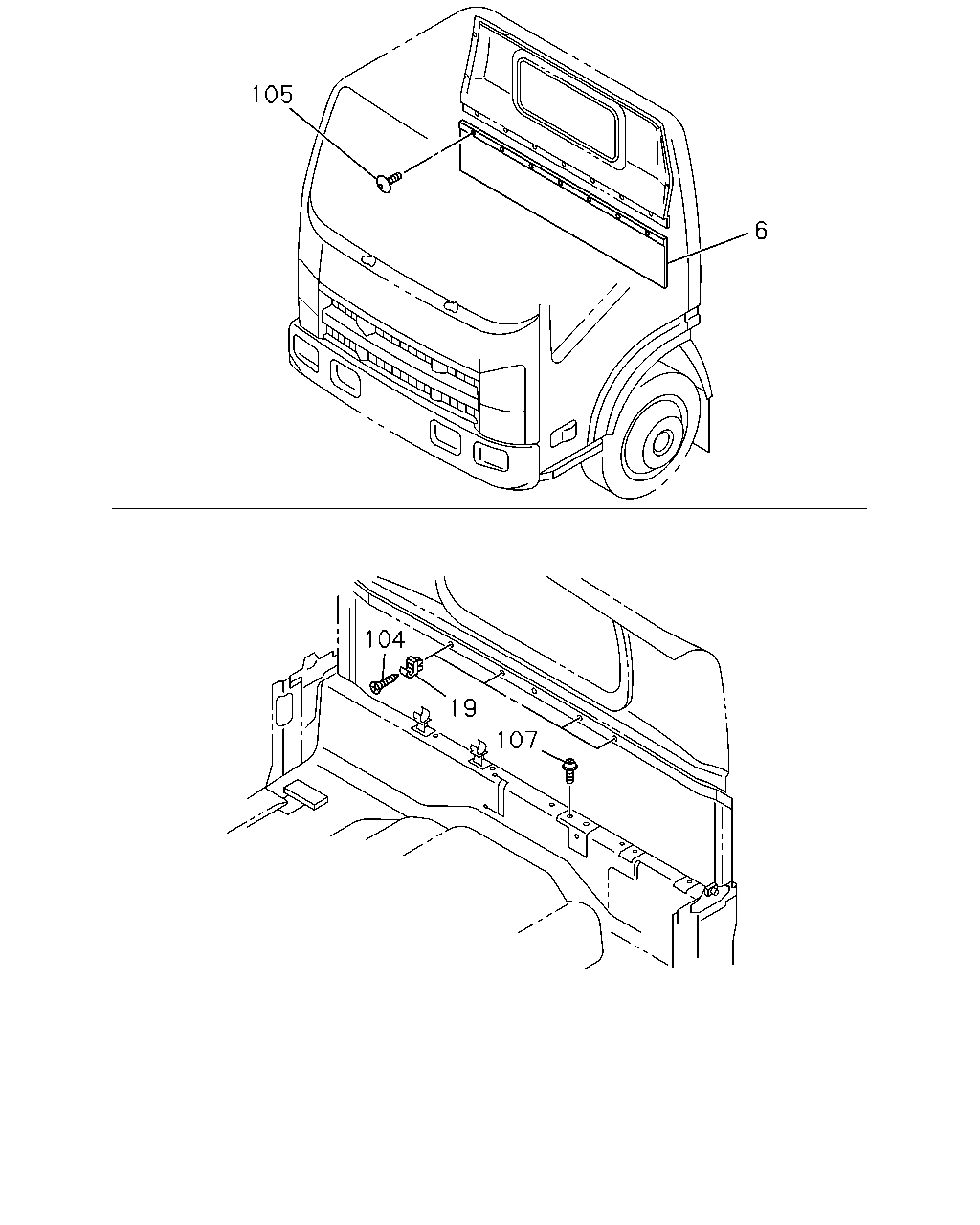

çizim 147807
105 6 104 19 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-549-3 01 1 1109-1210 ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-549-3 01 1 1211- ● ●
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-550-3 01 1 1109-1210 ●
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-550-3 01 1 1211- ● ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 1109-1210 ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 1211- ● ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1109-1210 ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1211- ● ●
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 04 1 1109-1210 ●
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 04 1 1211- ● ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1109-1210 ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1211- ● ●
