◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#51780) — 48 parça

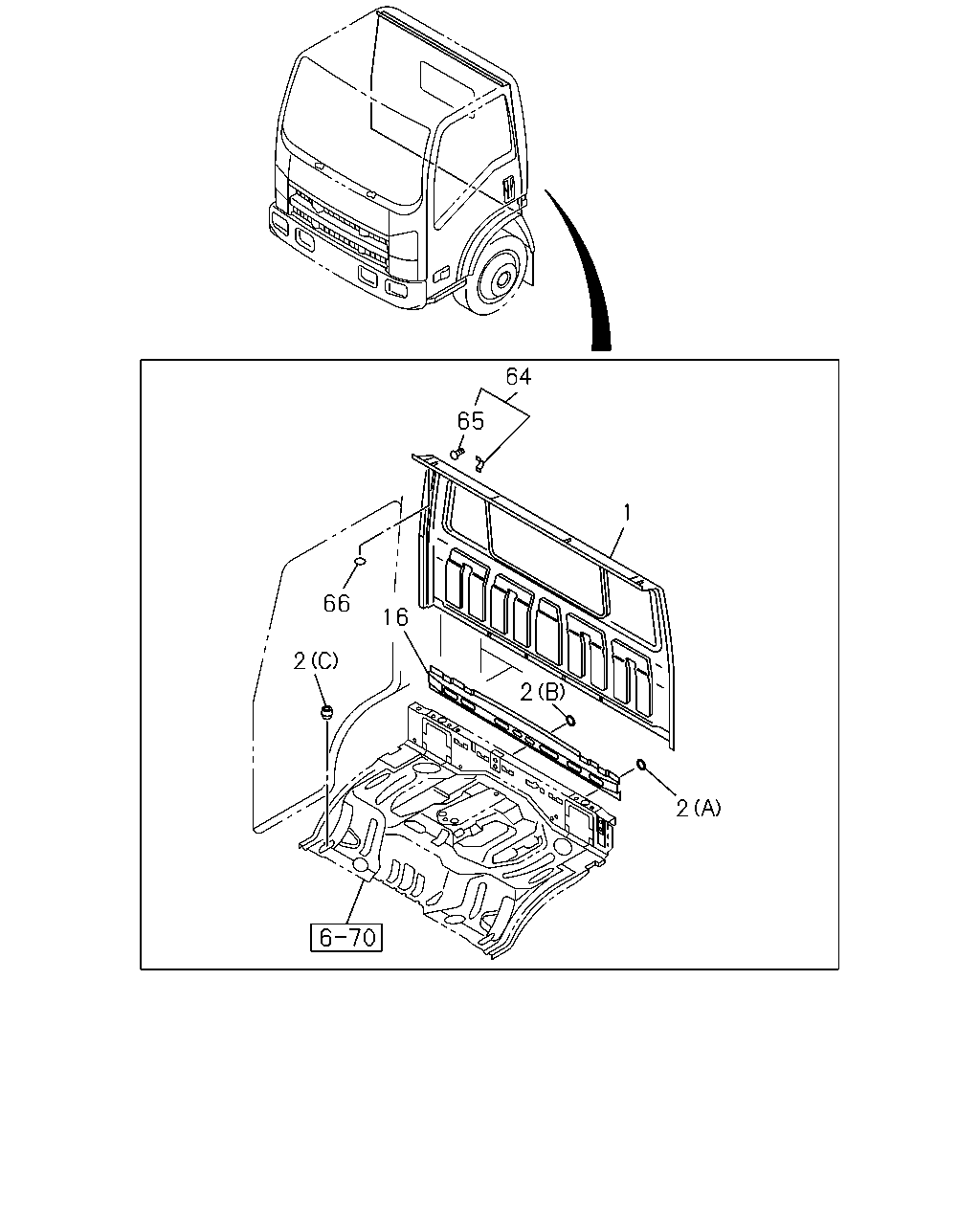

çizim 147808
64 65 1 66 16 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
EXC. RR BODY FLAT BED(RS6),WINDOW RR<8LF> 		8-97584-303-4 01 1 1211-1410 ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-303-4 01 1 1211-1410 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED(RS6) 		8-97584-303-4 01 1 1411- ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-303-4 01 1 1411- ●
1 16.587 PANEL; BACK OUTER 8-97584-300-3 01 1 1109-1210 ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-300-3 01 1 1211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1109-1210 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 09 1 1109-1210 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 09 1 1211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1109-1210 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1109-1210 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 1109-1210 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 1211- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED(RS6) 		8-98313-204-0 01 1 1505- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> 		8-98313-204-0 01 1 1505- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 1109-1210 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. RR BODY FLAT BED(RS6),WINDOW RR<8LF> 		8-97584-607-3 01 1 1211-1410 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1211-1410 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 1211-1410 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED(RS6) 		8-97584-607-3 01 1 1411-1504 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1411-1504 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 		8-97584-607-3 01 1 1411-1504 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1505- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1109-1210 ●
64 16.587 BRACKET; AIR INTAKE DUCT
EXC. RR BODY FLAT BED(RS6),WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1211-1410 ●
64 16.587 BRACKET; AIR INTAKE DUCT
WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1211-1410 ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1211-1410 ●
64 16.587 BRACKET; AIR INTAKE DUCT
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED(RS6) 16.570 		8-97584-611-1 01 1 1411- ●
64 16.587 BRACKET; AIR INTAKE DUCT
WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1411- ●
64 16.587 BRACKET; AIR INTAKE DUCT
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1411- ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1109-1210 ●
65 17.198 STUD; BACK PANEL
EXC. RR BODY FLAT BED(RS6),WINDOW RR<8LF> 		8-94389-701-0 01 1 1211-1410 ●
65 17.198 STUD; BACK PANEL
WINDOW RR<8LF> 		8-94389-701-0 01 1 1211-1410 ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1211-1410 ●
65 17.198 STUD; BACK PANEL
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED(RS6) 		8-94389-701-0 01 1 1411- ●
65 17.198 STUD; BACK PANEL
WINDOW RR<8LF> 		8-94389-701-0 01 1 1411- ●
65 17.198 STUD; BACK PANEL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 		8-94389-701-0 01 1 1411- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1109-1210 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1211- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1109-1210 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1211- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1109-1210 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR S UNBELT GREEN(989),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1211- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1109-1210 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR S UNBELT GREEN(989),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1211- ● ●
