8-20 — METER CABLE (#5178) — 18 parça

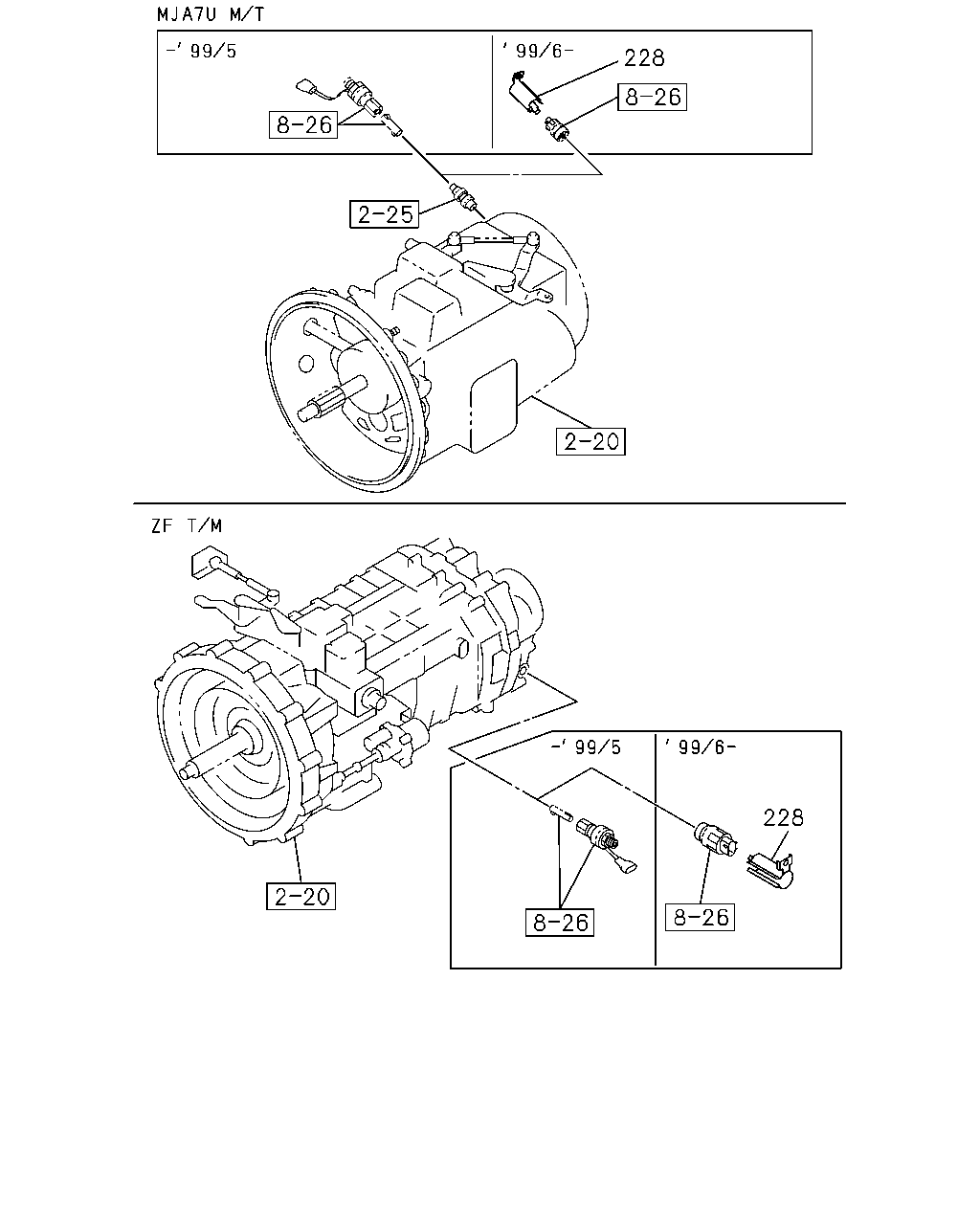

çizim 6195
228 228
BalonParca AdiParca NoAdetTipApplied Date
132 SENSOR; SPD,SPEEDOMETER
10PE1S(60L) 		1-83127-115-0 01 1 9606-9905
132 SENSOR; SPD,SPEEDOMETER
10PE1N(61L) 		1-83127-115-0 01 1 9906-
228 PROTECTOR; SENSOR
MJA7U M/T(X6G),TRANSMISSION-ZF 16S151 OD(Y2N) 		8-97168-308-0 01 1 9906-0007
228 PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		8-97168-308-0 01 1 0008-

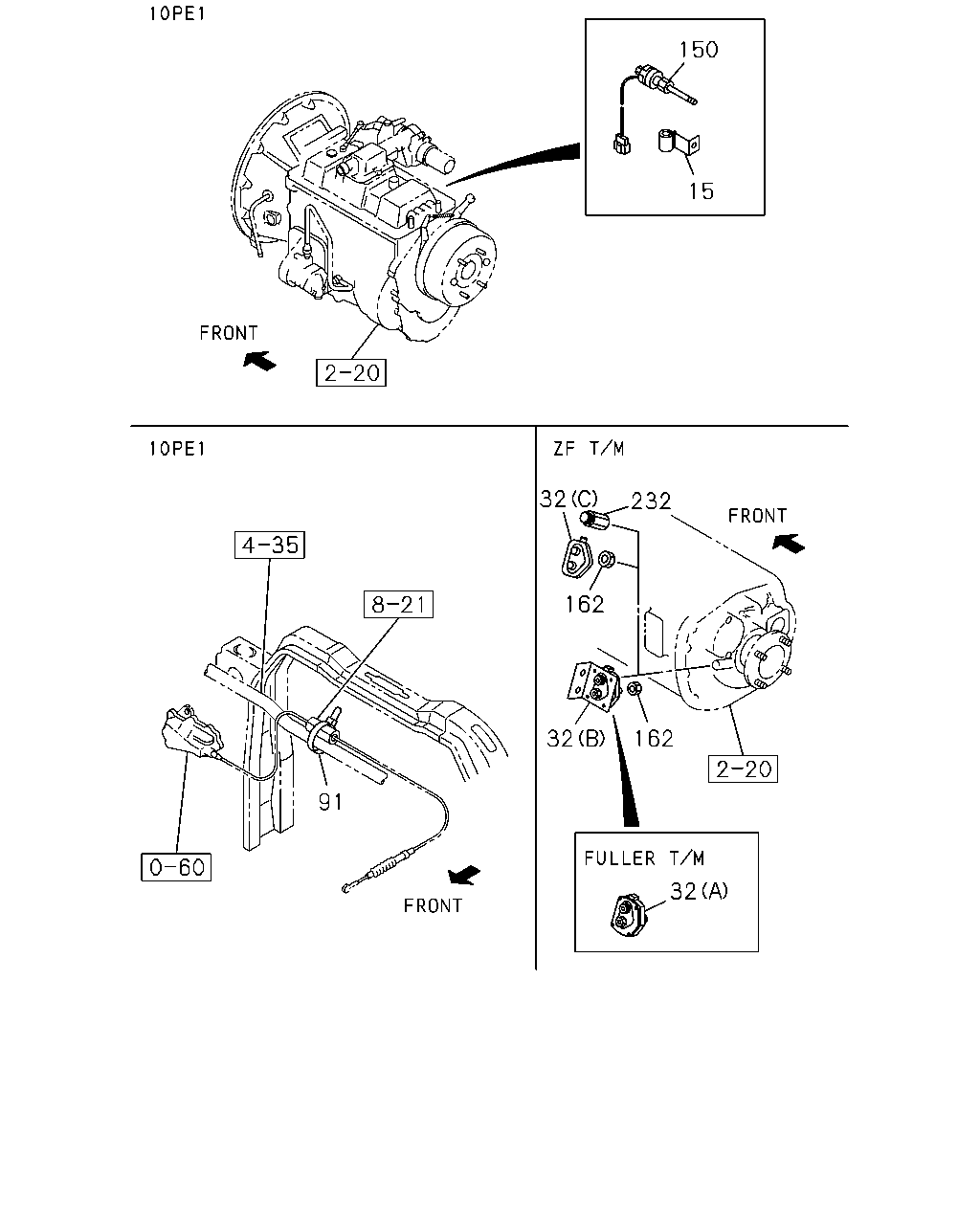

çizim 40555
150 15 32 232 162 32 162 91 32
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; BAND,HARNESS
10PE1S(60L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9606-9905
15 CLIP; BAND,HARNESS
10PE1N(61L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9906-
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) (A) 		1-83126-331-0 01 1 9606-9803
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-262-0 01 1 9606-9702
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-83126-409-0 01 1 9703-9904
91 CLIP; BAND
V TYPE ENG<91L> L=250 		1-09707-126-0 01 1 9911-
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 02 1 9606-9910
91 CLIP; BAND
V TYPE ENG<91L> L=140 		5-09707-031-1 01 1 9911-
132 SENSOR; SPD,SPEEDOMETER
10PE1S(60L) 		1-83127-115-0 01 1 9606-9905
132 SENSOR; SPD,SPEEDOMETER
10PE1N(61L) 		1-83127-115-0 01 1 9906-
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		9-83111-951-0 01 1 9606-9809
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		1-80249-005-0 01 1 9810-9904
232 ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-80249-006-0 01 1 9905-0007
232 ADAPTER; SPEED SENSOR
ZF M/T<X9E> 		1-80249-006-0 01 1 0008-
