6-75 — MAT AND CARPET (#51777) — 12 parça

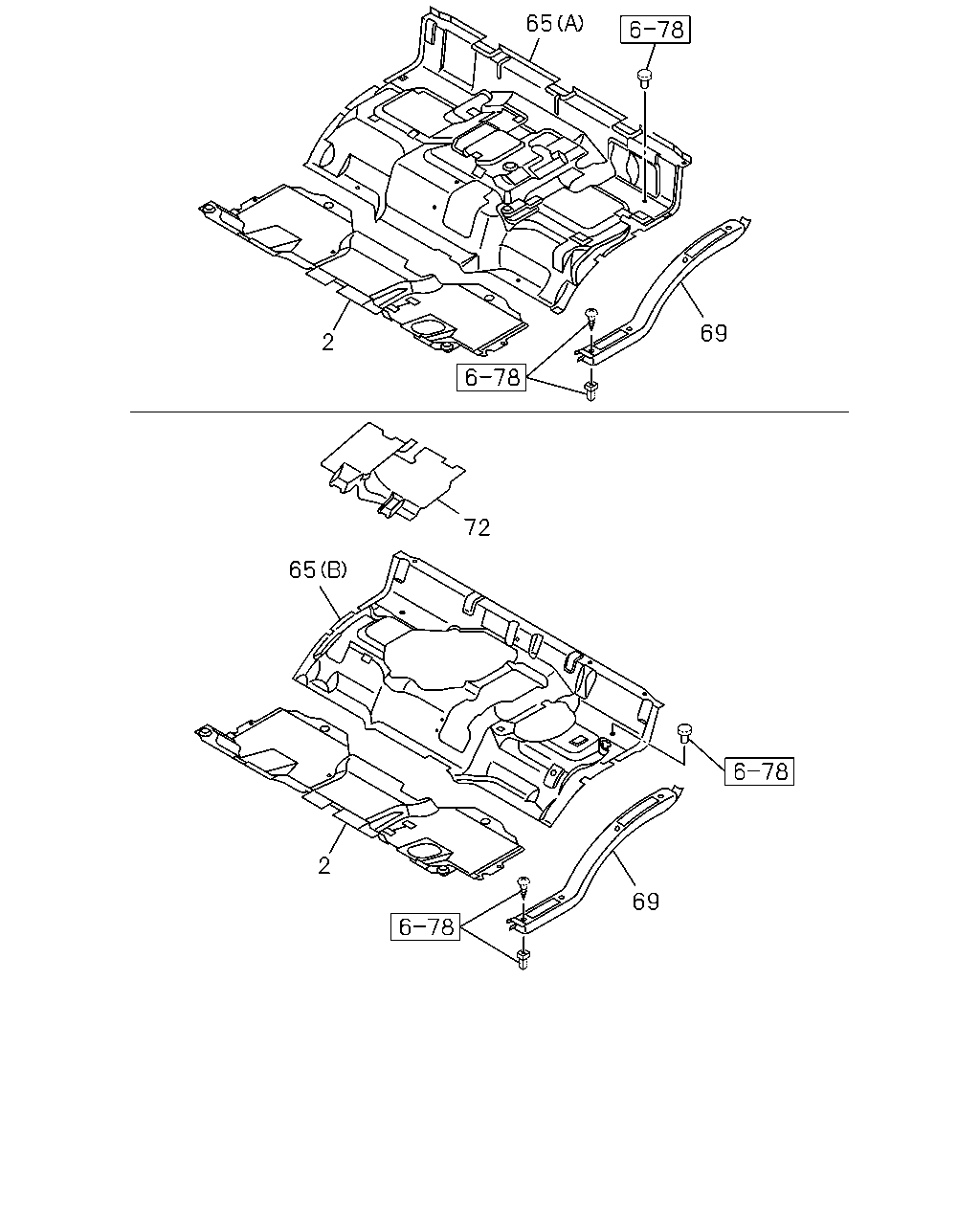

65 2 69 72 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97411-668-3	01	1	1109-1210	●
2	16.800 MAT; FLOOR GRAY	8-97411-668-3	01	1	1211-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97411-678-5	01	1	1109-1210	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97411-678-5	01	1	1211-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-5	01	1	1109-1210	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-5	01	1	1211-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1109-1210	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1211-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1109-1210	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1211-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1109-1210	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1211-	●	●
