6-05 — FRONT PANEL (#51765) — 206 parça

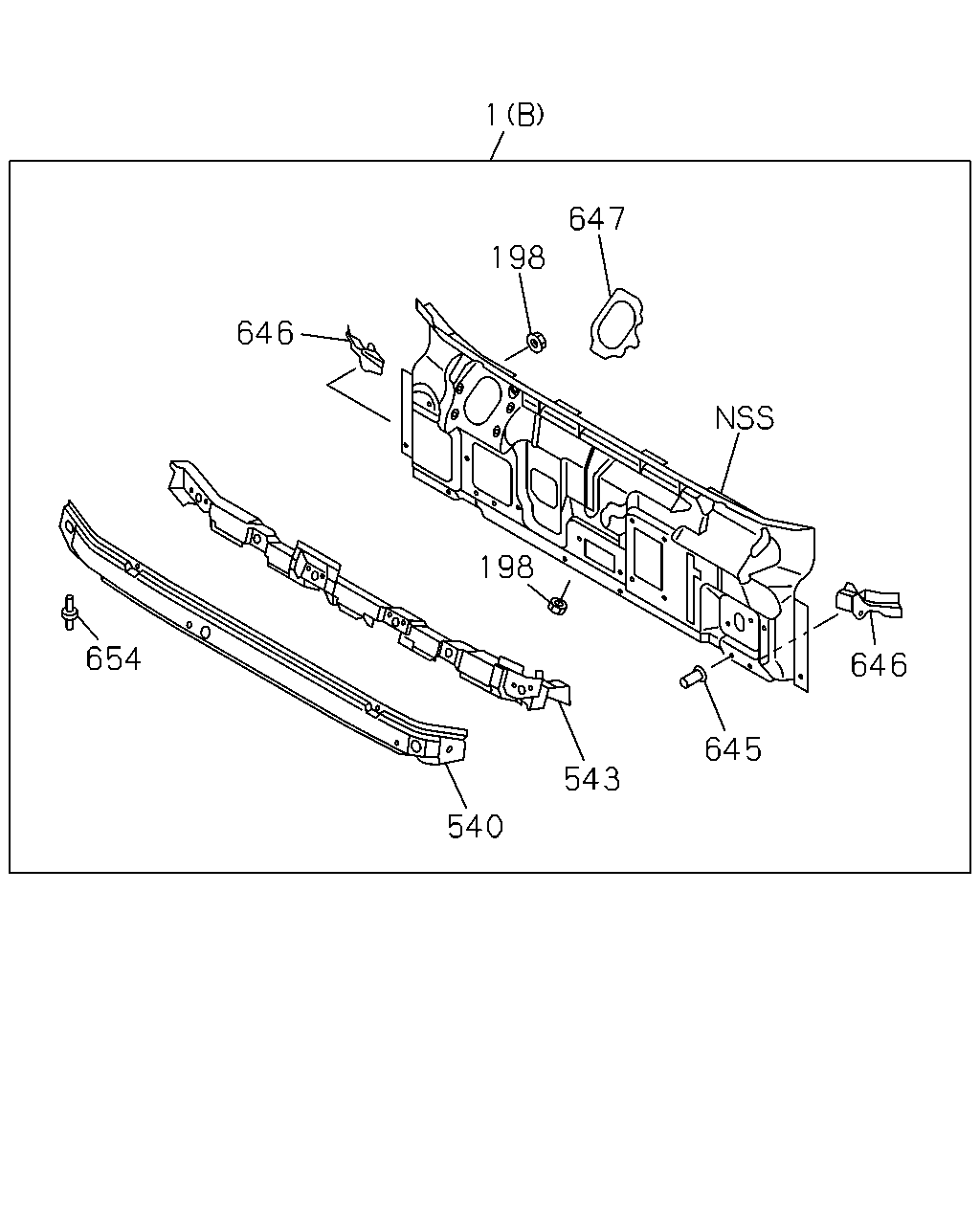

çizim 147776
1 198 647 198 646 654 540 543 645 646
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1211- ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1211- ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1211- ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1109-1210 ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1211- ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1109-1210 ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1211- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-963-0 01 1 1109-1210 ●
540 16.588 PANEL; FRONT,OUTER 8-97585-963-0 01 1 1211- ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-98008-130-0 01 1 1109-1210 ●
543 16.570 CLOSING; FRT MTG RAIL 8-98008-130-0 01 1 1211- ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1109-1210 ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1211- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1109-1210 ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1211- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1109-1210 ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1211- ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1109-1210 ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1211- ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1109-1210 ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1211- ● ●

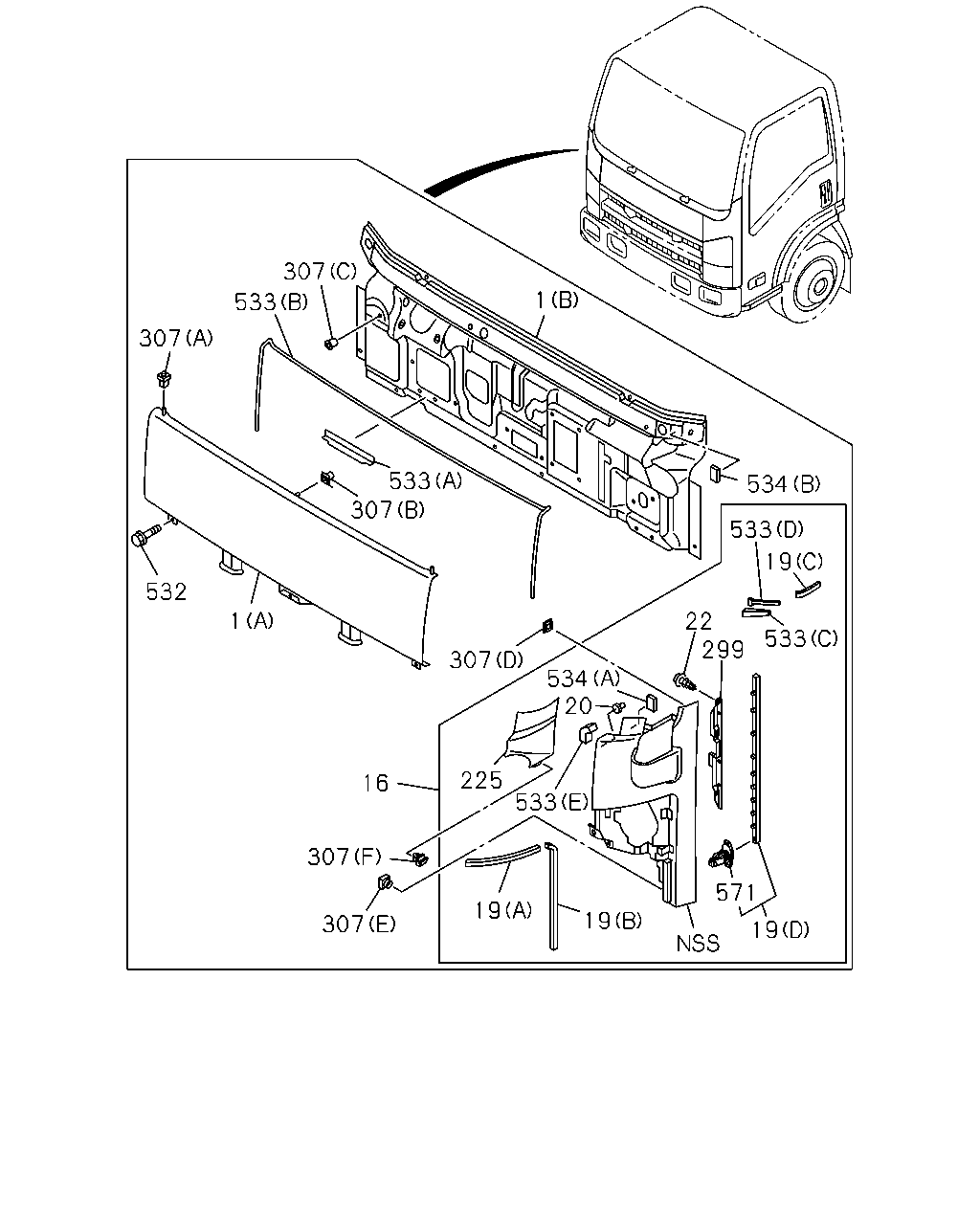

çizim 147796
307 533 307 532 1 533 307 307 16 307 307 19 19 571 19 533 225 20 534 22 299 533 19 533 534 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1211- ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1211- ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1109-1210 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1211- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97417-316-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLACK 		8-97417-315-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BLACK 		8-97417-315-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLACK 		8-97407-904-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97407-909-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97412-107-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> GRAY 		8-97412-096-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> GRAY 		8-97412-096-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> GRAY 		8-97417-302-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97417-308-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97412-116-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> WHITE 		8-97412-105-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> WHITE 		8-97412-105-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> WHITE 		8-97417-303-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97417-310-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-108-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-097-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-097-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97417-304-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97417-311-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97409-588-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> RED 		8-97409-579-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> RED 		8-97409-579-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> RED 		8-97417-305-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97417-312-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-109-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-098-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-098-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97407-905-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97407-910-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97405-625-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> WHITE 		8-97405-621-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> WHITE 		8-97405-621-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97405-621-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97412-110-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> RED 		8-97412-099-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> RED 		8-97412-099-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> RED 		8-97407-342-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97407-343-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97412-111-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> DARK GREEN 		8-97412-100-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> DARK GREEN 		8-97412-100-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> DARK GREEN 		8-97407-906-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97407-911-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97412-112-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> YELLOW 		8-97412-101-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> YELLOW 		8-97412-101-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> YELLOW 		8-97407-907-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FRENCH VANILLA(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97407-912-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97412-113-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BEIGE 		8-97412-102-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BEIGE 		8-97412-102-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BEIGE 		8-97417-306-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97417-314-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-114-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-103-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-103-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97412-103-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK YELLOW 		8-97412-115-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> DARK YELLOW 		8-97412-104-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> DARK YELLOW 		8-97412-104-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> ORANGE 		8-97417-307-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> ORANGE 		8-97417-313-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-117-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> GREEN 		8-97412-106-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> GREEN 		8-97412-106-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> GREEN 		8-97412-842-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-843-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97405-623-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> LIGHT GRAY 		8-97405-619-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> LIGHT GRAY 		8-97405-619-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97405-619-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97405-624-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97405-620-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97405-620-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97405-620-8 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-040-9 01 1 1109-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97406-040-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1109-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97415-716-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 1109-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97414-636-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1109-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97409-872-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97406-039-9 01 1 1109-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> WHITE 		8-97406-039-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 1109-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97415-715-9 01 1 1111-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97415-715-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-635-9 01 1 1109-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97414-635-9 01 1 1111-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> LIGHT GRAY 		8-97414-635-9 01 1 1211- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 1109-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97409-870-9 01 1 1111-1210 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97409-870-9 01 1 1211- ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1109-1110 ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1109-1110 ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1109-1110 ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1111- ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1109-1210 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1211- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1109-1210 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1211- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 1109-1110 ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1111- ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1111- ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1109-1110 ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1111- ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1111- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681) ,BODY COLOR DARK BLUE(695),BODY COLOR ARCWHITE(729),BODY COLOR CARDINAL RED(736), BODY COLOR WOODLAND GREEN(807),BODY COLORFRENCH VANILLA(812),BODY COLOR QUICK SIL VER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1211- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681) ,BODY COLOR DARK BLUE(695),BODY COLOR ARCWHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1211- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681) ,BODY COLOR DARK BLUE(695),BODY COLOR ARCWHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1211- ●
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1211- ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1109-1210 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1211- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1109-1210 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1109-1210 ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1211- ● ●
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (F) 		8-98028-743-0 02 1 1211- ●
307 16.125 GROMMET; FRT PANEL
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (F) 		8-98028-743-0 01 1 1211- ●
307 16.125 GROMMET; FRT PANEL
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F) 		8-98028-743-0 01 1 1211- ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1109-1210 ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1211- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-002-1 01 1 1109-1210 ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-002-1 01 1 1211- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 1109-1210 ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 1211-1506 ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1109-1210 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1211- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1109-1210 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1211- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1109-1110 ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1111- ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1111- ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1109-1110 ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1111- ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1111- ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1109-1110 ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 01 1 1111-1210 ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 01 1 1111-1210 ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> (A) 40X25 		8-98089-412-1 01 1 1211- ●
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 40X25 		8-98089-412-1 01 1 1211- ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 01 1 1211- ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A) 20X30 		8-98059-208-1 01 1 1211- ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 20X30 		8-98059-208-1 01 1 1211- ●
534 16.550 FASTENER
UNDER MIRROR<RR9> (A) 20X30 		8-98059-208-1 01 1 1211- ●
534 16.550 FASTENER
(A) 20X30 		8-98059-208-1 01 1 1211- ●
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1109-1111 ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 40X25 		8-98089-411-1 02 1 1112-1210 ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (B) 40X25 		8-98089-411-1 01 1 1211- ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 40X25 		8-98089-411-1 01 1 1211- ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> (B) 40X25 		8-98089-411-1 02 1 1211- ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1109-1110 ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1111- ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1111- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
