◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#51762) — 63 parça

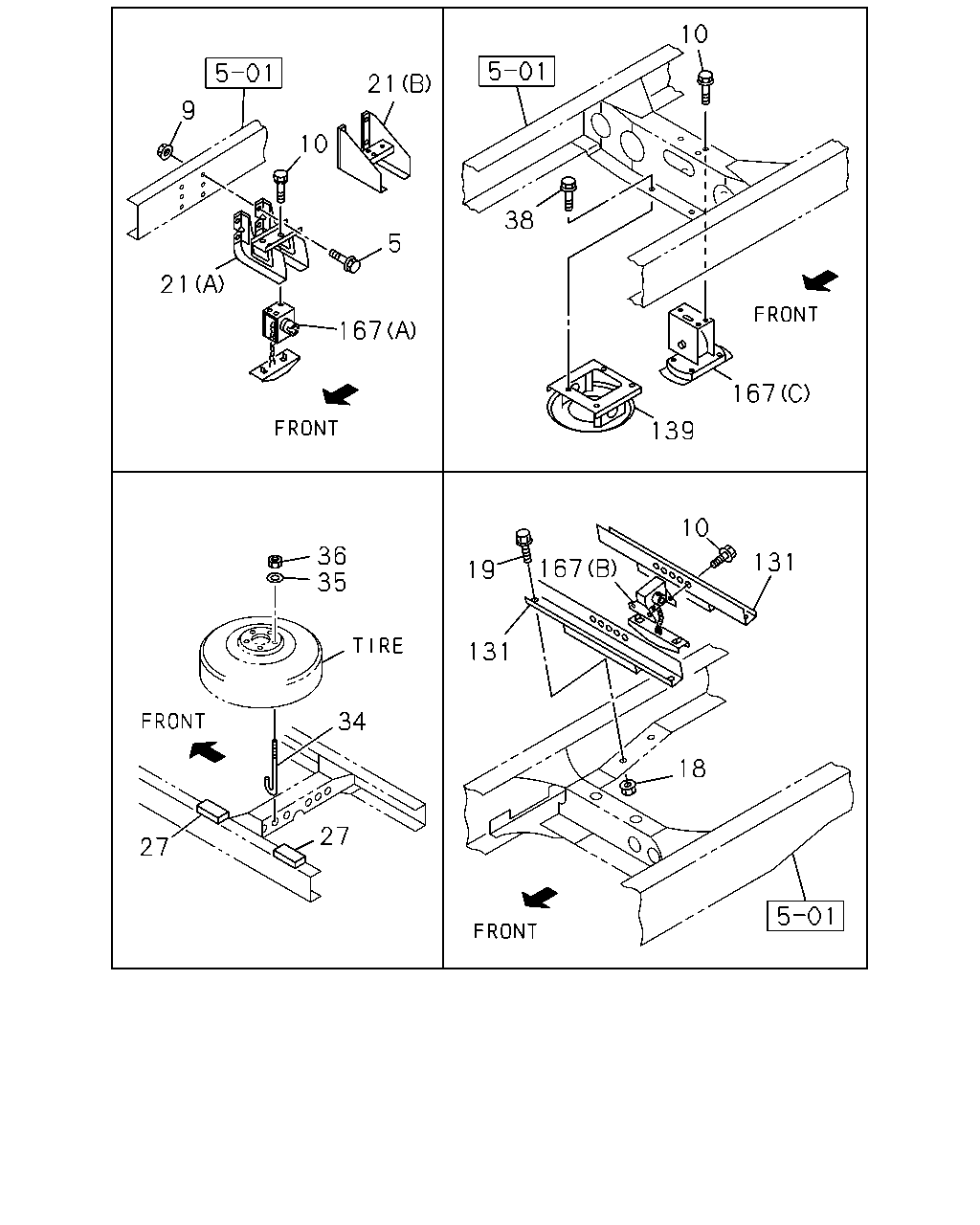

çizim 147775
9 21 10 5 167 21 38 10 167 139 19 131 167 10 131 18 36 35 34 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1109-1210 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1211-1510 ● ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50F X15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 195/75R16C DISC 1 6X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1511- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1109-1210 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1211- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1109-1210 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
SINGLE RR TIRE(6TD) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1403- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1403- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1109-1203 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1204-1210 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1211-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1403-1510 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1403-1510 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1511- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1511- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1109-1210 ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1211- ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109-1210 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1211- ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98036-085-2 01 1 1109-1203 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98036-085-2 01 1 1204-1210 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) (A) 		8-98036-085-2 01 1 1211-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) (A) 		8-98036-085-2 01 1 1211-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15- 170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A) 		8-98036-085-2 01 1 1309-1402 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) (A) 		8-98036-085-2 01 1 1309-1402 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A) 		8-98036-085-2 01 1 1403- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) (A) 		8-98036-085-2 01 1 1403- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-98141-569-0 01 1 1109-1203 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-98141-569-0 01 1 1204-1210 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B) 		8-98141-569-0 01 1 1211-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-10 DISC 5. 5F-15-25(CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.5 0FX16-25(CUU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16CDISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B) 		8-98141-569-0 01 1 1309-1402 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B) 		8-98141-569-0 01 1 1403- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 1204- ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 1204-1209 ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1210- ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 1204- ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 1204- ●
38 07.629 BOLT; STOPPER
SINGLE RR TIRE(6TD) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1211- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1109-1210 ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1211- ● ●
139 07.629 STOPPER; SPARE TIRE
SINGLE RR TIRE(6TD) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-98107-563-2 01 1 1211- ●
167 07.629 HANGER; TIRE
SINGLE RR TIRE(6TD) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (C) 		8-94380-175-1 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (C) 		8-94380-175-1 01 1 1403- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) (A) 		8-94382-875-1 01 1 1109-1210 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) (A) 		8-94382-875-1 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (A) 		8-94382-875-1 01 1 1403- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) (A) 		8-94382-875-1 01 1 1403- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 1109-1203 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 1204-1210 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) (B) 		8-98036-384-0 01 1 1211-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B) 		8-98036-384-0 01 1 1403- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) (B) 		8-98036-384-0 01 1 1403- ●
