5-20 — BATTERY CARRIER (#51761) — 48 parça

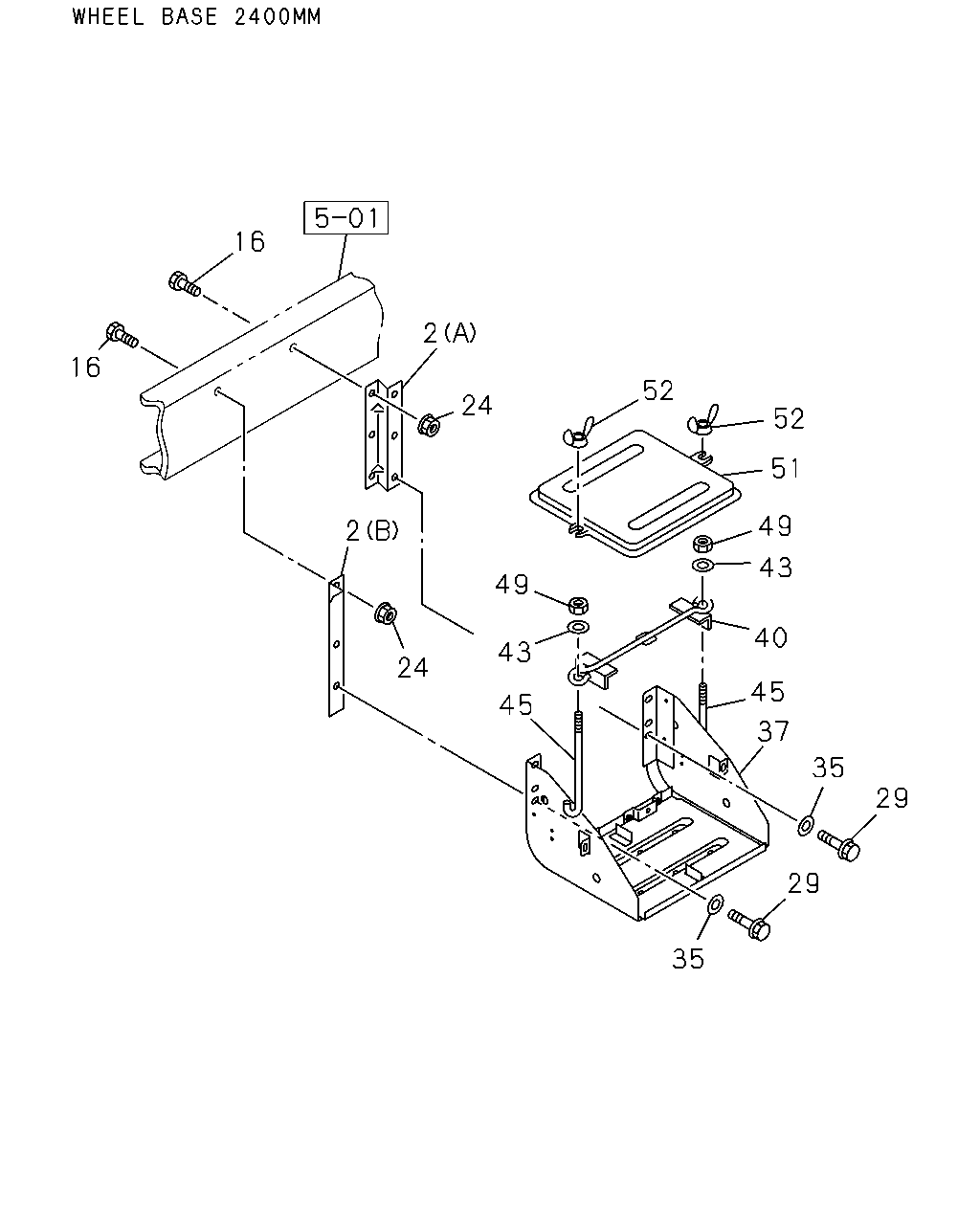

çizim 147762
16 16 2 24 2 24 49 43 45 35 29 29 35 37 45 40 43 49 51 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W) (A) 		8-97384-069-1 01 1 1109- ●
2 02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W) (B) 		8-97384-070-1 01 1 1109- ●
16 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1109- ●
24 02.334 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1211- ● ●
24 02.334 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1109-1210 ●
24 02.334 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1211- ● ●
29 02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1109-1210 ●
29 02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1211- ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1109-1210 ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1211- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1109-1210 ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1211- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 		8-97384-068-2 01 1 1109-1210 ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 		8-97384-068-2 01 1 1211- ● ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 1109-1210 ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 1211- ● ●
43 02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1109-1210 ●
43 02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1211- ● ●
45 02.334 ROD; TENSION,BATTERY
L=120 		9-53616-615-0 02 1 1109-1210 ●
45 02.334 ROD; TENSION,BATTERY
L=120 		9-53616-615-0 02 1 1211- ● ●
49 02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1210 ●
49 02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE 		0-91180-108-0 02 1 1211- ● ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 1109-1210 ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 1211- ● ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		0-91118-408-0 02 1 1109-1210 ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		0-91118-408-0 02 1 1211- ● ●

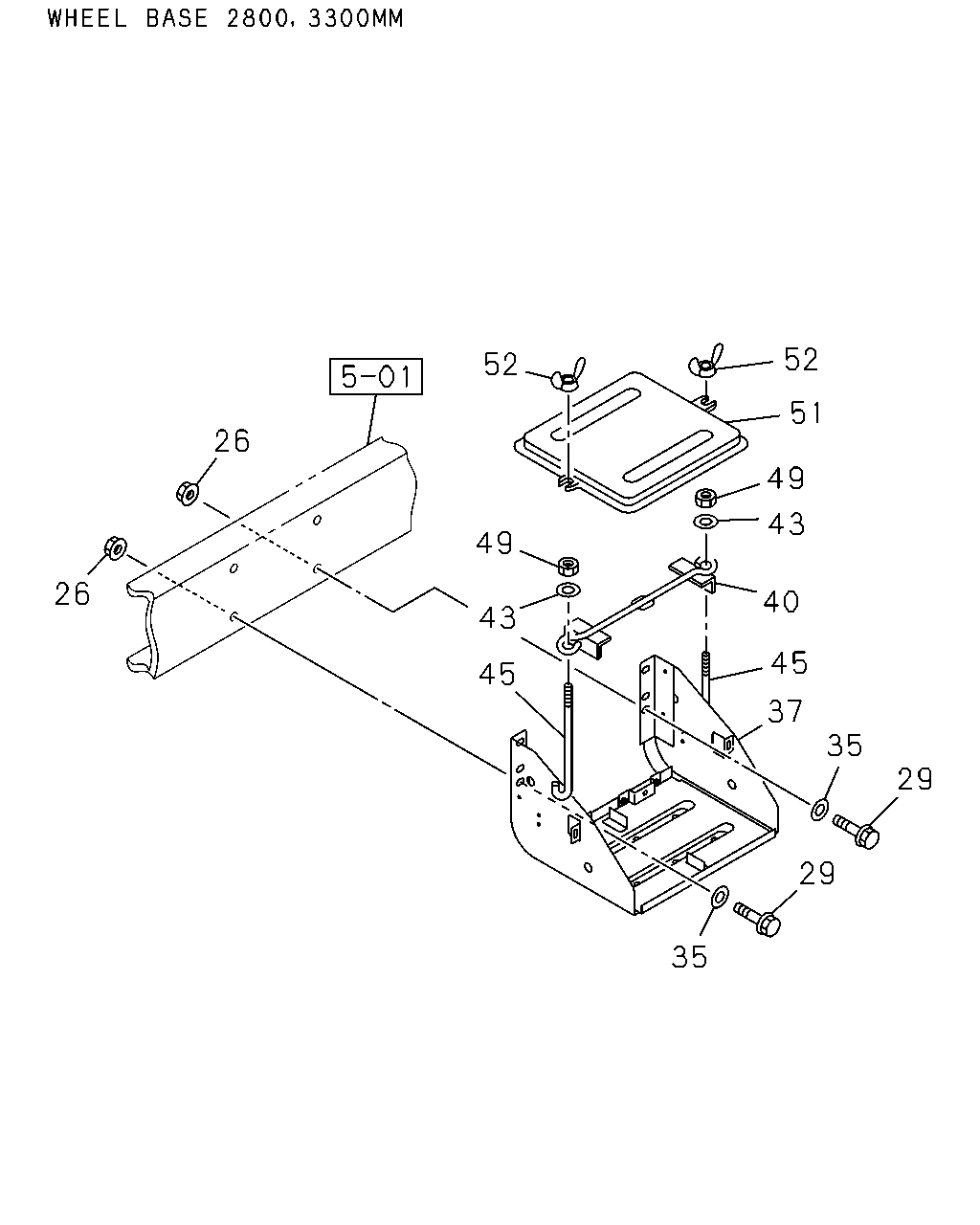

çizim 147772
26 26 52 52 51 49 43 40 45 37 35 29 29 35 45 49 43
BalonParca AdiParca NoAdetTipApplied Date A B
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1109-1210 ●
26 02.334 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1211- ● ●
29 02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1109-1210 ●
29 02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1211- ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1109-1210 ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1211- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1109-1210 ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1211- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 		8-97384-068-2 01 1 1109-1210 ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 		8-97384-068-2 01 1 1211- ● ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 1109-1210 ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 1211- ● ●
43 02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1109-1210 ●
43 02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1211- ● ●
45 02.334 ROD; TENSION,BATTERY
L=120 		9-53616-615-0 02 1 1109-1210 ●
45 02.334 ROD; TENSION,BATTERY
L=120 		9-53616-615-0 02 1 1211- ● ●
49 02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1210 ●
49 02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE 		0-91180-108-0 02 1 1211- ● ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 1109-1210 ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 1211- ● ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		0-91118-408-0 02 1 1109-1210 ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		0-91118-408-0 02 1 1211- ● ●
