8-05 — INTERIOR LAMP (#5175) — 129 parça

1 85 2 2 11 4 3 56 88 8 33 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9606-9909
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	9910-
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9606-9909
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	9910-
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-94206-208-0	01	1	9606-9709
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9710-9909
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X25	5-09981-093-0	03	1	9606-9909
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X25	5-09981-093-0	03	1	9910-9911
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	9912-
8	COVER; BED ROOM LAMP CENTER SEAT DELETE(SP9) DELUXE CAB<W14>	1-73347-803-2	01	1	0101-
11	LAMP ASM; ASH TRAY POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76458-076-1	01	1	9606-
15	LAMP; INSPECTION DELUXE CAB<W14>	1-82140-052-1	01	1	9906-
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	9606-
33	GROMMET; SCREW,LAMP DELUXE CAB<W14> (B)	1-09983-182-0	01	1	9906-
56	BRACKET; LAMP DELUXE CAB<W14>	1-86830-302-1	01	1	9906-
85	BULB; ASH TRAY POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 24V 1.4W	1-76457-041-0	01	1	9606-
88	BOLT; LAMP DELUXE CAB<W14> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9906-
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9606-9905
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9906-9909
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-

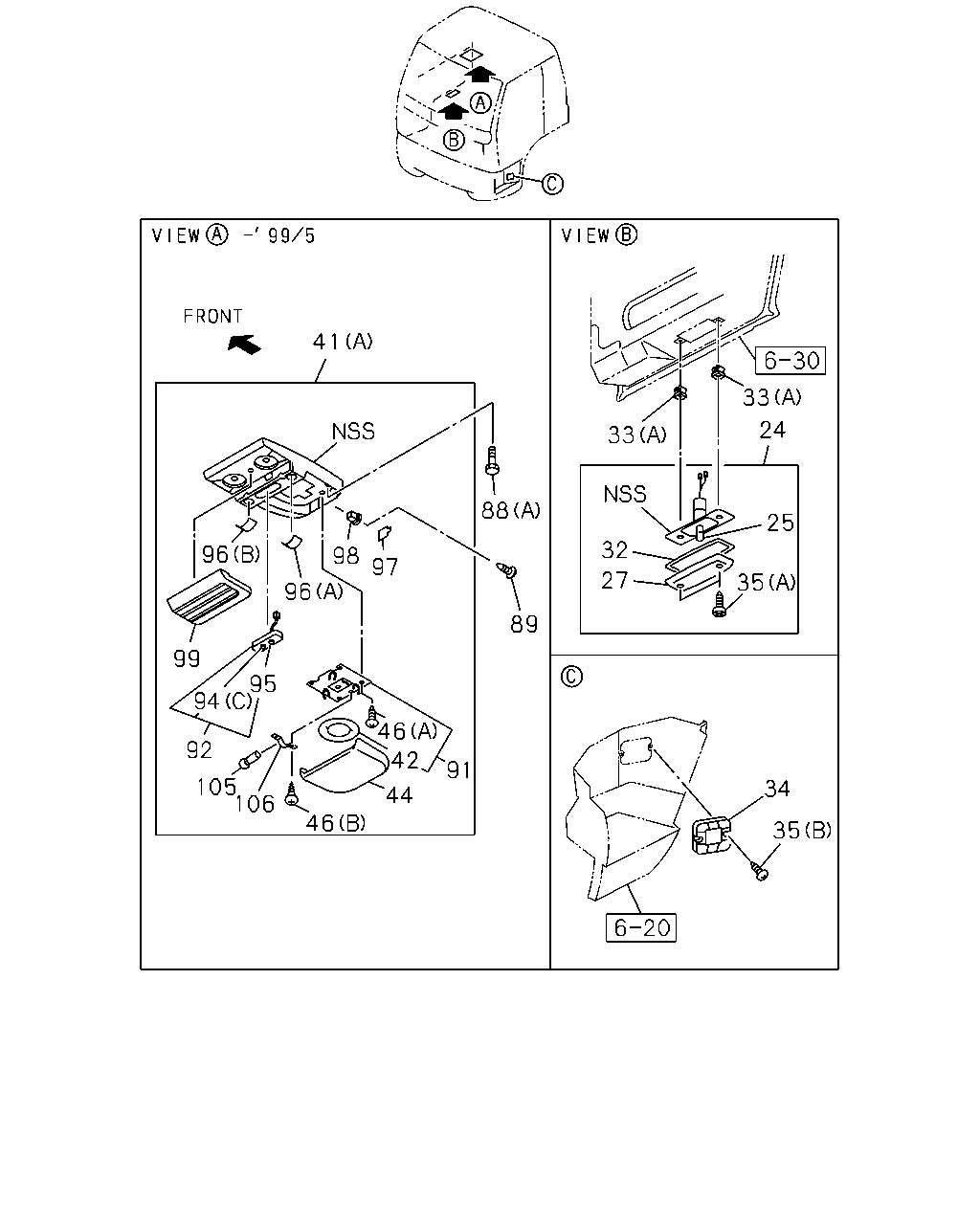

41 33 24 33 88 25 32 96 98 97 27 3 96 89 99 95 94 46 42 92 91 105 106 34 44 46 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-94206-208-0	01	1	9606-9709
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9710-9909
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-
24	LAMP; STEP	1-82140-044-0	01	1	9606-9905
24	LAMP; STEP	1-82140-052-1	01	1	9906-
25	BULB; STEP LAMP 24V 12W	1-82194-004-0	01	1	9606-9905
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	9906-
27	LENS; STEP LAMP	1-87550-003-0	01	1	9606-9905
27	LENS; STEP LAMP	1-82145-019-0	01	1	9906-
32	GASKET; HSG	1-82146-004-0	01	1	9606-9905
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	9606-
33	GROMMET; SCREW,LAMP DELUXE CAB<W14> (B)	1-09983-182-0	01	1	9906-
34	COVER; STEP LAMP EXC. STARTER NIKKO<TDS>	1-71907-444-0	02	1	9606-
35	SCREW; STEP LAMP (A)	1-82149-002-0	02	1	9606-9905
35	SCREW; STEP LAMP (A) M4X20	1-82149-006-0	02	1	9906-
35	SCREW; STEP LAMP EXC. STARTER NIKKO<TDS> (B) M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9606-
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-245-2	01	1	9606-9905
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9906-9909
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9910-
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-284-3	01	1	9910-
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9606-9909
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9606-9909
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9606-9905
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9606-9905
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-
88	BOLT; LAMP DELUXE CAB<W14> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9906-
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9606-9905
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9906-9909
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9606-9909
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-
91	LAMP SUB ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-207-0	01	1	9606-9905
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9606-9905
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9906-9909
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (C)	1-86830-098-0	01	1	9606-9905
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9906-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9906-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-
95	KNOB; SPOT LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-099-0	01	1	9606-9905
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9606-9905
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9606-9909
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9910-
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9606-9909
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9606-9909
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-
99	COVER; AIR PURIFIER LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-103-0	01	1	9606-9905
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9606-9909
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9606-9909
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-

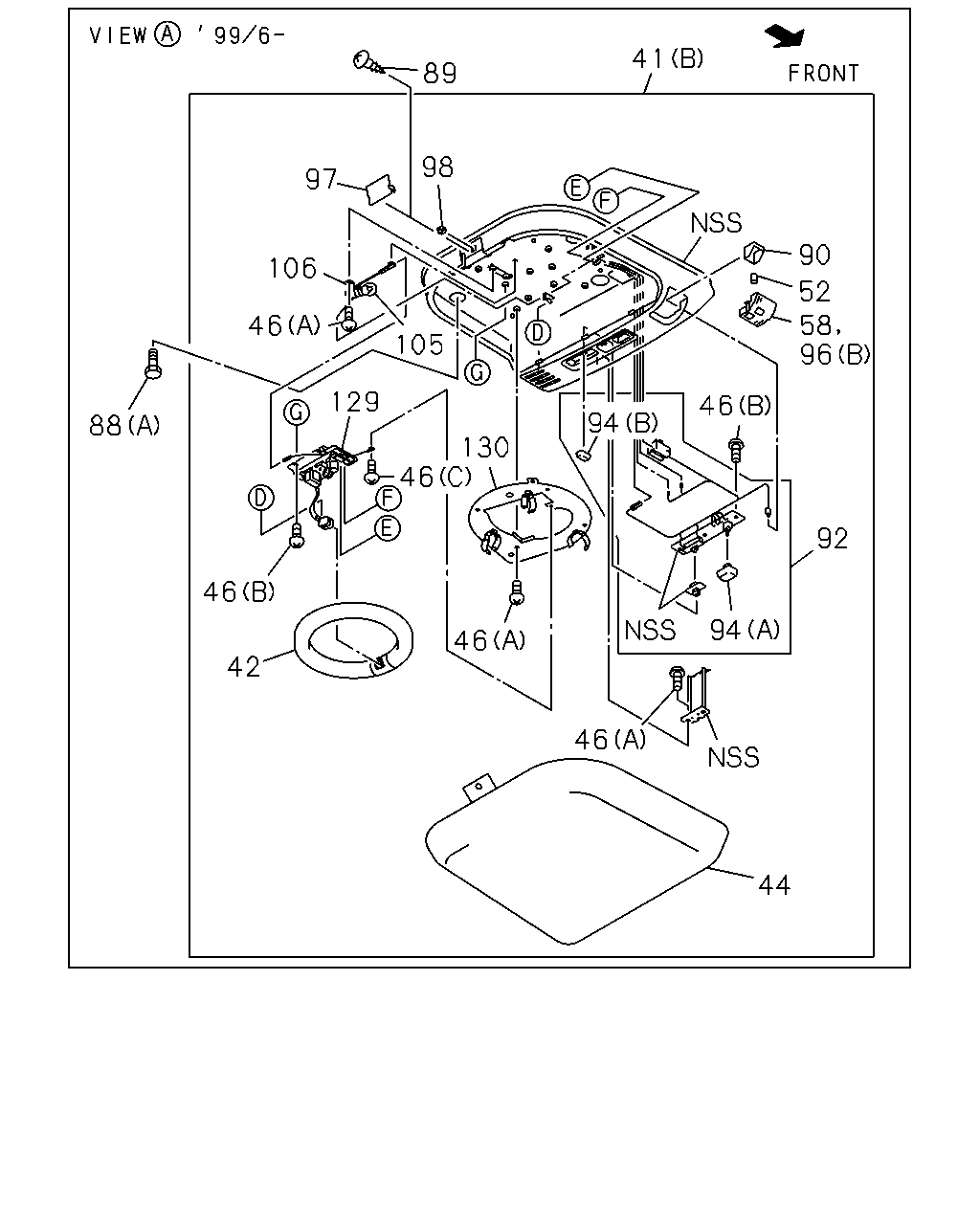

41 89 98 97 90 106 52 58 96 46 105 129 46 94 88 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-245-2	01	1	9606-9905
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9906-9909
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9910-
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-284-3	01	1	9910-
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9606-9909
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9606-9909
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9606-9905
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9606-9905
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9906-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-
52	BULB; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> 28V 6W	1-86830-090-0	01	1	9910-
58	LENS; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG>	1-86830-089-0	01	1	9910-
88	BOLT; LAMP DELUXE CAB<W14> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9906-
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9606-9905
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9906-9909
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9606-9909
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-
90	BASE; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG>	1-86830-091-0	01	1	9910-
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9606-9905
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9906-9909
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (C)	1-86830-098-0	01	1	9606-9905
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9906-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9906-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9606-9905
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9606-9909
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9910-
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9606-9909
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9606-9909
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9606-9909
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9606-9909
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9906-9909
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	9910-
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9906-9909
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	9910-
