Sayfa 9-33 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶

9-33 — REAR BODY; GATE AND SIDE GUARD (#51747) — 123 parça

40 40 40 36 70 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97592-525-0	02	1	0810-
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-1	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0810-
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 OD=60 H=22	8-94193-455-0	02	1	0810-

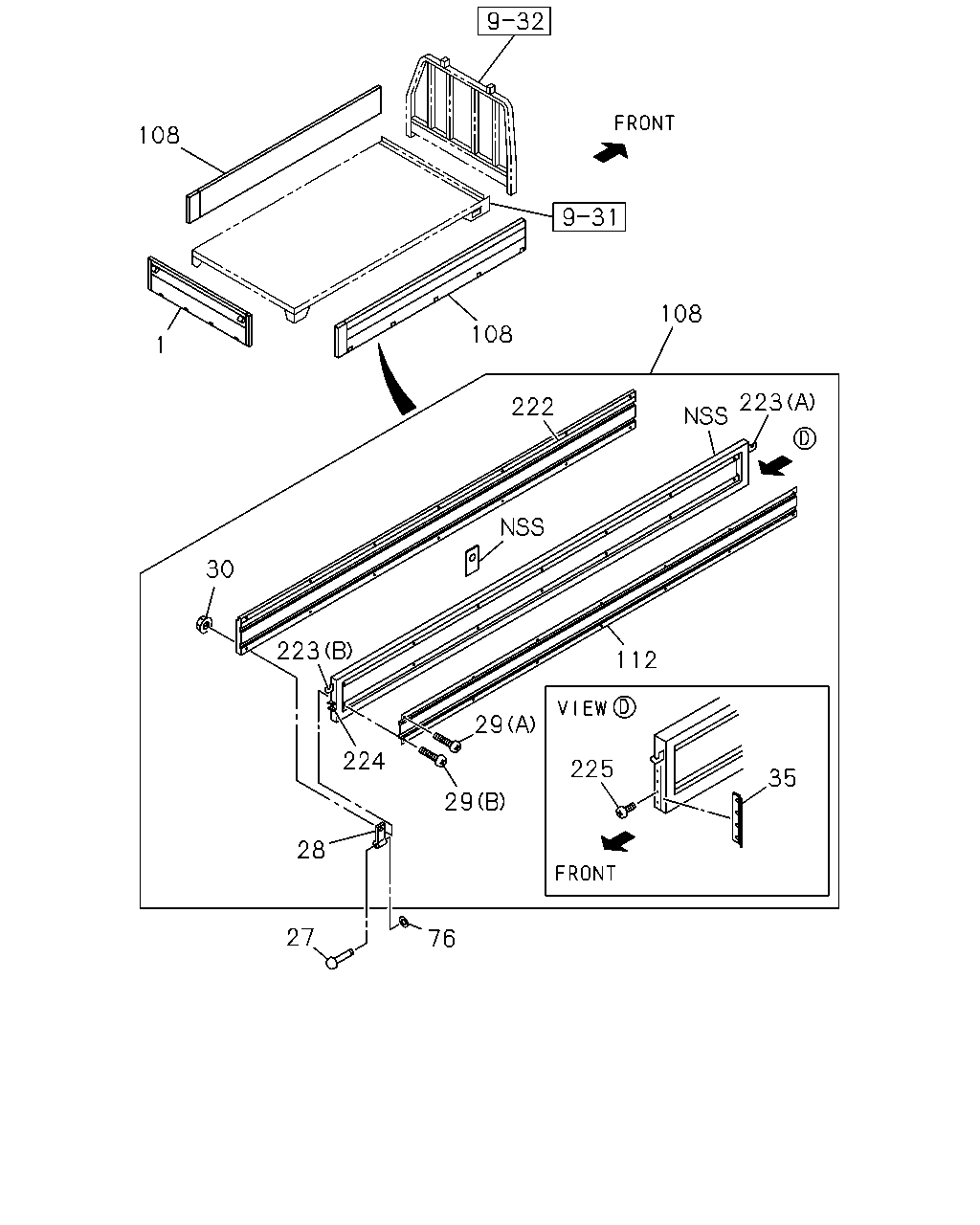

108 108 108 1 223 222 30 223 112 29 224 225 35 29 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD TAKADA	8-97594-651-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-0	01	1	1405-1411
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0810-1411
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	12	1	0810-1411
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	1412-
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0810-1411
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	12	1	0810-1411
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	1412-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	12	1	0810-1411
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	14	1	1412-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	12	1	0810-1411
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	14	1	1412-
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	14	1	0810-1411
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	14	1	0810-1411
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	24	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	24	1	1304-1411
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	28	1	1412-
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0810-1303
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	28	1	1304-1411
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97593-750-0	02	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0810-1411
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0810-1411
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	1412-
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-2	01	1	0810-1411
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-2	01	1	0810-1411
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0810-
112	17.455 PANEL; SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97594-605-0	02	1	0810-1411
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-607-0	02	1	0810-
222	17.505 BOARD; SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97594-609-0	02	1	0810-1411
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-611-1	02	1	0810-
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-396-0	01	1	0810-1411
223	17.505 HOOK; PLATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-396-0	01	1	1412-
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-397-0	01	1	0810-1411
223	17.505 HOOK; PLATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-397-0	01	1	1412-
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-673-0	01	1	0810-1411
223	17.505 HOOK; PLATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-673-0	01	1	1412-
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-674-0	01	1	0810-1411
223	17.505 HOOK; PLATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-674-0	01	1	1412-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	0810-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	0810-
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0810-

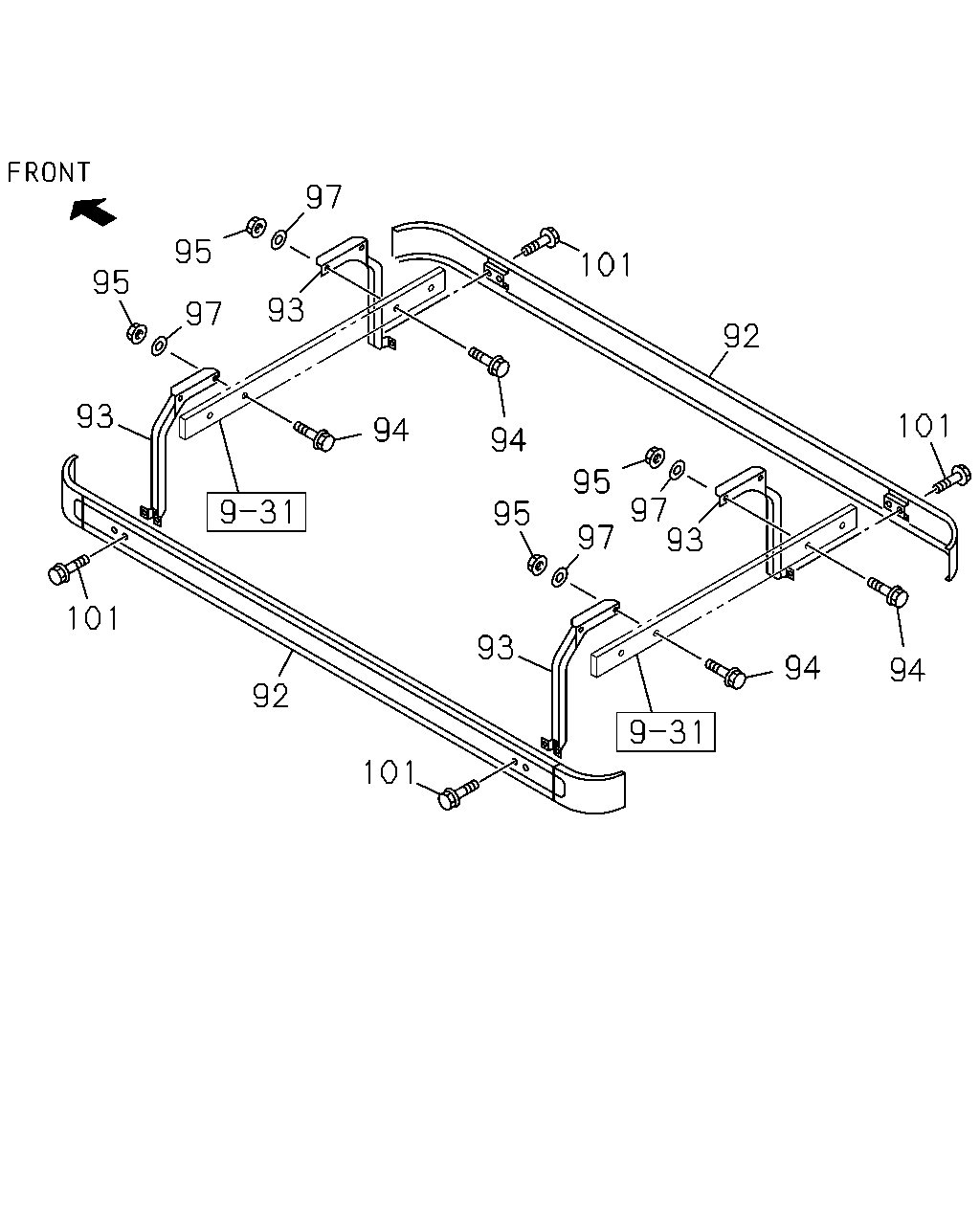

97 95 101 95 93 97 92 93 101 94 94 95 97 93 95 97 101 93 94 94 92 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98092-668-1	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98092-669-0	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98092-666-0	01	1	0810-
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98092-667-0	01	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98035-148-0	02	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98035-148-0	02	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98035-149-0	02	1	0810-
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98035-149-0	02	1	0810-
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> M10X70 W/LK WASHER	0-50541-070-0	08	1	0810-
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> M10X70 W/LK WASHER	0-50541-070-0	08	1	0810-
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 03.162 M10 FLANGE	0-91180-110-0	08	1	0810-
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0810-
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0810-
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0810-
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0810-
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0810-

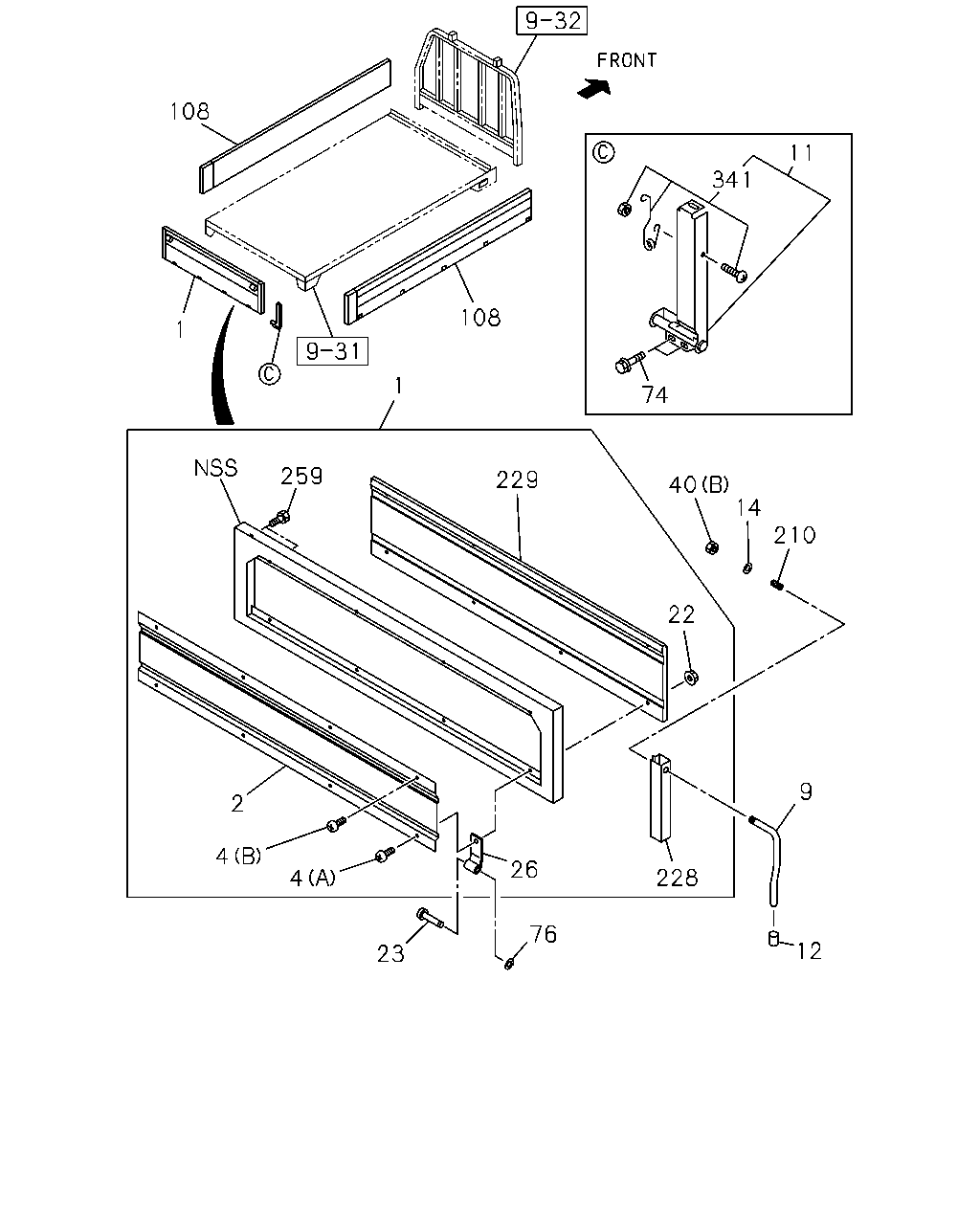

108 11 341 108 1 1 74 259 229 40 14 210 22 9 2 4 26 228 4 76 12 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD TAKADA	8-97594-651-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-0	01	1	1405-1411
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0810-0810
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-082-0	01	1	0810-1411
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-081-0	01	1	0810-
2	17.185 PANEL; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97590-081-0	01	1	0810-
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) M8X16	8-94193-952-3	04	1	0810-
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) M8X21	8-94193-953-3	04	1	0810-
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-400-2	01	1	0810-
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-401-2	01	1	0810-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-97591-898-0	01	1	0810-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-97591-899-0	01	1	0810-
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0810-
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> ID=12.5	0-91614-512-0	02	1	0810-
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-1	08	1	0810-1303
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	08	1	1304-
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-2	04	1	0810-
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0810-0810
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-078-0	04	1	0811-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0810-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0810-
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> 17.185 M8X25	8-94194-111-2	04	1	0810-
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0810-1411
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0810-1411
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	1412-
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-2	01	1	0810-1411
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-2	01	1	0810-1411
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0810-
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0810-
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	0810-
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97593-782-0	01	1	0810-
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97593-783-0	01	1	0810-
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-243-0	01	1	0810-1404
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-793-0	01	1	1405-1411
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-242-0	01	1	0810-1404
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-242-0	01	1	0810-1404
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-792-0	01	1	1405-1411
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97565-792-0	01	1	1405-1411
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97565-792-1	01	1	1412-
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> OUTER M8X20 TAKADA	8-94194-115-0	02	1	0810-1303
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> OUTER M8X20 TAKADA	8-97590-324-0	02	1	1304-1411
259	17.505 BOLT; BRKT,RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> OUTER M8X20 TAKADA	8-97590-324-0	02	1	1412-
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> INNER M8X40 TAKADA	8-97593-296-0	02	1	0810-1303
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> INNER M8X40 TAKADA	8-97590-325-0	02	1	1304-1411
259	17.505 BOLT; BRKT,RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> INNER M8X40 TAKADA	8-97590-325-0	02	1	1412-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0810-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
