1 |

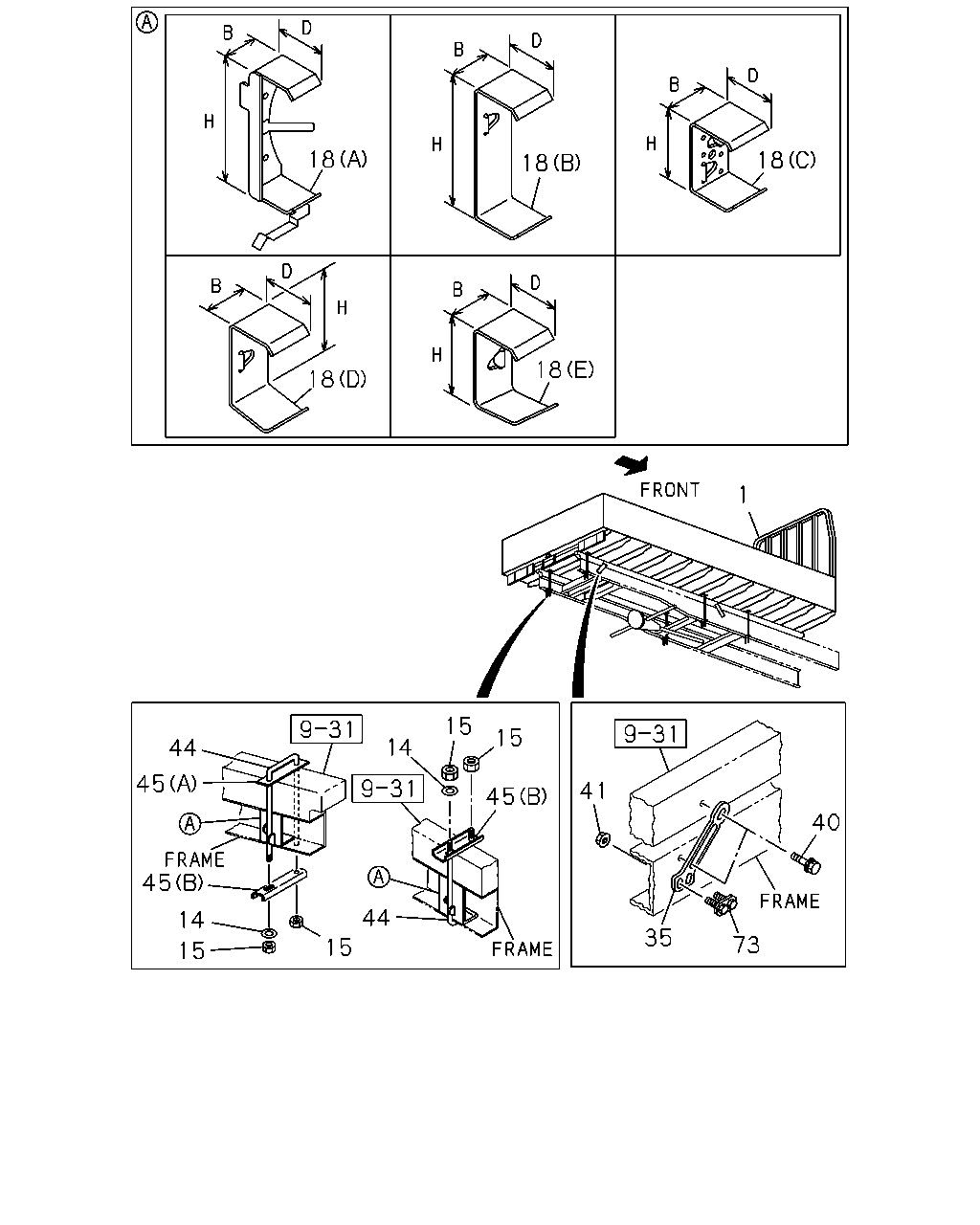

17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
REAR BODY LAGER WIDTH<8EH>
WHITE
|
8-97411-609-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. REAR BODY LAGER WIDTH<8EH>
WHITE
|
8-97411-628-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
REAR BODY LAGER WIDTH<8EH>
LIGHT GRAY
|
8-97414-632-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
EXC. REAR BODY LAGER WIDTH<8EH>
LIGHT GRAY
|
8-97414-631-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
REAR BODY LAGER WIDTH<8EH>
BLUE
|
8-97411-610-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
EXC. REAR BODY LAGER WIDTH<8EH>
BLUE
|
8-97411-608-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
BLUE
|
8-97411-627-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
LIGHT GRAY
|
8-97414-630-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
WHITE
|
8-97411-626-2 |
01 |
1 |
0810- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
REAR BODY LAGER WIDTH<8EH>
BLUE
|
8-97417-301-2 |
01 |
1 |
0904- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. REAR BODY LAGER WIDTH<8EH>
BLUE
|
8-97417-300-2 |
01 |
1 |
0904- |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
BLUE
|
8-97417-299-2 |
01 |
1 |
0904- |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
00.029
ID=15 OD=26
|
9-09164-514-0 |
04 |
1 |
0810-1010 |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
ID=15 OD=26
|
0-91614-514-0 |
04 |
1 |
1011- |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
00.029
ID=15 OD=26
|
9-09164-514-0 |
06 |
1 |
0810-1010 |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
ID=15 OD=26
|
0-91614-514-0 |
06 |
1 |
1011- |
| |
15 |
09.011 NUT; RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
06.008
M14
|
9-09130-414-0 |
08 |
1 |
0810- |
| |
15 |
09.011 NUT; RR BODY MTG
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
06.008
M14
|
9-09130-414-0 |
12 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
(A)
H=172 B=40 D=65
|
8-98058-167-0 |
01 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
01 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
(D)
H=102 B=50 D=65
|
8-98041-880-0 |
01 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
(E)
H=102 B=50 D=65
|
8-98041-881-0 |
01 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(C)
H=91 B=50 D=65
|
8-94132-123-1 |
02 |
1 |
0810- |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0810- |
| |
35 |
17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6>
|
8-98030-398-2 |
04 |
1 |
0810- |
| |
40 |
17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
|
8-97189-615-0 |
04 |
1 |
0810- |
| |
41 |
17.447 NUT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0810- |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
L=367
|
5-51171-008-1 |
01 |
1 |
0810- |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
L=367
|
5-51171-008-1 |
01 |
1 |
0810- |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
L=297
|
5-51171-009-1 |
02 |
1 |
0810- |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
L=272
|
5-51171-007-1 |
02 |
1 |
0810- |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
L=367
|
5-51171-008-1 |
03 |
1 |
0810- |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
(B)
L=120 B=45
|
5-66900-204-3 |
04 |
1 |
0810- |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
0810- |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6>
(A)
L=116 B=35
|
5-66900-203-0 |
02 |
1 |
0810-0901 |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED<RS6>
(A)
L=116 B=35
|
5-66900-203-0 |
02 |
1 |
0902- |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0902- |
| |
73 |
03.690 PLATE; STUD BOLT
RR BODY FLAT BED<RS6>
|
8-98047-322-0 |
04 |
1 |
0810- |
