8-65 — CONTROL LEVER; HEATER AND AIR CON (#51737) — 18 parça

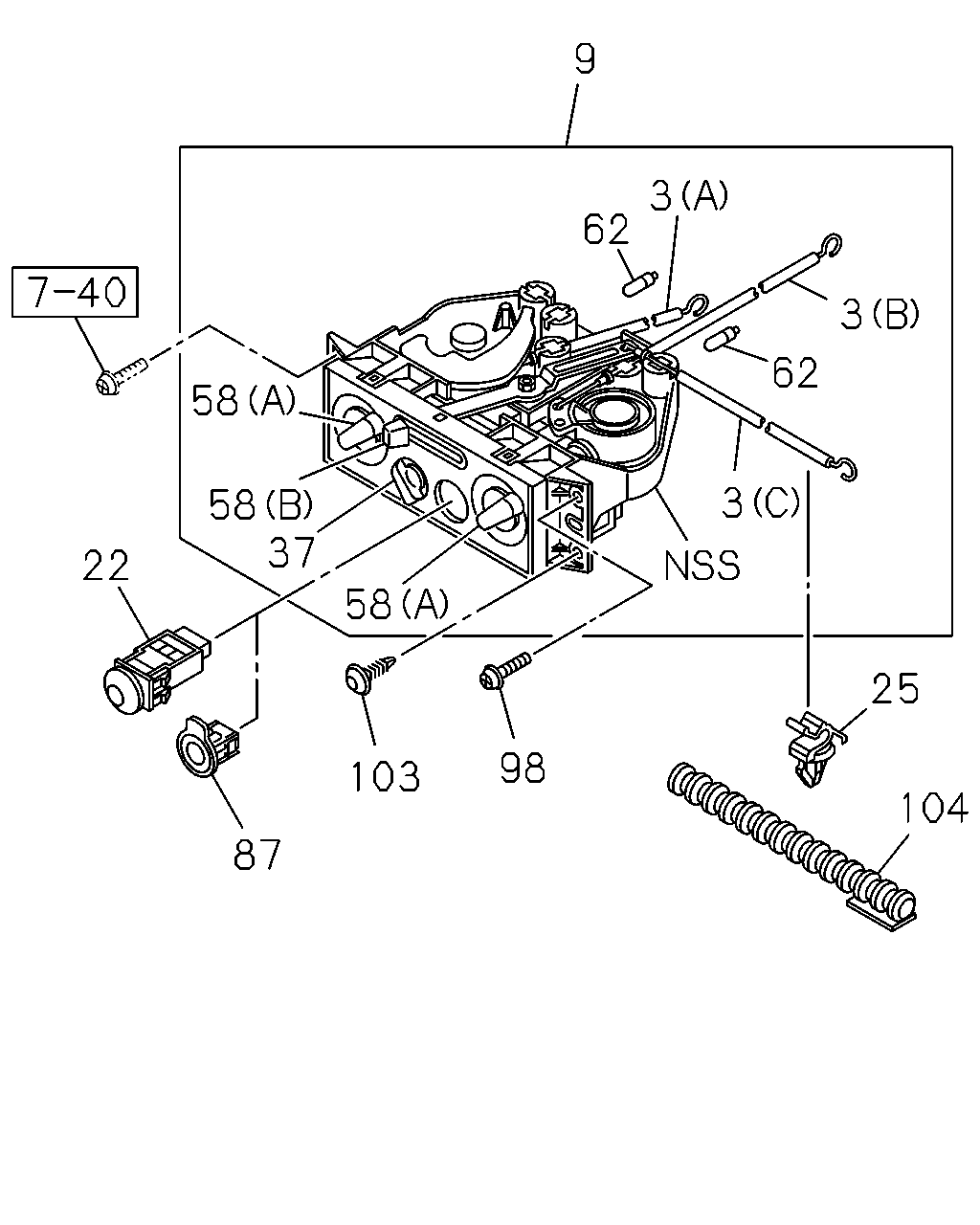

çizim 14862
9 3 62 3 62 58 3 58 37 58 22 25 98 103 104 87
BalonParca AdiParca NoAdetTipApplied Date
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-254-1 01 1 0810-
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-256-1 01 1 0810-
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-255-1 01 1 0810-
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98067-883-1 01 1 0810-
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98067-881-1 01 1 0810-
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0810-
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 0810-
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0810-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 0810-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0810-
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0810-
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0810-
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 0810-
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0810-1101
98 08.852 SCREW; CONT PANEL
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 0810-
104 08.852 GUIDE; CABLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98071-970-0 01 1 0810-
