8-01 — LAMP; FRONT AND FRONT SIDE (#5173) — 173 parça

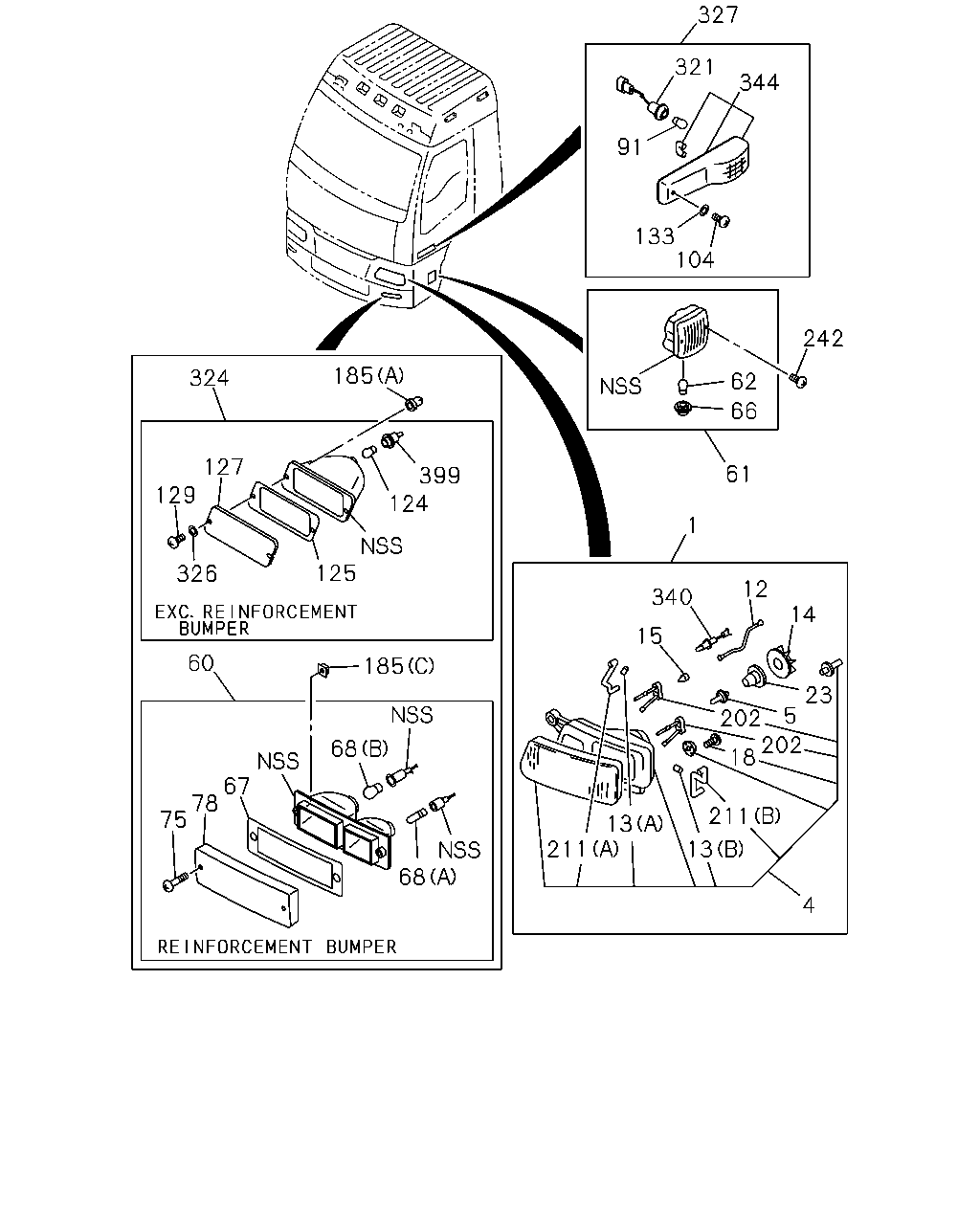

327 321 344 91 133 104 242 185 324 62 66 127 61 399 124 129 1 125 326 12 340 14 15 60 185 23 5 202 202 18 68 67 78 75 211 13 211 13 68 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
4	HEADLAMP UNIT	1-82119-114-0	01	1	9606-9609
4	HEADLAMP UNIT	1-82119-129-0	01	1	9610-
4	HEADLAMP UNIT	1-82119-113-0	01	1	9606-9710
4	HEADLAMP UNIT	1-82119-128-0	01	1	9711-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9606-
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9606-
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9606-
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9606-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9606-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9606-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9606-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9606-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	9606-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	9606-
61	LAMP ASM; CORNERING STARTER NIKKO<TDS> 24V 30W	1-86830-188-2	01	1	9606-
61	LAMP ASM; CORNERING STARTER NIKKO<TDS> 24V 30W	1-86830-187-2	01	1	9606-
62	BULB; CORNERING LAMP STARTER NIKKO<TDS> 24V 30W	8-97010-179-0	02	1	9606-
66	HARNESS; CORNERING LAMP STARTER NIKKO<TDS>	1-86830-146-0	02	1	9606-
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	9606-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	9606-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	9606-
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	9606-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	9606-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	9606-
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9606-9809
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	9810-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9606-
124	BULB; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	9606-
125	GASKET; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	9606-
127	LENS; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	9606-
127	LENS; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	9606-
129	SCREW; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	9606-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9606-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9606-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9606-
185	GROMMET; SCREW EXC. REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9606
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9905
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9606-
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9606-9911
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9606-9911
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9606-9911
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9606-9911
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-
242	SCREW; CORNERING LAMP STARTER NIKKO<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9606-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9606-
324	LAMP; FRT FLASHER EXC. REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	9606-
324	LAMP; FRT FLASHER EXC. REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	9606-
326	WASHER; PL,FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	9606-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9606-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	9810-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9606-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	9810-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9606-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9606-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9606-
399	SOCKET; TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	9606-

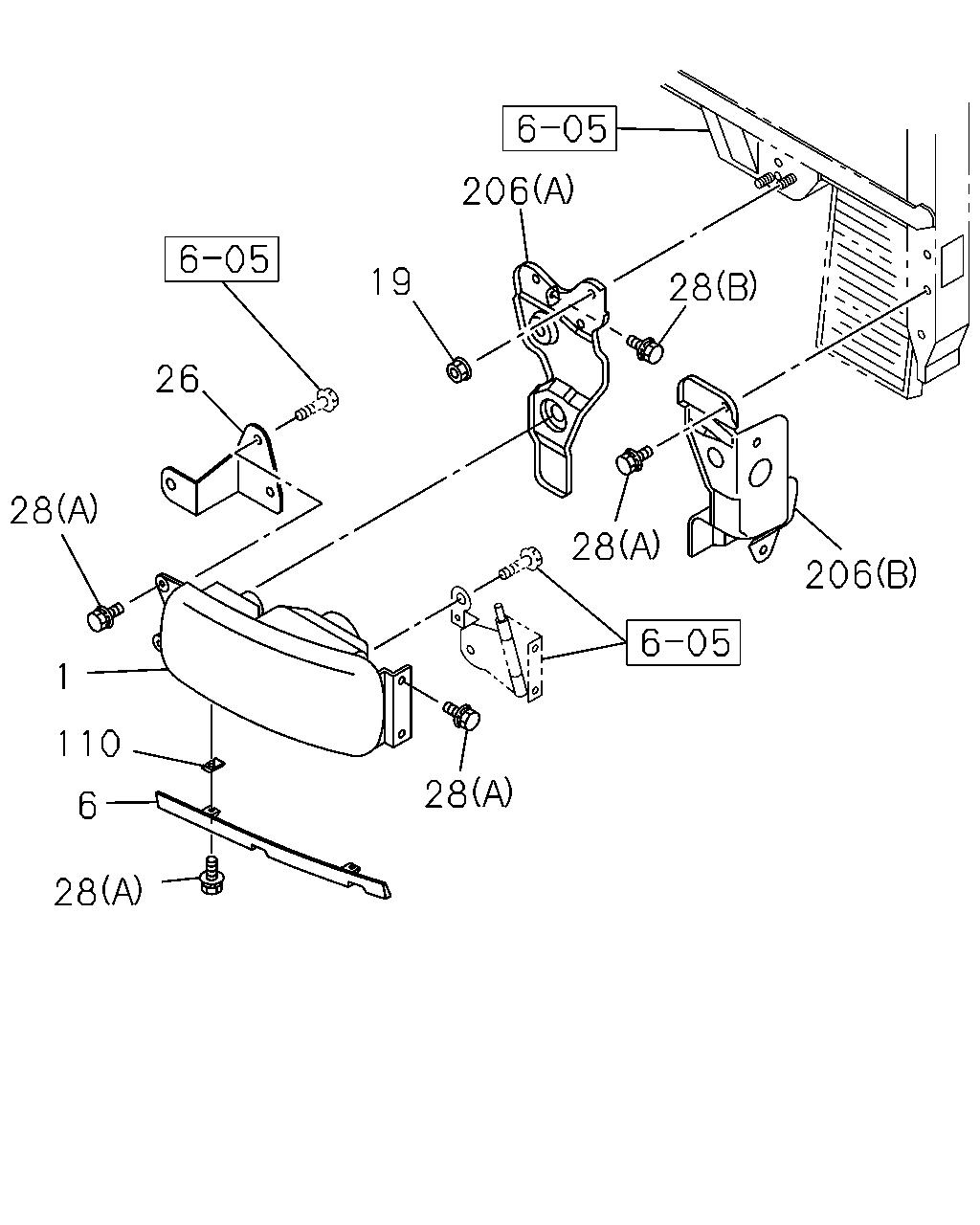

206 19 28 26 28 28 206 1 110 28 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
6	RIM; HEADLAMP	1-71107-024-0	01	1	9606-9709
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	9710-
6	RIM; HEADLAMP	1-71107-023-0	01	1	9606-9709
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	9710-
19	NUT; HEADLAMP M8 FLANGE	8-94279-517-0	04	1	9606-9611
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
26	BRACKET ASM; HEADLAMP	1-86830-085-0	01	1	9606-9905
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9906-
26	BRACKET ASM; HEADLAMP	1-86830-084-0	01	1	9606-9905
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9906-
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9606-9905
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9906-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	06	1	9709-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X28,M10X15 L=50	5-09300-050-0	02	1	9709-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
110	CLIP; RIM,HEADLAMP	1-86830-213-0	04	1	9606-9905
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	9906-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9606-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9606-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9606-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9606-

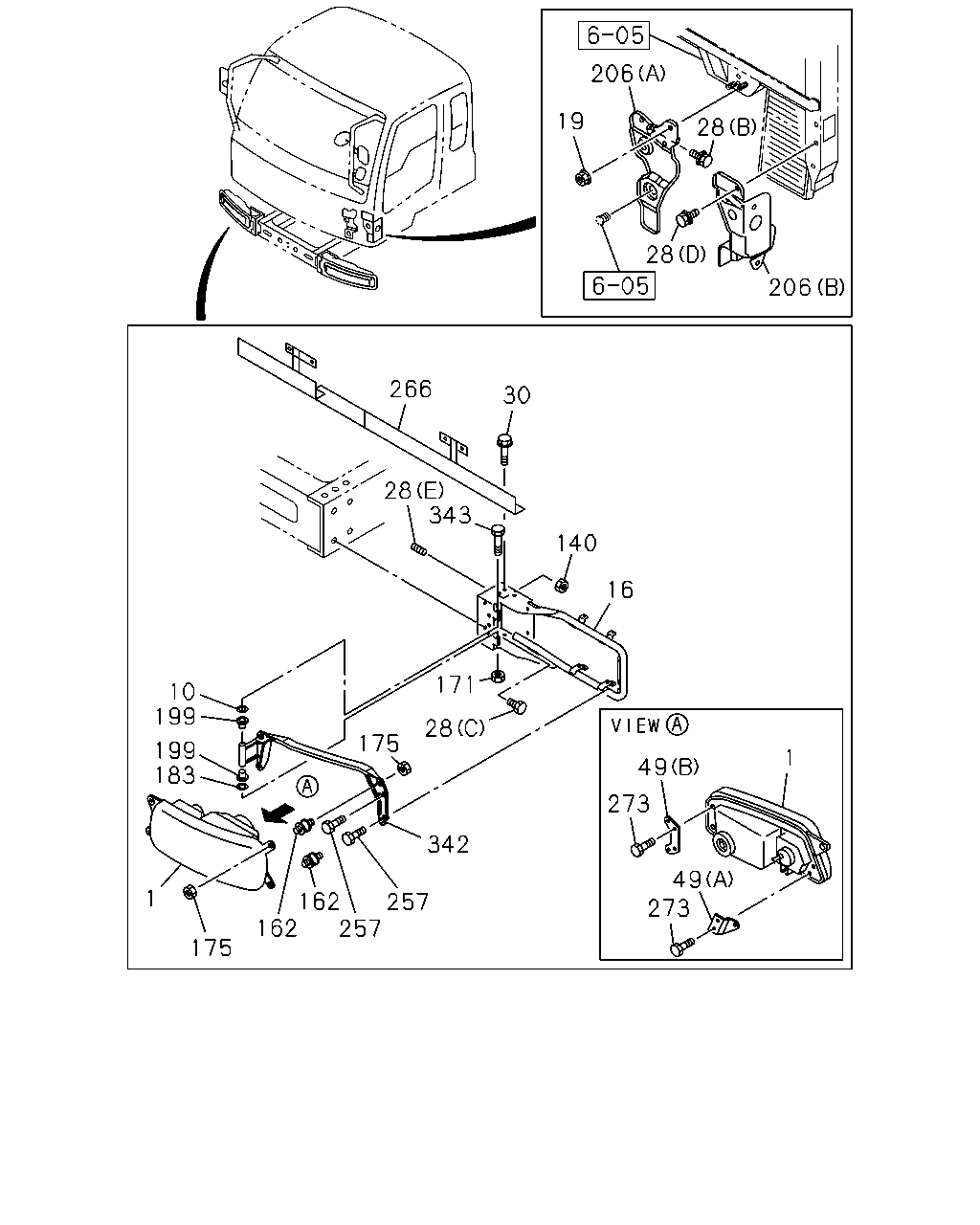

206 19 28 28 206 266 30 28 343 140 16 171 10 199 28 175 199 183 1 49 273 342 49 273 1 162 257 162 257 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9606-9609
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	9709-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-116-1	02	1	9709-9905
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-82117-116-1	02	1	9906-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-120-2	01	1	9906-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-119-2	01	1	9906-
19	NUT; HEADLAMP M8 FLANGE	8-94279-517-0	04	1	9606-9611
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9606-9905
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9906-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	06	1	9709-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X28,M10X15 L=50	5-09300-050-0	02	1	9709-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	9906-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	9709-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	9709-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	9709-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	9709-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	9709-
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	9709-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9709-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	9709-
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	9709-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9606-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9606-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9606-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9606-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	9709-
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-137-1	01	1	9906-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28080-616-0	04	1	9709-9905
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	9906-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 W/LK WASHER	0-50040-616-0	04	1	9709-9905
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	9709-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	9709-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	9709-

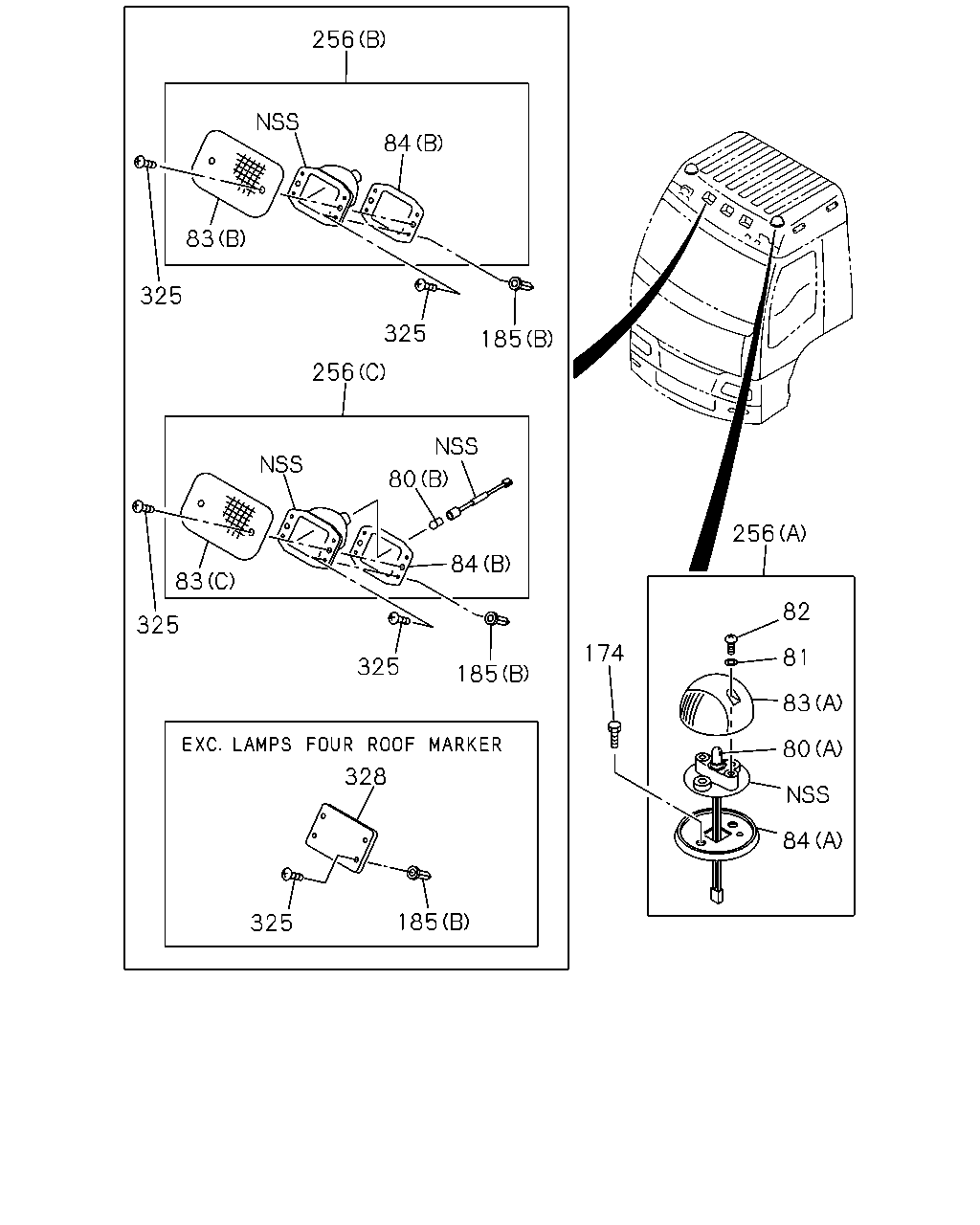

256 84 83 325 325 185 256 80 256 84 83 82 325 174 81 325 185 83 80 328 84 185 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W	8-94135-397-0	02	1	9606-
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W	9-82691-302-0	02	1	9606-
81	SEAT; SCREW LAMPS FOUR ROOF MARKER<PJ5>	1-82219-012-0	04	1	9606-
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-82219-011-0	04	1	9606-
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-321-0	03	1	9906-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-82215-048-0	02	1	9606-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (C)	1-82215-068-0	02	1	9606-9905
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C)	1-82215-068-0	02	1	9906-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82215-069-0	01	1	9606-9905
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-82215-069-0	01	1	9906-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C)	1-86830-320-0	02	1	9906-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B)	1-86830-321-0	01	1	9906-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9606-9905
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	9906-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	9906-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-288-0	02	1	9606-
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X25	8-94279-204-0	04	1	9606-0012
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9606-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9606-
185	GROMMET; SCREW EXC. REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9606
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9905
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-
256	LAMP; MARKER HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) ROOF MARKER WO/BULB	1-82210-230-0	03	1	9906-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (A) MARKER INDICATER	1-86830-129-0	02	1	9606-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (B) ROOF MARKER WO/BULB	1-86830-131-0	01	1	9606-9905
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB	1-86830-131-0	01	1	9906-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (C) ROOF MARKER W/BULB	1-86830-170-0	02	1	9606-9905
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) ROOF MARKER W/BULB	1-86830-170-0	02	1	9906-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) ROOF MARKER W/BULB	1-82210-229-0	02	1	9906-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB	1-82210-230-0	01	1	9906-
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> M5X20 TAPPING	0-71090-520-0	18	1	9606-9905
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9906-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9906-
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5> M5X14 TAPPING	9-07066-514-0	12	1	9606-9905
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9906-
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>	1-76217-122-0	03	1	9606-9905
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F>	1-76217-122-0	03	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
