Isuzu WW
▶
TRUCKS
▶
NMR
▶
51385 - NMR 71(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

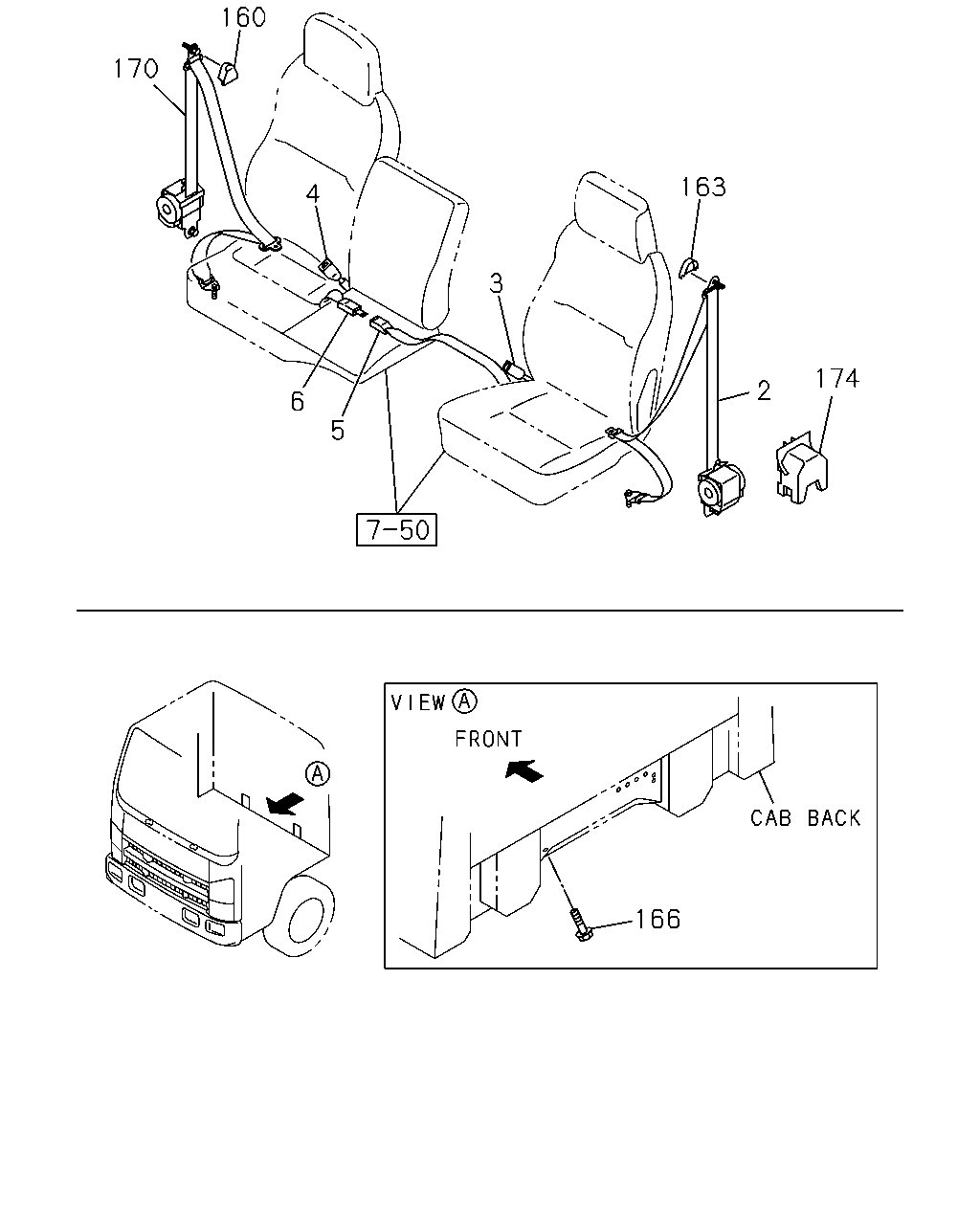

7-60 — SEAT BELT
(#51722) — 12 parça
160
170
163
4
3
174
2
6
5
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97405-180-7
01
1
0810-1406
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97428-457-1
01
1
1407-
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-2
01
1
0810-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97405-178-0
01
1
0810-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97405-182-1
01
1
0810-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97411-507-2
01
1
0810-
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
0810-
163
16.714 COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
0810-
166
16.714 BOLT; SEAT BELT ANCHOR
04.338 M8X20 FLANGE
0-28050-820-0
02
1
0810-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97405-180-7
01
1
0810-1406
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97428-457-1
01
1
1407-
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
0810-
