◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#5171) — 28 parça

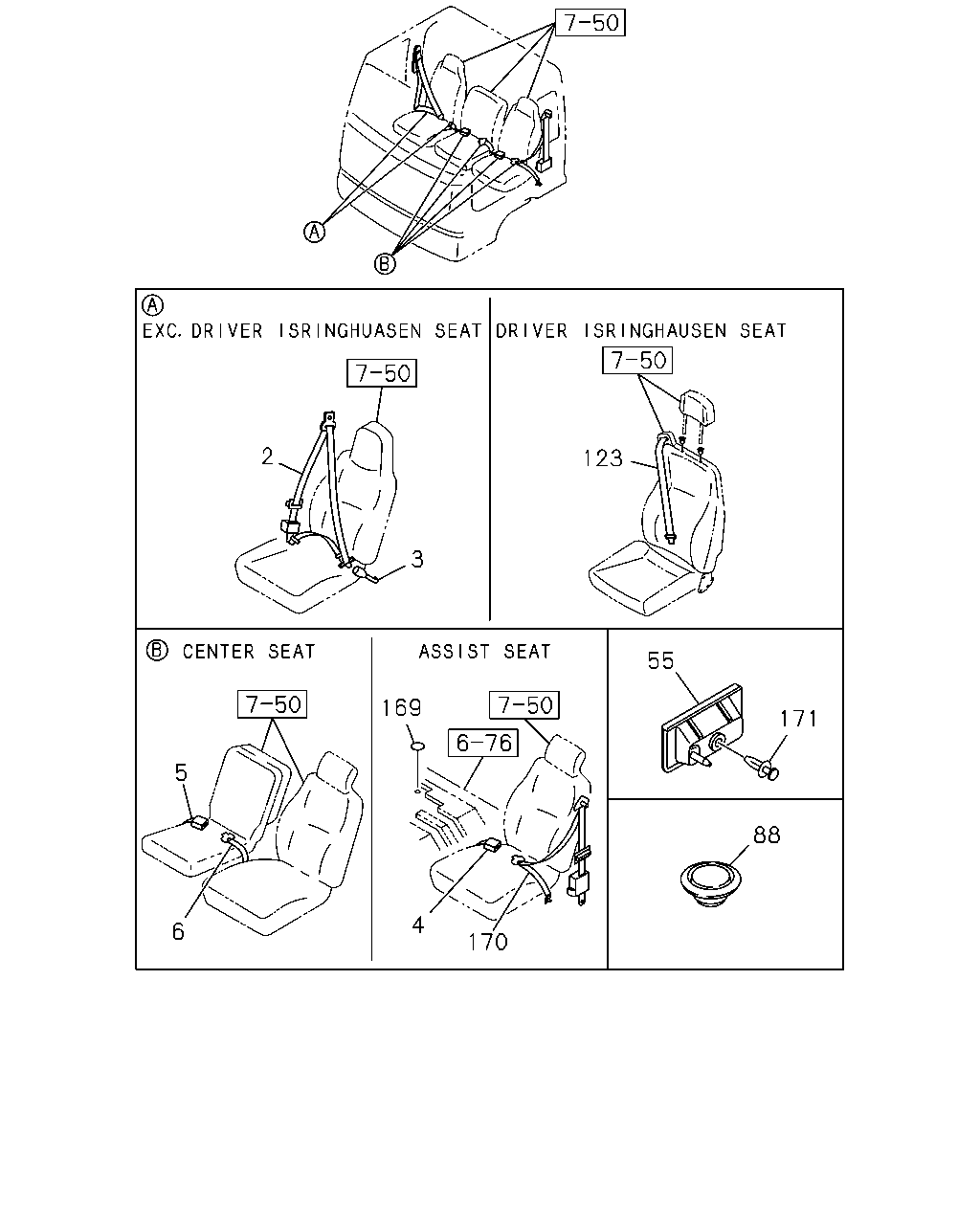

çizim 41650
2 123 3 55 169 171 5 88 4 6 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) MIXER TRUCK<RA2> 		1-75617-531-1 01 1 9606-9905
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. MIXER TRUCK<RA2> 		1-75617-509-2 01 1 9606-9905
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-3 01 1 9906-0012
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 0101-
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. MIXER TRUCK<RA2> 		1-75618-780-2 01 1 9606-9905
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9906-
2 BELT; SEAT,TONGUE SIDE
MIXER TRUCK<RA2> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75617-533-1 01 1 9606-9905
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-779-0 01 1 9606-0012
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-779-0 01 1 0101-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) 		1-75618-752-1 01 1 9606-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 9606-
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-798-2 01 1 0101-
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-737-3 01 1 9606-0103
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75618-737-4 01 1 0104-
55 GUIDE; SEAT BELT
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 01 1 0101-
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9606-
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9606-
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 0012-
169 SEAL
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0101-
169 SEAL
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9606-9905
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9906-
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 05 1 9606-9905
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 9906-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-738-4 01 1 9606-0012
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-738-6 01 1 0101-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-515-2 01 1 0101-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9606-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9606-
