7-45 — CONSOLE BOX (#5169) — 71 parça

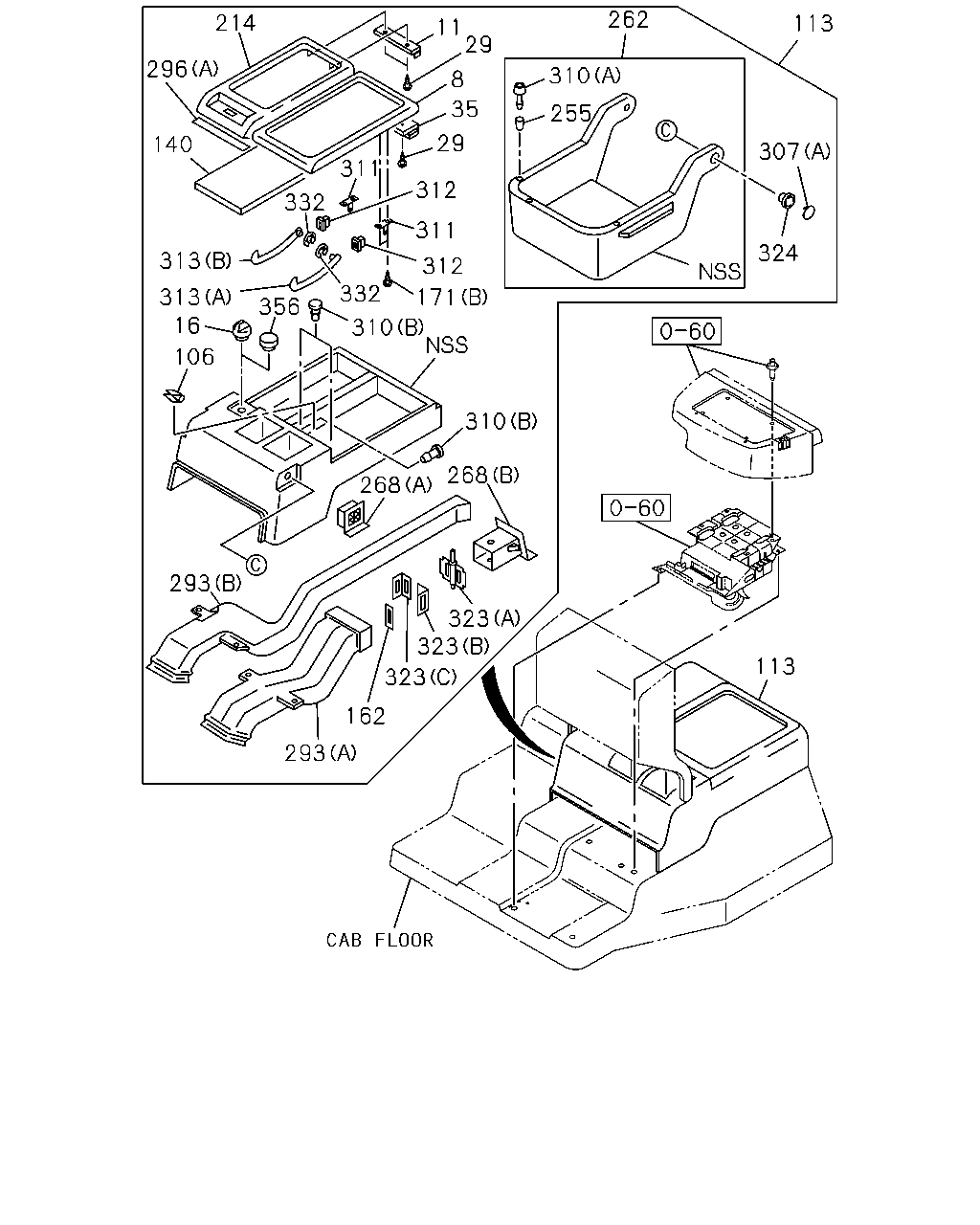

262 214 113 11 29 296 310 8 35 255 29 140 307 311 312 332 311 324 313 312 332 313 171 356 16 310 106 310 268 268 293 323 323 113 323 162 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72537-078-3	01	1	9906-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9906-
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-111-3	01	1	9906-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	9906-0011
29	SCREW; HINGE CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD	1-72537-168-0	08	1	0012-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD	1-72537-169-0	06	1	0012-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	9906-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-079-0	02	1	9906-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-161-0	01	1	9607-9905
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-072-5	01	1	9906-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-154-0	01	1	9906-
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-093-1	01	1	9906-
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	9906-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9906-
214	LID; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-076-4	01	1	9906-
255	SPRING; TABLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-152-0	03	1	9906-0011
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-088-6	01	1	9906-
268	COVER; DUCT CENTER SEAT DELETE(SP9) (A)	1-72537-109-0	01	1	9906-
268	COVER; DUCT CENTER SEAT DELETE(SP9) (B)	1-72537-110-1	01	1	9906-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	9906-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	9906-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	9606-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	9906-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9906-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-187-0	02	1	9906-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-153-0	03	1	9906-0011
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-188-2	03	1	9906-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-186-1	03	1	9906-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-184-3	01	1	9906-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-185-3	02	1	9906-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	9906-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-126-0	01	1	9906-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	9906-
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-116-0	02	1	9906-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-170-0	03	1	9906-0011
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72537-170-0	03	1	0012-
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0012-

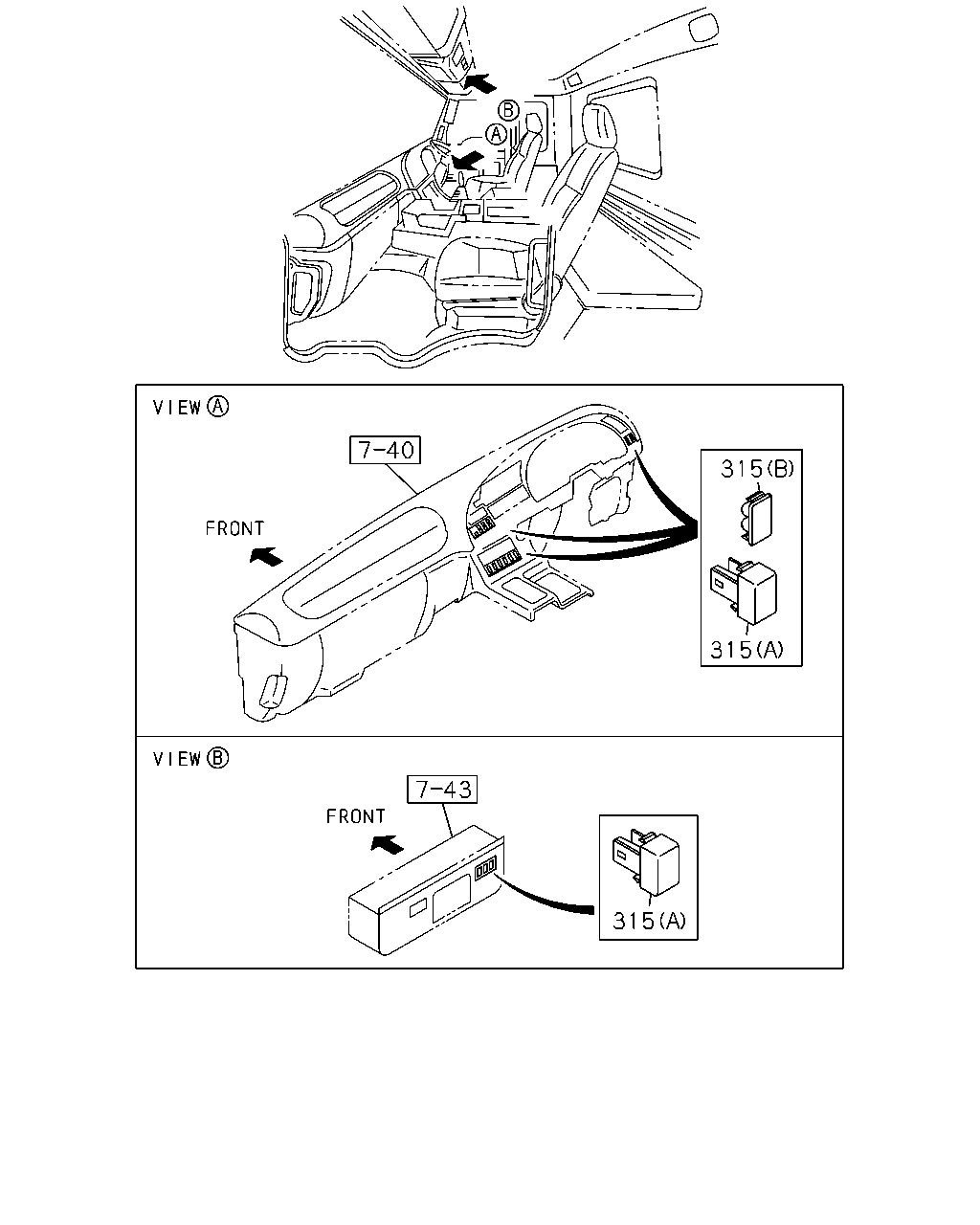

315 315 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
315	COVER; HOLE,SW (A)	1-82359-069-2	15	1	9606-9905
315	COVER; HOLE,SW (A)	1-82359-069-2	13	1	9906-
315	COVER; HOLE,SW (B)	8-97043-732-1	04	1	9606-
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	9606-9905
315	COVER; HOLE,SW POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> DUMP TRUCK<RA1> (A)	1-82359-069-2	01	1	9606-9905
315	COVER; HOLE,SW EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82359-069-2	01	1	9606-9905
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	9906-0004
315	COVER; HOLE,SW POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> DUMP TRUCK<RA1> (A)	1-82359-069-2	01	1	9906-0004
315	COVER; HOLE,SW EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82359-069-2	01	1	9906-0004
315	COVER; HOLE,SW EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82359-069-2	01	1	9906-0004
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	0005-
315	COVER; HOLE,SW EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82359-069-2	01	1	0005-
315	COVER; HOLE,SW POWER TAKE OFF-ZF TRANSMISSION<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> DUMP TRUCK<RA1> (A)	1-82359-069-2	01	1	0005-
315	COVER; HOLE,SW MIXER TRUCK<RA2> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-82359-069-2	01	1	0005-
315	COVER; HOLE,SW EXC. POWER TAKE OFF-ZF TRANSMISSION<BDM>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82359-069-2	01	1	0005-

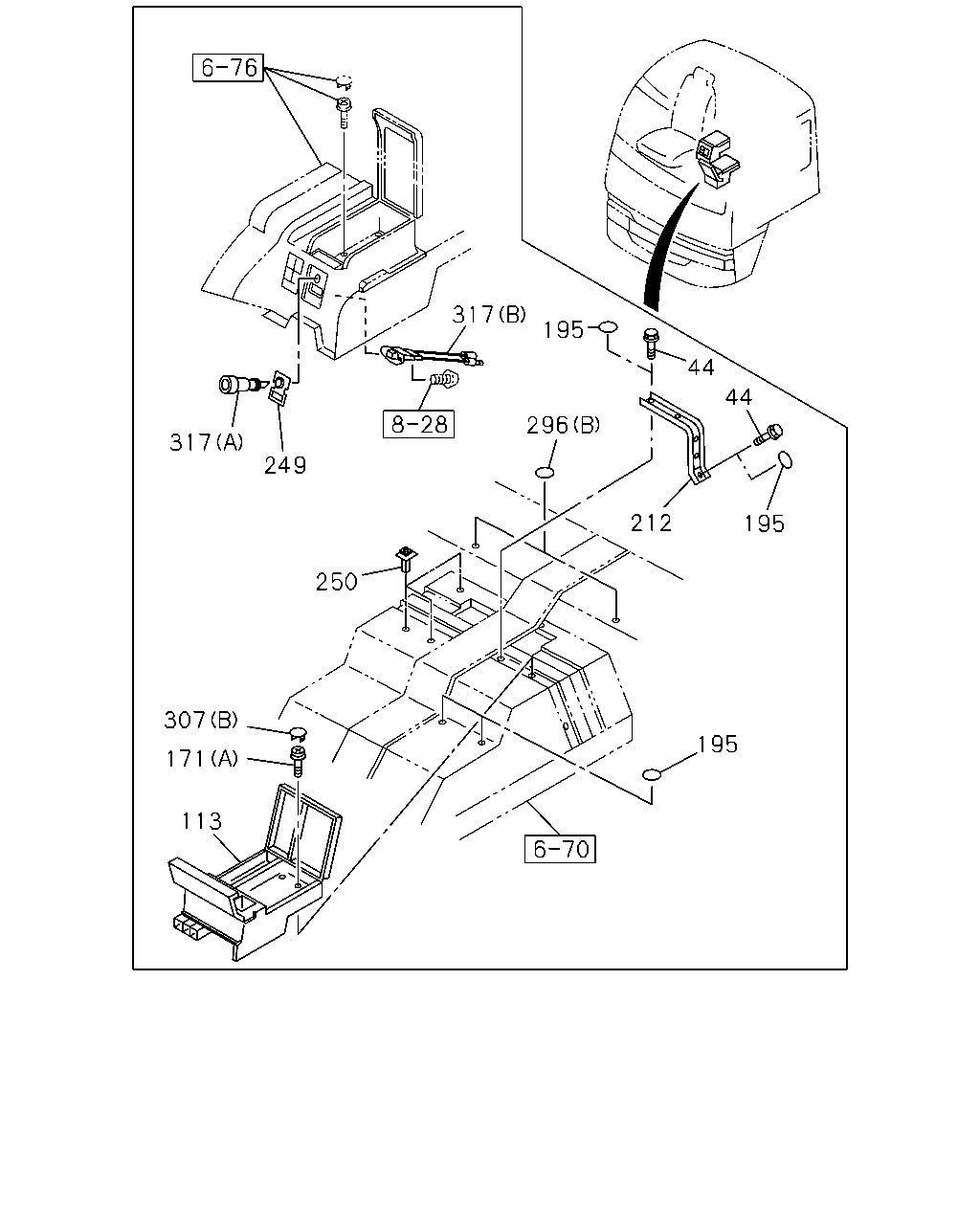

317 195 44 44 296 317 249 212 195 250 307 195 171 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9607-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-161-0	01	1	9607-9905
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-072-5	01	1	9906-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-154-0	01	1	9906-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9906-
195	SEAL; CENTER CONSOLE OD=25 BLACK	1-76798-019-0	05	1	9606-9606
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	9607-
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	9607-
249	COVER ELEC OUTLET 12V<TAW>	1-82529-001-0	01	1	9906-
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	9606-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	9606-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	9906-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9906-
317	CONSENT (B)	1-82523-020-2	01	1	9606-
317	CONSENT ELEC OUTLET 12V<TAW> (A)	8-94382-451-1	01	1	9906-
