Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#51687) — 138 parça

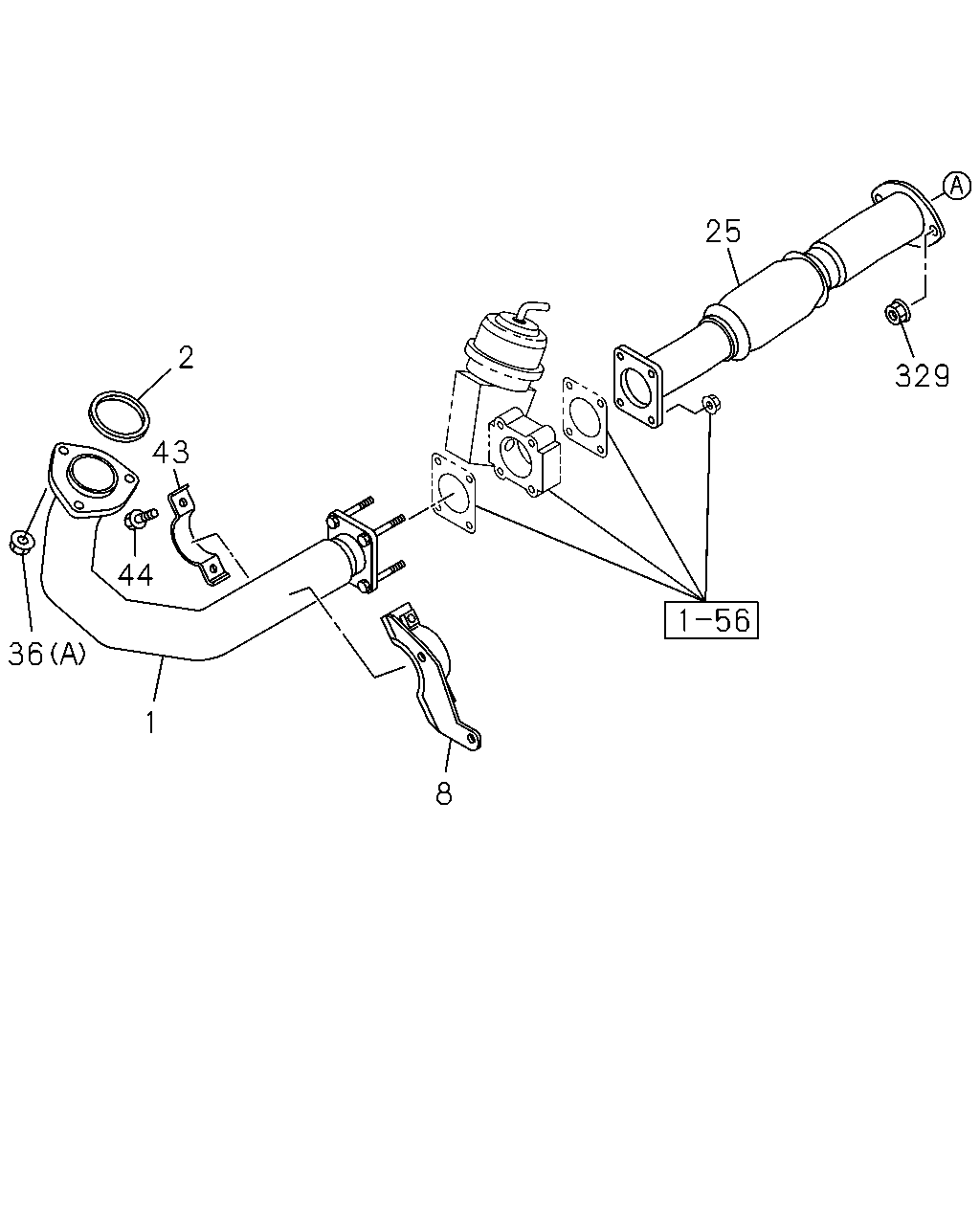

25 2 329 43 44 36 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98108-157-0	01	1	0810-1404
1	03.609 PIPE; EXH	8-98216-286-0	01	1	1405-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-
8	03.704 BRACKET; EXH PIPE	8-97358-599-4	01	1	0810-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98108-163-1	01	1	0810-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-

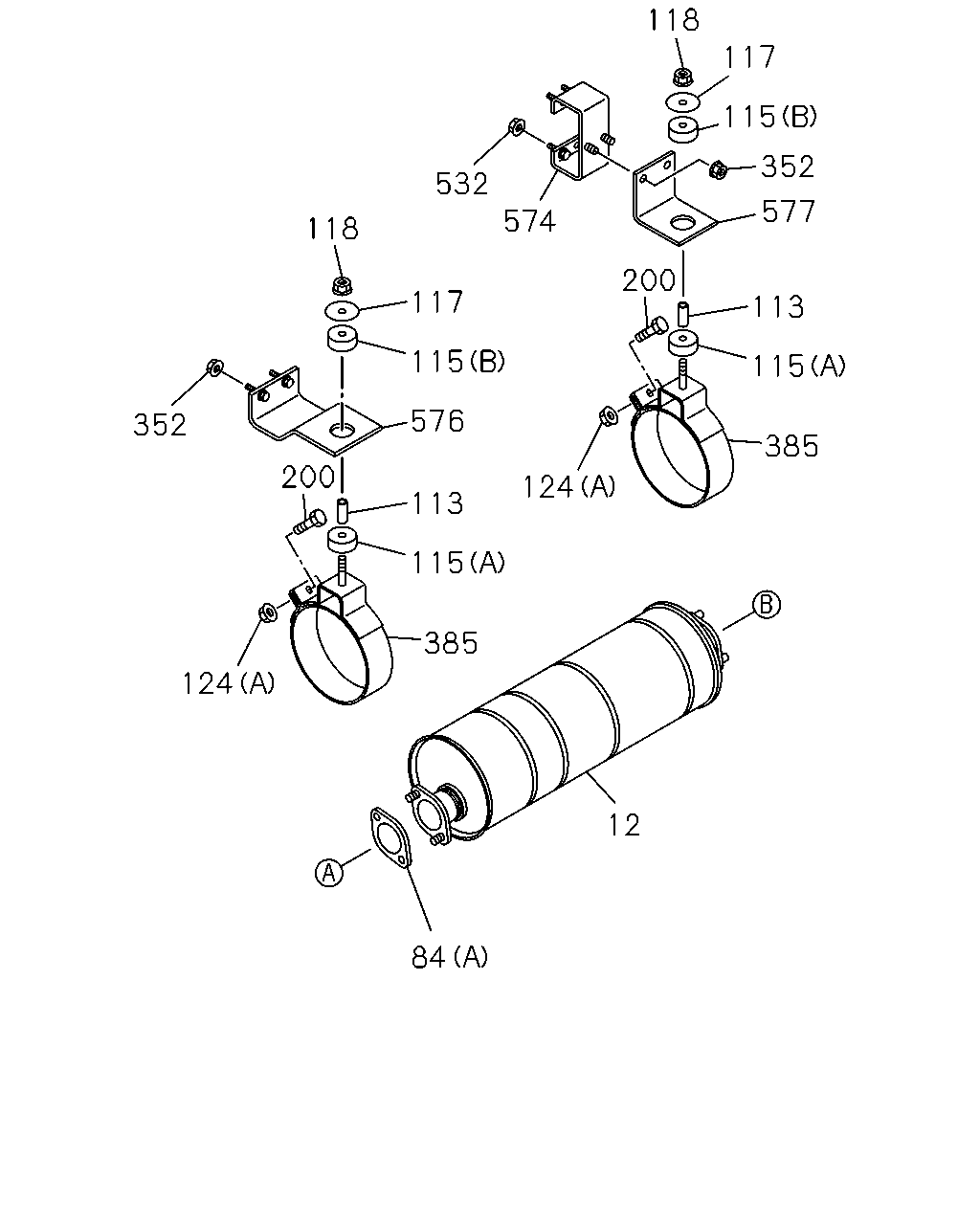

118 117 115 352 577 113 115 385 532 574 118 117 115 576 352 200 113 124 115 385 124 12 84 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	0810-
12	03.701 SILENCER ASM; EXH EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	0810-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7	8-94328-352-0	01	1	0810-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
352	03.613 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
574	03.706 SPACER; DPD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98095-053-0	01	1	0810-0810
574	03.706 SPACER; DPD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98137-248-0	01	1	0811-
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W)	8-98044-774-0	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98117-517-1	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W)	8-98117-517-1	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98109-166-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W)	8-98109-166-0	01	1	0810-

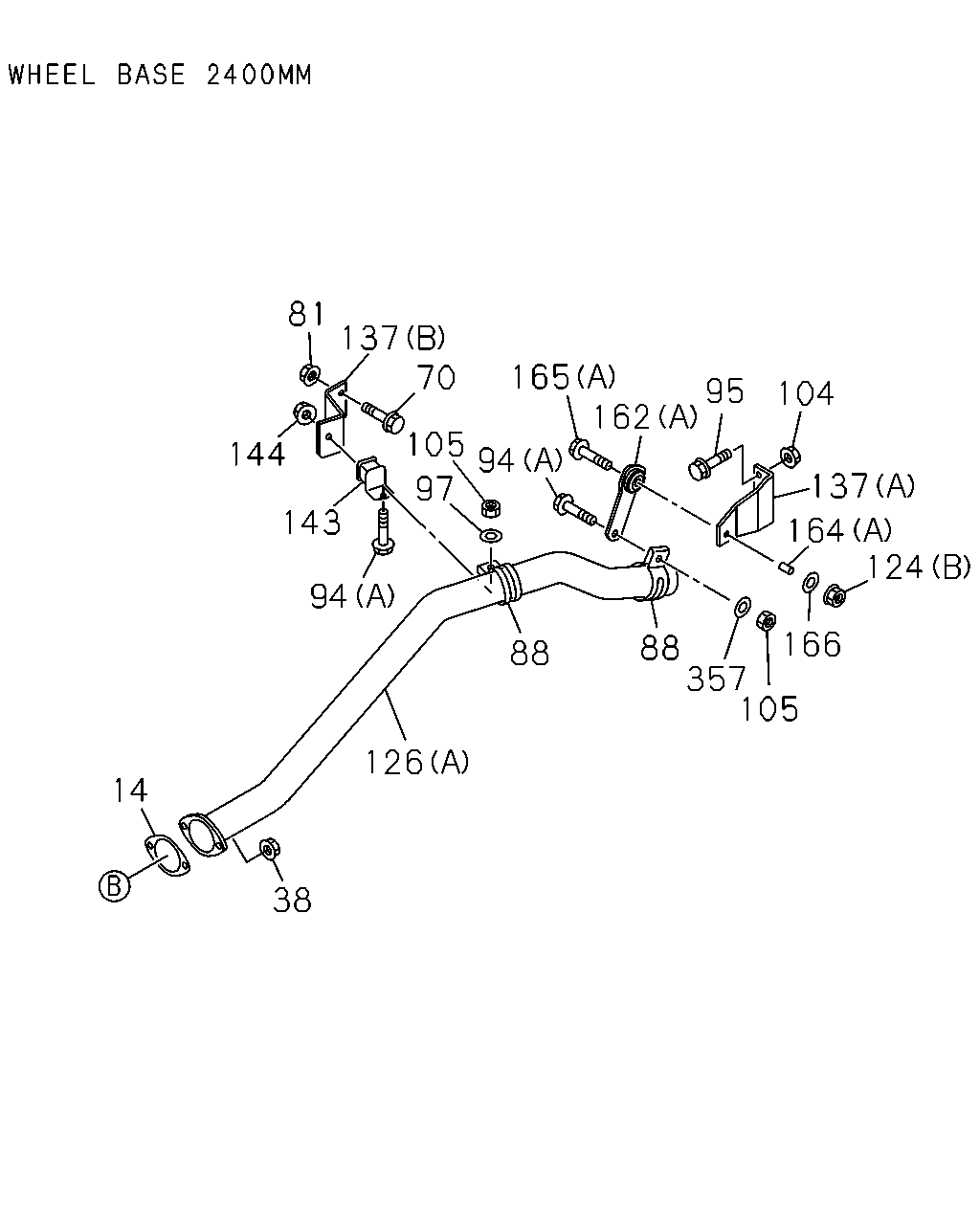

81 137 70 165 162 95 104 105 94 144 137 97 143 164 124 94 166 88 357 105 88 126 14 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	0810-
38	00.002 NUT; SILENCER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0810-0912
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	02	1	0810-0912
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98108-182-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98075-674-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98075-675-1	01	1	0810-
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0810-
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	02	1	0810-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1001-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1001-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0810-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	02	1	0810-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-

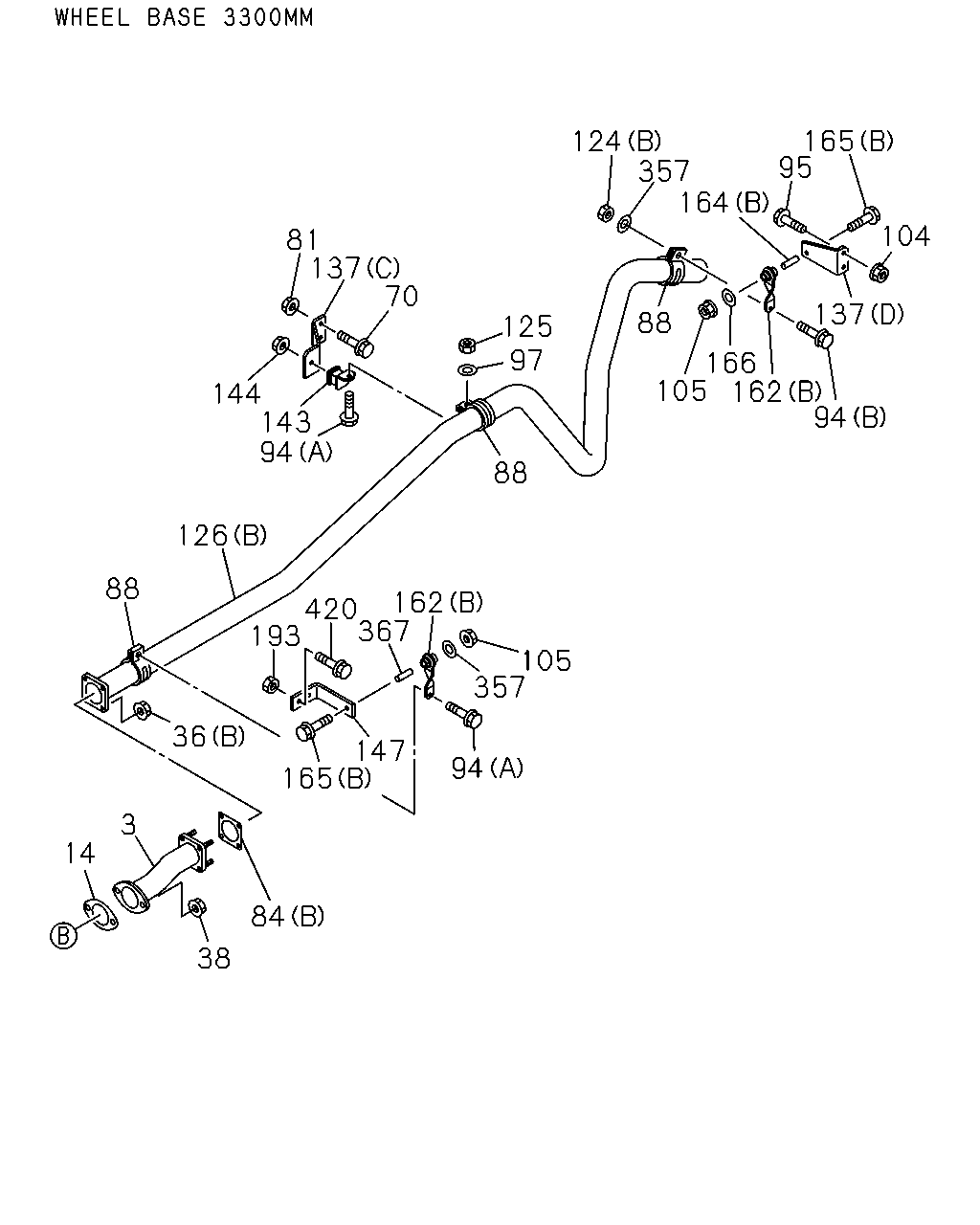

105 357 94 147 165 36 3 84 38 14 88 126 193 367 420 162 88 97 125 70 137 81 144 94 143 124 164 357 88 95 165 104 137 162 166 105 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-523-0	01	1	0810-
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	0810-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
38	00.002 NUT; SILENCER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7	8-94328-352-0	01	1	0810-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0810-0912
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	02	1	0810-0912
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98108-182-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98116-727-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98075-674-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98075-675-1	01	1	0810-
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0810-
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
147	03.704 BRACKET; VERTICAL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-532-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	02	1	0810-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1001-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	1001-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0810-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	02	1	0810-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
193	03.704 NUT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
367	03.704 COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	0810-
420	03.704 BOLT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
