Isuzu WW
▶
TRUCKS
▶
NMR
▶
51184 - NMR71-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

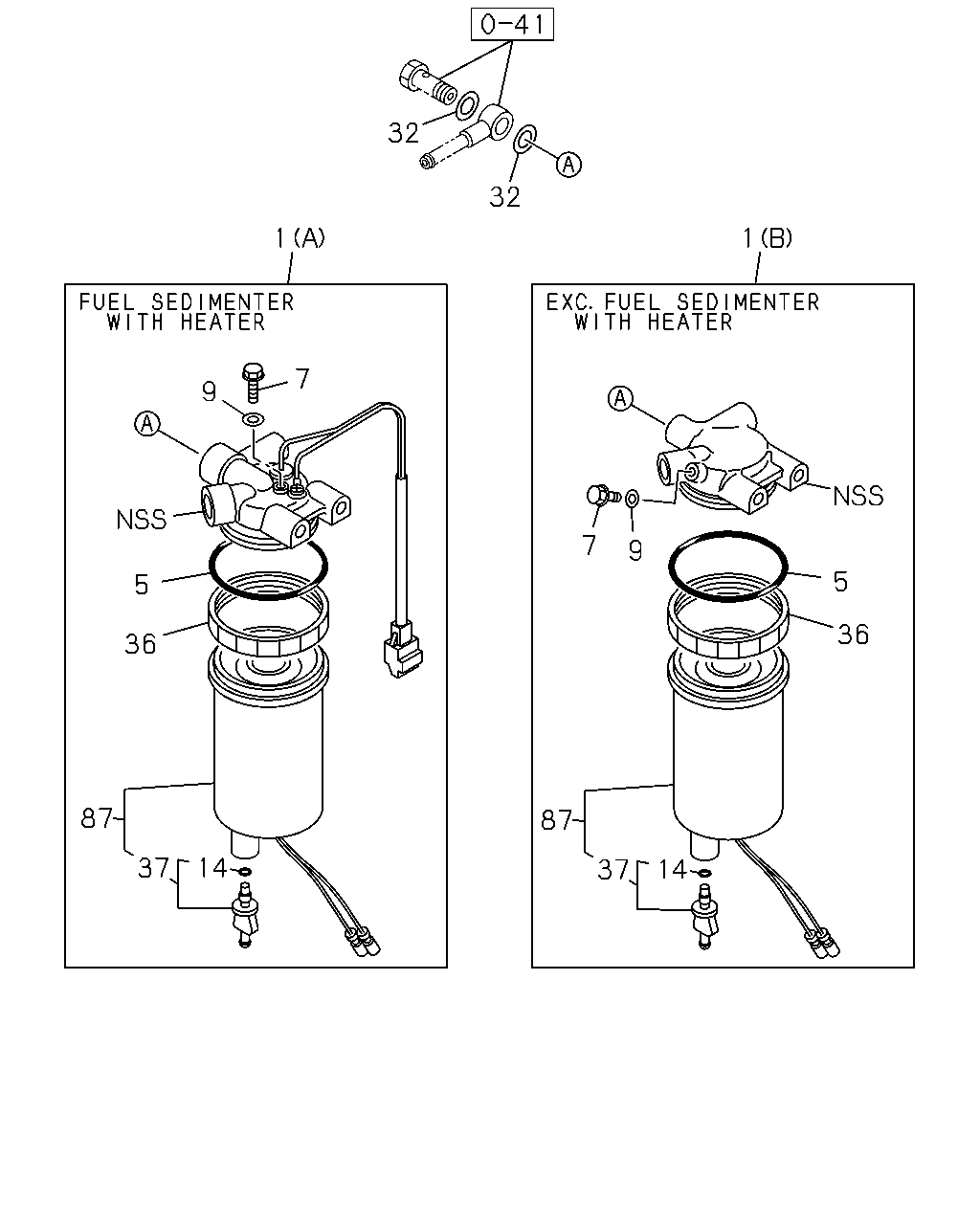

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#51686) — 11 parça
32
32
1
7
9
7
9
5
5
36
36
87
87
14
37
37
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> (A)
8-94311-522-3
01
1
0810-
1
03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)
8-94144-933-4
01
1
0810-
5
03.890 GASKET; UPR COVER,SEDIMENTER
5-09623-075-0
01
1
0810-
7
03.890 PLUG; DRAIN,SEDIMENTER
8-94132-674-0
01
1
0810-
9
03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU>
8-94132-675-0
01
1
0810-
9
03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895
9-09571-406-0
01
1
0810-
14
03.890 GASKET; SENSOR TO CENTER BOLT
8-94447-156-0
01
1
0810-
32
03.890 GASKET; FUEL FILTER
03.107 ID=14.2 OD=23.0
9-09572-014-0
04
1
0810-
36
03.890 RING; BODY TO CASE
5-13234-001-0
01
1
0810-
37
03.890 PLUG; SENSOR
8-94453-746-0
01
1
0810-
87
03.890 CASE ASM; SEDIMENTER
8-97219-363-1
01
1
0810-
