7-43 — SUN VISOR AND ASSIST GRIP (#5168) — 171 parça

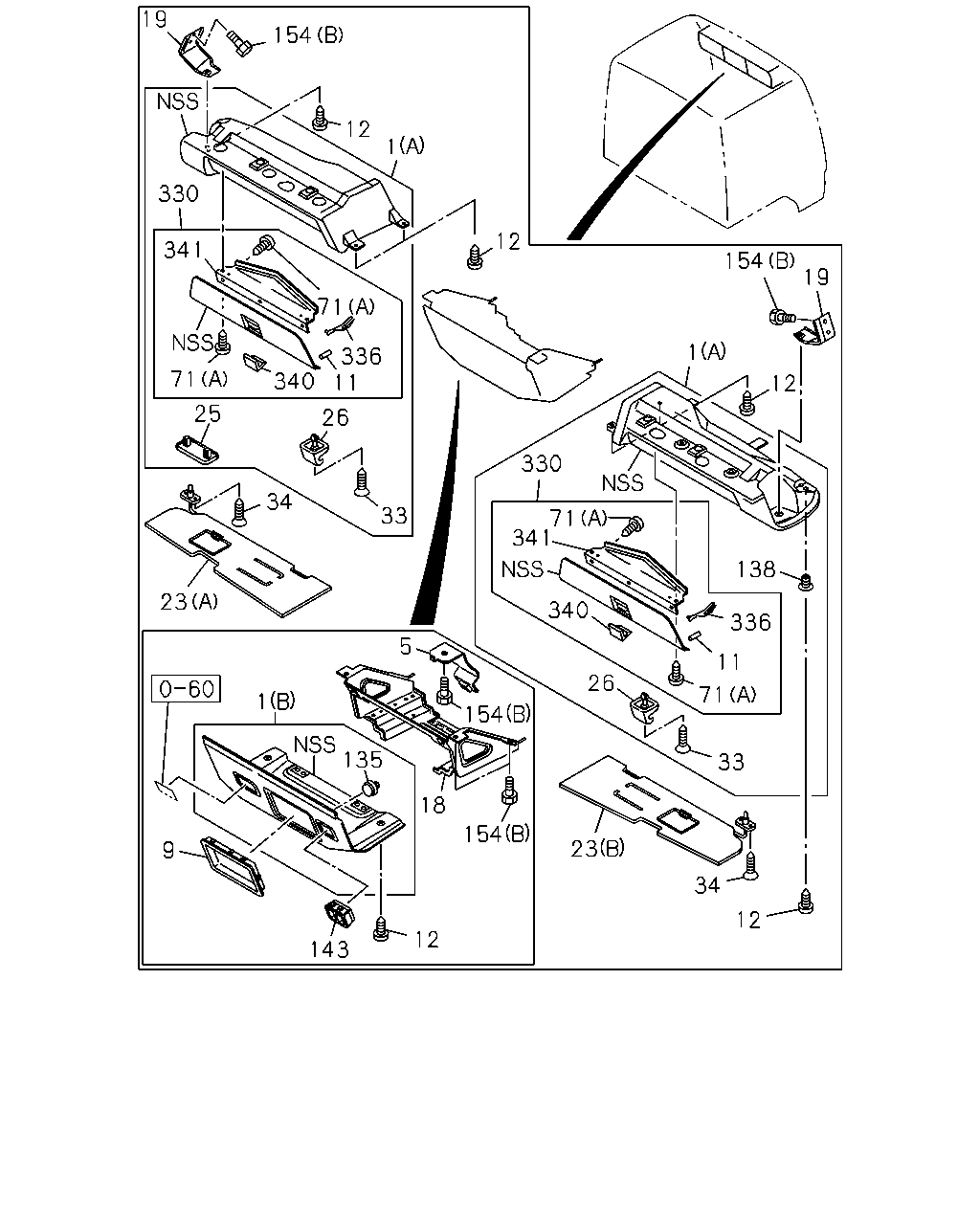

19 154 12 1 330 12 341 154 19 71 1 336 11 71 340 12 25 26 330 34 33 71 341 138 23 340 336 5 11 26 71 1 154 135 33 18 154 23 9 34 12 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9606-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9606-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9606-9905
1	BOARD; HEADER SHELF EXC. CHEAPER CAB<WY1> (A)	1-72448-597-2	01	1	9906-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9606-9704
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9606-
1	BOARD; HEADER SHELF CHEAPER CAB<WY1> (A)	1-72447-718-0	01	1	9906-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9906-
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9606-9905
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	9906-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	9906-
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9606-
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9606-9905
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9906-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9606-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9906-
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9606-
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9606-
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9606-
23	SUN VISOR (A)	1-73138-150-1	01	1	9606-9905
23	SUN VISOR EXC. CHEAPER CAB<WY1> (A)	1-73138-150-1	01	1	9906-0011
23	SUN VISOR SUN VISOR PASSENGER<D20> (A)	1-73138-150-1	01	1	0012-
23	SUN VISOR (B)	1-73138-148-1	01	1	9606-
25	COVER; HOLE,SUN VISOR CHEAPER CAB<WY1>	1-73318-614-0	01	1	9906-0011
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9606-9905
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9906-0011
26	HOLDER; SUN VISOR EXC. CHEAPER CAB<WY1>	1-73138-142-0	01	1	9906-0011
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9606-9905
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9906-0011
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB<WY1> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9906-0011
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9606-9905
34	SCREW; SUN VISOR CHEAPER CAB<WY1> M6X25	1-09981-441-0	02	1	9906-0011
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-
34	SCREW; SUN VISOR EXC. CHEAPER CAB<WY1> M6X25	1-09981-441-0	04	1	9906-0011
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0012-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9606-
71	SCREW (C) CANT RAIL SIDE M6X37 W/PL WASHER	1-09981-423-0	04	1	9606-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9606-9905
71	SCREW CHEAPER CAB<WY1> (A) M5X14	8-94279-325-0	03	1	9906-0011
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9906-0011
71	SCREW EXC. CHEAPER CAB<WY1> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9906-0011
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9905
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9906-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9906-
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9606-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9606-9905
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9906-0011
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB<WY1>	1-09984-166-0	02	1	9906-0011
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-
143	BEZEL	1-72448-411-0	01	1	9606-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9606-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9606-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9606-
330	LID; HEADER SHELF	1-72448-360-3	02	1	9606-9905
330	LID; HEADER SHELF	1-72448-360-3	01	1	9906-
336	STAY; LID	1-72448-379-3	04	1	9606-9905
336	STAY; LID	1-72448-379-3	02	1	9906-
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9606-9905
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9906-
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9606-9905
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9906-

325 87 12 71 54 83 329 83 71 1 150 54 69 59 71 106 55 142 72 75 71 54 48 49 48 142 59 142 56 48 49 75 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9606-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9606-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9606-9905
1	BOARD; HEADER SHELF EXC. CHEAPER CAB<WY1> (A)	1-72448-597-2	01	1	9906-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9606-9704
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9606-
1	BOARD; HEADER SHELF CHEAPER CAB<WY1> (A)	1-72447-718-0	01	1	9906-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9906-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9606-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9906-
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9606-
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9606-
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9606-9607
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9606-
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9606-
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9606-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9905
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	9606-
49	NUT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	9701-9702
49	NUT; ASSIST GRIP 6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	9703-9708
49	NUT; ASSIST GRIP 6WA1 TC-S(56L),6WG1 TC-N(71L) PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	9709-9709
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	9710-9905
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9606-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9606-
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-158-2	01	1	9712-9905
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9906-
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9906-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9606-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9606-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9606-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9606-
59	COVER; ASSIST GRIP (C) QUARTER SIDE	1-73617-069-0	02	1	9606-
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	0010-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9606-
71	SCREW (C) CANT RAIL SIDE M6X37 W/PL WASHER	1-09981-423-0	04	1	9606-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9606-9905
71	SCREW CHEAPER CAB<WY1> (A) M5X14	8-94279-325-0	03	1	9906-0011
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9906-0011
71	SCREW EXC. CHEAPER CAB<WY1> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9906-0011
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9905
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9906-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9906-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9606-9612
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	9712-9905
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	9712-9905
75	SHEET; ASSIST GRIP,CAB ENTRY 10PE1S(60L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9606-9709
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-9905
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9606-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9606-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9606-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9710-9905
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9906-
142	SEAL; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9606-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9710-9905
142	SEAL; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	9606-9709
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9606-9711
150	CLIP; ASSIST GRIP HOLE NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9712-0009
150	CLIP; ASSIST GRIP HOLE EXC. NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	9906-
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	9906-

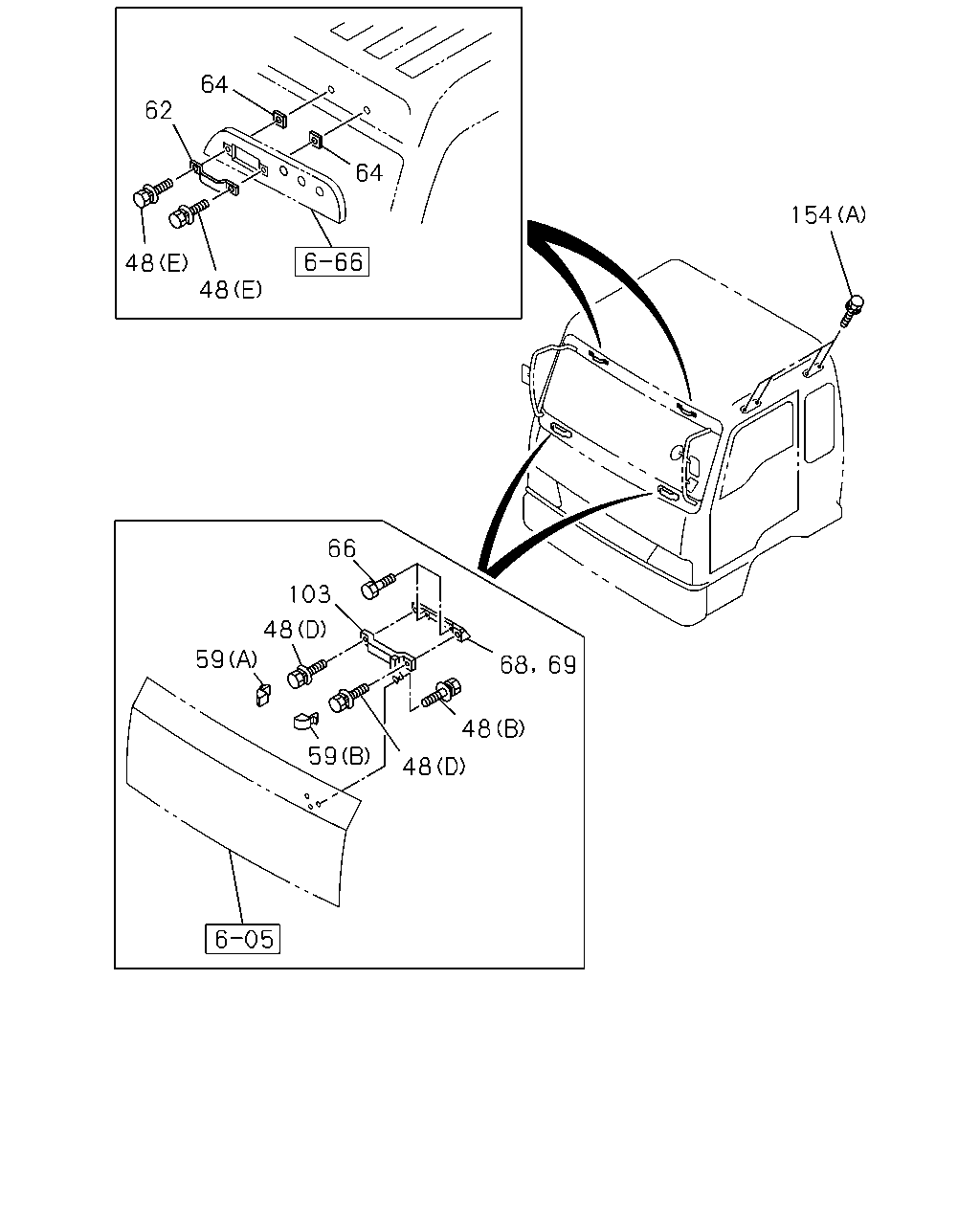

64 62 64 154 48 48 66 103 48 59 68 69 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9606-
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9606-
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9606-9607
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9606-
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9606-
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9606-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9905
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9606-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9606-
59	COVER; ASSIST GRIP (C) QUARTER SIDE	1-73617-069-0	02	1	9606-
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9606-9610
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9606-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9606-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9606-0009
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	0010-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9606-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9606-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9606-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9606-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
