0-57 — EMISSION PIPING (#51667) — 18 parça

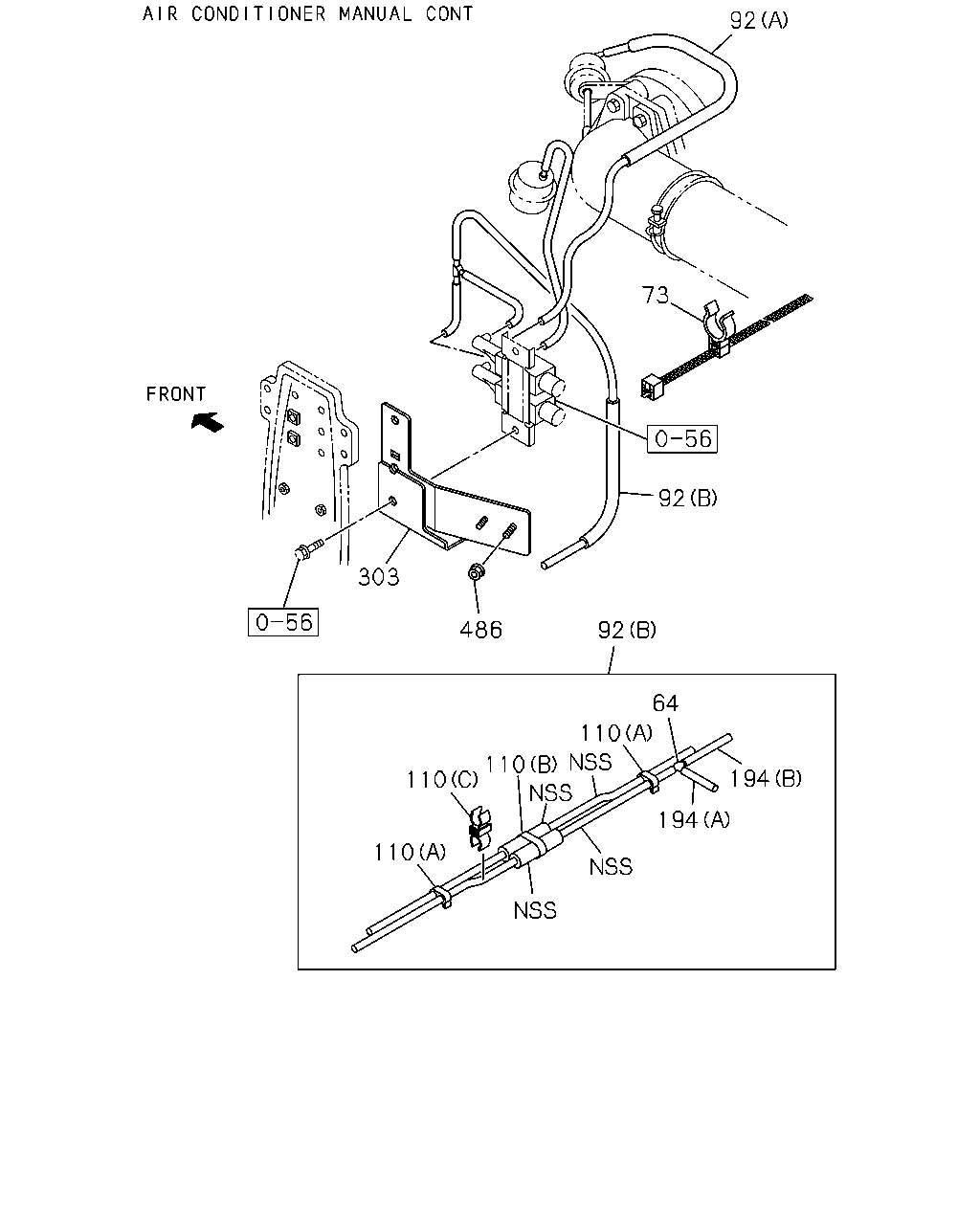

73 303 486 92 64 110 110 110 110 194 194 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) 3WAY	8-94208-695-0	01	1	0810-
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	0810-
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98132-327-1	01	1	0810-
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) (B)	8-98118-170-0	01	1	0810-
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0810-
110	03.671 CLIP; VAC HOSE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0810-
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	01	1	0810-
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0810-
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0810-
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	0810-
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-

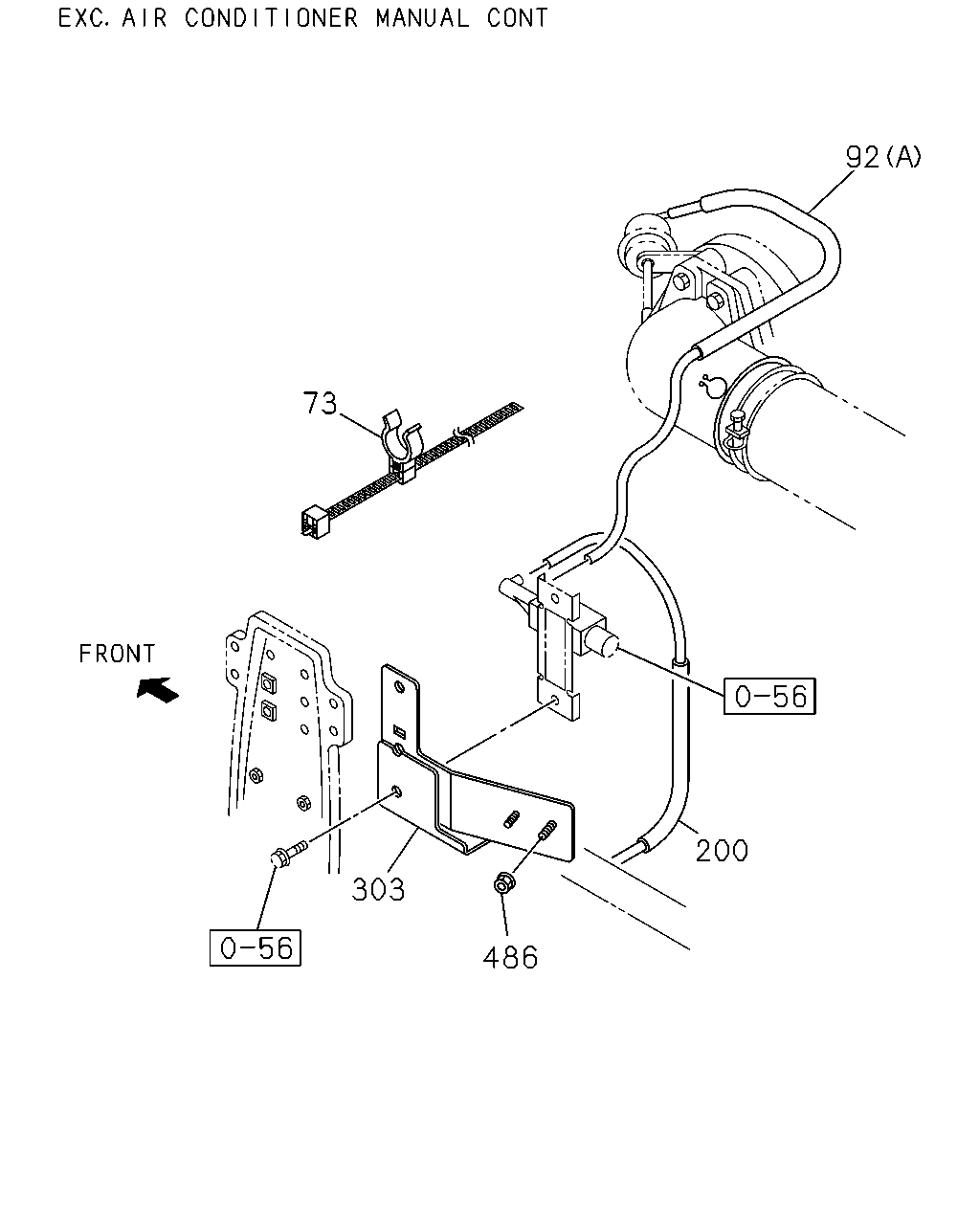

92 73 200 303 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	0810-
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98132-327-1	01	1	0810-
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) (B)	8-98118-170-0	01	1	0810-
200	03.675 HOSE; VAC EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-169-2	01	1	0810-
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	0810-
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-

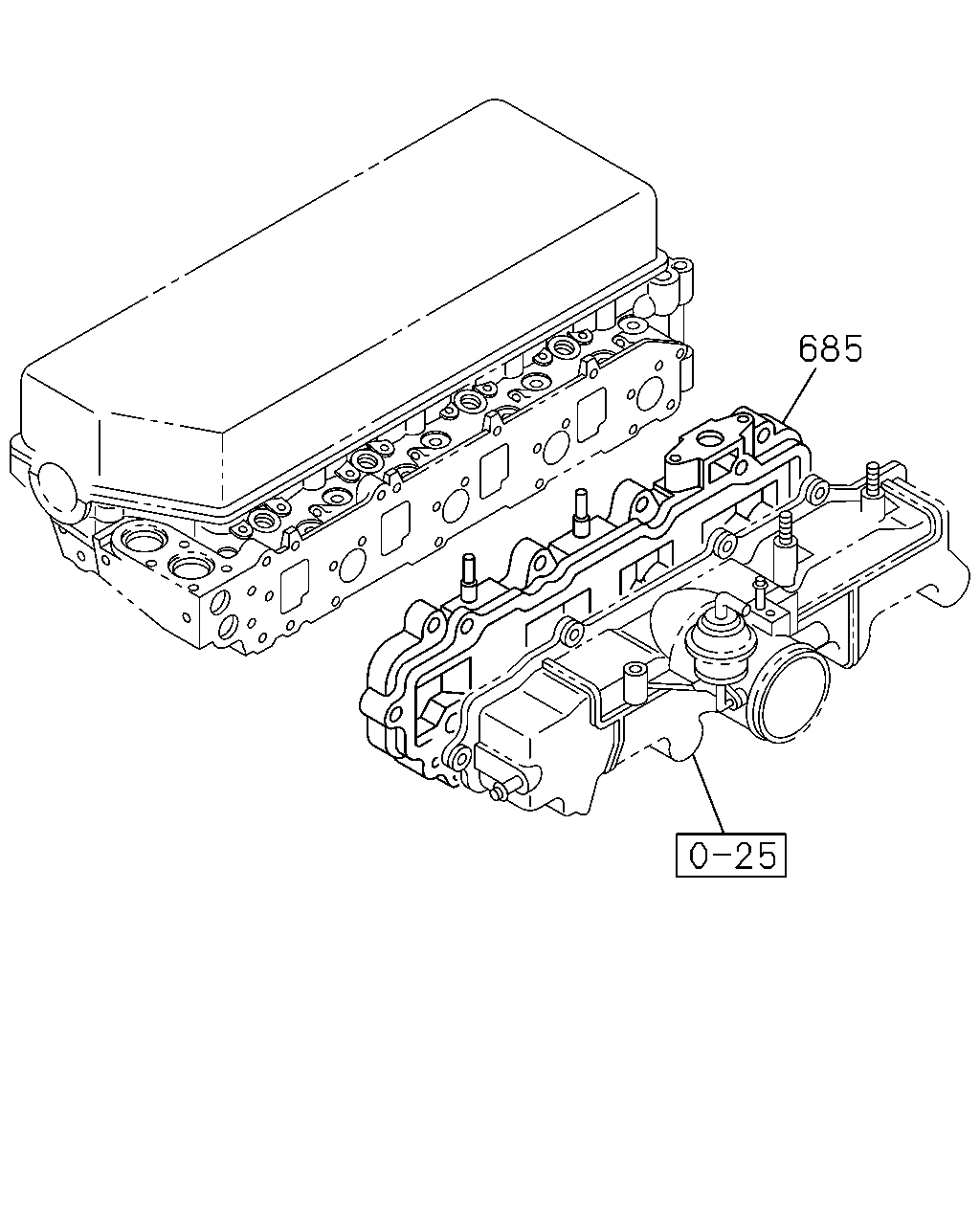

685

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0810-
