0-51 — OIL PUMP AND OIL STRAINER (#51664) — 16 parça

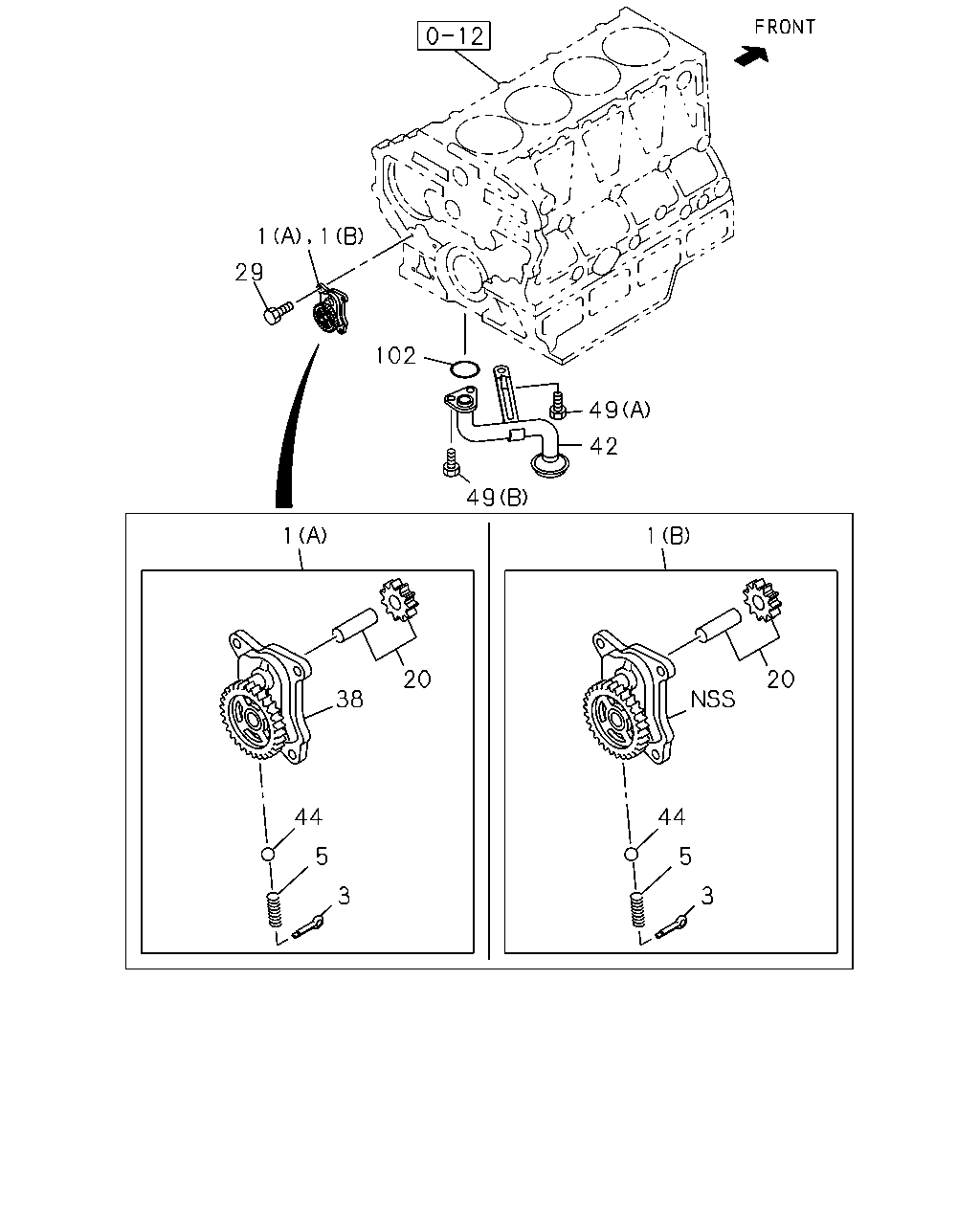

çizim 157926
1 1 29 102 49 42 49 1 20 38 44 5 3 1 20 44 5 3
BalonParca AdiParca NoAdetTipApplied Date
1 01.652 PUMP ASM; OIL
(A) 		8-97147-338-4 01 1 0810-1203
1 01.652 PUMP ASM; OIL
(B) 		8-98017-585-1 01 1 1204-
3 01.639 PIN; SPLIT
05.812 OD=3.7 L=30 		0-81124-030-0 01 1 0810-0906
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 0907-
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0810-
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 0810-1203
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1204-
29 01.652 BOLT; OIL PUMP
06.174 M8X25 FLANGE 		0-28060-825-0 02 1 0810-
29 01.652 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0810-
38 01.657 CASE; OIL STRAINER 8-97147-505-3 01 1 0810-1203
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0810-1203
42 01.656 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1204-
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0810-
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 0810-
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0810-
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0810-
