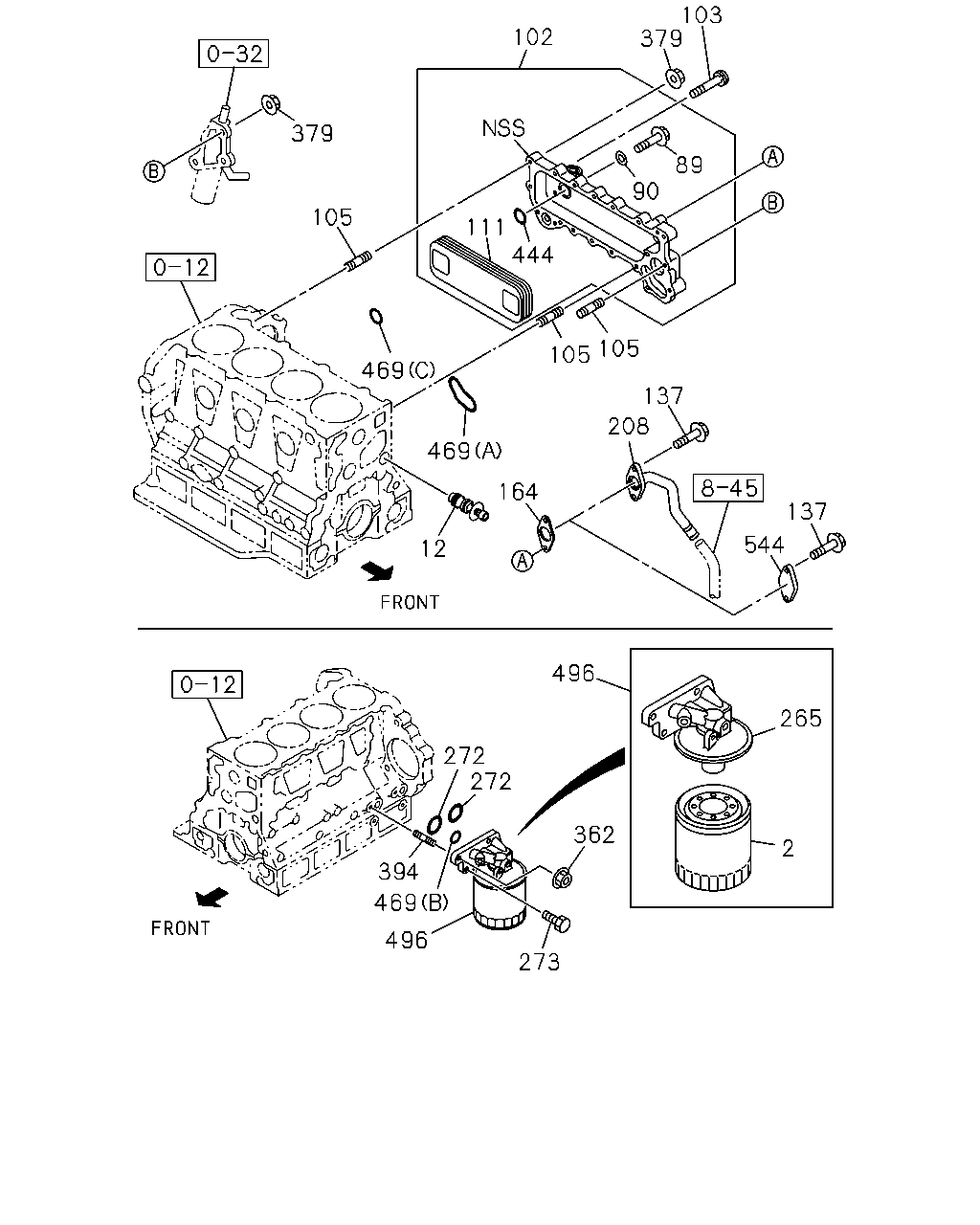

0-50 — OIL COOLER AND OIL FILTER (#51663) — 28 parça

103 379 102 379 89 90 105 111 444 105 105 469 137 208 469 164 137 544 12 496 272 265 362 2 394 469 496 273 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0810-1509
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	0810-1509
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0810-
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0810-1211
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1212-
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0810-
102	01.540 COOLER ASM; OIL	8-97385-200-6	01	1	0810-
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0810-
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0810-
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0810-
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0810-
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0810-
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97146-519-0	01	1	0810-
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0810-
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0810-
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0810-
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0810-
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0810-
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0810-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0810-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0810-
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0810-
496	01.835 FILTER ASM; OIL	8-97148-268-4	01	1	0810-1509
496	01.835 FILTER ASM; OIL	8-98328-202-0	01	1	1510-
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
