0-14 — CAMSHAFT AND VALVE (#51649) — 55 parça

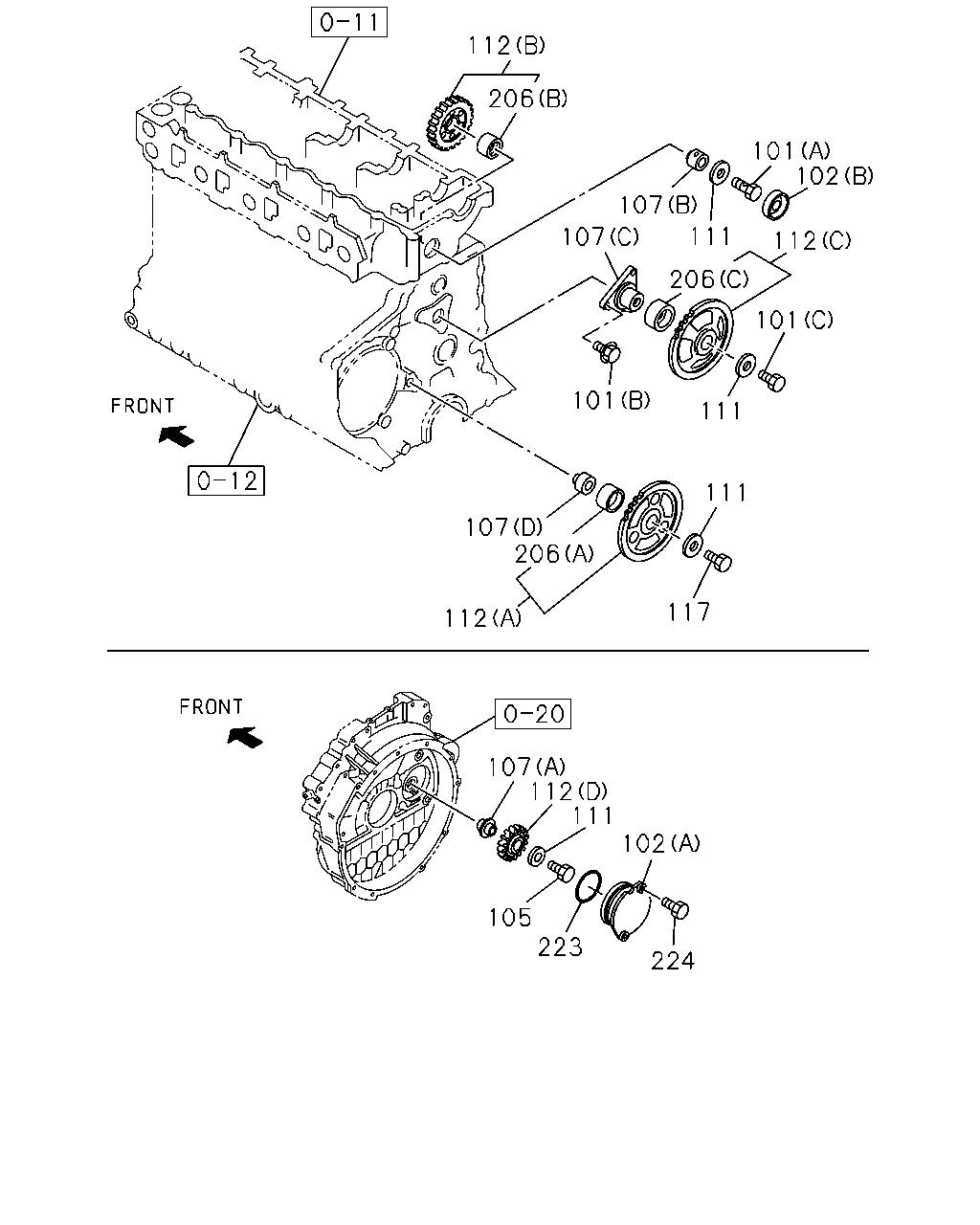

112 206 101 102 107 107 111 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0810-
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0810-
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0810-1310
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0810-
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0810-
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0810-
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0810-
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0810-
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0810-
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0810-
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0810-
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0810-
112	00.724 GEAR; IDLE (B) Z=82	8-97088-055-2	01	1	0810-
112	00.724 GEAR; IDLE (D) Z=34	8-97120-005-1	01	1	0810-
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0810-
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0810-
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0810-
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0810-0810
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0810-
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0810-
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-

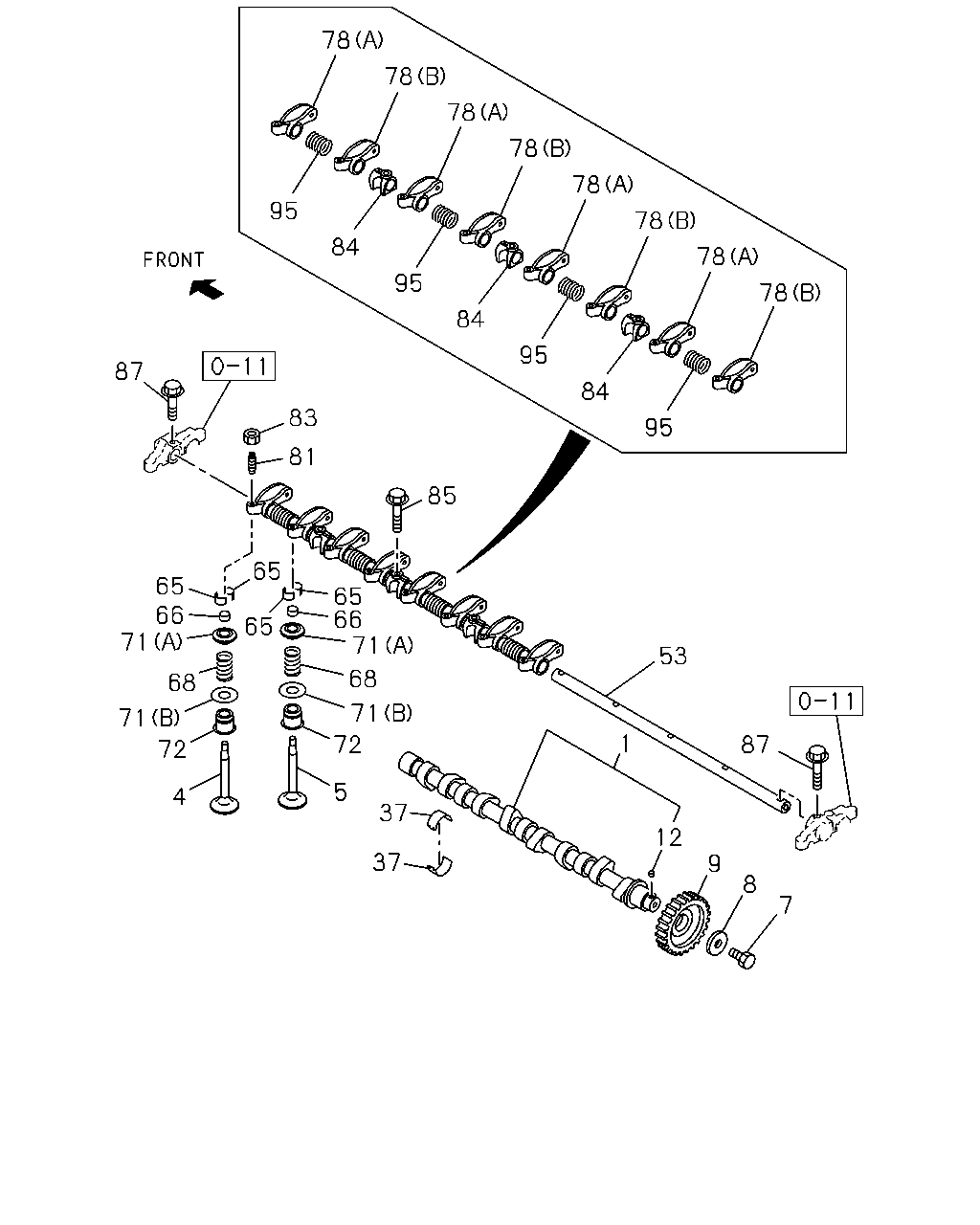

78 78 78 78 78 95 78 84 78 95 78 84 95 87 84 83 95 81 85 65 65 66 71 65 66 71 65 53 68 68 71 71 1 72 87 72 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0810-
4	00.296 VALVE; INL	8-97171-398-0	04	1	0810-
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0810-
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0810-
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0810-
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0810-
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0810-
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0810-
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0810-
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0810-
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0810-
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0810-
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0810-
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0810-
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0810-
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0810-
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0810-
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0810-
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0810-
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0810-
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0810-1405
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	1406-
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0810-1405
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1406-
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0810-
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0810-
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0810-
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0810-
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0810-1405
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	04	1	1406-
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0810-
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0810-
