Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#5163) — 45 parça
◀
[710A] NO.2 (11 parça)
[710A] NO.3 (6 parça)
[710A] NO.1 (10 parça)
[710A] NO.4 (16 parça)
[710A] NO.5 (2 parça)
▶
1
49
87
60
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

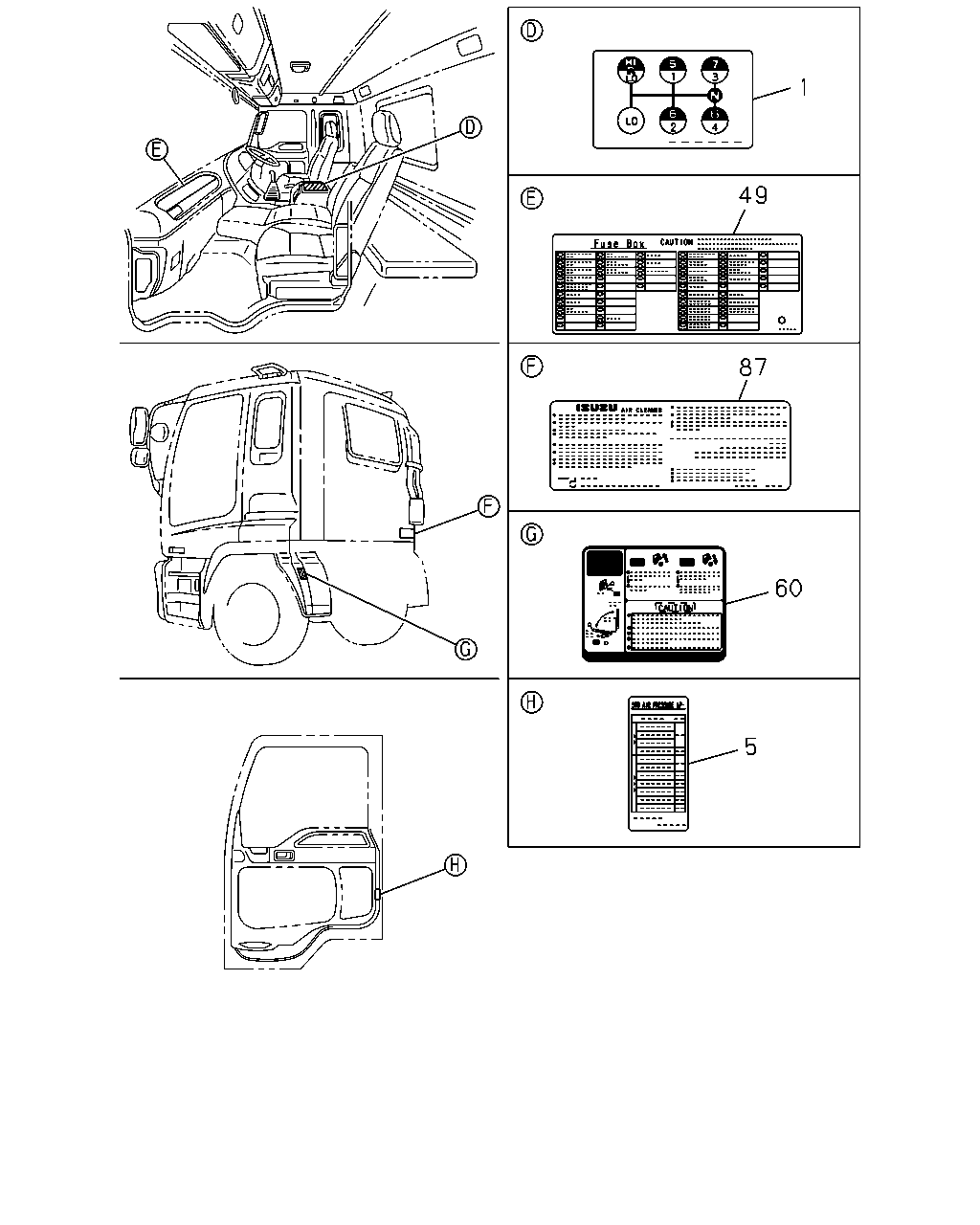

1
PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTL0147 13 OD(Y2P)
1-85881-519-0
01
1
9606-9804
1
PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTL0147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M)
1-85881-519-0
01
1
9805-9905
1
PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S)
1-85881-519-0
01
1
9906-9906
1
PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C)
1-85881-519-0
01
1
9907-
5
LABEL; TIRE AIR PRESSURE
1-85880-724-2
01
1
9606-0009
5
LABEL; TIRE AIR PRESSURE
1-85880-763-0
01
1
0010-0104
5
LABEL; TIRE AIR PRESSURE
1-85880-764-0
01
1
0105-
49
PLATE; CAUTION,FUSE BOX
1-85888-685-3
01
1
9606-9905
49
PLATE; CAUTION,FUSE BOX
1-85878-067-4
01
1
9906-
60
PLATE; CAUTION,CAB TILT
1-85883-174-0
01
1
9606-
87
PLATE; CAUTION,A/C FILTER
L TYPE ENG<90L>
1-85886-796-0
01
1
9606-9905
58
58
58
58
48
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

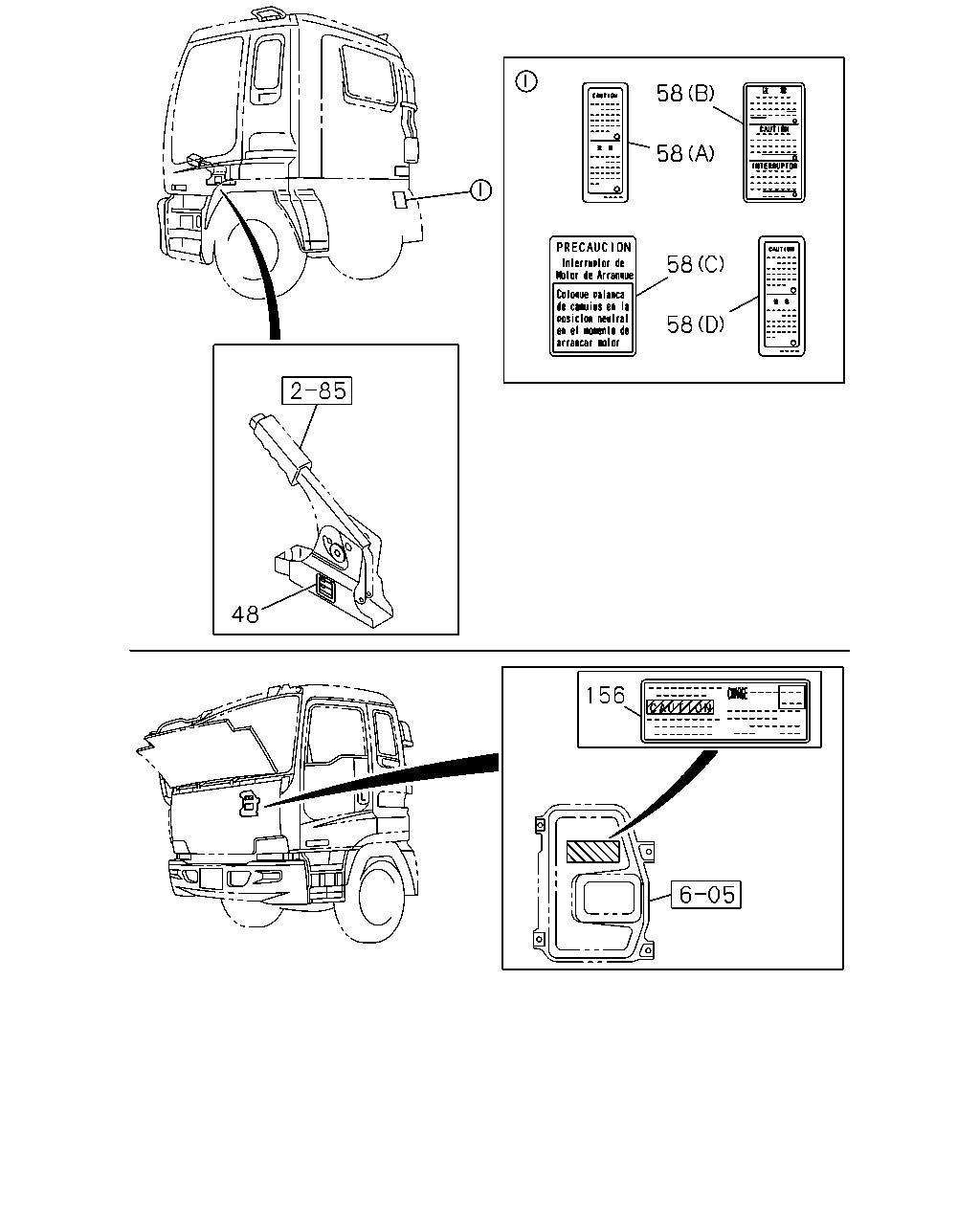

48
PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4>
1-85881-254-0
01
1
9606-
58
PLATE; CAUTION,ENG START
(B)
1-85887-457-0
01
1
9606-
58
PLATE; CAUTION,ENG START
(A)
1-85887-535-0
01
1
9606-9606
58
PLATE; CAUTION,ENG START
(D)
1-85887-536-0
01
1
9606-9606
58
PLATE; CAUTION,ENG START
(C)
9-83999-419-0
01
1
9606-9606
156
PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97105-399-0
01
1
9610-
74
51
74
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

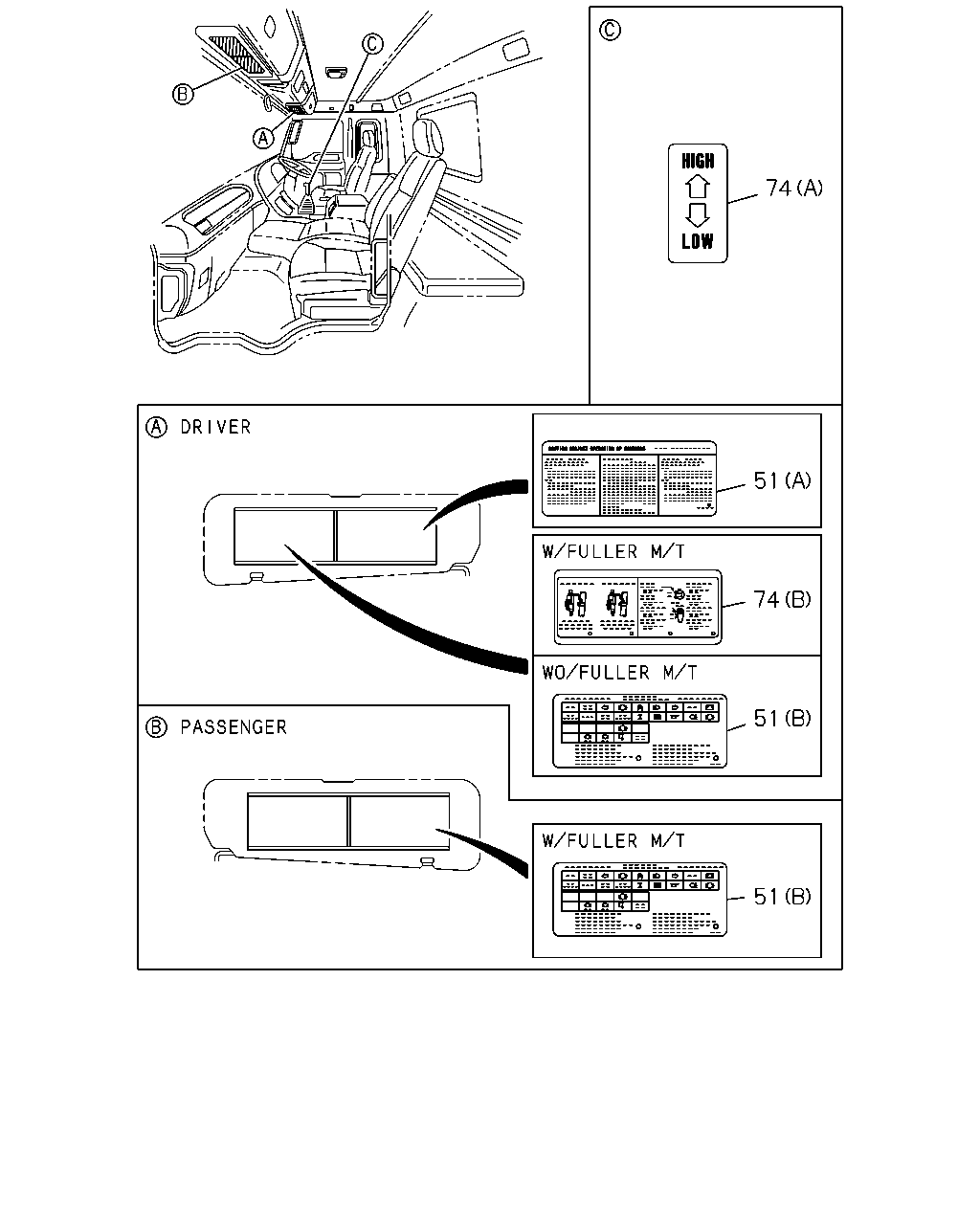

51
PLATE; CAUTION,WARNING
(A)
1-85880-725-0
01
1
9606-
51
PLATE; CAUTION,WARNING
(B)
1-85888-688-2
01
1
9606-9905
51
PLATE; CAUTION,WARNING
(B)
1-85878-073-0
01
1
9906-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO167 18 OD(Y3M) (B)
1-85881-786-0
01
1
9804-9905
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S) (B)
1-85881-786-0
01
1
9906-9906
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (B)
1-85881-786-0
01
1
9907-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) (B)
1-85881-617-0
01
1
9606-9905
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q) (B)
1-85881-617-0
01
1
9906-
74
PLATE; CAUTION,CHANGE LEV
ZF M/T<X9E> (A)
1-85881-736-1
01
1
9606-9905
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) (A)
1-85881-736-1
01
1
9906-
4
173
135
7
144
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
LABEL; ENG MAINTENANCE
6WA1 TC-S(56L)
1-85886-802-0
01
1
9606-9609
4
LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) EXC. EURO2 SPECIFICATION<THN>
1-85886-802-0
01
1
9610-9905
4
LABEL; ENG MAINTENANCE
6WA1 TC-S(56L)
1-85886-802-0
01
1
9906-
4
LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN>
1-85886-840-0
01
1
9610-9905
4
LABEL; ENG MAINTENANCE
6WA1 TC-C(55L)
1-85886-840-0
01
1
9906-
4
LABEL; ENG MAINTENANCE
6WG1 TC-N(71L)
1-85886-863-0
01
1
9707-9905
4
LABEL; ENG MAINTENANCE
6WG1 TC-C(72L)
1-85886-863-0
01
1
9906-
7
LABEL; EMISSION
10PE1N(61L)
8-94391-418-0
01
1
9906-
135
PLATE; CAUTION,ENGINE
10PE1S(60L)
1-85886-804-0
01
1
9606-9606
135
PLATE; CAUTION,ENGINE
10PE1S(60L) EXC. RLD GOVERNOR(SD7)
1-85886-804-0
01
1
9702-9905
135
PLATE; CAUTION,ENGINE
10PE1S(60L) RLD GOVERNOR(SD7)
1-85886-826-0
01
1
9702-9801
135
PLATE; CAUTION,ENGINE
10PE1S(60L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>
1-85886-826-0
01
1
9802-9905
135
PLATE; CAUTION,ENGINE
10PE1N(61L)
1-85886-826-0
01
1
9906-
144
PLATE; CAUTION,CLU
TRANSMISSION-ZF 16S151 OD(Y2N)
1-85888-690-0
01
1
9606-
173
PLATE; CAUTION,FUEL FILTER
10PE1S(60L)
1-85886-176-0
01
1
9606-9905
173
PLATE; CAUTION,FUEL FILTER
10PE1N(61L)
1-85886-176-0
01
1
9906-
6
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53639-004-0
01
1
9606-
228
PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7>
1-85887-935-0
01
1
9606-
