◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#51624) — 80 parça
çizim 59494
151 154
BalonParca AdiParca NoAdetTipApplied Date
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0810-
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0810-

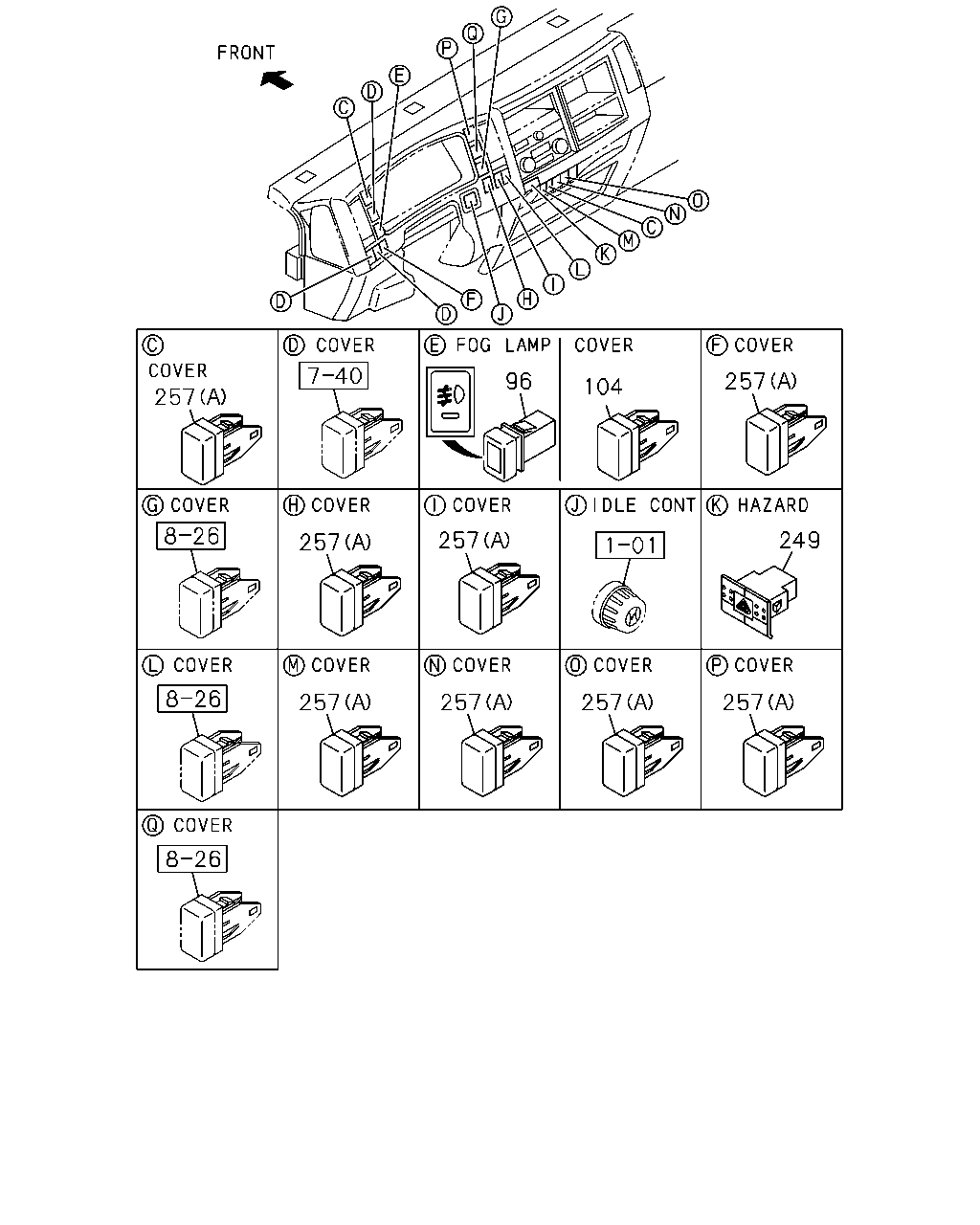

çizim 59495
257 257 96 104 249 257 257 257 257 257 257
BalonParca AdiParca NoAdetTipApplied Date
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0810-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0810-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0810-
257 16.081 COVER; HOLE,SW
(A) 		8-98029-914-1 01 1 0908-0908
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(B) 		8-98029-917-0 01 1 0810-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912

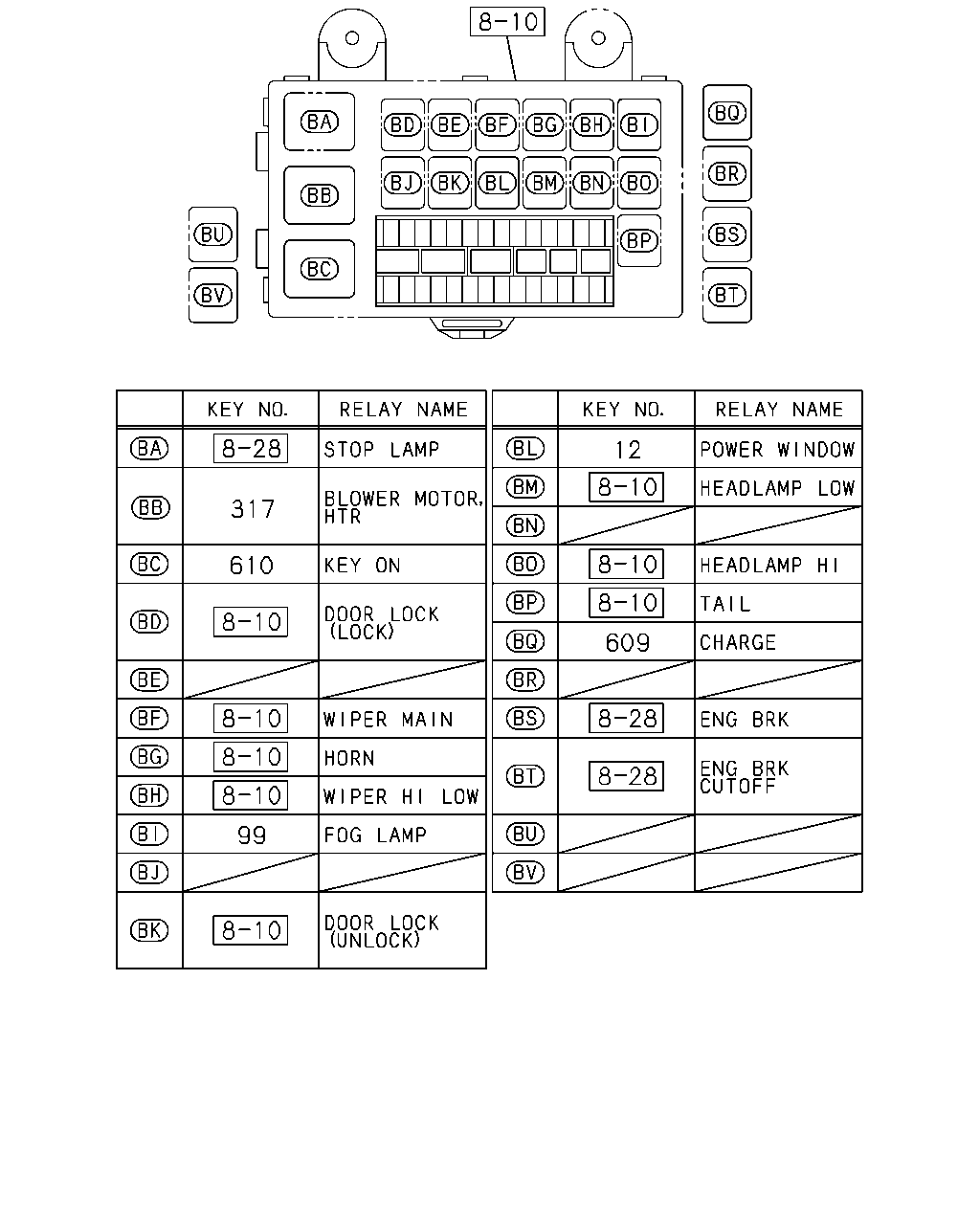

çizim 59540
12 317 610 609 99
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0810-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0810-
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0810-
609 02.485 RELAY; CHARGE
EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0810-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0810-

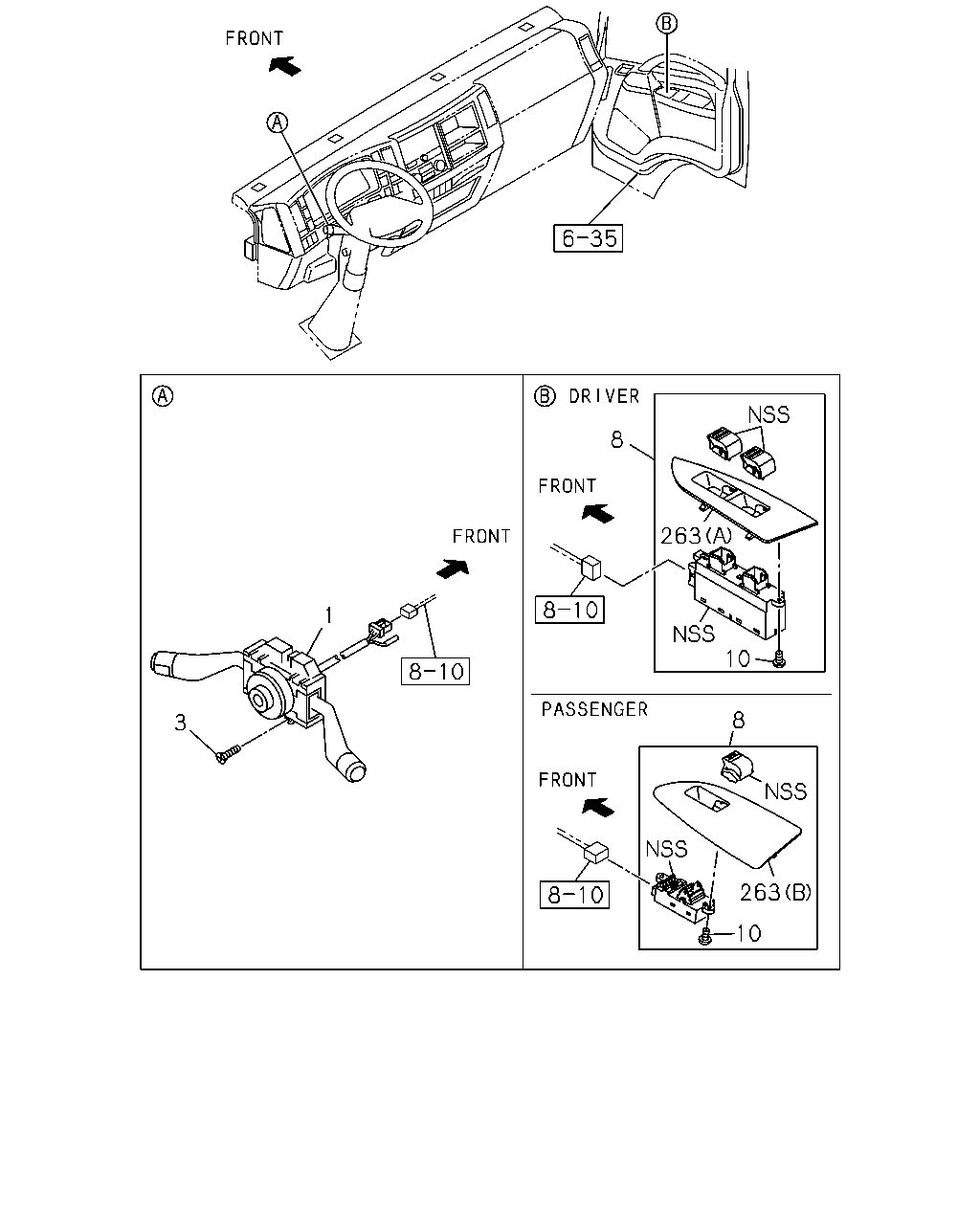

çizim 59567
8 263 1 10 8 3 263 10
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98114-334-1 01 1 0810-1310
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1311-
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 0810-1211
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1212-1310
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1311-
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 0810-1310
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1311-
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 0810-1211
1 02.895 SWITCH; COMB
CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1212-1310
1 02.895 SWITCH; COMB
CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1311-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0810-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 0810-1211
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97387-034-2 01 1 1212-1301
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1302-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98003-784-1 01 1 0810-0810
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98129-845-0 01 1 0810-1001
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1002-1211
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98159-543-0 01 1 1212-1301
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1302-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510-
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0810-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 0810-1211
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 1212-1301
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1302-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 0810-1211
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 1212-1301
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1302-
çizim 101334
29 30 257
BalonParca AdiParca NoAdetTipApplied Date
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0810-
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0810-
257 16.081 COVER; HOLE,SW
(A) 		8-98029-914-1 01 1 0908-0908
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-
257 16.081 COVER; HOLE,SW
(B) 		8-98029-917-0 01 1 0810-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0810-0912

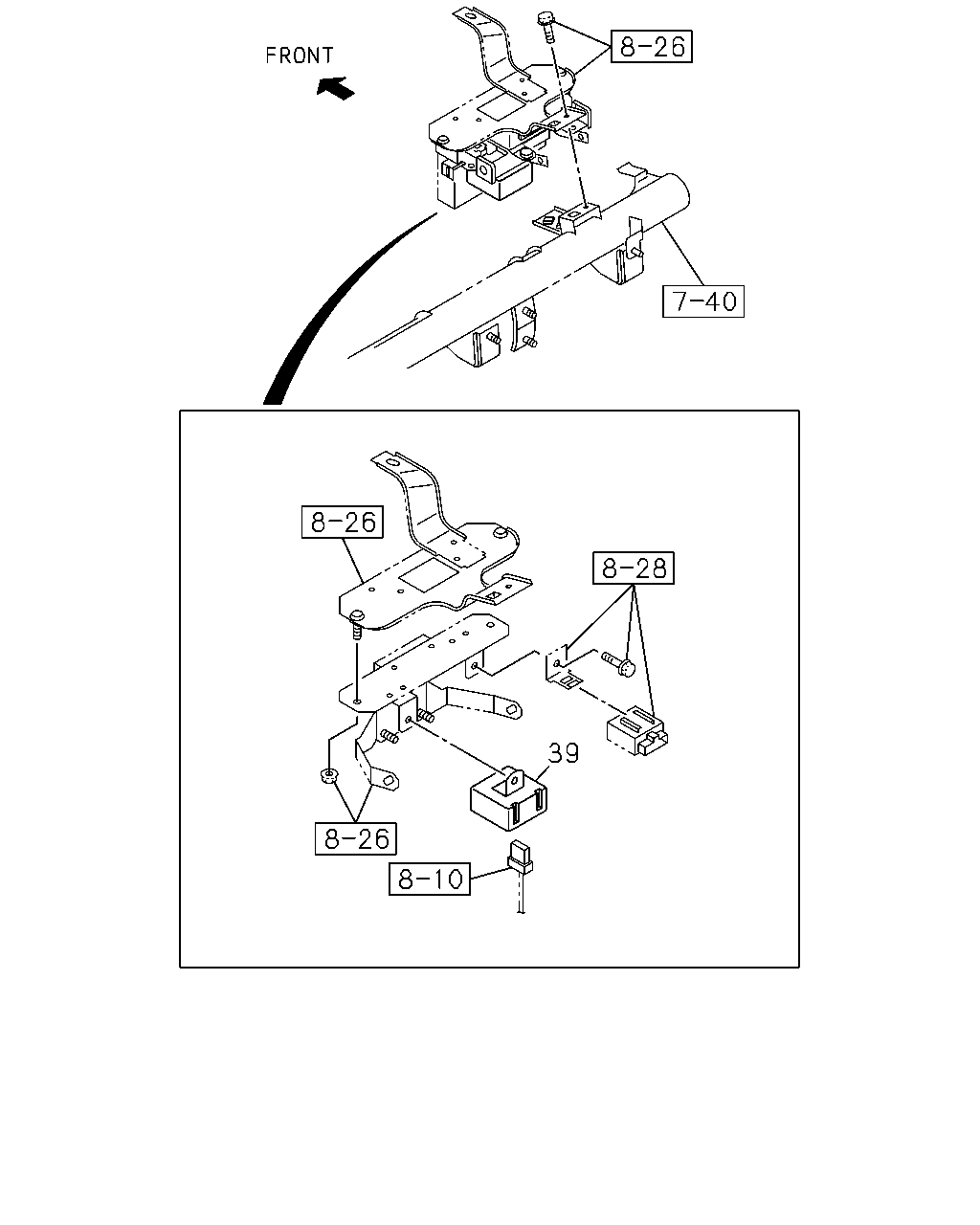

çizim 101370
39
BalonParca AdiParca NoAdetTipApplied Date
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0810-

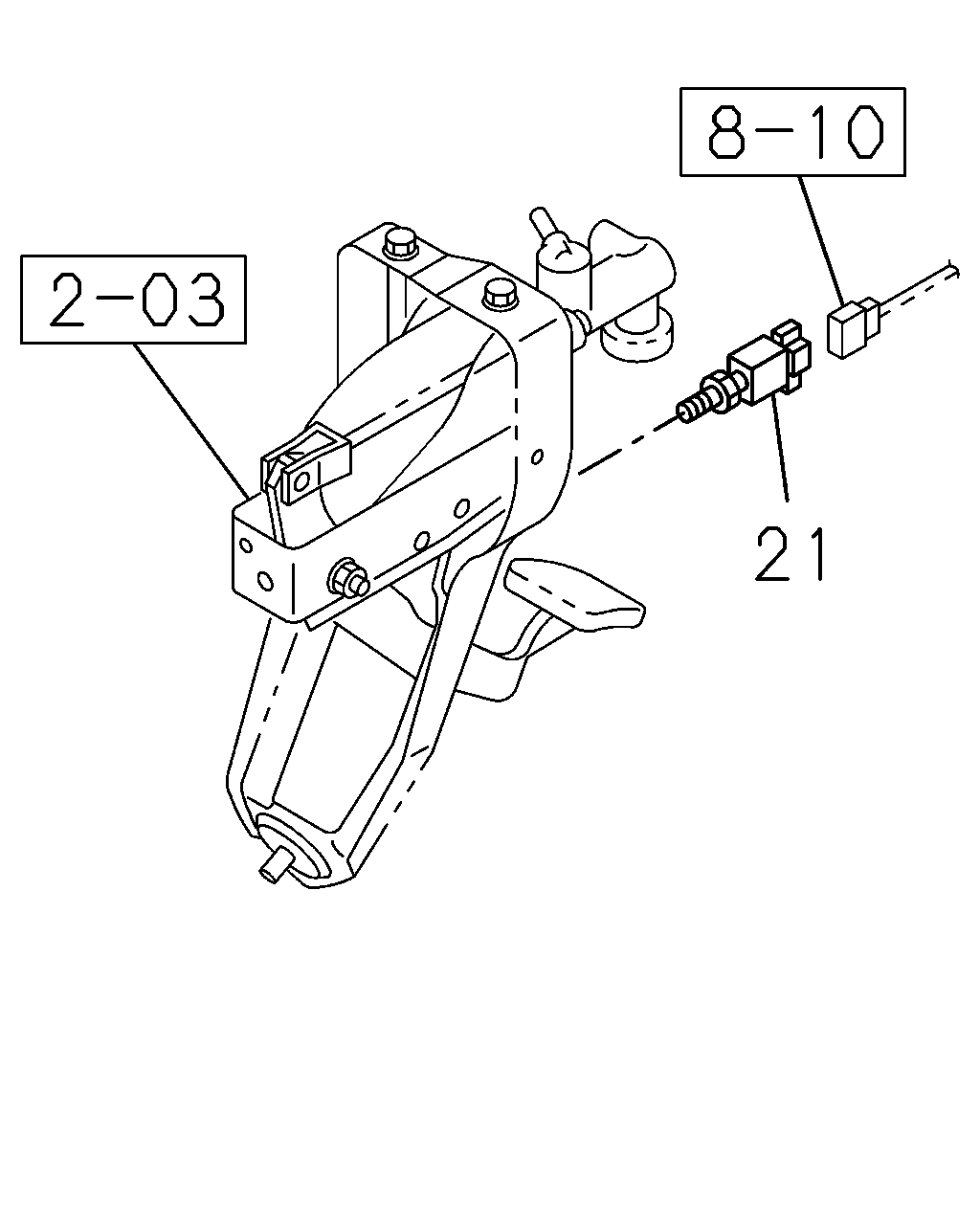

çizim 101372
21
BalonParca AdiParca NoAdetTipApplied Date
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0810-
