◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#51623) — 27 parça

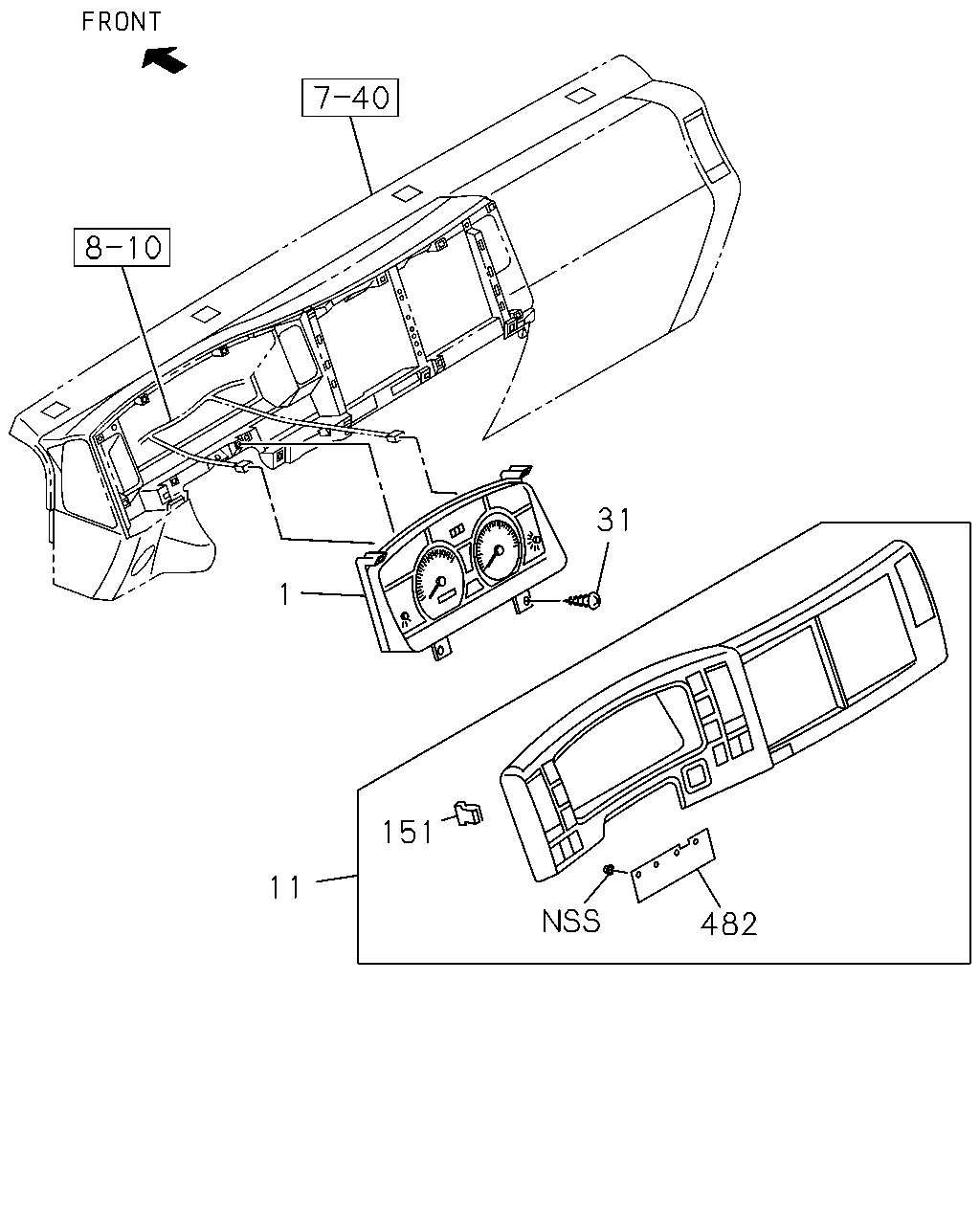

çizim 59536
31 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98126-678-2 01 1 0810-
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> 		8-98115-972-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(GH3), SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 0810-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 0810-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0810-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 0810-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 0810-

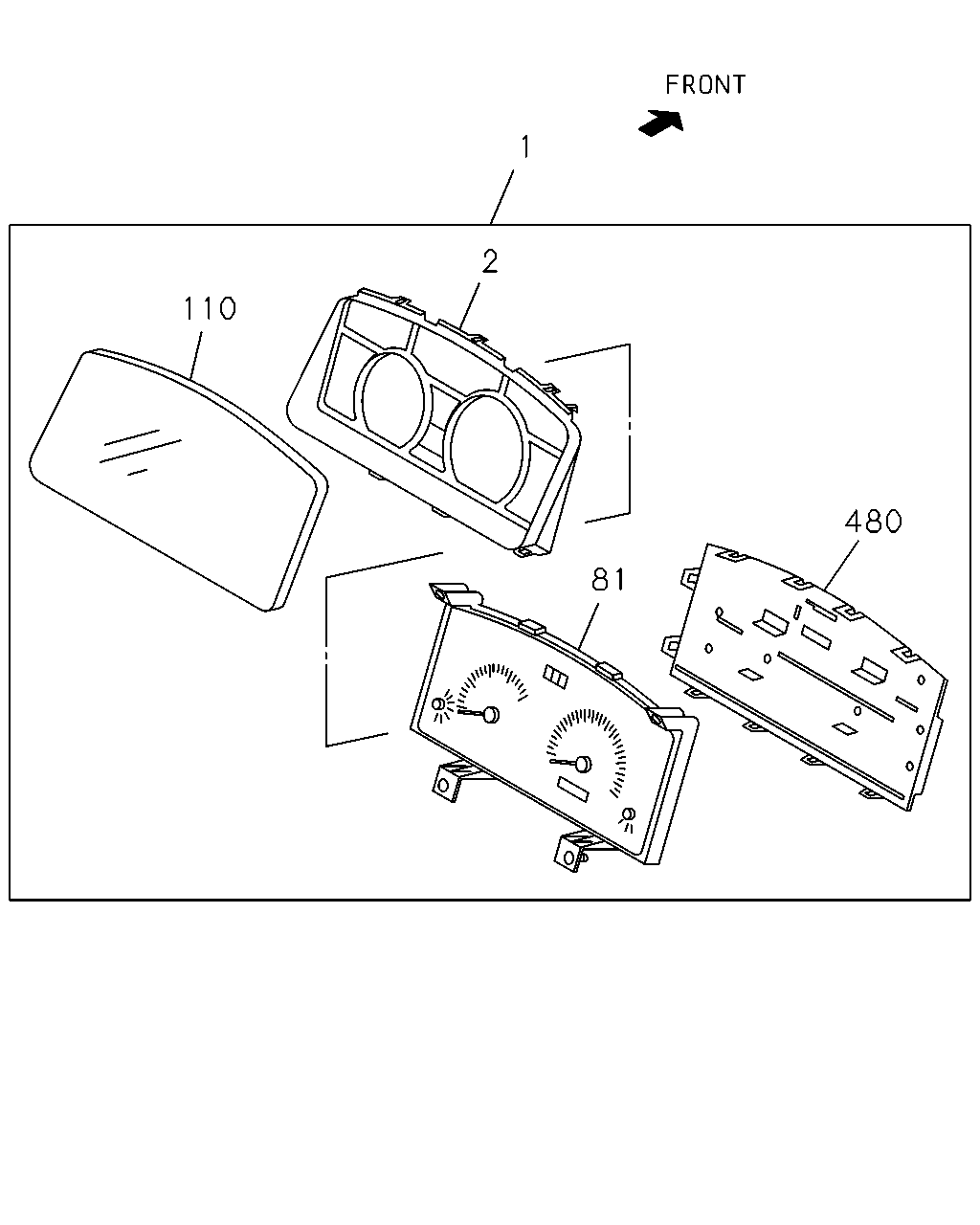

çizim 59615
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98126-678-2 01 1 0810-
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> 		8-98115-972-3 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(GH3), SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 0810-
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 0810-0905
2 09.735 PANEL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98054-432-0 01 1 0810-0905
2 09.735 PANEL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98054-432-0 01 1 0906-
2 09.735 PANEL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 0906-
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98126-835-0 01 1 0810-
81 09.735 METER SUB ASM
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> 		8-98118-375-0 01 1 0810-
81 09.735 METER SUB ASM
EXC. SAUDI ARABIA EQUIPMENT(GH3), SPEEDOMETER MILE<UC1> 		8-98107-762-0 01 1 0810-
110 09.748 GLASS; CLUSTER METER
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 0810-0905
110 09.748 GLASS; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98054-431-0 01 1 0810-0905
110 09.748 GLASS; CLUSTER METER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98054-431-0 01 1 0906-
110 09.748 GLASS; CLUSTER METER
EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 0906-
480 09.748 COVER; METER
SAUDI ARABIA EQUIPMENT(GH3) EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 0810-0905
480 09.748 COVER; METER
EXC. SAUDI ARABIA EQUIPMENT(GH3) BLACK 		8-98054-433-0 01 1 0810-0905
480 09.748 COVER; METER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(GH3) BLACK 		8-98054-433-0 01 1 0906-
480 09.748 COVER; METER
EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 0906-
