8-15 — FIXING PARTS; WIRING HARNESS (#51622) — 145 parça

53 515 139 53 139 53 53 53 515 53 480 515 53 53 53 53 480 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

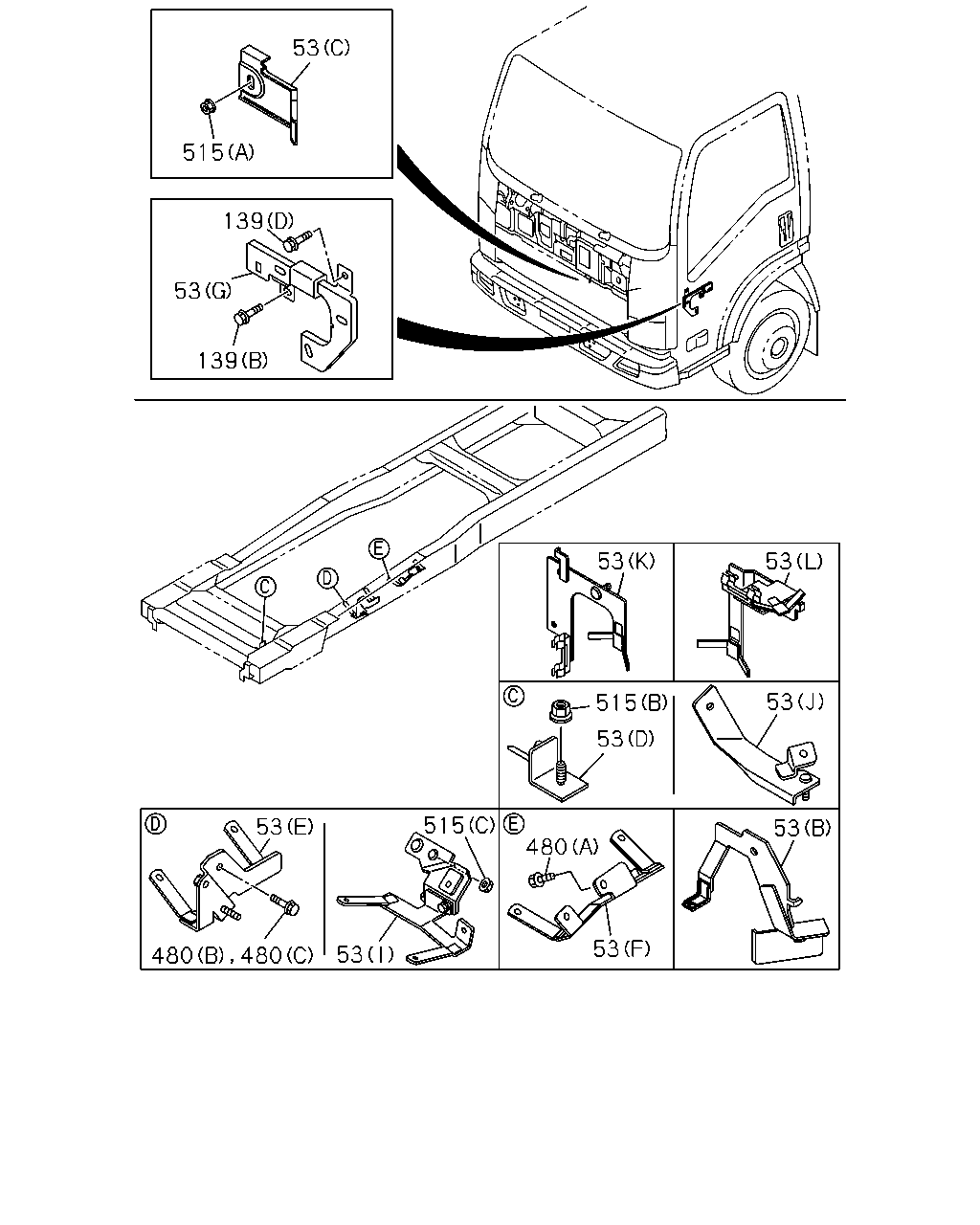

53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) (L)	8-98126-491-0	01	1	0810-
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) (K)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (B)	8-98123-409-1	01	1	0810-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	0810-1301
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	0810-1301
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1302-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0810-
53	02.483 BRACKET; HARNESS (J)	8-98111-813-0	01	1	0810-1309
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (J)	8-98111-813-0	01	1	1310-
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (J)	8-98111-813-0	01	1	1310-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0810-
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	0810-1301
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1302-
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	0810-1301
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1302-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0810-1301
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-1309
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-1301
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-1301
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1302-
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1302-

16 16 22 48 16 488 48 483 488 16 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

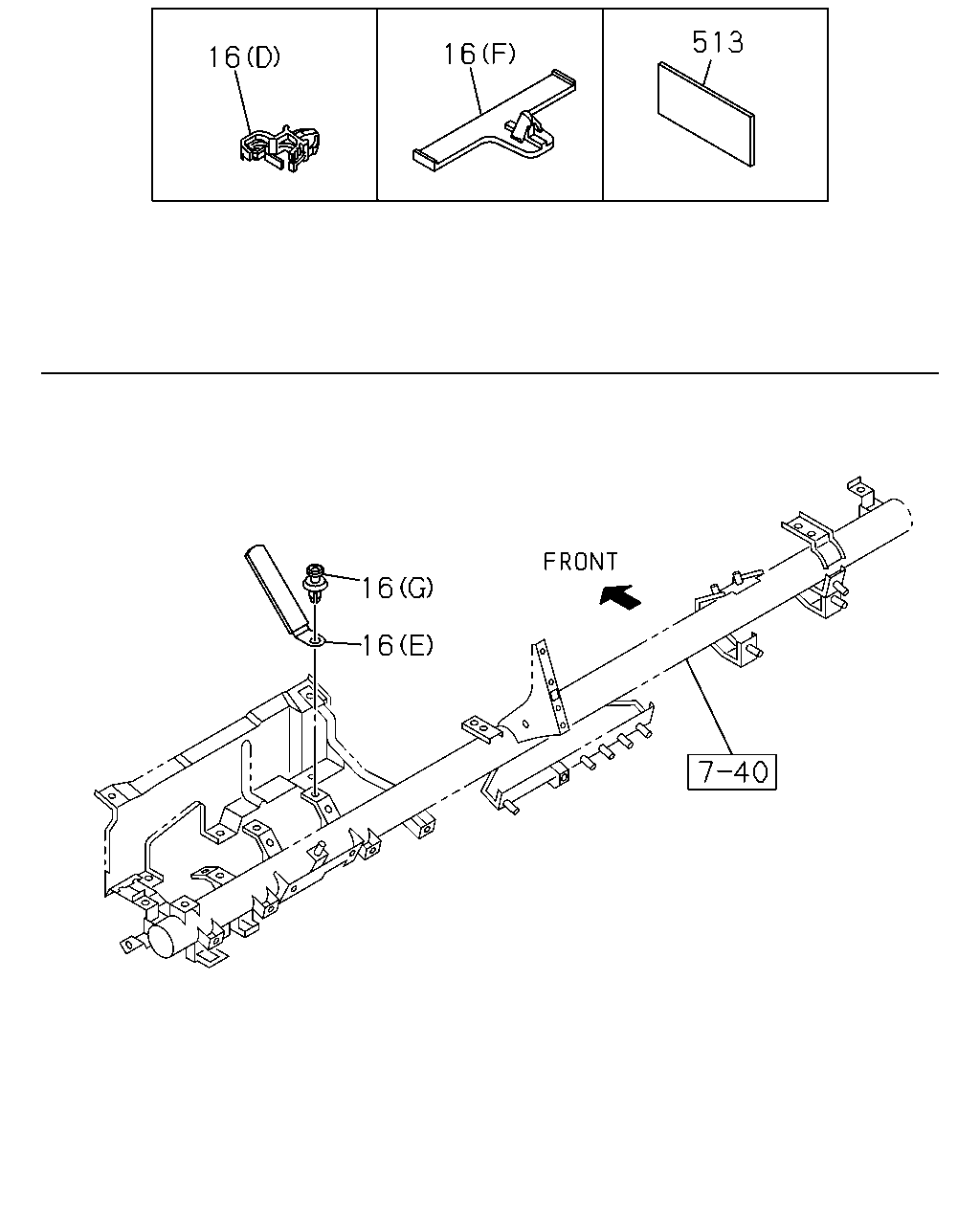

16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	0810-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	0810-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0810-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0810-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0810-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0810-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0810-
22	02.559 CLIP; ENG HARNESS L=170.3	1-09987-182-0	01	1	0811-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	05	1	0810-
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	0810-
48	02.559 CLIP; FRAME HARNESS EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0810-0810
48	02.559 CLIP; FRAME HARNESS EXC. EXHAUST BRAKE<NF8> 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0810-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0810-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	0810-
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0810-
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (A) L=112	8-94232-618-0	04	1	0810-
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (A) L=112	8-94232-618-0	05	1	0810-0810
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.587 (A) L=112	8-94232-618-0	05	1	0810-
488	02.559 CLIP; CABLE,TRAILER EXC. FRAME-KICK UP<7EW> (B) L=250	5-09707-030-1	04	1	0810-0810
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6>,FRAME-KICK UP<7EW> (B) L=250	5-09707-030-1	01	1	0810-

513 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	0810-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	0810-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0810-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0810-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0810-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0810-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0810-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0810-

459 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

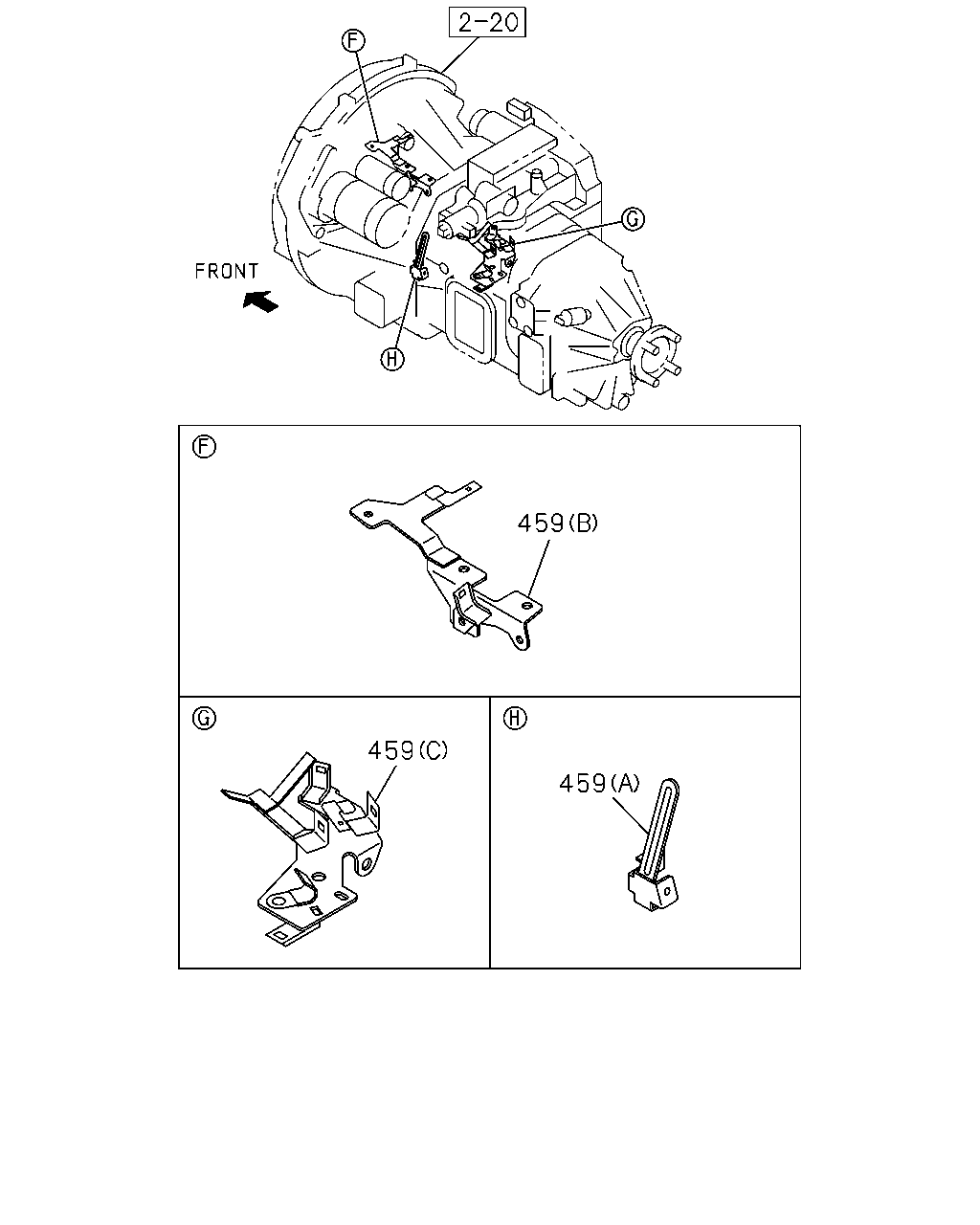

459	02.483 BRACKET; SUPPORT,HARNESS 03.452 (A)	8-97172-882-0	01	1	0810-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98123-282-0	01	1	0810-
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98123-286-1	01	1	0810-

139 53 53 139 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) (L)	8-98126-491-0	01	1	0810-
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) (K)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (B)	8-98123-409-1	01	1	0810-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	0810-1301
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	0810-1301
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1302-
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1302-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0810-
53	02.483 BRACKET; HARNESS (J)	8-98111-813-0	01	1	0810-1309
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (J)	8-98111-813-0	01	1	1310-
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (J)	8-98111-813-0	01	1	1310-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0810-
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	0810-1301
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1302-
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	0810-1301
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1302-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-

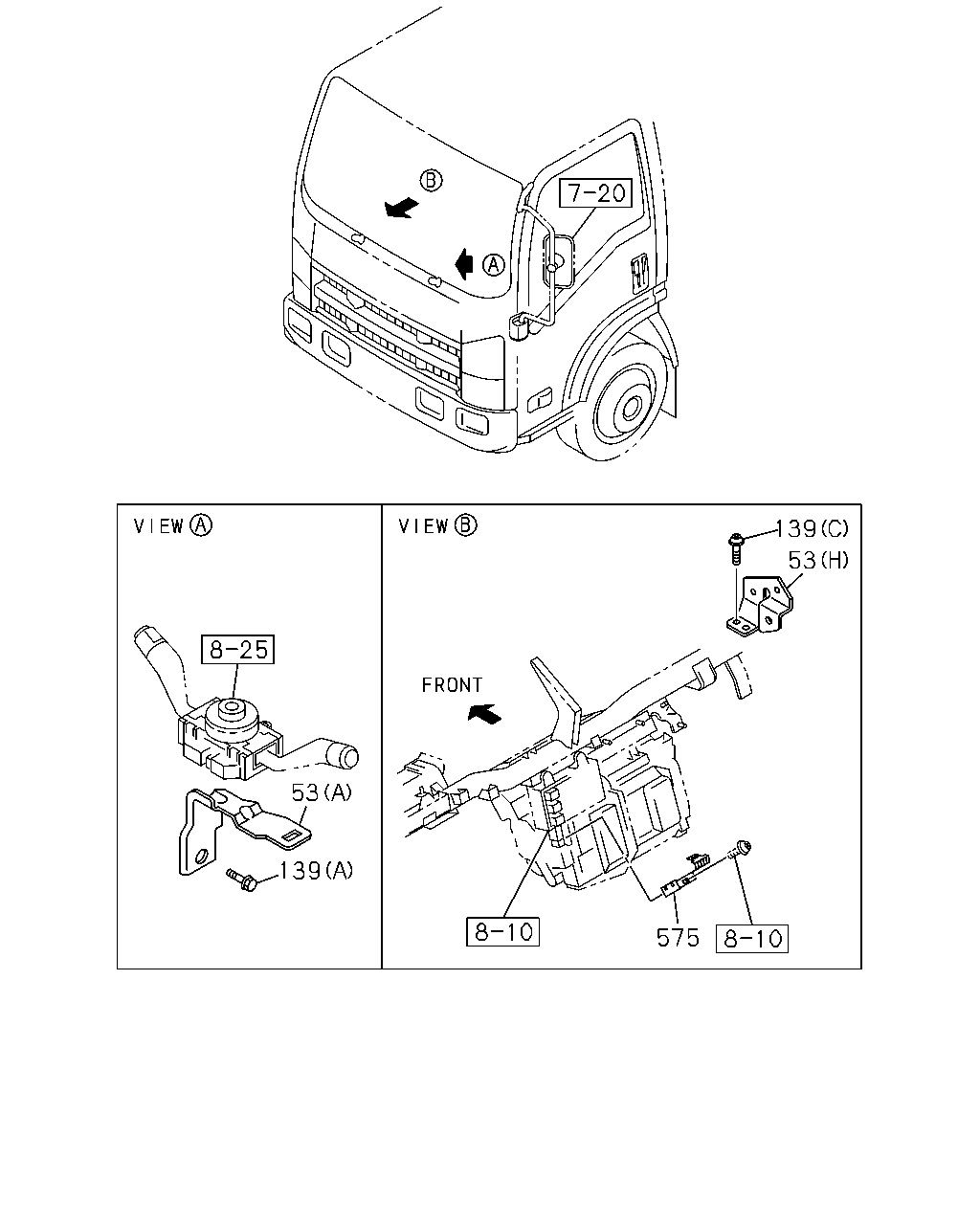

575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	0810-
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0810-

516 139 38 139 480 139 480 460 480 529 377 377 386 377 386 386 386 24 294 515 577 219 294 515 552 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	0810-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
219	02.559 NUT EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
294	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-0904
294	02.559 NUT 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	0810-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0810-1004
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0810-1301
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-1309
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-1301
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-1301
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1302-
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1302-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0810-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0810-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-
