8-10 — WIRING HARNESS AND FUSE (#51621) — 142 parça

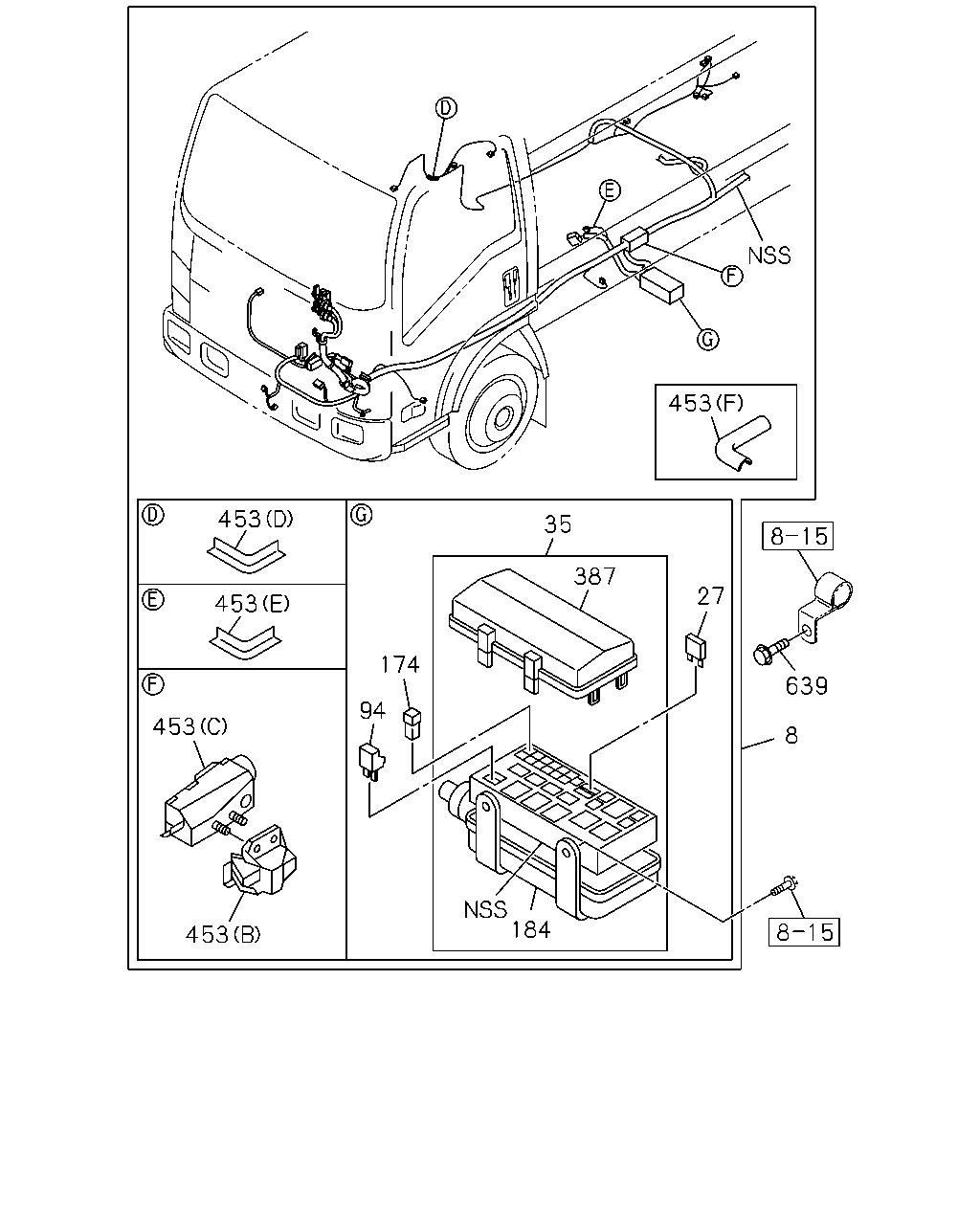

çizim 59571
27 639 8 184 387 35 174 94 453 453 453 453 453
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98234-907-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98234-907-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-869-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98293-869-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98234-909-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98293-871-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98234-906-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98234-906-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-868-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98293-868-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98234-908-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98293-870-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98156-019-2 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98156-019-3 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98293-867-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98156-018-2 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98156-018-3 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98293-866-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98123-383-6 01 1 0810-1409
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98294-077-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98126-489-3 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 		8-98126-489-5 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98126-489-5 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98126-489-6 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98126-489-6 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-865-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-865-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98106-298-4 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 		8-98106-298-6 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98106-298-6 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98106-298-7 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98106-298-7 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-864-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-864-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0810-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0810-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 02 1 0810-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 AR 1 0810-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0810-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (F) 		8-94482-169-0 01 1 0810-1409
453 02.483 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 1410-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 0810-1409
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 0810-
639 08.900 BOLT; CLIP
EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-0810
639 08.900 BOLT; CLIP
EXC. EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-

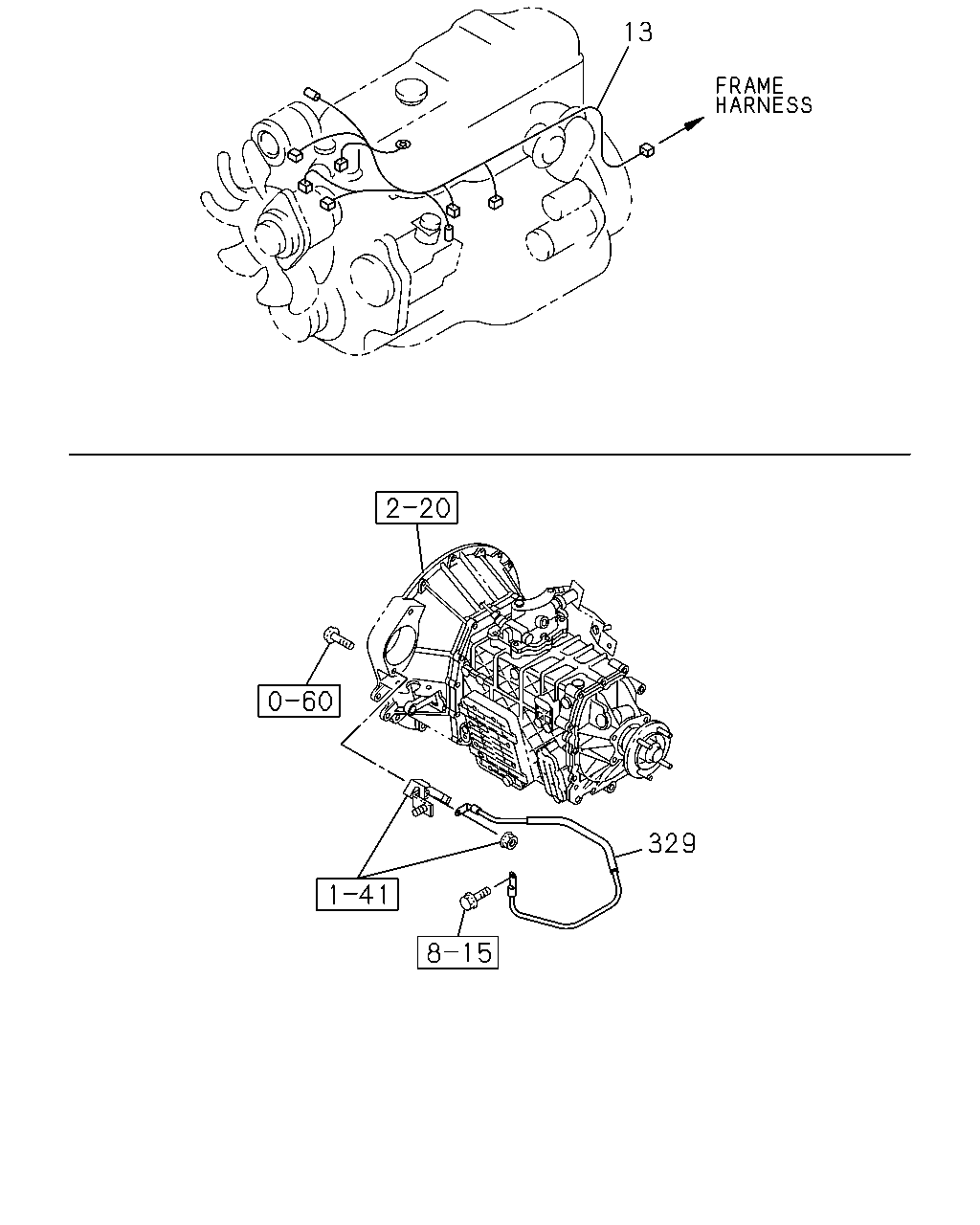

çizim 59573
13 329
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG 8-97356-988-1 01 1 0810-
329 02.480 CABLE; ENG TO FRAME
HEAVY DUTY FRAME<6WB> 		8-98174-803-0 01 1 1302-
329 02.480 CABLE; ENG TO FRAME 8-98124-724-0 01 1 0810-1106
329 02.480 CABLE; ENG TO FRAME 8-98140-006-0 01 1 1107-1301
329 02.480 CABLE; ENG TO FRAME
EXC. HEAVY DUTY FRAME<6WB> 		8-98140-006-0 01 1 1302-

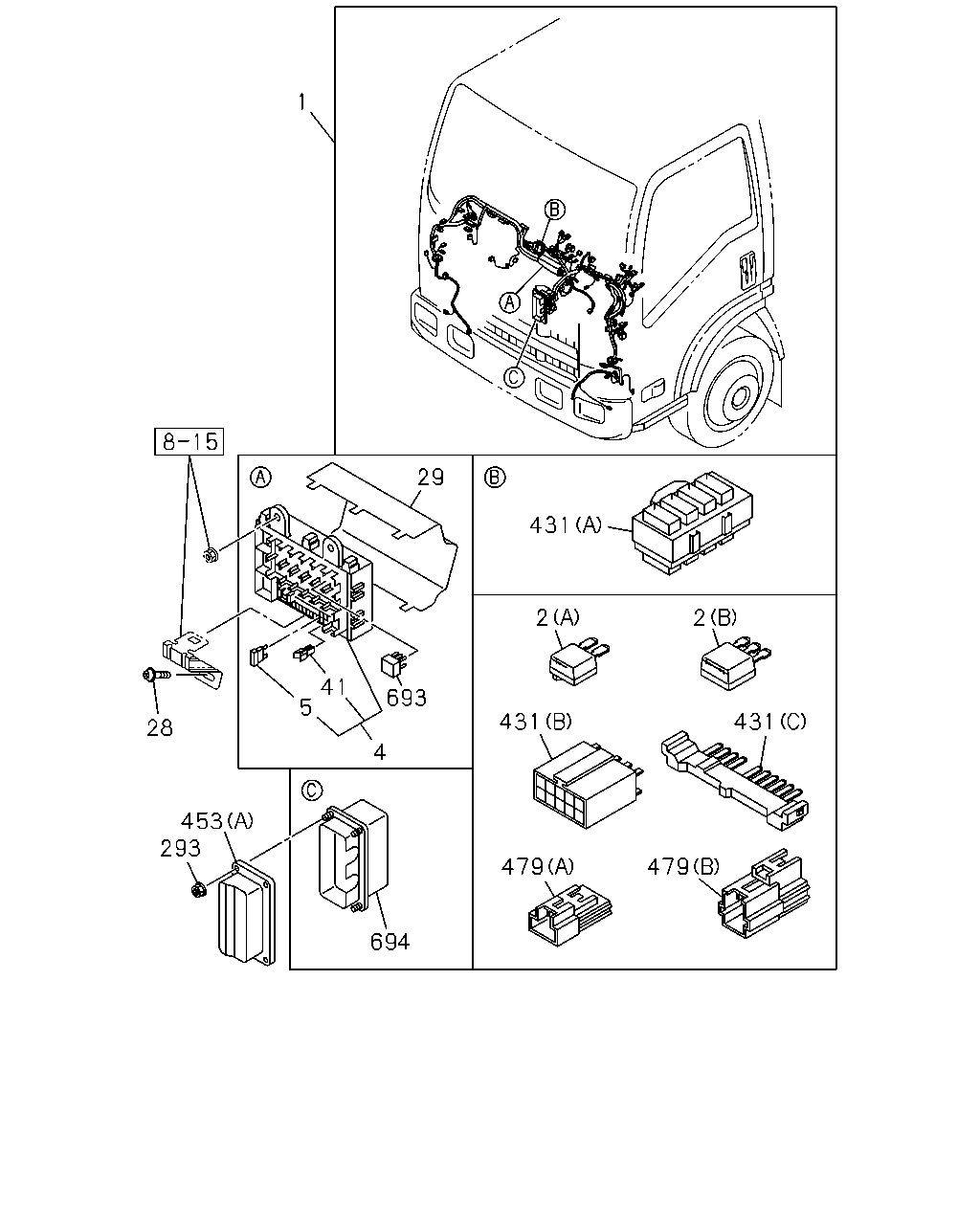

çizim 59598
1 29 431 2 2 41 5 693 431 431 28 4 453 293 479 479 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-056-0 01 1 1504-
1 02.480 HARNESS; CAB
EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-775-0 01 1 1504-
1 02.480 HARNESS; CAB 8-98105-322-6 01 1 0810-1503
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> 		8-98105-322-6 01 1 1504-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0810-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0810-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0810-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0810-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0810-
431 02.530 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0810-1003
431 02.530 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 02 1 0810-
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-206-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (F) 		8-94482-169-0 01 1 0810-1409
453 02.483 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 1410-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 04 1 0810-1409
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 0810-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0810-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-
694 02.483 BOX ASM; CONNECTOR 8-98057-640-0 01 1 0810-

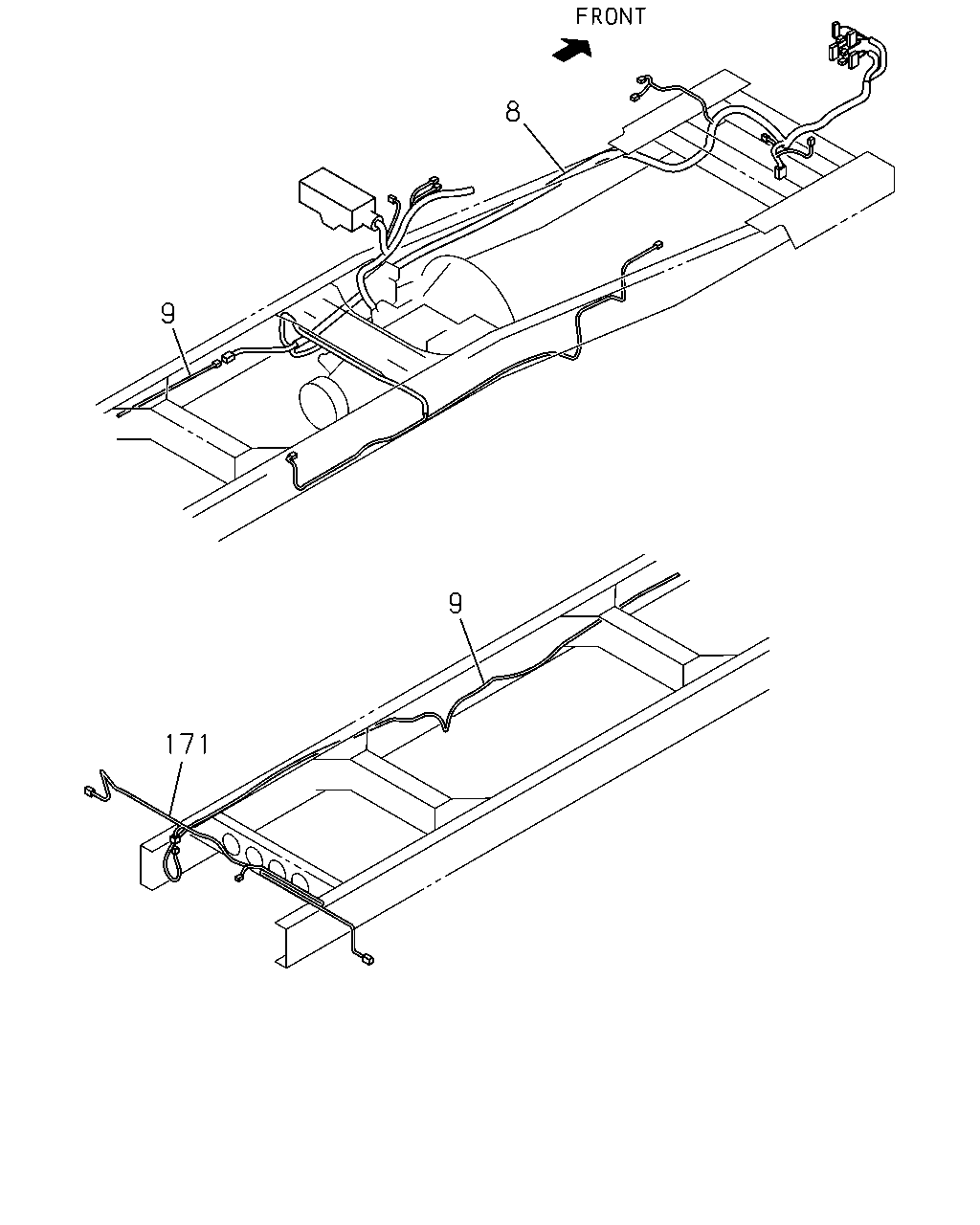

çizim 59599
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98234-907-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98234-907-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-869-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98293-869-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98234-909-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98293-871-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98234-906-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98234-906-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-868-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98293-868-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98234-908-0 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98293-870-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98156-019-2 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98156-019-3 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98293-867-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,FRAME-KICK UP <7EW> 		8-98156-018-2 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98156-018-3 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR CONDITIONER MANUAL CONT(C60), FUELSEDIMENTER WITH HEATER<6HU>,HEAVY DUTY FR AME<6WB>,FRAME-KICK UP<7EW> 		8-98293-866-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98123-383-6 01 1 0810-1409
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98294-077-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98126-489-3 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 		8-98126-489-5 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98126-489-5 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98126-489-6 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98126-489-6 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-865-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-865-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98106-298-4 01 1 0810-1007
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 		8-98106-298-6 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> 		8-98106-298-6 01 1 1008-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98106-298-7 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98106-298-7 01 1 1302-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR CONDITIONER MANUAL CONT(C60) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-864-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. AIR CONDITIONER MANUAL CONT(C60), HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-864-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98048-412-2 01 1 0810-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98048-422-2 01 1 0810-
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. FRAME-KICK UP<7EW> 		8-98008-095-2 01 1 0810-0911
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. FRAME-KICK UP<7EW> 		8-98156-028-0 01 1 0912-

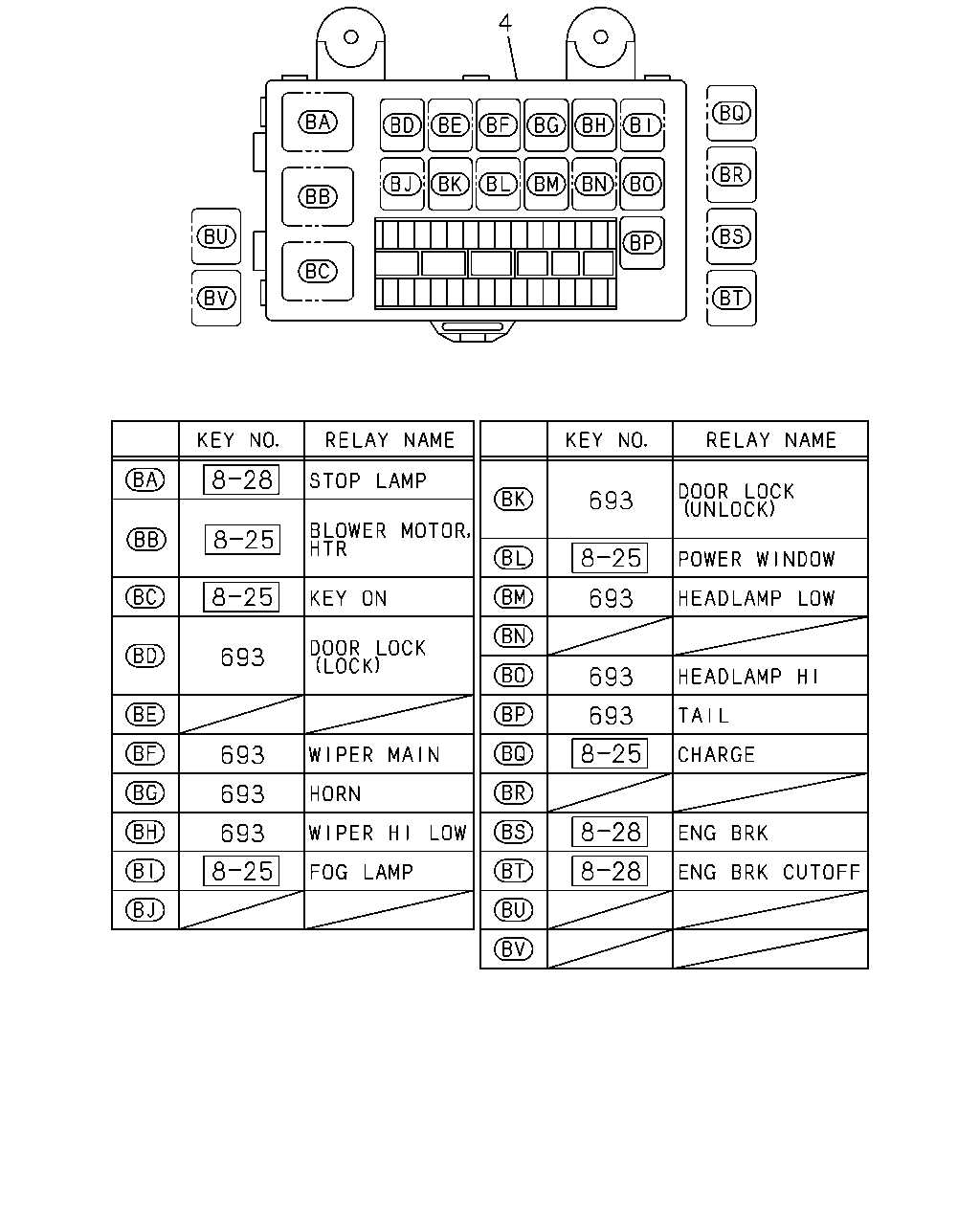

çizim 59619
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-

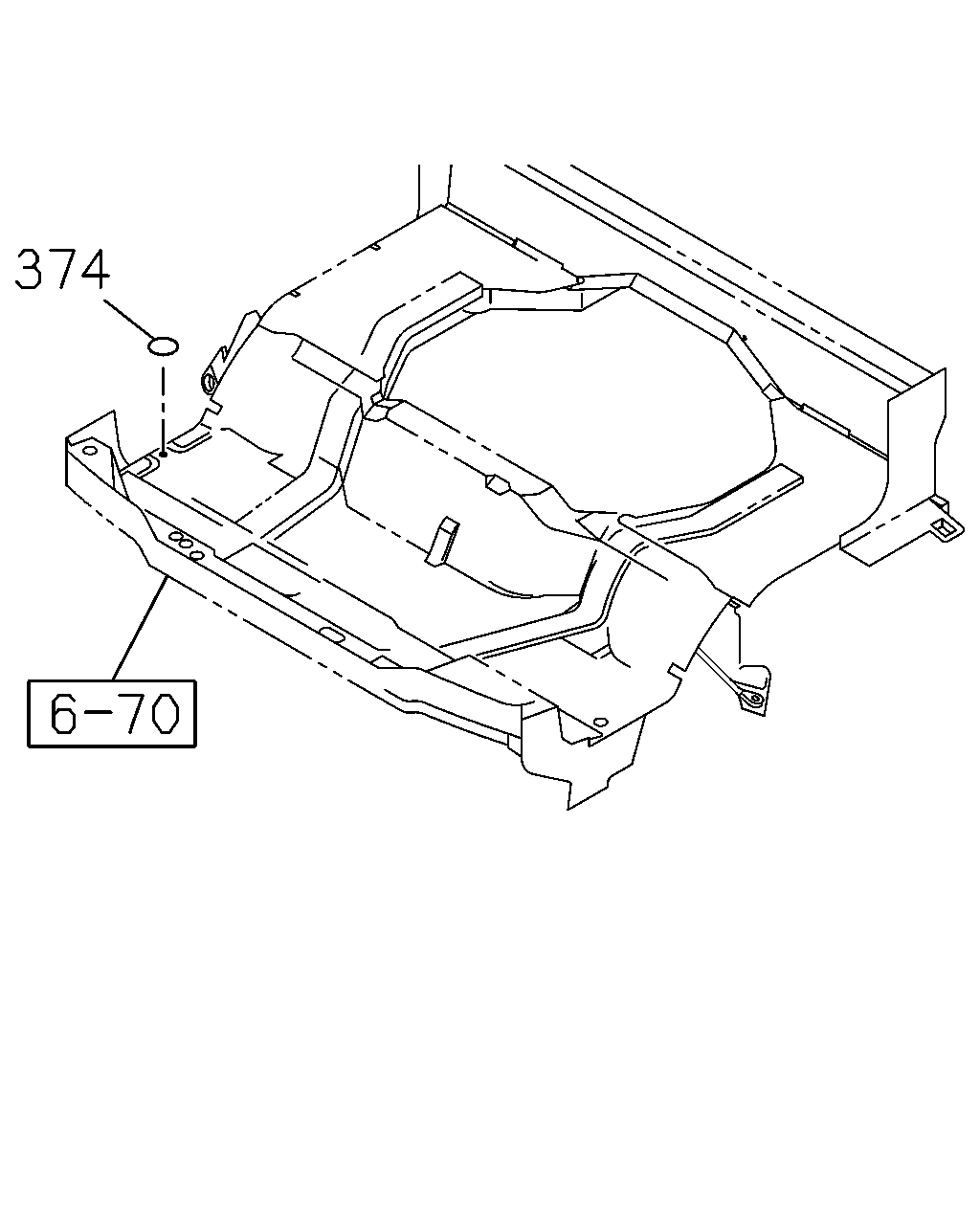

çizim 101332
374
BalonParca AdiParca NoAdetTipApplied Date
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0810-

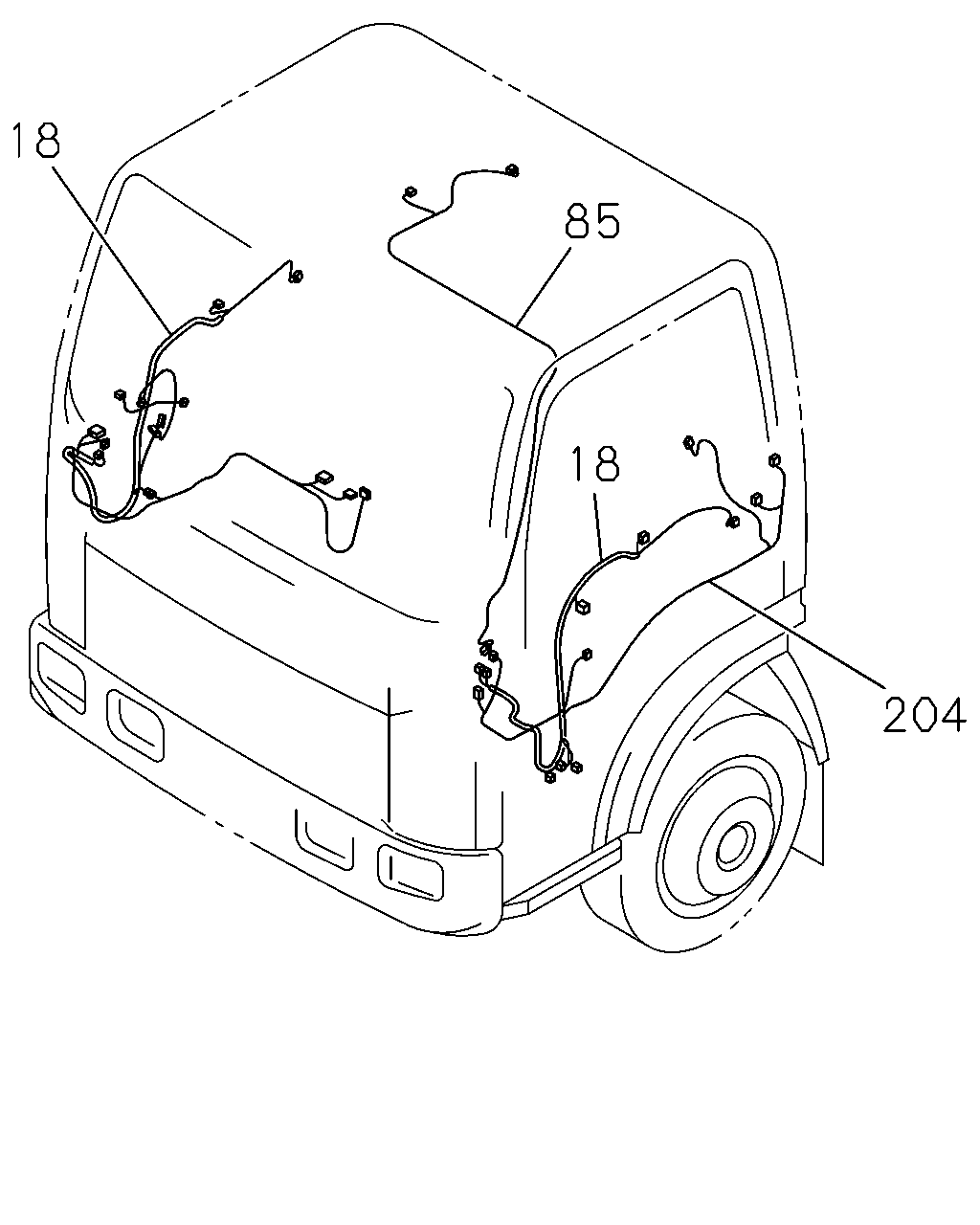

çizim 101333
18 85 18 204
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-592-3 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-600-3 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-080-3 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-088-3 01 1 0810-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-591-2 01 1 0810-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-599-2 01 1 0810-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> FRONT 		8-98071-079-2 01 1 0810-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> FRONT 		8-98071-087-2 01 1 0810-
85 06.495 HARNESS; ROOM LAMP 8-98072-201-2 01 1 0810-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 0810-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
